The fuel pump on a 1997 Ford Ranger is located inside the fuel tank, which is situated beneath the vehicle's bed, typically on the driver's side. Accessing the fuel pump requires removing the fuel tank, a task that involves disconnecting the fuel lines, electrical connectors, and tank straps. This process demands caution due to the flammable nature of fuel and the need to relieve fuel system pressure beforehand. Proper safety measures, such as working in a well-ventilated area and using appropriate tools, are essential to ensure a safe and successful repair or replacement.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removal of the fuel tank for access |
| Tank Removal | Fuel tank must be lowered or removed from the vehicle |
| Tools Needed | Basic hand tools (wrenches, sockets, etc.) |
| Safety Precautions | Relieve fuel system pressure before servicing; work in a well-ventilated area |
| Fuel Pump Type | In-tank electric fuel pump |
| Compatibility | Specific to 1997 Ford Ranger models |
| Additional Notes | Some models may have an access panel for the fuel pump, but most require tank removal |
Explore related products
What You'll Learn
Fuel pump location under the truck bed near the gas tank
The fuel pump on a 1997 Ford Ranger is strategically located under the truck bed, in close proximity to the gas tank. This placement is both practical and efficient, as it minimizes the distance fuel needs to travel from the tank to the engine, reducing the risk of pressure loss and ensuring consistent fuel delivery. Understanding this location is crucial for maintenance tasks, such as replacing a faulty pump or inspecting fuel lines, as it dictates the approach and tools required for the job.

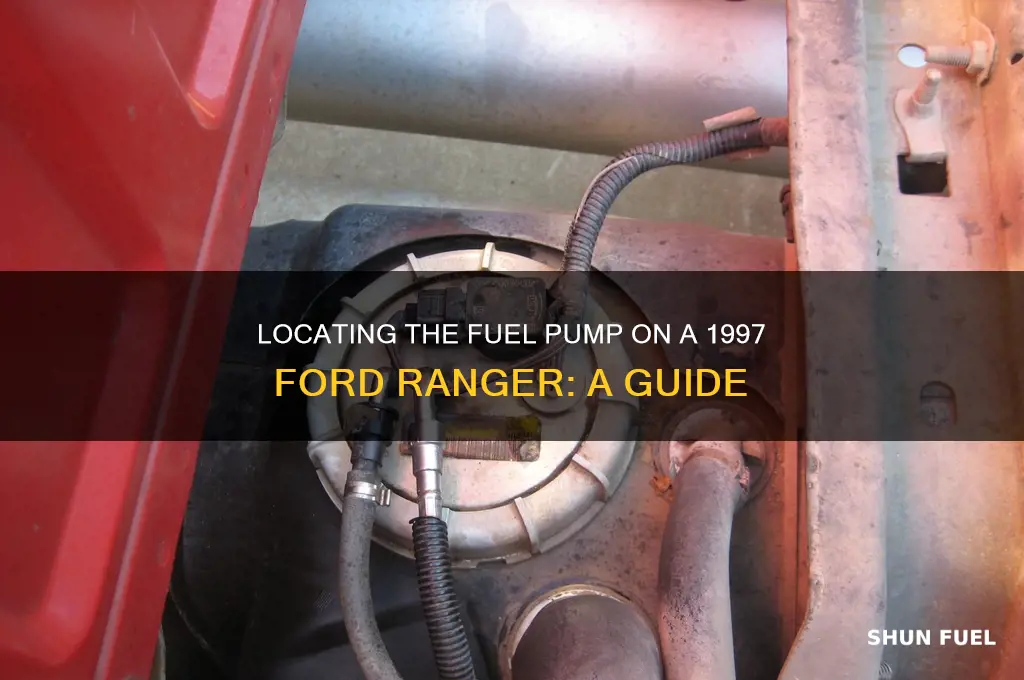

To access the fuel pump, you’ll need to remove a section of the truck bed or work from underneath the vehicle. Start by safely raising the truck and securing it on stands. Locate the gas tank, typically positioned near the rear axle, and identify the fuel pump module attached to the top of the tank. This module houses the pump, sender unit, and often a filter, all of which are critical components for fuel system operation. Be prepared to disconnect electrical connectors and fuel lines, so have the appropriate tools and safety equipment on hand, including a fuel line disconnect tool and safety goggles.
One of the challenges of this location is the potential for fuel spillage during maintenance. To mitigate this, relieve the fuel system pressure before beginning work. This can be done by locating the Schrader valve on the fuel rail and using a pressure gauge to release the pressure. Additionally, work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable. If you’re replacing the pump, ensure the new unit is compatible with your Ranger’s specifications, typically a 2.3L or 3.0L engine, and follow the manufacturer’s torque settings for reinstallation.
Comparing this setup to other vehicles, the 1997 Ford Ranger’s fuel pump location is relatively straightforward, though it requires more effort than in-tank pumps found in newer models. Unlike some vehicles where the pump is buried deep within the tank and requires tank removal, the Ranger’s design allows for easier access without draining the fuel. However, this external placement also exposes the pump to potential damage from road debris or corrosion, making regular inspections a wise preventive measure.
In conclusion, knowing the fuel pump’s location under the truck bed near the gas tank is essential for effective troubleshooting and maintenance on a 1997 Ford Ranger. By familiarizing yourself with this layout and following safety precautions, you can tackle fuel system repairs with confidence, ensuring your Ranger remains reliable for years to come. Whether you’re a seasoned mechanic or a DIY enthusiast, this knowledge empowers you to address issues efficiently and avoid unnecessary complications.
Step-by-Step Guide to Removing a 2002 Audi Fuel Pump
You may want to see also
Explore related products
Accessing the fuel pump through the tank access panel
The fuel pump on a 1997 Ford Ranger is located inside the fuel tank, a common placement for many vehicles of that era. Accessing it requires removing the tank access panel, a task that demands precision and safety precautions. This method is often preferred by DIY enthusiasts and mechanics alike, as it provides direct access to the pump without the need for extensive disassembly of the vehicle's undercarriage.
Steps to Access the Fuel Pump:
- Prepare the Vehicle: Ensure the Ranger is on a level surface, and the fuel tank is as empty as possible to minimize spillage and fumes. Disconnect the battery to prevent accidental ignition.
- Locate the Access Panel: On the 1997 model, the fuel tank access panel is typically found beneath the rear seat. Lift the seat to expose the panel, secured by screws or bolts.
- Remove the Panel: Use the appropriate tools to remove the fasteners holding the access panel. Carefully lift the panel to reveal the fuel pump assembly.
- Disconnect Electrical and Fuel Lines: Before removing the pump, disconnect the electrical connector and fuel lines. Use a fuel line disconnect tool to avoid damaging the lines.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. If the tank is not empty, have a drain pan ready to catch any residual fuel. Wear safety goggles and gloves to protect against fuel exposure. For stubborn fasteners, apply penetrating oil and allow it to sit for 10–15 minutes before attempting removal.
Comparative Advantage:
By following these steps and precautions, accessing the fuel pump through the tank access panel on a 1997 Ford Ranger becomes a manageable task. This approach balances efficiency with safety, making it a viable option for those looking to diagnose or replace a faulty fuel pump without extensive vehicle disassembly.
Electric Fuel Pump: Essential Upgrade or Unnecessary Expense for Your Vehicle?
You may want to see also
Explore related products
Tools needed for fuel pump removal and replacement
The fuel pump on a 1997 Ford Ranger is located inside the fuel tank, which means removing and replacing it requires a specific set of tools to access and handle the components safely. Understanding the tools needed beforehand ensures efficiency and minimizes the risk of damage or injury during the process.
Essential Tools for the Job:
- Socket and Wrench Set: A metric socket and wrench set (typically 8mm, 10mm, and 12mm) is essential for removing bolts and fasteners securing the fuel tank and pump assembly.
- Screwdrivers: Both flathead and Phillips screwdrivers may be needed for miscellaneous screws or clamps.
- Fuel Line Disconnect Tools: These specialized tools safely release the fuel lines without causing leaks or damage.
- Floor Jack and Jack Stands: These are crucial for safely raising the vehicle and accessing the fuel tank from underneath.
- Safety Equipment: Safety goggles and nitrile gloves protect against fuel spills and debris, while a fire extinguisher is a must-have precaution when working with fuel systems.
Additional Tools for Precision:
A trim panel removal tool can help detach interior panels if accessing the fuel pump requires removing the rear seat or carpet. Additionally, a fuel pressure gauge is useful for diagnosing pump issues before replacement, though not strictly necessary for the removal process.
Cautions and Practical Tips:
Always relieve fuel system pressure before starting work by locating the Schrader valve on the fuel rail and depressurizing the system. Work in a well-ventilated area, and avoid open flames or sparks. If the fuel tank is more than half full, siphoning fuel beforehand reduces weight and spill risks.
With the right tools and precautions, removing and replacing the fuel pump on a 1997 Ford Ranger becomes a manageable task. Preparation and safety are key to ensuring a smooth and successful repair.
Rewire Your Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Safety precautions when working on the fuel system
Working on a vehicle's fuel system, especially when locating and replacing the fuel pump on a 1997 Ford Ranger, demands strict adherence to safety protocols. Fuel is highly flammable, and even a small mistake can lead to dangerous situations. Always begin by relieving the fuel system pressure to minimize the risk of accidental ignition. This involves disconnecting the fuel pump inertia switch or using a pressure relief tool, following the manufacturer’s guidelines for your specific model.
Analyzing the environment is equally critical. Ensure the workspace is well-ventilated and free from open flames, sparks, or potential ignition sources. Even common tools like a metal wrench striking a surface can generate enough heat to ignite fuel vapors. Opt for non-sparking tools if available, and keep a Class B fire extinguisher nearby as a precautionary measure. Grounding yourself by touching a metal part of the vehicle before handling fuel components can also prevent static electricity discharge, a common but overlooked hazard.
A comparative look at safety gear reveals its importance. Wear nitrile gloves to protect your skin from prolonged fuel exposure, which can cause irritation or absorption of harmful chemicals. Safety goggles are non-negotiable, as fuel splashes can cause severe eye damage. While working under the vehicle, use jack stands instead of a jack alone to prevent accidental collapse. This dual-safety approach ensures stability and reduces the risk of injury from the vehicle shifting or falling.
Instructively, follow a systematic process to avoid mishaps. Disconnect the battery to eliminate electrical risks before starting. Label and disconnect fuel lines carefully, using a catch pan to collect any residual fuel. If you’re replacing the fuel pump, ensure the new unit is compatible and installed correctly to prevent leaks. After reassembly, perform a thorough inspection for leaks using a fuel system smoke tester or soapy water solution. Even a small leak can escalate quickly, so address any issues immediately.
Finally, a descriptive reminder: fuel systems are inherently dangerous, but with meticulous preparation and execution, risks can be mitigated. Picture the scenario: a well-lit garage, tools laid out methodically, and safety gear in place. Each step, from pressure relief to final inspection, is executed with precision. This approach not only ensures your safety but also guarantees a job well done, leaving you with a reliable vehicle and peace of mind.
Does Your Boat's Electric Fuel Pump Receive Signal During Startup?
You may want to see also
Explore related products
Symptoms of a failing fuel pump in a 1997 Ranger
The fuel pump in a 1997 Ford Ranger is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure. However, its location also means that diagnosing and replacing a failing pump can be more challenging. Recognizing the symptoms of a failing fuel pump early can save you from being stranded or causing further damage to your engine.
One of the first signs of a failing fuel pump is a sputtering engine at high speeds. As the pump weakens, it struggles to deliver a consistent fuel supply, leading to intermittent power loss. This symptom is often mistaken for ignition issues, but if it occurs primarily under load (e.g., accelerating on the highway), the fuel pump is a likely culprit. Another red flag is difficulty starting the engine, especially after the vehicle has been sitting for a while. A failing pump may not build sufficient pressure to deliver fuel to the injectors, resulting in extended cranking or a no-start condition.
Unusual noises from the fuel tank area can also indicate a failing pump. A whining or buzzing sound, particularly during startup or when the fuel tank is low, suggests the pump is working harder than normal or is mechanically worn. While some noise is normal, a sudden increase in volume or a grinding sound warrants immediate attention. Ignoring these noises can lead to complete pump failure, leaving you with a vehicle that won’t run at all.
A comparative analysis of fuel efficiency can also reveal a failing pump. If your 1997 Ranger is consuming more fuel than usual without a change in driving habits, the pump may not be delivering fuel efficiently. This inefficiency occurs because the pump is struggling to maintain pressure, causing the engine to run richer than necessary. Monitoring your fuel economy over time can help identify this subtle but costly symptom.
To address these issues, start by checking the fuel pressure with a gauge to confirm the pump’s performance. If pressure is below the manufacturer’s specifications (typically 30–60 PSI for this model), the pump is likely failing. Before replacing it, inspect the fuel filter and relay, as these components can mimic pump failure symptoms. If the pump is indeed the problem, replacement involves dropping the fuel tank—a task best performed with proper tools and safety precautions, such as relieving fuel system pressure and disconnecting the battery. Early diagnosis and action can prevent more extensive repairs and keep your Ranger running reliably.
Understanding the Fuel Pump Setup in a 2004 Powerstroke Engine
You may want to see also
Frequently asked questions
The fuel pump on a 1997 Ford Ranger is located inside the fuel tank, which is situated beneath the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, disconnect the fuel lines and electrical connectors, and then lower the tank to access the pump.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Use proper safety equipment, such as safety goggles and gloves.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump. Attempting to replace it without removing the tank is not possible.
