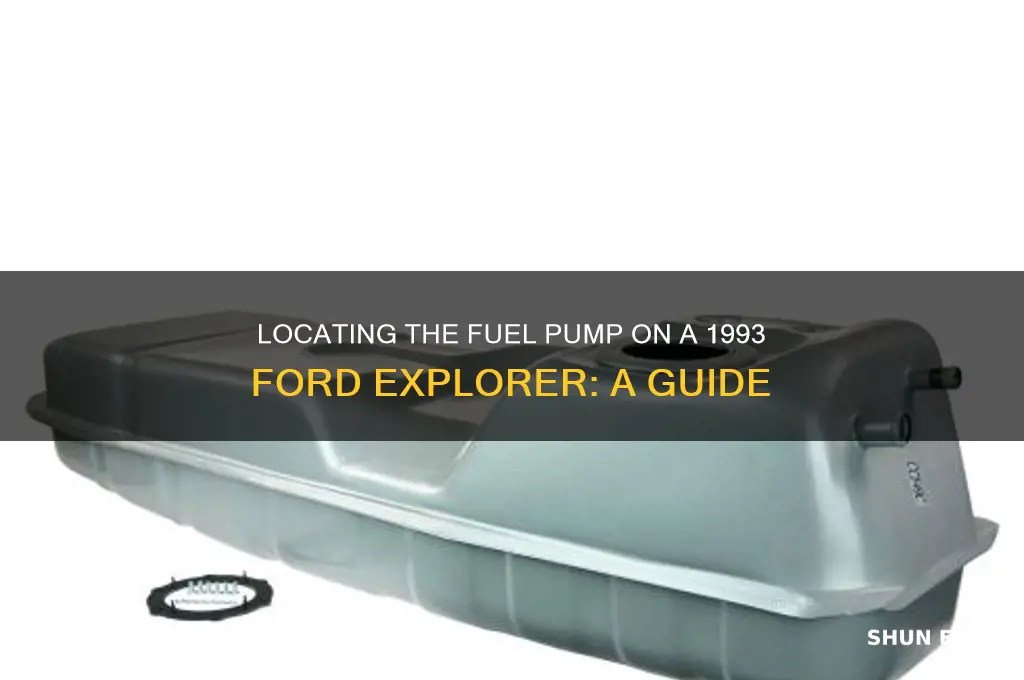

The fuel pump on a 1993 Ford Explorer is located inside the fuel tank, a common placement for many vehicles of that era to ensure the pump remains cooled by the fuel. Accessing it requires removing the fuel tank, which involves safely lowering it from the vehicle after disconnecting the fuel lines and electrical connections. This task is typically performed when diagnosing fuel delivery issues or replacing a faulty pump, and it’s recommended to follow a repair manual or seek professional assistance due to the complexity and safety considerations involved.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for access |
| Fuel Tank Removal | Necessary to replace or service the fuel pump |
| Fuel Pump Type | In-tank electric fuel pump |
| Tank Design | Single fuel tank located underneath the vehicle |
| Tank Material | Typically steel or plastic, depending on the model |
| Fuel Pump Module | Includes the pump, sender unit, and sometimes a filter |
| Common Issues | Fuel pump failure, clogged filter, or electrical connection problems |
| Replacement Difficulty | Moderate to difficult due to tank removal requirement |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and possibly a fuel line tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, and work in a well-ventilated area |
| Year Applicability | Specific to 1993 Ford Explorer models |
Explore related products
What You'll Learn
Fuel pump location in 1993 Ford Explorer
The fuel pump in a 1993 Ford Explorer is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and submerged in fuel, which helps prevent overheating and ensures consistent fuel delivery. Accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety measures due to the flammable nature of gasoline.
To locate and replace the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental sparks. Raise the vehicle securely on jack stands to access the fuel tank from underneath. The tank is typically held in place by straps and fuel lines, which must be carefully disconnected. Once the tank is lowered, the fuel pump module can be accessed by removing the retaining ring or bolts that secure it to the top of the tank.
A key consideration when working on the fuel pump is the potential for fuel spillage. Have a drain pan ready to catch any residual fuel when removing the tank. Additionally, inspect the fuel tank for signs of corrosion or damage, as these issues can complicate the process. If the tank is rusted or compromised, it may be more cost-effective to replace it entirely rather than just the fuel pump.
Comparing the 1993 Ford Explorer’s fuel pump location to newer models highlights the evolution of automotive design. Modern vehicles often incorporate in-tank fuel pumps with integrated sending units, which provide more accurate fuel level readings. However, the 1993 Explorer’s setup remains straightforward and repairable with basic tools, making it a manageable DIY project for those with mechanical aptitude.
In conclusion, understanding the fuel pump’s location in a 1993 Ford Explorer is crucial for diagnostics and repairs. While the process of accessing and replacing the pump involves several steps, it is achievable with proper preparation and safety precautions. This knowledge empowers vehicle owners to address fuel system issues confidently, saving time and money on professional repairs.
Bench Testing Fuel Pump Relay: Step-by-Step Guide for Accurate Diagnostics
You may want to see also
Explore related products
Steps to access the fuel pump
The fuel pump on a 1993 Ford Explorer is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure. Accessing it requires a systematic approach to ensure safety and efficiency. Here’s a step-by-step guide to help you locate and access the fuel pump.
Step 1: Prepare Your Workspace
Before beginning, ensure the vehicle is on a flat, stable surface and the engine is cool. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing it with the ignition off. This step is critical to prevent fuel spray or accidental ignition. Gather necessary tools, including a jack, jack stands, wrenches, and a fuel pump removal tool if available.
Step 2: Access the Fuel Tank
The fuel tank is located beneath the vehicle, typically near the rear axle. Use a jack to lift the vehicle and secure it on jack stands. Remove the protective skid plate if equipped, as it may obstruct access to the tank. Carefully lower the fuel tank slightly by loosening the retaining straps, but do not fully detach them unless necessary. This step provides enough clearance to work on the pump assembly.
Step 3: Disconnect Electrical and Fuel Lines
Locate the fuel pump module, which is attached to the top of the fuel tank. Disconnect the electrical connector by pressing the release tab and pulling it apart. Next, remove the fuel lines by loosening the hose clamps or using a fuel line disconnect tool. Be prepared for residual fuel to drain, so have a catch pan ready. Work methodically to avoid damaging any components.
Step 4: Remove the Fuel Pump Assembly
With the lines disconnected, remove the retaining ring or bolts securing the fuel pump module to the tank. Lift the assembly out carefully, taking note of its orientation for reinstallation. Inspect the pump and sending unit for wear or damage. If replacing the pump, ensure the new unit is compatible with the 1993 Ford Explorer’s fuel system.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks. Use safety goggles and gloves to protect against fuel exposure. If the tank is more than half full, consider siphoning fuel to reduce weight and spillage risk. Double-check all connections during reassembly to prevent leaks. This process, while detailed, is manageable with patience and the right tools.
Why Fuel Pumps Click: Causes, Solutions, and When to Worry
You may want to see also
Explore related products
Tools needed for fuel pump removal
The fuel pump on a 1993 Ford Explorer is located inside the fuel tank, which means removing it requires a specific set of tools to access and extract the component safely. Before diving into the removal process, it’s crucial to gather the right tools to avoid complications or damage. Here’s a detailed breakdown of what you’ll need and why each tool is essential.
Essential Tools for Fuel Pump Removal
To start, you’ll need a floor jack and jack stands to safely raise the vehicle and provide access to the fuel tank. A wrench set or socket set (metric or standard, depending on your Explorer’s specifications) is necessary to loosen and remove bolts securing the tank. Additionally, a screwdriver set (both flathead and Phillips) will come in handy for prying or removing smaller components. A fuel line disconnect tool is critical for safely detaching the fuel lines without causing leaks or damage. Finally, a drain pan is essential to catch any residual fuel when the tank is lowered.
Specialized Tools and Safety Considerations
While the above tools are standard, removing the fuel pump itself often requires a fuel pump module removal tool or a lock ring tool, which is designed to release the locking ring holding the pump assembly in place. This tool varies by vehicle, so ensure it’s compatible with a 1993 Ford Explorer. Safety should never be overlooked; safety goggles and nitrile gloves are mandatory to protect against fuel spills and debris. A flashlight is also useful for illuminating the work area, especially when working under the vehicle.
Optional but Helpful Tools
For added convenience, consider using a battery-operated impact wrench to speed up bolt removal, especially if rust or corrosion is present. A fuel pressure gauge can be used to depressurize the fuel system before starting, though this step is often handled by disconnecting the fuel pump relay and running the engine until it stalls. Lastly, a trim removal tool can help safely pry off any interior panels if you need to access the fuel pump wiring harness from inside the vehicle.
Practical Tips for Tool Use
When using the fuel line disconnect tool, apply steady pressure to avoid bending or damaging the lines. For the lock ring tool, ensure it’s properly aligned before applying force to prevent slipping or stripping the ring. Always double-check your tools for wear or damage before starting, as a broken tool mid-repair can complicate the process. Keep a clean rag nearby to wipe up any fuel spills immediately, reducing the risk of fire or environmental contamination.
By equipping yourself with these tools and understanding their purpose, you’ll be well-prepared to tackle the fuel pump removal on a 1993 Ford Explorer efficiently and safely. Proper preparation not only saves time but also minimizes the risk of errors that could lead to costly repairs.
Locating Inlet and Outlet Ports on Mechanical Fuel Pumps: A Guide
You may want to see also
Explore related products
Common issues with 1993 Explorer fuel pump
The 1993 Ford Explorer's fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. This design, while efficient for fuel delivery, can complicate diagnosis and repair when issues arise. Understanding the common problems associated with this fuel pump is crucial for owners, as it can save time, money, and frustration.
One prevalent issue is fuel pump failure due to age and wear. The 1993 Explorer’s fuel pump, being over three decades old, is susceptible to degradation. Symptoms include difficulty starting the engine, sputtering at high speeds, or a complete loss of power. If your Explorer has over 150,000 miles, the fuel pump is likely nearing the end of its lifespan. Replacing it proactively can prevent roadside breakdowns. Always use OEM or high-quality aftermarket parts for longevity.
Another common problem is clogged fuel filters, which can strain the fuel pump and reduce its efficiency. The Explorer’s fuel filter, often overlooked during routine maintenance, should be replaced every 30,000 miles. A clogged filter forces the pump to work harder, leading to premature failure. If you notice reduced fuel efficiency or rough idling, inspect the filter before assuming the pump is at fault.
Electrical issues also plague the 1993 Explorer’s fuel pump system. Corroded wiring, faulty relays, or a malfunctioning fuel pump fuse can disrupt power delivery. Diagnose this by checking the fuel pump relay under the hood and testing for voltage at the pump connector. A multimeter is an essential tool for this task. If the pump isn’t receiving power, focus on the electrical system before replacing the pump itself.
Lastly, contaminated fuel can damage the pump’s internal components. Water in the fuel tank, often from condensation or low-quality fuel, can corrode the pump and reduce its lifespan. Adding a fuel stabilizer during winter months and using reputable gas stations can mitigate this risk. If contamination is suspected, drain and flush the fuel tank before installing a new pump.
In summary, the 1993 Ford Explorer’s fuel pump is prone to failure due to age, clogged filters, electrical issues, and fuel contamination. Regular maintenance, proactive replacements, and thorough diagnostics can extend the pump’s life and keep your Explorer running smoothly. Always address symptoms promptly to avoid costly repairs or unsafe driving conditions.
Locating the Fuel Pump Driver Module on a 1992 F250
You may want to see also
Explore related products
Replacing the fuel pump on a 1993 Explorer
The fuel pump on a 1993 Ford Explorer is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure. However, it also means that replacing the fuel pump requires removing the tank, a task that demands careful planning and execution. Before diving into the replacement process, ensure you have the necessary tools, including a jack, jack stands, wrenches, and a new fuel pump assembly. Safety is paramount, so work in a well-ventilated area and relieve the fuel system pressure before starting.
Replacing the fuel pump begins with disconnecting the battery to prevent electrical hazards. Next, relieve the fuel pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with a rag to catch any fuel spray. Once the pressure is released, remove the fuel tank by first disconnecting the fuel lines and electrical connectors. Use a jack to support the tank as you unbolt it from the vehicle. Carefully lower the tank and place it on a stable surface. The fuel pump module is typically secured by a locking ring, which can be removed with a specialized tool or a flathead screwdriver and hammer. Be cautious not to damage the tank during this step.
After removing the locking ring, lift the fuel pump module out of the tank. Inspect the sender unit and float arm for damage, as these components are often integrated with the pump. Clean the tank interior if necessary, ensuring no debris remains that could harm the new pump. Install the new fuel pump assembly by reversing the removal steps: place the module into the tank, secure it with the locking ring, and reattach the fuel lines and electrical connectors. Reinstall the fuel tank, ensuring all bolts are tightened securely. Reconnect the battery and check for leaks by turning the ignition to the "on" position without starting the engine.
One critical aspect often overlooked is the importance of using a high-quality replacement pump. Aftermarket pumps vary in quality, and a subpar unit can lead to premature failure or poor performance. Opt for a pump from a reputable manufacturer and ensure it matches the specifications of the original equipment. Additionally, consider replacing the fuel filter at the same time, as contaminated fuel can damage the new pump. This proactive approach not only ensures reliability but also saves time and money in the long run.
In conclusion, replacing the fuel pump on a 1993 Ford Explorer is a task that requires attention to detail and adherence to safety protocols. By following these steps and using quality parts, you can restore your vehicle’s fuel system to optimal performance. While the process may seem daunting, breaking it down into manageable stages makes it achievable even for intermediate DIY enthusiasts. Always prioritize safety and take your time to avoid costly mistakes.
Easy Steps to Safely Remove Your Fuel Pump Cap
You may want to see also
Frequently asked questions
The fuel pump on a 1993 Ford Explorer is located inside the fuel tank, which is situated under the vehicle, typically near the rear passenger side.
To access the fuel pump, you need to remove the fuel tank. This involves relieving fuel system pressure, disconnecting the battery, and then lowering the tank after disconnecting the fuel lines and electrical connectors.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to replace the pump.
Symptoms include difficulty starting the engine, sputtering or stalling, loss of power, and a whining noise from the fuel tank area.
Replacing the fuel pump usually takes 2-4 hours, depending on your experience and the tools available. It’s a moderately complex job due to the need to remove and reinstall the fuel tank.
