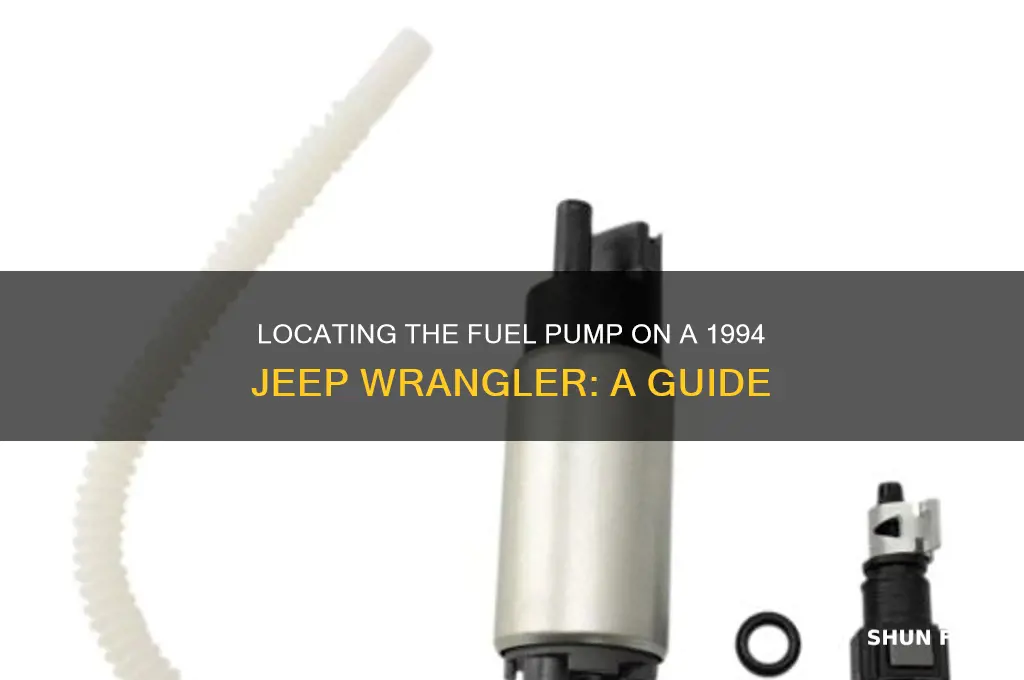

The fuel pump on a 1994 Jeep Wrangler is typically located inside the fuel tank, a common design in many vehicles of that era to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank, which involves disconnecting the fuel lines, electrical connections, and tank straps. This process can be challenging due to the tank's weight and the need to work safely with fuel system components. Proper safety precautions, such as relieving fuel system pressure and working in a well-ventilated area, are essential to avoid hazards. Consulting the vehicle’s service manual or seeking professional assistance is recommended for those unfamiliar with the procedure.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank, located under the vehicle's rear passenger seat. |
| Access Method | Requires removing the rear passenger seat and accessing the fuel tank. |
| Fuel Tank Type | Metal fuel tank (standard for 1994 Jeep Wrangler models). |
| Pump Type | In-tank electric fuel pump. |
| Compatibility | Fits 1991-1995 Jeep Wrangler YJ models with the 2.5L or 4.0L engine. |
| Replacement Difficulty | Moderate; requires specialized tools and fuel system knowledge. |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical connection issues. |
| Replacement Part | Available as an assembly with the sending unit (e.g., Airtex, Carter). |
| Safety Precautions | Relieve fuel system pressure and disconnect the battery before removal. |
| Estimated Cost | $100-$300 (parts) + labor (if professionally installed). |
Explore related products
$13.99
What You'll Learn
Fuel pump location in 94 Jeep Wrangler engine bay
The fuel pump in a 1994 Jeep Wrangler is not located in the engine bay, which often surprises those accustomed to more modern vehicles. Instead, it is situated within the fuel tank, a design choice common in many vehicles of that era to reduce the risk of fuel line fires and improve fuel system efficiency. This internal placement means accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions.
To locate and access the fuel pump, start by relieving the fuel system pressure to prevent accidental fuel spray. Disconnect the negative battery terminal to eliminate any risk of electrical sparks. Next, raise the vehicle securely on jack stands to access the fuel tank from underneath. The tank is typically held in place by straps and may require the removal of the exhaust system or other components for clearance. Once the tank is lowered, the fuel pump module can be accessed by removing the retaining ring or bolts that secure it to the top of the tank.
A critical consideration when working on the fuel pump is the potential for fuel spillage and environmental hazards. Always work in a well-ventilated area and have a drain pan ready to catch any residual fuel. If the tank is rusty or damaged, consider replacing it along with the fuel pump to avoid future leaks. Additionally, inspect the fuel lines and filter for wear, as these components often require replacement during pump servicing.
For those unfamiliar with this process, it’s worth noting that the fuel pump module in a 1994 Jeep Wrangler typically includes the pump, sending unit, and float assembly. Replacement kits are widely available and often come with detailed instructions. However, if you’re unsure about any step, consulting a repair manual or seeking professional assistance can save time and prevent costly mistakes. Understanding the fuel pump’s location and the steps required to access it ensures a safer and more efficient repair process.
