The fuel pump on a 1997 Toyota Camry is located inside the fuel tank, which is situated beneath the rear passenger seat area. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly or completely removing it, depending on the specific repair or replacement needs. This design ensures the fuel pump operates in a cooled environment, submerged in fuel, but also means that replacing it can be a labor-intensive task, often requiring specialized tools and safety precautions due to the involvement of flammable materials.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel tank cover for access |
| Fuel Tank Location | Beneath the rear seat area |
| Pump Type | Electric fuel pump |
| Tank Design | Integrated fuel pump and sender assembly |
| Tools Required | Basic hand tools (e.g., wrenches, screwdrivers) |
| Difficulty Level | Moderate (requires some mechanical skill) |
| Safety Precautions | Relieve fuel system pressure before removal; work in well-ventilated area |
| Replacement Time | Approximately 1-2 hours (varies by experience) |
| Common Issues | Pump failure, clogged fuel filter, or electrical connection problems |
| Year/Model Specific | 1997 Toyota Camry (all trim levels) |
Explore related products
What You'll Learn
Fuel pump location under rear seat
The 1997 Toyota Camry's fuel pump is strategically located beneath the rear seat, a design choice that balances accessibility with safety. This placement is part of the vehicle's fuel system architecture, which includes the fuel tank, pump, and associated lines. Understanding this location is crucial for maintenance, troubleshooting, or emergency repairs.
Accessing the Fuel Pump:

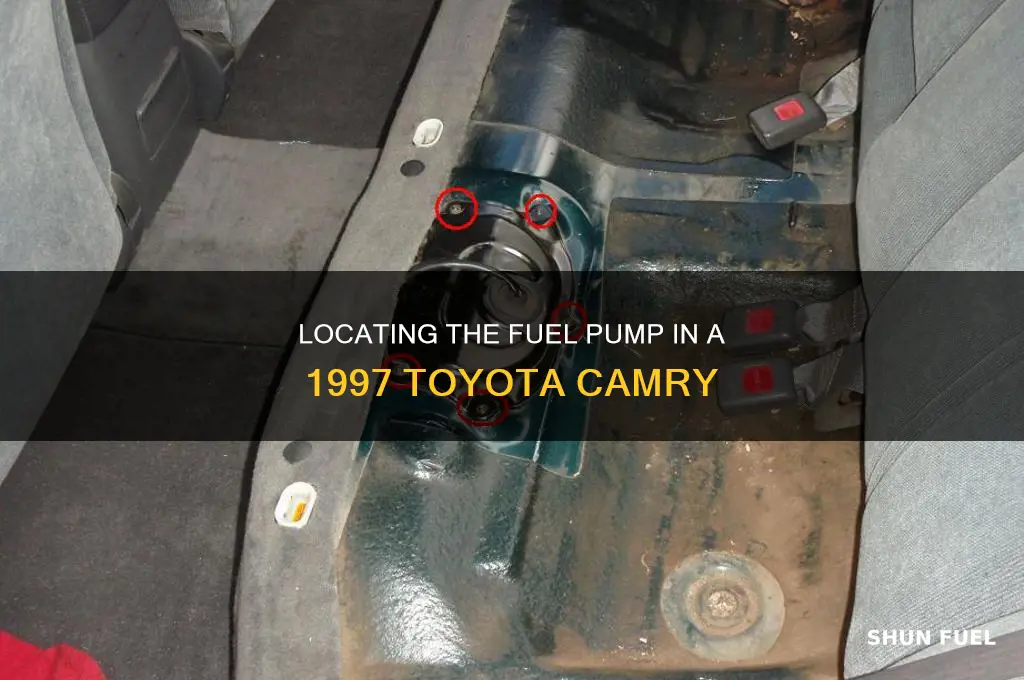

To reach the fuel pump, start by locating the rear seat release mechanisms, typically found on the front edge of the seat cushion or at the base of the seatback. After releasing these, lift the rear seat cushion to expose the access panel covering the fuel pump assembly. This panel is usually secured with a few screws or clips, which can be removed with basic hand tools. Once the panel is off, you'll find the fuel pump module, which includes the pump, sending unit, and associated wiring.
Safety Considerations:
When working on the fuel system, always prioritize safety. Ensure the vehicle is on a level surface, the engine is off, and the battery is disconnected to prevent accidental ignition. Fuel is flammable, so avoid open flames, sparks, or smoking in the vicinity. Additionally, relieve the fuel system pressure before attempting any repairs to minimize the risk of fuel spray or leakage.
Maintenance and Troubleshooting:
The rear seat location of the fuel pump allows for relatively straightforward maintenance. Common issues, such as a failing pump or clogged filter, can often be diagnosed and addressed without extensive disassembly. However, if you're unsure about the problem or lack experience with fuel systems, consulting a professional mechanic is advisable. They can provide expert guidance, ensuring the repair is done safely and effectively.
Practical Tips:
For DIY enthusiasts, keep a few tools handy, such as a fuel line disconnect tool, wrenches, and screwdrivers, to facilitate fuel pump-related tasks. When replacing the pump, consider installing a high-quality, OEM-spec component to ensure reliability and compatibility. Regularly inspect the fuel system for signs of wear, corrosion, or leaks, addressing any issues promptly to maintain optimal performance and safety. By familiarizing yourself with the 1997 Camry's fuel pump location and associated maintenance procedures, you can tackle fuel system challenges with confidence and efficiency.
Where to Find a Fuel Pump for Your 2003 Nissan Murano
You may want to see also
Explore related products
Accessing fuel pump in 1997 Camry
The fuel pump in a 1997 Toyota Camry is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and reduce the risk of vapor lock, but it also means accessing the pump requires removing the fuel tank. This task is not for the faint of heart, as it involves working with fuel lines and electrical connections, but with the right tools and precautions, it can be accomplished by a determined DIYer.
Steps to Access the Fuel Pump
Begin by relieving the fuel system pressure to minimize the risk of fuel spillage or injury. Locate the fuel pump access panel, typically found beneath the rear seat on the 1997 Camry. Remove the seat by releasing the retaining clips and lifting it out of the vehicle. You’ll then need to disconnect the negative battery terminal to prevent accidental electrical shorts. Next, remove the fuel pump access panel by unscrewing the bolts holding it in place. This will expose the fuel pump wiring harness and fuel lines.
Cautions and Safety Tips
Working on a fuel system requires extreme caution. Always wear safety goggles and gloves to protect against fuel spills. Ensure the vehicle is on a level surface and use jack stands if you need to raise it. Never smoke or use open flames near the fuel tank, and work in a well-ventilated area. If you’re unsure about any step, consult a professional to avoid costly mistakes or safety hazards.
Comparative Analysis: DIY vs. Professional Repair
While accessing the fuel pump in a 1997 Camry is feasible for experienced DIYers, it’s not a task to be taken lightly. The process involves draining the fuel tank, disconnecting electrical components, and handling potentially hazardous materials. A professional mechanic can complete this repair more efficiently, often with specialized tools and knowledge of common pitfalls. However, if you’re confident in your skills and have the necessary tools, tackling this repair yourself can save hundreds of dollars in labor costs.
Practical Tips for Success
Before starting, gather all necessary tools, including a fuel line disconnect tool, wrenches, and a new fuel pump if you’re replacing it. Have a drain pan ready to catch any fuel that spills during the process. Label wires and hoses as you disconnect them to simplify reassembly. Finally, test the new fuel pump before fully reassembling the system to ensure it’s functioning correctly. With patience and attention to detail, accessing and replacing the fuel pump in a 1997 Camry can be a rewarding DIY project.
Easy Guide: Connecting Holley Fuel Pump to Carburetors for Optimal Performance
You may want to see also
Explore related products
Fuel pump removal steps for 1997 Camry
The fuel pump on a 1997 Toyota Camry is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure. Removing the fuel pump requires careful steps to ensure safety and efficiency, as working with fuel systems carries inherent risks.
Step-by-Step Removal Process:
- Relieve Fuel Pressure: Before starting, disconnect the negative battery terminal to prevent accidental sparks. Then, locate the fuel pump fuse or relay in the engine bay fuse box and remove it. Start the engine and let it run until it stalls to relieve residual pressure in the fuel system.
- Access the Fuel Tank: Raise the rear of the vehicle using a jack and secure it on stands. Locate the fuel tank, which is positioned beneath the rear seat area. Remove the rear seat by pulling up on the front edge and unhooking the retaining clips.
- Disconnect Fuel Lines and Wiring: Identify the fuel pump access panel on the top of the tank. Loosen the retaining screws and lift the panel. Disconnect the electrical connector and fuel lines carefully, using appropriate tools to avoid damaging the quick-disconnect fittings.
- Remove the Fuel Pump Assembly: Insert a siphon pump to drain any remaining fuel from the tank for safety. Once empty, use a strap wrench to loosen the locking ring securing the pump assembly. Lift the assembly out of the tank, taking care not to spill residual fuel.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. If the locking ring is stubborn, apply penetrating oil and allow it to sit for 10–15 minutes before attempting to loosen it again. Keep a drip pan nearby to catch any fuel that may spill during removal.
Removing the fuel pump on a 1997 Camry is a straightforward process with the right tools and precautions. By following these steps and prioritizing safety, you can successfully access and replace the fuel pump, restoring your vehicle’s fuel system to optimal performance.
Diagnosing Windstar Fuel Pump Issues: Signs of a Failing Pump
You may want to see also
Explore related products
Tools needed to replace 1997 Camry fuel pump
The 1997 Toyota Camry's fuel pump is located inside the fuel tank, which means replacing it requires a systematic approach and the right tools. Before diving into the process, it’s essential to gather the necessary equipment to ensure a smooth and safe replacement. The tools needed are not exotic, but each plays a critical role in accessing and replacing the fuel pump efficiently.
Essential Tools for the Job
To start, you’ll need a jack and jack stands to safely lift the vehicle and access the fuel tank. A wrench set or socket set (metric, as the Camry is a Japanese model) is crucial for removing bolts and fasteners. A screwdriver set, both Phillips and flathead, will be necessary for various components around the fuel tank. Additionally, a fuel line disconnect tool is highly recommended to safely detach the fuel lines without causing leaks or damage. A drain pan is also essential to catch any residual fuel when the tank is lowered.
Specialized Tools and Considerations
While the above tools are standard, a few specialized items are required. A fuel pump module removal tool or a large flathead screwdriver can help pry the fuel pump assembly out of the tank once it’s removed. A torque wrench is necessary to ensure bolts are tightened to factory specifications, preventing leaks or damage. For safety, a pair of safety goggles and nitrile gloves are mandatory to protect against fuel spills and fumes.
Optional but Helpful Tools
While not strictly necessary, a battery-operated impact wrench can save time when removing stubborn bolts. A trim removal tool can also be useful for carefully prying off interior panels to access the fuel pump’s electrical connector. If you’re working in a dimly lit area, a portable work light will make the process easier and safer.
Practical Tips for Tool Use
When using the jack and jack stands, ensure the vehicle is on a flat surface and the stands are securely positioned under the recommended lift points. When disconnecting fuel lines, work slowly to avoid spilling fuel, and always relieve fuel system pressure before beginning. For the fuel pump assembly, take note of its orientation before removing it to ensure proper reinstallation. Finally, always double-check torque specifications to avoid over-tightening bolts, which can lead to cracks or leaks in the fuel tank.
By gathering these tools and following these tips, you’ll be well-prepared to tackle the fuel pump replacement on a 1997 Camry with confidence and precision.
Step-by-Step Guide: Removing a Briggs and Stratton Fuel Pump Easily
You may want to see also
Explore related products
Symptoms of a failing 1997 Camry fuel pump
The 1997 Toyota Camry’s fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. However, diagnosing a failing fuel pump requires more than knowing its location. A failing fuel pump can manifest in several ways, often mimicking other engine issues, making it crucial to identify symptoms early. Here’s what to look for:
One of the earliest signs of a failing fuel pump is a sputtering engine at high speeds. As the pump weakens, it struggles to deliver consistent fuel pressure, causing the engine to hesitate or misfire, especially under load. This symptom is often mistaken for ignition system problems, but if it occurs primarily during acceleration or highway driving, the fuel pump is a likely culprit. To isolate the issue, monitor whether the sputtering coincides with fuel tank levels—a failing pump may struggle more with a near-empty tank due to reduced coolant effect on the pump motor.
Another telltale symptom is difficulty starting the engine, particularly after the vehicle has been sitting for a while. A failing fuel pump may take longer to build pressure in the fuel lines, resulting in extended cranking before the engine fires. If you notice the engine cranks but doesn’t start immediately, or if it starts and then stalls, check the fuel pump’s operation. A simple test is to listen for the pump’s hum by turning the ignition to the "on" position (without starting the engine). A weak or absent hum could indicate a failing pump.
A less obvious but equally important symptom is a sudden drop in fuel efficiency. A failing fuel pump may deliver fuel at inconsistent pressures, causing the engine to run richer than optimal. This not only wastes fuel but can also lead to carbon buildup in the combustion chamber. If your 1997 Camry’s fuel economy has inexplicably worsened, inspect the fuel pump’s performance using a fuel pressure gauge. Normal operating pressure for this model is typically around 38–44 PSI, depending on the engine variant.
Finally, a complete fuel pump failure will result in a vehicle that won’t start at all. If the pump stops working entirely, no fuel reaches the engine, rendering it inoperable. Before assuming the pump is the issue, check the fuel pump fuse and relay, as these components can fail independently. If both are functional, the pump itself is likely the problem. Replacing a fuel pump on a 1997 Camry involves dropping the tank, a task best performed with the tank as empty as possible to reduce weight and spillage risk.
In summary, recognizing the symptoms of a failing fuel pump—sputtering at high speeds, difficulty starting, reduced fuel efficiency, and eventual no-start condition—can save time and prevent misdiagnosis. Early intervention not only avoids costly repairs but also ensures your 1997 Camry remains reliable. Always verify symptoms with diagnostic tools before proceeding with repairs.
Locate Your 2003 Honda CR-V's Fuel Pump: A Quick Guide
You may want to see also
Frequently asked questions
The fuel pump on a 1997 Toyota Camry is located inside the fuel tank, which is situated under the rear seat area of the vehicle.
To access the fuel pump, you’ll need to remove the rear seat cushion, locate the fuel pump access panel, and then disconnect the electrical and fuel lines before removing the pump from the tank.
Yes, the fuel pump module can be replaced without removing the entire fuel tank by accessing it through the fuel pump access panel under the rear seat.
You’ll need basic hand tools such as wrenches, screwdrivers, a fuel line disconnect tool, and possibly a specialty tool to lock the fuel pump module in place during installation.
Yes, always relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fuel vapors and potential fire hazards.
