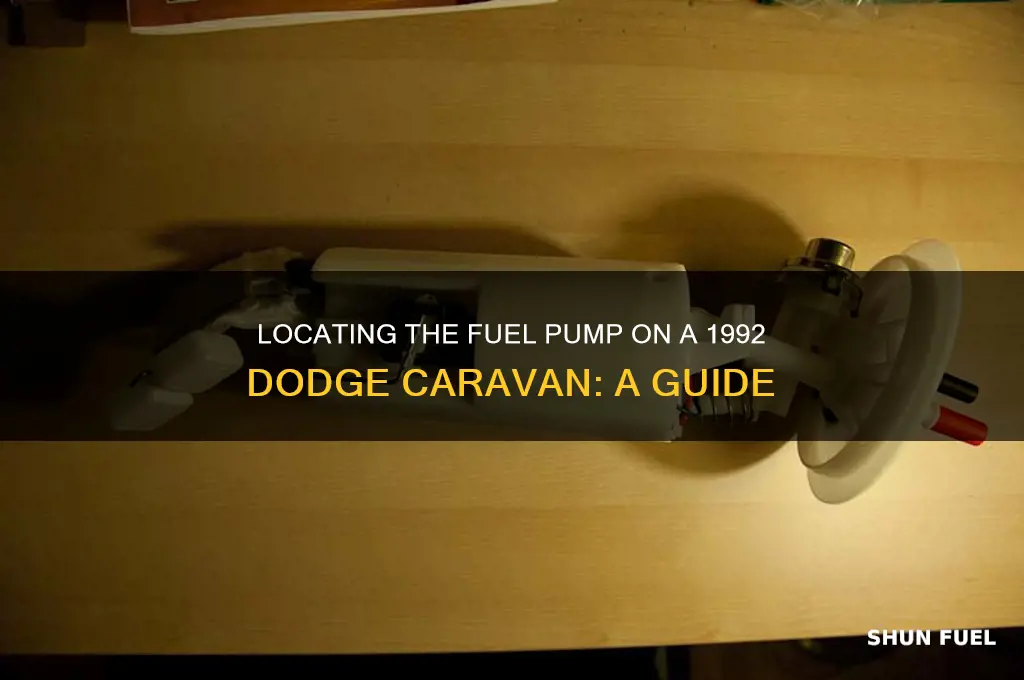

The 1992 Dodge Caravan's fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. Accessing the fuel pump requires removing the fuel tank from the vehicle, which involves disconnecting the fuel lines, electrical connections, and tank straps. This task is typically performed when the fuel pump fails or requires maintenance, and it is recommended to consult the vehicle's service manual or seek professional assistance to ensure proper safety precautions and procedures are followed during the process.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for access |
| Fuel Tank Removal | Necessary to replace or service the fuel pump |
| Tank Straps | Must be unbolted to lower the fuel tank |
| Fuel Lines | Disconnect fuel lines before removing the tank |
| Electrical Connector | Disconnect the electrical connector to the fuel pump |
| Pump Assembly | Integrated with the fuel sender unit |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and fuel line disconnect tools |
| Safety Precautions | Relieve fuel system pressure and work in a well-ventilated area |
| Replacement Difficulty | Moderate to difficult due to tank removal |
| Estimated Time | 2-4 hours depending on experience |
Explore related products
What You'll Learn
Fuel pump location in 1992 Dodge Caravan
The fuel pump in a 1992 Dodge Caravan is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and submerged in fuel, which helps prevent overheating and ensures consistent fuel delivery. Accessing the fuel pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Always work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure before attempting this repair.
Analyzing the fuel pump’s location reveals both advantages and challenges. The in-tank design reduces noise and improves reliability by protecting the pump from external elements. However, it complicates replacement, as the entire fuel tank must be lowered to access the pump. This contrasts with external fuel pumps, which are easier to replace but more prone to failure due to exposure. For a 1992 Dodge Caravan owner, understanding this trade-off is crucial when diagnosing fuel system issues or planning maintenance.
To replace the fuel pump, follow these steps: First, safely raise the vehicle and secure it on jack stands. Next, disconnect the fuel lines and electrical connectors after relieving system pressure. Then, lower the fuel tank to access the pump assembly. Remove the retaining ring and carefully extract the pump, ensuring no debris enters the tank. Install the new pump, reassemble the tank, and reconnect all components. Test the system for leaks and proper operation before driving.
A practical tip for DIYers: Consider replacing the fuel tank straps and filter while the tank is down, as these components often wear out simultaneously. Additionally, use a fuel line quick disconnect tool to avoid damaging the lines during disassembly. For safety, always wear gloves and safety goggles, and keep a fire extinguisher nearby. While the process is labor-intensive, replacing the fuel pump yourself can save significant costs compared to professional repair.
Comparing the 1992 Dodge Caravan’s fuel pump location to modern vehicles highlights evolutionary changes in automotive design. Newer models often feature more accessible fuel pump modules, sometimes with access panels above the tank. However, the in-tank design of the 1992 Caravan remains a durable and effective solution, provided proper maintenance is performed. Understanding this legacy design equips owners to tackle repairs with confidence and foresight.
Testing Your CR250F Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Accessing the fuel pump in a 1992 Caravan
The fuel pump in a 1992 Dodge Caravan is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and reduce the risk of vapor lock, but it also means that accessing the pump requires more effort than if it were mounted externally. If you suspect your fuel pump is failing—symptoms include sputtering, stalling, or difficulty starting—you’ll need to remove the fuel tank to replace it. This process is not overly complex but does require careful planning and the right tools.
To begin accessing the fuel pump, start by relieving the fuel system pressure. Locate the pressure relief valve on the fuel rail and depress it to release any residual pressure. Next, disconnect the negative battery terminal to prevent accidental sparks. Raise the vehicle securely on jack stands to gain access to the underside. The fuel tank is positioned beneath the vehicle, typically near the rear passenger side. You’ll need to remove the protective skid plate, if equipped, to expose the tank. Disconnect the fuel lines and electrical connector from the tank, taking note of their positions for reassembly. Use a siphon pump to drain the fuel tank into a suitable container to minimize spillage and safety hazards.
Removing the fuel tank involves unbolting the straps that secure it to the vehicle frame. These straps are usually held by 10mm or 12mm bolts, depending on the model. Once the straps are loosened, carefully lower the tank to the ground, supporting its weight to avoid damaging the fuel lines or electrical connections. With the tank removed, you’ll find the fuel pump module secured by a locking ring or retaining plate. Use a specialized fuel pump removal tool to disengage the locking mechanism and extract the pump assembly. Be cautious not to damage the fuel tank or surrounding components during this step.
Before installing the new fuel pump, inspect the tank for debris or contamination, as this can cause premature failure of the new component. Clean the tank if necessary and ensure the new pump is properly sealed to prevent leaks. Reassembly follows the reverse order of disassembly: secure the new pump, reinstall the tank, reconnect the fuel lines and electrical connector, and reattach the skid plate. After reassembly, reconnect the battery and turn the ignition to the "on" position for a few seconds to pressurize the system. Check for leaks and test drive the vehicle to ensure the fuel pump operates correctly.
Accessing the fuel pump in a 1992 Dodge Caravan is a task that requires patience and attention to detail. While it’s not a job for beginners, it’s well within the capabilities of a moderately skilled DIYer with the right tools and precautions. Always prioritize safety by working in a well-ventilated area, avoiding open flames, and following proper procedures for handling fuel. With careful execution, you can successfully replace the fuel pump and restore your Caravan’s performance.
Bypassing Internal Fuel Pump Relay on a Dodge Truck: A Step-by-Step Guide
You may want to see also
Explore related products
Tools needed to replace 1992 Caravan fuel pump
The 1992 Dodge Caravan's fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure. However, it also means that replacing the fuel pump requires removing the tank, a task that demands specific tools and careful preparation.
Essential Tools for the Job:
- Floor Jack and Jack Stands: These are crucial for safely raising the vehicle and providing stable support while you work underneath. Ensure the jack stands are rated for the Caravan's weight.
- Wrench Set and Socket Set: You'll need a variety of sizes to remove bolts and fasteners securing the fuel tank and its components. A 10mm and 12mm wrench or socket are typically required for this model.
- Screwdrivers: Both flathead and Phillips screwdrivers may be needed for various screws and clamps along the fuel lines and tank.
- Fuel Line Disconnect Tools: These specialized tools help safely release the fuel lines without causing damage or spills. They are essential for a clean and efficient fuel pump replacement.
- New Fuel Pump and Filter: Ensure you have the correct replacement parts before starting. The 1992 Caravan uses a specific fuel pump assembly, so double-check compatibility.
Additional Considerations:
- Safety Equipment: Wear safety goggles and gloves to protect against fuel spills and debris. Have a fire extinguisher nearby as a precaution.
- Fuel System Depressurization: Before starting, relieve the fuel system pressure to avoid accidents. This can be done by locating the Schrader valve on the fuel rail and pressing it with the ignition off.
- Work Area Preparation: Choose a well-ventilated area and place a drain pan under the fuel tank to catch any residual fuel during removal.
Step-by-Step Replacement Process:
- Secure the Vehicle: Use the floor jack to lift the Caravan and position the jack stands. Ensure the vehicle is stable and secure.
- Access the Fuel Tank: Locate the fuel tank, typically found beneath the rear seat or cargo area. Remove any covering or insulation to access the tank.
- Disconnect Electrical and Fuel Lines: Carefully detach the electrical connector and fuel lines using the appropriate tools. Take note of their positions for reassembly.
- Remove the Fuel Tank: With the lines disconnected, lower the tank using the jack and remove it from the vehicle. Place it on a stable surface.
- Replace the Fuel Pump: Access the fuel pump by removing the tank's access plate. Install the new pump and filter, ensuring all connections are secure.
- Reinstall the Tank: Carefully lift the tank back into position and reconnect the fuel lines and electrical connector.
By gathering these tools and following a systematic approach, replacing the fuel pump on a 1992 Dodge Caravan becomes a manageable task, ensuring your vehicle's fuel system operates efficiently.
Locate Fuel Pump Module Code: A Comprehensive Guide for Vehicle Owners
You may want to see also
Explore related products
Symptoms of a failing 1992 Caravan fuel pump
The 1992 Dodge Caravan’s fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. Identifying its symptoms of failure is crucial for timely maintenance, as a malfunctioning fuel pump can lead to poor performance or even a complete stall. Recognizing these signs early can save you from costly repairs or roadside emergencies.
One of the most noticeable symptoms of a failing fuel pump is a sputtering or surging engine, especially at high speeds or under load. This occurs because the pump struggles to deliver a consistent fuel supply to the engine. If you experience sudden loss of power or the vehicle hesitates during acceleration, it’s a strong indicator that the fuel pump may be on its last legs. Ignoring this symptom can lead to more severe issues, such as engine misfires or stalling.
Another telltale sign is difficulty starting the vehicle, particularly after it has been sitting for a while. A failing fuel pump may not build adequate pressure in the fuel lines, making it hard for the engine to turn over. You might hear the starter cranking but the engine failing to catch, or it may take multiple attempts to start. This symptom often worsens in colder weather, as fuel becomes thicker and harder to pump.
Unusual noises coming from the fuel tank area, such as whining or humming, can also signal a failing fuel pump. These sounds are often more pronounced when the fuel tank is nearly empty or during acceleration. While some noise is normal, a sudden increase in volume or a change in pitch should raise concern. If you notice these sounds, it’s advisable to have the fuel pump inspected before it fails completely.
Lastly, a failing fuel pump can trigger the check engine light, often accompanied by error codes related to fuel system pressure or delivery. While this light can indicate various issues, it’s worth checking the fuel pump if other symptoms align. Modern diagnostic tools can pinpoint the exact cause, but a professional inspection is recommended to avoid misdiagnosis. Addressing these symptoms promptly ensures your 1992 Dodge Caravan remains reliable and safe on the road.
Locating the Fuel Pump in Your 2002 GMC Sierra
You may want to see also
Explore related products
Steps to remove 1992 Caravan fuel pump
The fuel pump on a 1992 Dodge Caravan is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain a consistent fuel temperature. However, it also means that removing the fuel pump requires more involved steps compared to external or inline pumps. Below is a detailed guide on how to remove the fuel pump from your 1992 Dodge Caravan.
Step 1: Prepare the Vehicle
Before beginning, ensure the vehicle is on a flat, stable surface and engage the parking brake. Disconnect the negative battery terminal to prevent electrical accidents. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail (near the engine) and pressing it with a tool until fuel stops spraying. This step is critical to avoid fuel spills and potential hazards during the removal process.
Step 2: Access the Fuel Tank
Locate the fuel tank beneath the vehicle, typically near the rear passenger side. Drain the fuel tank as much as possible using a siphon pump or by running the vehicle until it stalls. Remove the fuel tank straps by unscrewing the bolts holding them in place. Carefully lower the tank to access the top, where the fuel pump assembly is located. Work with caution to avoid damaging fuel lines or other components.
Step 3: Disconnect the Fuel Pump Assembly
With the fuel tank accessible, remove the fuel pump module by first disconnecting the electrical connector and fuel lines. Use a fuel line disconnect tool if necessary to avoid damaging the lines. Unscrew the retaining ring or bolts securing the pump assembly to the tank. Lift the assembly out carefully, taking note of its orientation for reassembly. Be prepared for residual fuel to spill, so have a drain pan or absorbent material ready.
Step 4: Finalize Removal and Cleanup
Once the pump assembly is removed, inspect it for damage or wear. Clean the fuel tank opening to ensure no debris enters during reinstallation. If replacing the pump, transfer any reusable components (like the sending unit) to the new assembly. Reassembly follows the reverse order of removal, ensuring all connections are secure and the tank is properly supported. Test the system for leaks and functionality before driving.
Cautions and Tips
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. If the tank is difficult to lower, check for additional brackets or obstructions. Consider replacing the fuel tank straps if they show signs of wear. For first-time DIYers, having a repair manual or video guide specific to the 1992 Dodge Caravan can provide additional visual assistance. Proper preparation and attention to detail will ensure a safe and successful fuel pump removal.
Are Gearhead Fuel Pumps Reliable? A Comprehensive Performance Review
You may want to see also
Frequently asked questions
The fuel pump on a 1992 Dodge Caravan is located inside the fuel tank, which is situated beneath the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, and then lower the tank to access the pump assembly.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump.
Common signs include difficulty starting, sputtering at high speeds, loss of power, or a whining noise from the fuel tank area.
