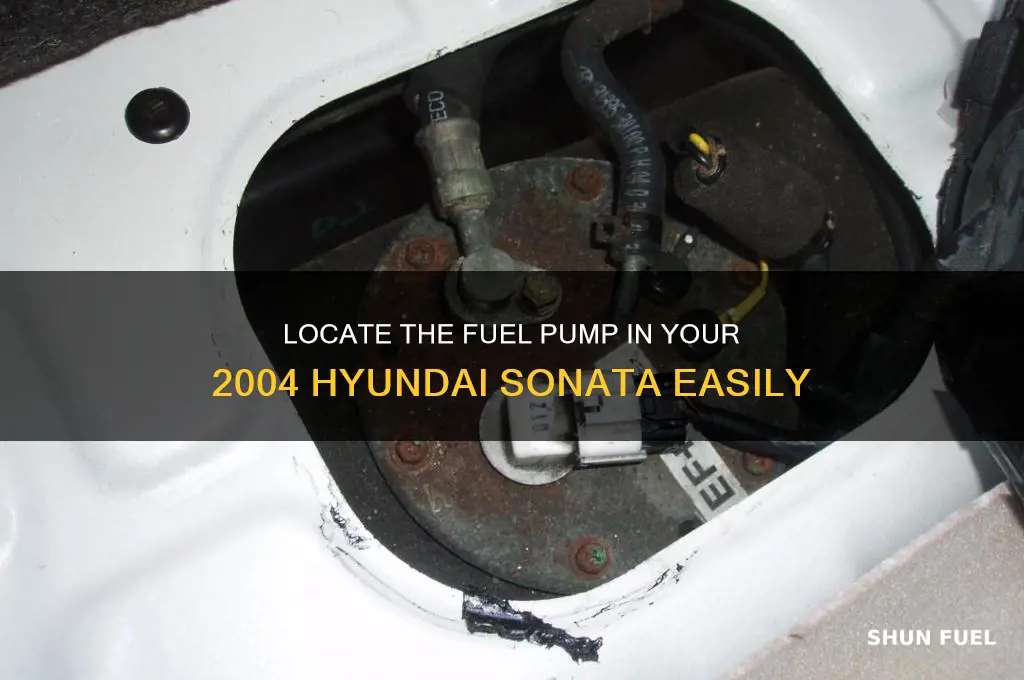

The fuel pump in a 2004 Hyundai Sonata is typically located inside the fuel tank, which is situated beneath the rear passenger seats. This placement is common in many modern vehicles to protect the pump from external damage and to keep it cool by submerging it in fuel. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly to extract the pump assembly. It’s important to relieve fuel system pressure and disconnect the battery before attempting any repairs or replacements to ensure safety.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removal of the rear seat and fuel tank access panel |
| Fuel Tank Location | Beneath the rear seat area |
| Pump Type | In-tank electric fuel pump |
| Model Year | 2004 |
| Vehicle Make & Model | Hyundai Sonata |
| Tools Required for Access | Socket set, screwdriver, fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Issues | Fuel pump failure, reduced fuel pressure, engine stalling |
| Replacement Difficulty | Moderate to difficult (requires fuel tank removal in some cases) |
Explore related products
What You'll Learn
- Under Rear Seat: The fuel pump in a 2004 Hyundai Sonata is located under the rear seat
- Accessing the Pump: Remove the rear seat to access the fuel pump assembly for maintenance or replacement
- Fuel Tank Proximity: The pump is situated inside the fuel tank, requiring tank removal for direct access
- Safety Precautions: Ensure the vehicle is on a level surface and the fuel system is depressurized before working
- Replacement Steps: Disconnect the battery, lower the tank, and replace the pump with a compatible unit
Under Rear Seat: The fuel pump in a 2004 Hyundai Sonata is located under the rear seat
The fuel pump in a 2004 Hyundai Sonata is tucked away under the rear seat, a design choice that balances accessibility with protection. This location is intentional, as it shields the pump from road debris and potential damage while still allowing for relatively straightforward maintenance. To access it, you’ll need to remove the rear seat, which involves unbolting a few fasteners and lifting the seat assembly out of the vehicle. This placement also keeps the pump away from the engine bay, reducing exposure to heat and vibration, which can extend its lifespan.
For DIY enthusiasts, locating the fuel pump under the rear seat simplifies troubleshooting and replacement. Unlike models where the pump is buried in the gas tank, this design allows you to test the pump’s functionality or replace it without draining the fuel tank or removing it entirely. However, it’s crucial to disconnect the battery before starting any work to avoid electrical hazards. Additionally, ensure the fuel lines are properly relieved of pressure to prevent spills or accidents during the process.
Comparatively, this setup is more user-friendly than systems where the fuel pump is integrated into the gas tank, which often require specialized tools and more labor-intensive procedures. The 2004 Sonata’s design prioritizes ease of access, making it a practical choice for both professional mechanics and car owners looking to save on repair costs. While it may seem unusual to find the pump under the rear seat, this location is a testament to Hyundai’s focus on practicality and maintenance efficiency.
If you’re planning to replace the fuel pump, ensure you have the correct replacement part, as compatibility varies even within the same model year. Aftermarket options are available, but OEM parts are recommended for reliability. Once the new pump is installed, reattach the fuel lines securely and test the system for leaks before reassembling the rear seat. This step-by-step approach ensures a safe and effective repair, keeping your Sonata running smoothly for years to come.
Ignition Switch and Fuel Pump: Understanding Their Interconnected Functionality
You may want to see also
Explore related products
Accessing the Pump: Remove the rear seat to access the fuel pump assembly for maintenance or replacement
The fuel pump in a 2004 Hyundai Sonata is located beneath the rear seat, a design choice that maximizes space efficiency but complicates access. Unlike older models where the pump was often in the fuel tank, Hyundai positioned this component inside the vehicle for easier maintenance—in theory. However, reaching it requires careful disassembly of the rear seat, a task that demands both precision and patience. This setup underscores the importance of understanding your vehicle’s layout before attempting repairs.
To access the fuel pump assembly, begin by locating the rear seat release levers, typically found on the upper front edge of the seatback. Pull these levers upward to disengage the seat from its mounting brackets. Tilt the seatback forward and lift the entire assembly out of the vehicle, setting it aside on a clean, flat surface to avoid damage. Be cautious not to strain the wiring harnesses connected to the seat’s power or heating elements, if equipped. With the seat removed, you’ll expose the fuel pump assembly cover, usually a metal or plastic panel secured by screws or clips.
Removing the cover reveals the fuel pump module, which includes the pump, sending unit, and filter. Before proceeding, disconnect the negative battery terminal to prevent accidental electrical shorts. Next, relieve the fuel system pressure by locating the Schrader valve on the fuel rail (consult your manual for its exact position) and depressurizing the system using a pressure gauge. Failure to do this step can result in fuel spraying during disassembly, posing a fire hazard. Once depressurized, disconnect the electrical connector and fuel lines from the pump assembly, taking note of their orientation for reassembly.
While this process may seem straightforward, several pitfalls can complicate the task. For instance, rusted or corroded screws may require penetrating oil and a torque screwdriver to avoid stripping. Additionally, the fuel pump assembly is often heavy and awkward to handle, so having an assistant or a support stand can prevent accidental damage. Always replace the fuel pump with a high-quality OEM or equivalent part to ensure reliability, as subpar components can lead to premature failure.
In conclusion, accessing the fuel pump in a 2004 Hyundai Sonata by removing the rear seat is a task that blends mechanical skill with attention to detail. By following these steps and exercising caution, you can successfully perform maintenance or replacement without unnecessary complications. This approach not only saves on labor costs but also deepens your understanding of your vehicle’s inner workings, empowering you to tackle future repairs with confidence.
Fuel Pump Relay Overheating: Causes, Risks, and Prevention Tips
You may want to see also
Explore related products
Fuel Tank Proximity: The pump is situated inside the fuel tank, requiring tank removal for direct access
The 2004 Hyundai Sonata's fuel pump is nestled within the fuel tank itself, a design choice that prioritizes efficiency and protection but complicates access for maintenance. This internal placement shields the pump from external elements and potential damage, ensuring consistent fuel delivery to the engine. However, when the pump fails or requires servicing, the entire fuel tank must be removed, a task that demands careful planning and execution.
Removing the fuel tank to access the fuel pump is not a job for the faint-hearted. It involves draining the tank, disconnecting fuel lines, and carefully lowering the tank from its mounting points. Safety is paramount; always work in a well-ventilated area, use non-sparking tools, and ensure the fuel system is depressurized before beginning. For DIY enthusiasts, this process can be a test of patience and mechanical skill, but it’s achievable with the right tools and a clear understanding of the steps involved.
Comparatively, vehicles with external fuel pumps offer easier access but may sacrifice durability. The Sonata’s design, while more labor-intensive to service, reduces the risk of pump failure due to environmental factors. This trade-off highlights the importance of considering long-term reliability versus short-term convenience when evaluating vehicle maintenance requirements.
For those tackling this task, here’s a practical tip: label all disconnected fuel lines and components to ensure proper reassembly. Additionally, inspect the fuel tank for signs of corrosion or damage while it’s removed, as addressing these issues now can prevent future headaches. While the process is time-consuming, the satisfaction of completing such a critical repair can be immensely rewarding.
Swift Fuel Pump Access: Does the 99 Model Have a Panel?
You may want to see also
Explore related products
Safety Precautions: Ensure the vehicle is on a level surface and the fuel system is depressurized before working
Before attempting to locate or work on the fuel pump of a 2004 Hyundai Sonata, it’s critical to ensure the vehicle is on a level surface. This simple step prevents fuel from unevenly pooling in the tank, which could lead to inaccurate diagnostics or unsafe working conditions. Even a slight incline can cause fuel to shift, potentially exposing the fuel pump assembly or creating a false sense of depressurization. Always use a level ground or a mechanic’s ramp designed to keep the vehicle stable.
Depressurizing the fuel system is equally non-negotiable. The 2004 Hyundai Sonata’s fuel system operates under pressure, typically around 40-60 PSI, to deliver fuel efficiently to the engine. Working on a pressurized system increases the risk of fuel spray, leaks, or even ignition if a spark is introduced. To depressurize, locate the fuel pump fuse or relay in the engine bay fuse box and remove it. Then, start the engine and let it stall naturally, which releases residual pressure. Wait at least 10 minutes before proceeding to ensure all pressure has dissipated.
A common oversight is assuming the fuel system is depressurized without verifying. Always test for pressure by loosening the fuel filler cap after the engine stalls. If you hear a hissing sound or feel pressure, the system is still pressurized. Repeat the depressurization process until no pressure is detected. Additionally, disconnect the negative battery terminal to eliminate any risk of accidental ignition during work.
Working on a level surface isn’t just about fuel distribution—it’s also about personal safety. Jack stands or ramps should be securely positioned to prevent the vehicle from shifting while you’re underneath. For the 2004 Sonata, the fuel pump is located inside the fuel tank, accessed from beneath the rear seat. A level surface ensures the tank remains stable, reducing the risk of accidental damage or spills during the removal process.
In summary, treating these precautions as optional can lead to hazardous outcomes. A level surface stabilizes the fuel tank and vehicle, while depressurizing the system eliminates the risk of fuel-related accidents. These steps are not just recommendations—they are essential practices to protect both the mechanic and the vehicle. Always prioritize safety, even if it adds a few extra minutes to the task.
Fuel Leak Risks: Can It Harm Your Fuel Pump?
You may want to see also
Explore related products
Replacement Steps: Disconnect the battery, lower the tank, and replace the pump with a compatible unit
The fuel pump in a 2004 Hyundai Sonata is located inside the fuel tank, a common placement in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This internal positioning means replacing the pump requires more than just swapping out a part—it involves accessing the fuel tank itself. Understanding this location is crucial for anyone attempting a DIY repair, as it dictates the steps and precautions necessary for a successful replacement.
Step 1: Disconnect the Battery
Before beginning any work on the fuel system, safety must be the top priority. Start by disconnecting the negative terminal of the 12-volt battery to eliminate the risk of electrical sparks, which could ignite fuel vapors. Use a 10mm wrench to loosen the terminal clamp, then tuck the cable aside to prevent accidental reconnection. This step is non-negotiable—skipping it could lead to dangerous consequences. Allow the system to depressurize for at least 10 minutes before proceeding to ensure residual fuel pressure has dissipated.
Step 2: Lower the Fuel Tank
With the vehicle securely jacked and supported on stands, locate the fuel tank beneath the rear seat area. Relieve the tank’s weight by supporting it with a jack or a strap. Remove the retaining straps using a 14mm socket, then carefully lower the tank to access the pump assembly. Be mindful of fuel spillage—drain the tank beforehand if possible, or use a catch pan to contain any residual fuel. Work methodically to avoid damaging fuel lines or electrical connectors, as these are critical for proper pump operation.
Step 3: Replace the Pump with a Compatible Unit
Once the tank is accessible, remove the locking ring securing the pump module using a specialized fuel tank locking ring tool. Gently pry out the old pump assembly, taking care not to damage the tank’s interior. Install the new pump, ensuring it’s an exact match for the original unit—compatibility is key to avoiding performance issues. Reattach the locking ring and reconnect all electrical and fuel lines. Test the system for leaks by filling the tank partially and inspecting for drips before reinstalling the tank.
Cautions and Practical Tips
Working on a fuel system carries inherent risks, so wear safety goggles and gloves throughout the process. Avoid smoking or open flames near the work area. If the tank is more than half full, siphon fuel to reduce weight and minimize spillage. When reinstalling the tank, double-check that all straps are tightened to factory specifications to prevent shifting during driving. Finally, after completing the replacement, cycle the ignition a few times to prime the pump and check for proper operation before starting the engine.
Where Are Bosch Fuel Pumps Manufactured? Global Production Insights
You may want to see also
Frequently asked questions
The fuel pump in a 2004 Hyundai Sonata is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
To access the fuel pump, you need to remove the rear seat cushion, locate the fuel pump access panel, and then lower the fuel tank to reach the pump assembly.
No, the fuel pump is an integral part of the fuel tank assembly, so the tank must be removed or lowered to replace the pump.
You’ll need basic hand tools such as wrenches, sockets, a screwdriver, and possibly a fuel line disconnect tool to safely remove and replace the fuel pump.
Yes, always relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards and fuel spills.
