The fuel pump in a Kohler Magnum M20 engine is a critical component responsible for delivering fuel from the tank to the carburetor, ensuring proper engine operation. Located typically on the side of the engine near the carburetor, it is often mounted directly onto the fuel bowl or connected via a short fuel line. Identifying its exact position is essential for maintenance, troubleshooting, or replacement, as issues with the fuel pump can lead to poor engine performance or failure to start. Consulting the engine’s manual or a service guide can provide precise instructions for locating and servicing the fuel pump on the Kohler Magnum M20.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump | Mounted on the engine, typically near the carburetor or fuel inlet. |
| Engine Model | Kohler Magnum M20 |
| Fuel Pump Type | Mechanical diaphragm-style fuel pump (common in small engines). |
| Function | Draws fuel from the tank and delivers it to the carburetor. |
| Compatibility | Specific to Kohler Magnum M20 and similar small engine models. |
| Replacement Part Number | Varies by manufacturer; check Kohler parts catalog for exact number. |
| Installation | Requires basic tools (wrenches, screwdrivers) for replacement. |
| Maintenance | Regularly inspect for leaks, clogs, or diaphragm wear. |
| Symptoms of Failure | Engine hard to start, stalling, or not receiving fuel. |
| Accessories | Fuel lines, filter, and mounting hardware may need replacement. |
| Manual Reference | Refer to Kohler Magnum M20 service manual for detailed location and specs. |
Explore related products
What You'll Learn
Fuel pump location on Kohler Magnum M20 engine
The Kohler Magnum M20 engine, a reliable workhorse in many applications, requires regular maintenance to ensure optimal performance. One critical component is the fuel pump, responsible for delivering fuel from the tank to the carburetor. Locating the fuel pump is essential for troubleshooting, replacement, or routine inspection.
Anatomy of the Fuel System:
The Magnum M20's fuel system is relatively straightforward. Fuel is drawn from the tank by the pump, typically a diaphragm-type, and pushed through a fuel line to the carburetor. Understanding this basic flow is key to pinpointing the pump's location.
Visual Identification:

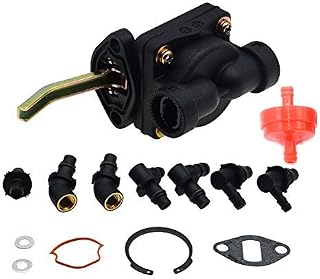

On the Kohler Magnum M20, the fuel pump is usually mounted directly to the engine block, often near the carburetor. It's a cylindrical or rectangular component with a lever arm connected to the engine's camshaft. This lever arm actuates the diaphragm inside the pump, creating the suction and pressure needed to move fuel.
Accessing the Pump:
Accessing the fuel pump for maintenance or replacement involves a few straightforward steps. First, ensure the engine is cool and the fuel tank is empty or nearly empty to minimize spillage. Locate the pump by following the fuel line from the carburetor back towards the tank. You'll likely find it secured to the engine block with bolts or clamps.
Maintenance Tips:
Regular inspection of the fuel pump is crucial. Look for signs of leakage, cracks in the housing, or a loose mounting. If the pump appears damaged or is not functioning properly, replacement is necessary. When replacing the pump, ensure you use a genuine Kohler part for optimal performance and compatibility.
Effective Strategies to Lower Fuel Pump Pressure Safely and Efficiently
You may want to see also
Explore related products
Identifying the fuel pump in M20 model
The Kohler Magnum M20 engine's fuel pump is a critical component, often located near the carburetor for efficient fuel delivery. This proximity ensures a steady supply of fuel, optimizing engine performance. When identifying the fuel pump, start by locating the carburetor, typically positioned on the engine's side. The fuel pump is usually a small, cylindrical component attached to or near the carburetor, with a fuel line running from the pump to the carburetor's inlet.
In the M20 model, the fuel pump's design is relatively straightforward, featuring a diaphragm-operated mechanism. This design allows for reliable fuel delivery, even in demanding conditions. To identify the pump, look for a metal or plastic housing with a fuel inlet and outlet. The inlet is connected to the fuel tank via a fuel line, while the outlet feeds into the carburetor. A primer bulb, often located on the fuel line, assists in drawing fuel from the tank to the pump.
Identifying the fuel pump in the M20 model requires a systematic approach. Begin by consulting the engine's manual or diagram, which provides a detailed layout of components. Next, visually inspect the engine, focusing on the carburetor area. The fuel pump is typically secured with mounting bolts or clamps, making it easily distinguishable from surrounding components. If the pump is obscured, carefully remove any covers or shrouds to expose the carburetor and pump assembly.
A practical tip for identifying the fuel pump is to follow the fuel lines. Trace the fuel line from the tank to the carburetor, noting any components along the way. The fuel pump will be the last component before the carburetor, ensuring fuel is pressurized and delivered efficiently. If the pump is damaged or malfunctioning, symptoms may include hard starting, rough idling, or fuel starvation. In such cases, inspect the pump for leaks, cracks, or worn diaphragms, and replace if necessary.
In comparison to other small engine fuel systems, the M20's fuel pump is relatively easy to access and identify. Its location near the carburetor simplifies maintenance and troubleshooting. However, it's essential to exercise caution when working on fuel systems, as fuel is flammable and can pose a fire hazard. Always disconnect the spark plug and allow the engine to cool before attempting any repairs or inspections. By understanding the fuel pump's location and function, M20 owners can ensure optimal engine performance and address issues promptly.
Checking Your Honda GCV160 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Accessing the fuel pump for maintenance
The Kohler Magnum M20 engine's fuel pump is typically located beneath the carburetor, nestled within the engine's valley. This positioning, while space-efficient, can make access challenging for maintenance tasks. Understanding this layout is crucial for anyone planning to service the fuel pump, as it dictates the tools and approach needed.
For instance, you'll likely need a combination of wrenches and sockets to remove surrounding components without damaging nearby parts.
Accessing the fuel pump involves a systematic disassembly process. Start by disconnecting the battery to prevent accidental starts. Then, remove the air cleaner assembly and carburetor to expose the fuel pump. Be mindful of fuel lines and linkages; label their positions for easier reassembly. Once exposed, inspect the pump for leaks, cracks, or signs of wear. If replacement is necessary, ensure the new pump is compatible with the Magnum M20's specifications, typically requiring a diaphragm-type pump with a specific pressure rating, often around 1-3 psi.
While the process seems straightforward, several pitfalls can complicate fuel pump access. Over-tightened bolts, rusted components, and cramped spaces can hinder progress. Using penetrating oil on stubborn fasteners and employing extension tools for hard-to-reach areas can alleviate these challenges. Additionally, working with a helper can make managing components and tools more efficient. Remember, patience and precision are key to avoiding damage during disassembly and reassembly.
Beyond the mechanical steps, safety should be paramount when accessing the fuel pump. Always work in a well-ventilated area to avoid inhaling fuel vapors. Keep a fire extinguisher nearby, as fuel leaks pose a fire hazard. Wearing safety goggles and gloves protects against spills and debris. By prioritizing safety and following a methodical approach, maintaining the Magnum M20's fuel pump becomes a manageable task, ensuring reliable engine performance.
Does the 2003 MBZ 320E Feature Dual Fuel Pumps?
You may want to see also
Explore related products
Common issues with M20 fuel pump placement
The Kohler Magnum M20 engine's fuel pump placement can lead to several common issues that owners and mechanics frequently encounter. One of the primary problems is the pump's proximity to the engine block, which exposes it to excessive heat. This heat can cause the fuel pump to degrade faster, leading to reduced efficiency or complete failure. Over time, the rubber components within the pump may harden or crack, compromising its ability to maintain consistent fuel pressure. To mitigate this, consider installing a heat shield or relocating the pump to a cooler area if possible.
Another issue arises from the fuel pump's mounting position, which often makes it difficult to access for maintenance or replacement. The M20's compact design places the pump in a tight space, requiring the removal of surrounding components to reach it. This inaccessibility not only prolongs repair times but also increases the risk of damaging nearby parts during the process. Mechanics often recommend using specialized tools and following a step-by-step guide to minimize frustration and errors when working on this area.
Vibration is a lesser-known but significant concern with the M20's fuel pump placement. The pump is typically mounted directly to the engine or frame, which subjects it to constant vibrations during operation. Over time, these vibrations can loosen connections or cause internal components to wear prematurely. Regularly inspecting fuel lines and electrical connections can help identify issues early. For long-term reliability, consider using vibration-damping mounts or reinforcing existing ones to reduce the impact of engine movement.
Lastly, the fuel pump's location can contribute to contamination issues, particularly if the fuel tank is not properly maintained. Debris or sediment from the tank can travel through the fuel lines and accumulate near the pump, clogging filters or damaging internal mechanisms. To prevent this, ensure the fuel tank is cleaned periodically and use high-quality fuel filters. If contamination is suspected, inspect the pump and lines immediately to avoid costly repairs or engine damage. Addressing these placement-related issues proactively can extend the life of the fuel pump and ensure the M20 engine operates smoothly.
Step-by-Step Guide to Priming Your Volkswagen Jetta Fuel Pump
You may want to see also
Explore related products
Replacing the fuel pump in Kohler Magnum M20
The Kohler Magnum M20 engine's fuel pump is typically located on the engine block, near the carburetor or fuel filter, depending on the specific model and configuration. This placement ensures efficient fuel delivery, but it also means that accessing the pump for replacement requires careful navigation around other components. Before starting, ensure the engine is cool and the fuel system is depressurized to avoid accidents.
Replacing the fuel pump on a Kohler Magnum M20 involves a systematic approach. Begin by disconnecting the battery to prevent accidental starts. Next, locate the fuel lines connected to the pump and carefully detach them, using a wrench or pliers as needed. Be prepared for residual fuel to spill, so have a container ready. Remove the mounting bolts securing the pump to the engine block, then gently pry the pump free if it’s stuck. Installation of the new pump follows the reverse process: secure it in place, reattach the fuel lines, and ensure all connections are tight.
One critical aspect often overlooked is the compatibility of the replacement pump. Kohler Magnum M20 engines may have variations in fuel pump designs depending on the year and model. Always verify the part number or consult the engine manual to ensure the new pump matches the original specifications. Using an incorrect pump can lead to poor performance or even engine damage. Additionally, consider replacing fuel filters and inspecting fuel lines for wear while the pump is out, as this can prevent future issues.
A practical tip for this task is to take photos or notes during disassembly to aid in reassembly. Fuel systems can be complex, and visual references ensure you reconnect everything correctly. If you encounter resistance when removing the old pump, avoid forcing it, as this can damage the engine block. Instead, use a penetrating oil to loosen stubborn components. Finally, after installation, check for leaks by running the engine briefly and inspecting the fuel lines and pump connections. This thorough approach ensures a successful replacement and reliable engine operation.
Proper Torque for Fuel Pump Installation: A Comprehensive Guide
You may want to see also
Frequently asked questions
The fuel pump on a Kohler Magnum M20 engine is typically located near the carburetor, often mounted directly on the engine block or nearby, depending on the specific model and configuration.
To access the fuel pump, first ensure the engine is off and cool. Locate the pump near the carburetor, then remove any covering or components obstructing it. Follow the fuel lines to identify and access the pump for inspection or replacement.
Yes, replacing the fuel pump on a Kohler Magnum M20 can be a DIY task if you have basic mechanical skills. Ensure you have the correct replacement part, disconnect the fuel lines, remove the old pump, and install the new one following the manufacturer’s instructions. Always refer to the engine manual for specific guidance.
