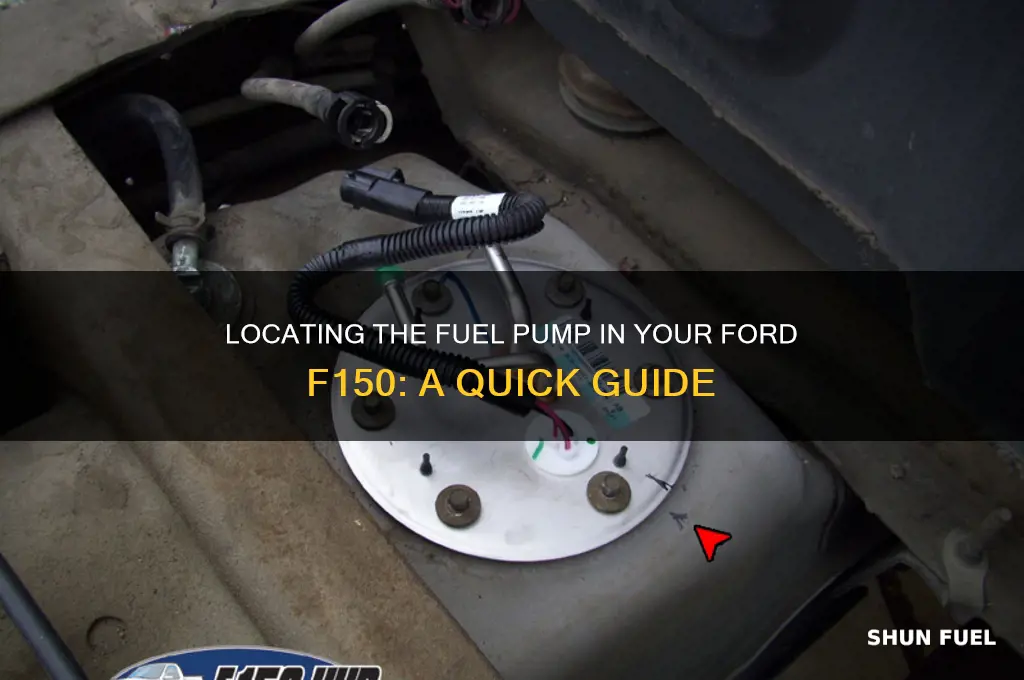

The fuel pump in a Ford F150 is typically located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This in-tank design also protects the pump from external damage and keeps it submerged in fuel, which helps to cool the pump and extend its lifespan. Accessing the fuel pump in a Ford F150 usually requires removing the fuel tank or using a specialized access panel, depending on the model year and specific configuration of the truck. It's essential to follow proper safety procedures, such as relieving fuel system pressure and disconnecting the battery, when working on the fuel pump to avoid potential hazards.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Access Point | Beneath the truck bed, requires removing the bed or accessing via an access panel (depending on model year) |
| Model Years Affected | Most Ford F150 models from 1985 to present |
| Fuel Pump Type | Electric fuel pump |
| Tank Removal Required | Yes, for direct access to the fuel pump |
| Tools Needed | Socket set, wrenches, jack, jack stands, and possibly a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Replacement Difficulty | Moderate to difficult (due to fuel tank removal) |
| Estimated Replacement Time | 2-4 hours (depending on experience and tools) |
| Common Symptoms of Failure | Engine stalling, difficulty starting, loss of power, whining noise from tank |
| Cost of Replacement | $200-$600 (parts and labor, varies by model and location) |
