The 2003 Volkswagen Passat’s fuel pump fuse is a critical component for ensuring the vehicle’s fuel system operates correctly. Located in the fuse box, its exact position can vary depending on the model and engine type. For most 03 Passat variants, the fuel pump fuse is typically found in the engine bay fuse box, often labeled as Fuse 19 or Fuel Pump. It’s essential to consult the vehicle’s manual or fuse box diagram for precise identification, as incorrect handling can lead to electrical issues or fuel system malfunctions. Regularly checking this fuse is a good practice to prevent unexpected breakdowns.
| Characteristics | Values |
|---|---|
| Location of Fuse Box | Under the dashboard on the driver's side (left-hand drive models) |
| Fuse Panel Designation | S30 (Secondary Fuse Panel) |
| Fuse Number | Fuse #10 (Fuel Pump Relay/Fuel Pump) |
| Fuse Rating | 15 Amperes (A) |
| Function | Controls power to the fuel pump |
| Additional Notes | The fuel pump relay is also located in the same fuse panel (S30). |
| Access Method | Remove the cover panel under the steering column to access the fuse box. |
| Year Applicability | 2003 Volkswagen Passat (B5) |
| Model Variants | Applies to both sedan and wagon models |
| Diagnostic Tip | If the fuel pump fuse blows repeatedly, check for wiring issues or a faulty fuel pump. |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the fuse box location in a 2003 Passat for fuel pump fuse
- Fuse Diagram: Understand the fuse diagram to locate the fuel pump fuse accurately
- Common Issues: Diagnose common issues related to fuel pump fuse failure in a 03 Passat
- Replacement Steps: Learn the steps to replace the fuel pump fuse in a 2003 Passat
- Safety Tips: Follow safety tips when accessing and replacing the fuel pump fuse in a Passat
Fuse Box Location: Identify the fuse box location in a 2003 Passat for fuel pump fuse

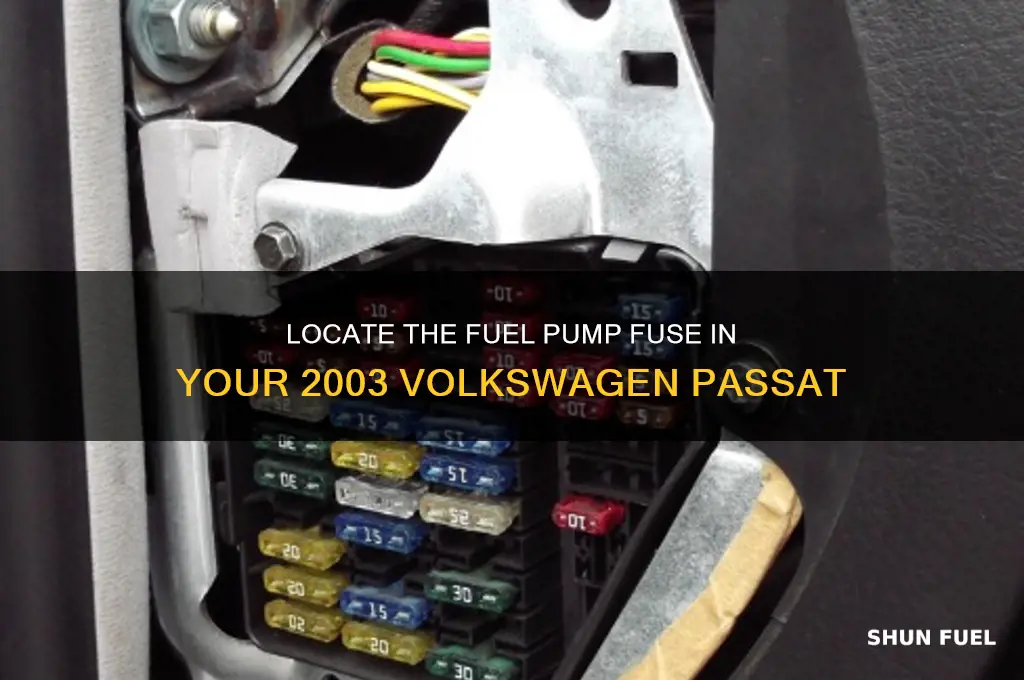

Locating the fuse box in a 2003 Volkswagen Passat is the first step in identifying the fuel pump fuse. The fuse box in this model is typically found in two primary locations: under the dashboard on the driver's side and in the engine compartment. The under-dash fuse box is more likely to house the fuel pump fuse, as it contains fuses for interior and critical vehicle functions. To access it, you’ll need to remove a small panel near the footwell, which may require a screwdriver or simply unclipping it, depending on the trim level.
Once the fuse box cover is removed, locating the fuel pump fuse requires consulting the fuse diagram, usually printed on the inside of the cover or in the vehicle’s manual. The fuel pump fuse is often labeled as "Fuel Pump" or "FPM" and is typically a higher-amp fuse, ranging from 15 to 20 amps. If the diagram is missing or unclear, cross-referencing with online resources or a repair manual can provide clarity. It’s essential to ensure the correct fuse is identified, as misidentifying it could lead to unnecessary troubleshooting or damage.
A practical tip for verifying the fuel pump fuse is to use a multimeter to test for continuity. With the ignition off, remove the fuse and place the multimeter probes on both ends of the fuse. A reading of zero or close to it indicates the fuse is intact, while a high or infinite reading suggests it’s blown. This method is particularly useful if the fuse appears visually undamaged but may have an internal fault. Always replace a blown fuse with one of the same amperage to avoid electrical issues.
For those unfamiliar with vehicle maintenance, it’s helpful to note that the 2003 Passat’s fuse box layout may vary slightly depending on the model and market. European models, for instance, might have different fuse designations compared to U.S. versions. If in doubt, consulting a VIN-specific repair manual or contacting a dealership can provide accurate information. Additionally, keeping a spare fuel pump fuse in the vehicle is a proactive measure, as this fuse is critical for engine operation and can fail unexpectedly.
In summary, identifying the fuel pump fuse in a 2003 Passat involves locating the under-dash fuse box, consulting the fuse diagram, and verifying the fuse’s condition. This process combines visual inspection, technical verification, and awareness of model-specific variations. By following these steps, vehicle owners can efficiently address fuel pump fuse issues, ensuring reliable vehicle performance.
Signs Your Fuel Pump is Failing: Diagnosis and Solutions
You may want to see also
Explore related products
Fuse Diagram: Understand the fuse diagram to locate the fuel pump fuse accurately
Understanding the fuse diagram of your 2003 Volkswagen Passat is crucial for pinpointing the fuel pump fuse, a component that, when faulty, can leave you stranded. The fuse diagram, typically located in the owner’s manual or on the fuse box cover, acts as a roadmap to the vehicle’s electrical system. For the 03 Passat, the fuel pump fuse is often labeled as "Fuel Pump" or "FPM" and is usually found in the engine bay fuse box. However, Volkswagen’s labeling can vary, so cross-referencing the diagram with the manual ensures accuracy. Ignoring this step could lead to unnecessary troubleshooting or damage to other components.
Analyzing the fuse diagram reveals a systematic layout where fuses are categorized by function and amperage. The fuel pump fuse, typically rated at 20 amps, is often grouped with other powertrain-related fuses. In the 03 Passat, it’s commonly located in the S240 relay/fuse panel in the engine bay. A key takeaway is that the diagram’s legend is your ally—it decodes symbols and abbreviations, making it easier to identify the correct fuse. Without this understanding, you might mistake a similar-looking fuse for the fuel pump fuse, wasting time and effort.
To locate the fuel pump fuse accurately, follow these steps: First, open the hood and locate the fuse box near the battery. Second, remove the fuse box cover and inspect the diagram printed on the underside. Third, identify the fuse labeled "Fuel Pump" or "FPM" using the diagram’s legend. A practical tip is to use a flashlight to illuminate the area, as the print can be small and hard to read. If the diagram is missing or illegible, consult the owner’s manual or an online resource specific to the 03 Passat.
A comparative analysis of fuse diagrams across different Passat models highlights Volkswagen’s consistency in labeling, but slight variations exist. For instance, earlier models may place the fuel pump fuse in a different position or use a different amperage rating. The 03 Passat, however, adheres to a standard layout where the fuel pump fuse is centrally located in the engine bay fuse box. This consistency simplifies the process for owners familiar with Volkswagen’s systems but underscores the importance of verifying details for your specific model.
Finally, understanding the fuse diagram not only helps in locating the fuel pump fuse but also empowers you to diagnose other electrical issues. For example, a blown fuse for the interior lights or radio can be quickly identified and replaced, saving a trip to the mechanic. The fuel pump fuse, being critical to the vehicle’s operation, warrants special attention. Regularly inspecting fuses and keeping a spare set in your vehicle can prevent unexpected breakdowns. By mastering the fuse diagram, you gain a valuable skill that enhances your vehicle’s reliability and your confidence as a car owner.
Does My Outboard Have a Fuel Pump? A Quick Guide
You may want to see also
Explore related products
Common Issues: Diagnose common issues related to fuel pump fuse failure in a 03 Passat
The fuel pump fuse in a 2003 Volkswagen Passat is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. When this fuse fails, it can lead to a range of issues, from a simple no-start condition to more complex symptoms that mimic other engine problems. Diagnosing these issues accurately is essential to avoid unnecessary repairs and ensure your vehicle runs smoothly.
One common issue related to fuel pump fuse failure is a sudden loss of power or stalling while driving. This occurs because the fuel pump stops operating, cutting off the fuel supply to the engine. If you experience this, the first step is to locate the fuse box, which in a 03 Passat is typically found in the engine bay on the driver’s side. The fuel pump fuse is usually labeled as "Fuel Pump" or "FPM" and is often a 20-amp fuse. Inspect it for signs of burning, melting, or breakage. A blown fuse is a clear indicator of failure, but even if it appears intact, test it with a multimeter to confirm continuity.
Another symptom of a failing fuel pump fuse is difficulty starting the engine, especially after the vehicle has been sitting for a while. This can be misleading, as it may resemble a weak battery or starter motor issue. To differentiate, listen for the fuel pump priming sound when you turn the ignition to the "on" position (but don’t start the engine). If you don’t hear the pump humming for 2-3 seconds, the fuse or pump itself may be faulty. Always check the fuse first, as it’s a simpler and less expensive fix.
Recurring fuse failures are a red flag that point to an underlying electrical issue. If you replace the fuel pump fuse and it blows again shortly after, the problem could be a short circuit in the fuel pump wiring or a failing fuel pump drawing excessive current. In such cases, avoid repeatedly replacing the fuse, as this can lead to further damage. Instead, inspect the wiring harness for frayed or damaged wires, particularly near the fuel tank. If no visible damage is found, consult a professional to diagnose the fuel pump’s electrical draw.
Lastly, a less obvious symptom of fuel pump fuse failure is erratic engine performance, such as hesitation or surging under acceleration. This happens when the fuel pump intermittently loses power due to a loose or corroded fuse connection. Clean the fuse contacts with a wire brush and ensure the fuse is seated firmly in its slot. If the issue persists, consider using a fuse with a slight coating of dielectric grease to improve conductivity and prevent corrosion. Regularly inspecting the fuse box during routine maintenance can help catch these issues early and prevent unexpected breakdowns.
DIY Guide: Replacing the Fuel Pump on a 2002 Honda Civic
You may want to see also
Explore related products
Replacement Steps: Learn the steps to replace the fuel pump fuse in a 2003 Passat
The fuel pump fuse in a 2003 Volkswagen Passat is a critical component, ensuring the fuel pump operates efficiently to deliver fuel to the engine. Located in the fuse box, its position can vary depending on the model and region. For most 2003 Passats, the fuse box is situated in the engine compartment, often near the battery or along the driver’s side firewall. Identifying the correct fuse requires consulting the vehicle’s manual or the fuse box diagram, which typically labels the fuel pump fuse as "Fuel Pump" or "FPM."
Replacing the fuel pump fuse is a straightforward task that requires minimal tools and time. Begin by locating the fuse box and removing its cover to expose the fuses. Use the diagram on the fuse box lid or in the manual to identify the fuel pump fuse, usually rated at 15 or 20 amps. Before proceeding, ensure the ignition is off to prevent electrical mishaps. With a fuse puller or a pair of needle-nose pliers, carefully extract the fuse, inspecting it for signs of damage such as a broken filament or discoloration.
Once the old fuse is removed, insert a new one of the same amperage rating. It’s crucial to avoid using a fuse with a higher rating, as this can lead to electrical system damage or fire hazards. After installation, reattach the fuse box cover securely. To verify the replacement, start the vehicle and listen for the fuel pump’s hum, which should indicate proper operation. If the issue persists, further diagnostics may be necessary, such as checking the fuel pump relay or wiring.
While replacing the fuel pump fuse is a simple DIY task, it’s essential to approach it with caution. Always handle fuses with clean hands to prevent corrosion, and ensure the replacement fuse is genuine and compatible with your Passat. If you’re unsure about any step, consult a professional mechanic to avoid complications. Regularly inspecting fuses during routine maintenance can prevent unexpected breakdowns and ensure your vehicle runs smoothly.
In summary, replacing the fuel pump fuse in a 2003 Passat involves locating the fuse box, identifying the correct fuse, and swapping it out with a new one of the same rating. This process is quick and cost-effective, making it an ideal DIY repair for maintaining your vehicle’s performance. By following these steps and exercising caution, you can address fuel pump fuse issues efficiently and keep your Passat running reliably.
Why Upgrade to an Electronic Fuel Pump: Benefits and Installation Tips
You may want to see also
Explore related products
Safety Tips: Follow safety tips when accessing and replacing the fuel pump fuse in a Passat
Before attempting to replace the fuel pump fuse in your 2003 Passat, it's crucial to prioritize safety to prevent accidents, injuries, or damage to your vehicle. The fuel system operates under high pressure and is highly flammable, making it essential to follow specific precautions. Always start by turning off the ignition and allowing the engine to cool down for at least 30 minutes. This reduces the risk of accidental ignition and ensures components are safe to touch.
When accessing the fuse box, locate it in the engine bay near the battery, as indicated in most 03 Passat models. However, always consult your vehicle’s manual for precise location details. Wear insulated gloves and avoid using metal tools that could create sparks. Instead, opt for plastic or rubber-handled tools. If you must use metal tools, wrap the ends with electrical tape to minimize spark risks. Additionally, ensure the area is well-ventilated to disperse any fuel vapors that may have accumulated.
Replacing the fuse requires careful handling to avoid short circuits or incorrect installation. Identify the correct fuse by referring to the diagram on the fuse box cover or your manual—typically, the fuel pump fuse is rated at 20 amps. Use a fuse puller to remove the old fuse, inspecting it for signs of damage like a broken filament or discoloration. Insert the new fuse firmly but gently, ensuring it seats properly without forcing it. Never use a fuse with a higher amperage rating, as this can lead to electrical system damage or fire.
After replacement, double-check all connections and ensure the fuse box cover is securely closed. Start the vehicle and listen for unusual noises from the fuel pump, which could indicate a persistent issue. If problems persist, consult a professional mechanic to avoid further complications. By adhering to these safety tips, you can confidently address the fuel pump fuse in your Passat while minimizing risks.
Step-by-Step Guide to Replacing a 2003 Malibu Fuel Pump
You may want to see also
Frequently asked questions
The fuel pump fuse on a 2003 Volkswagen Passat is typically located in the engine bay fuse box. It is often labeled as "Fuse S26" or "Fuel Pump" in the fuse diagram.
To access the fuel pump fuse, open the hood and locate the fuse box on the driver’s side of the engine bay. Remove the fuse box cover, and refer to the diagram on the inside of the cover to identify the correct fuse.
If the fuel pump fuse keeps blowing, it may indicate an electrical issue, such as a short circuit or a faulty fuel pump. Check the wiring harness for damage and consult a professional mechanic to diagnose and repair the problem.
