The 1994 Chevy 1500 C1500’s fuel pump fuse is a critical component for ensuring the vehicle’s fuel system operates correctly. Located in the under-hood fuse block, this fuse is typically labeled as FUEL PUMP or ECM B and is often a 20-amp fuse. It’s essential to consult the owner’s manual or the fuse box diagram, usually found on the underside of the fuse box cover, to confirm its exact location. If the fuel pump fuse blows, the engine may not start or could stall, making it crucial to inspect and replace it if necessary. Always ensure the ignition is off before handling fuses to avoid electrical hazards.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1994 Chevy 1500 C |
| Fuse Location | Under the hood in the fuse relay center (also called the underhood fuse block) |
| Fuse Box Name | Underhood Fuse Block / Fuse Relay Center |
| Fuse Number | Typically labeled as "ECM B" or "Fuel Pump" (check the fuse box lid diagram) |
| Fuse Rating | 20 Amps |
| Fuse Type | Blade-type fuse |
| Additional Notes | The fuel pump relay is often located near the fuse in the same fuse box. |
| Troubleshooting Tip | If the fuse is blown, check for wiring issues or a faulty fuel pump before replacing. |
Explore related products
$203.78 $309.99
What You'll Learn
- Fuse Box Location: Identify the fuse box in a 1994 Chevy 1500 C
- Fuel Pump Fuse Number: Determine the specific fuse number for the fuel pump
- Fuse Panel Diagram: Locate and interpret the fuse panel diagram for the truck
- Common Fuse Issues: Diagnose common problems related to the fuel pump fuse
- Replacement Steps: Steps to replace a blown fuel pump fuse in the vehicle

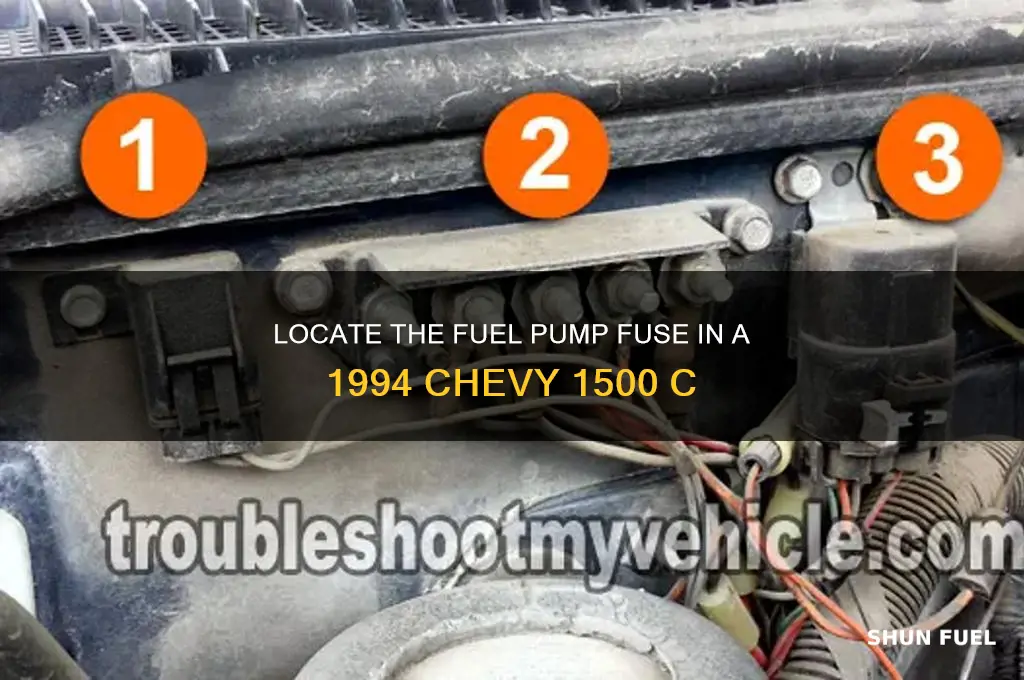

Fuse Box Location: Identify the fuse box in a 1994 Chevy 1500 C
Locating the fuse box in a 1994 Chevy 1500 C is the first step in troubleshooting electrical issues, including those related to the fuel pump. This model, like many vehicles of its era, houses its fuse box in a somewhat unconventional spot compared to modern designs. The fuse box is typically found on the driver's side of the vehicle, but not under the dashboard as one might expect. Instead, it is positioned on the firewall, just above the brake pedal area. This placement can make it a bit tricky to access, especially for those unfamiliar with older vehicle layouts.
To identify the fuse box, start by opening the driver’s side door and locating the brake pedal. Follow the pedal upward toward the firewall, which is the metal partition between the engine compartment and the cabin. The fuse box is a rectangular, plastic-covered unit mounted directly on the firewall. It’s important to note that this fuse box houses both fuses and relays, so it’s crucial to differentiate between the two when searching for the fuel pump fuse. The cover of the fuse box often has a diagram indicating which fuse corresponds to which component, though this diagram may have faded over time.
Once you’ve located the fuse box, the next step is to remove its cover. This is usually done by pressing a tab or sliding a latch, depending on the design. Inside, you’ll find a grid of fuses and relays, each labeled according to its function. The fuel pump fuse is typically labeled as "FUEL" or "FUEL PUMP" and is often a higher-amp fuse, usually around 15 to 20 amps. If the diagram on the cover is illegible, consult the vehicle’s owner’s manual or a repair guide for the exact location of the fuel pump fuse.
Accessing the fuse box in a 1994 Chevy 1500 C requires some flexibility, as the tight space around the brake pedal area can make it awkward to reach. Using a flashlight can help illuminate the area, especially if working in low-light conditions. Once the fuel pump fuse is identified, it can be checked for continuity using a multimeter or simply swapped with another fuse of the same rating to test for functionality. If the fuse is blown, replacing it with a new one of the correct amperage is essential to restore the fuel pump’s operation.
Understanding the fuse box location in this specific model is not just about fixing a fuel pump issue; it’s also about gaining familiarity with the vehicle’s electrical system. This knowledge can save time and frustration when diagnosing other electrical problems. While the placement of the fuse box in the 1994 Chevy 1500 C may seem unusual by today’s standards, it’s a testament to the design choices of the era. With a bit of patience and the right tools, locating and servicing the fuse box becomes a straightforward task for any vehicle owner.
Do Airplanes Use Vane-Type Fuel Pumps? Exploring Aviation Fuel Systems
You may want to see also
Explore related products
Fuel Pump Fuse Number: Determine the specific fuse number for the fuel pump
The 1994 Chevy 1500 C1500’s fuel pump fuse is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Identifying the specific fuse number is essential for troubleshooting or replacing a blown fuse. In this model, the fuel pump fuse is typically located in the underhood fuse block, often labeled as "F/P" or "Fuel Pump." However, the exact fuse number can vary depending on the truck’s configuration and trim level. Referencing the owner’s manual or the fuse block diagram is the most reliable way to confirm the correct fuse number, usually found on the underside of the fuse block cover or in the manual’s electrical section.
Analyzing the fuse block layout reveals that the fuel pump fuse is often a higher-amp fuse, typically rated at 20 amps, to handle the electrical load required by the fuel pump. This fuse is strategically placed to protect the fuel pump circuit from overcurrent conditions, which could otherwise damage the pump or wiring. If your truck’s engine cranks but doesn’t start, or if you notice a loss of power, checking this fuse should be one of the first steps in your diagnostic process. A blown fuse can be caused by a short circuit, a faulty fuel pump, or even corrosion in the fuse block, making it a common yet often overlooked issue.
To determine the specific fuse number for the fuel pump, follow these steps: First, locate the underhood fuse block, usually on the driver’s side of the engine compartment. Second, remove the fuse block cover and inspect the diagram on the underside, which labels each fuse by function and number. Third, identify the fuse labeled "F/P," "Fuel Pump," or a similar designation. If the diagram is missing or unclear, consult the owner’s manual or an online resource specific to the 1994 Chevy C1500. Once identified, use a fuse puller or needle-nose pliers to extract the fuse and inspect it for signs of damage, such as a broken filament or discoloration.
A comparative approach to fuse identification can also be helpful. For instance, the fuel pump fuse in the 1994 Chevy C1500 is often located in a similar position to other GM trucks of the same era, such as the GMC Sierra. However, slight variations may exist, emphasizing the importance of verifying the exact fuse number for your specific model. Additionally, comparing the fuse’s condition to others in the block can provide clues about its health. A fuse that appears charred or melted is a clear indicator of a problem, whereas a fuse that looks intact may still be faulty and require testing with a multimeter.
In conclusion, determining the specific fuse number for the fuel pump in a 1994 Chevy 1500 C1500 involves a combination of visual inspection, reference to diagrams, and understanding the fuse’s role in the electrical system. By following a systematic approach and leveraging available resources, you can accurately identify and address issues related to the fuel pump fuse. This knowledge not only saves time and money but also ensures your vehicle remains reliable and safe to operate. Always handle fuses with care and replace them with the correct amperage to avoid further complications.
Testing Your 2003 Mazda3 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Fuse Panel Diagram: Locate and interpret the fuse panel diagram for the truck
The fuse panel diagram for a 1994 Chevy 1500 C is your roadmap to troubleshooting electrical issues, including locating the fuel pump fuse. This diagram, typically found on the inside of the fuse panel cover or in the vehicle’s owner’s manual, labels each fuse and its corresponding circuit. For this truck, the fuel pump fuse is often labeled as "ECM B" or "Fuel Pump" and is usually located in the underhood fuse block. Understanding this diagram is critical, as misidentifying a fuse can lead to unnecessary replacements or further damage.
Analyzing the fuse panel diagram reveals a systematic layout designed for ease of use. Fuses are grouped by function, with power distribution often separated from accessory circuits. In the 1994 Chevy 1500 C, the underhood fuse block houses high-amperage fuses, including the fuel pump fuse, typically rated at 20 amps. The diagram uses symbols and color-coding to differentiate between fuses, relays, and other components. For instance, a rectangle with a diagonal line often represents a fuse, while a square with a coil inside indicates a relay. Familiarizing yourself with these symbols streamlines the process of locating the correct fuse.
Interpreting the diagram requires attention to detail. Start by cross-referencing the diagram with the physical fuse panel to ensure accuracy. If the diagram is missing or illegible, online resources like forums or repair manuals often provide clear, downloadable versions. Once identified, the fuel pump fuse should be inspected for signs of blowing, such as a broken filament or discoloration. If the fuse appears intact, use a multimeter to test for continuity, ensuring the circuit is complete. This step-by-step approach minimizes guesswork and maximizes efficiency.
A practical tip for working with the fuse panel is to keep a spare set of commonly used fuses in your glove compartment. For the 1994 Chevy 1500 C, having extra 20-amp fuses can save time during roadside troubleshooting. Additionally, when replacing a blown fuse, always address the root cause—frequent blowing indicates an underlying issue, such as a short circuit or faulty fuel pump. Ignoring this can lead to repeated failures and potential safety hazards. By combining diagram interpretation with proactive maintenance, you ensure your truck’s electrical system remains reliable.
In conclusion, the fuse panel diagram is an indispensable tool for locating and diagnosing issues like a faulty fuel pump fuse in a 1994 Chevy 1500 C. Its structured layout, combined with a basic understanding of symbols and functions, empowers you to tackle electrical problems confidently. Whether you’re a seasoned mechanic or a DIY enthusiast, mastering this diagram transforms a potentially daunting task into a manageable process. Always approach fuse-related issues methodically, and remember that prevention is just as important as repair.
Step-by-Step Guide to Assembling a Briggs and Stratton Fuel Pump
You may want to see also
Explore related products
Common Fuse Issues: Diagnose common problems related to the fuel pump fuse
The fuel pump fuse in a 1994 Chevy 1500 C is a critical component that ensures your vehicle’s fuel system operates efficiently. Located in the fuse box under the hood, it’s typically labeled as "FUEL" or "FUEL PUMP" and is rated for 20 amps. Identifying its location is the first step in diagnosing issues, but understanding common fuse problems is equally vital. A blown fuse, corrosion, or improper installation can disrupt fuel delivery, leaving you stranded. Let’s explore how to diagnose and address these issues effectively.
One of the most common problems is a blown fuel pump fuse, often caused by an electrical short or overloading. If your engine cranks but doesn’t start, or if you hear no fuel pump hum when turning the key to the "ON" position, this could be the culprit. To diagnose, use a multimeter to test the fuse for continuity. A reading of "OL" (open loop) indicates a blown fuse. Replace it with a new 20-amp fuse, but if the issue recurs, investigate the wiring harness for shorts or the fuel pump itself for excessive current draw.
Corrosion in the fuse box is another frequent issue, especially in older vehicles like the 1994 Chevy 1500 C. Moisture and dirt can accumulate, causing poor contact between the fuse and its terminals. This results in intermittent power loss to the fuel pump, leading to stalling or difficulty starting. To address this, remove the fuse, clean the terminals with a wire brush or electrical contact cleaner, and ensure the fuse box is dry. Applying dielectric grease can prevent future corrosion.
Improper fuse installation can also cause problems. Using a fuse with the wrong amperage rating, such as a 30-amp fuse in place of a 20-amp, can lead to overheating and damage. Always replace fuses with the correct type and rating. Additionally, ensure the fuse is fully seated in its slot; a loose connection can cause arcing or intermittent power. If in doubt, consult the vehicle’s manual or a trusted mechanic for guidance.
Finally, consider the fuel pump relay, which is often overlooked when diagnosing fuse issues. The relay controls power to the fuel pump, and a faulty relay can mimic fuse problems. If the fuse tests fine, check the relay for clicking when the key is turned on. A silent relay may be defective. Swap it with a known-good relay or test it with a multimeter to confirm functionality. Addressing both the fuse and relay ensures a comprehensive diagnosis of your fuel system issues.
Grounding Fuel Pumps to the Frame: Essential Benefits and Safety Tips
You may want to see also
Explore related products
Replacement Steps: Steps to replace a blown fuel pump fuse in the vehicle
The fuel pump fuse in a 1994 Chevy 1500 C is typically located in the fuse block under the hood, near the firewall on the driver's side. Identifying the correct fuse is crucial, as replacing a blown fuse is a straightforward but essential task to restore your vehicle’s fuel system functionality. Before starting, ensure the ignition is off to prevent electrical mishaps.
Begin by locating the fuse box, which is usually marked with a diagram on the underside of the lid. Refer to your vehicle’s manual or the diagram to identify the fuel pump fuse, often labeled as "ECM B" or "Fuel Pump." Use a fuse puller or a pair of needle-nose pliers to carefully remove the fuse. Inspect it for signs of damage, such as a broken filament or discoloration, which confirm it’s blown.
Next, replace the blown fuse with a new one of the same amperage rating, typically 15 or 20 amps for this model. Using the wrong amperage can cause further damage, so verify the rating before installation. Insert the new fuse firmly into the slot, ensuring it’s seated properly. Avoid forcing it, as this can damage the fuse box.
After replacing the fuse, test the fuel pump by turning the ignition to the "On" position (without starting the engine) and listening for the pump’s hum, which should last 2-3 seconds. If the pump doesn’t engage, check for other issues, such as a faulty relay or wiring. If the pump works, start the engine to confirm the problem is resolved. Regularly inspecting fuses during routine maintenance can prevent unexpected breakdowns.
Discounted Genuine Fuel Pump for 1986 Honda Helix: Is It Worth It?
You may want to see also
Frequently asked questions
The fuel pump fuse in a 1994 Chevy 1500 C is typically located in the underhood fuse box, often labeled as "FUEL PUMP" or "ECCM" (Emission Control Computer Module).
The fuel pump fuse protects the electrical circuit that powers the fuel pump, ensuring it operates safely and prevents electrical overload or damage.
Refer to the fuse box diagram in your owner’s manual or on the fuse box cover. The fuel pump fuse is usually rated at 15-20 amps and labeled accordingly.
If the fuel pump fuse repeatedly blows, check for a short circuit in the fuel pump wiring, a faulty fuel pump, or issues with the fuel pump relay. Consult a mechanic if needed.
Yes, replacing the fuel pump fuse is a simple DIY task. Ensure the vehicle is off, locate the correct fuse, and replace it with one of the same amperage rating.
