Regan Brown

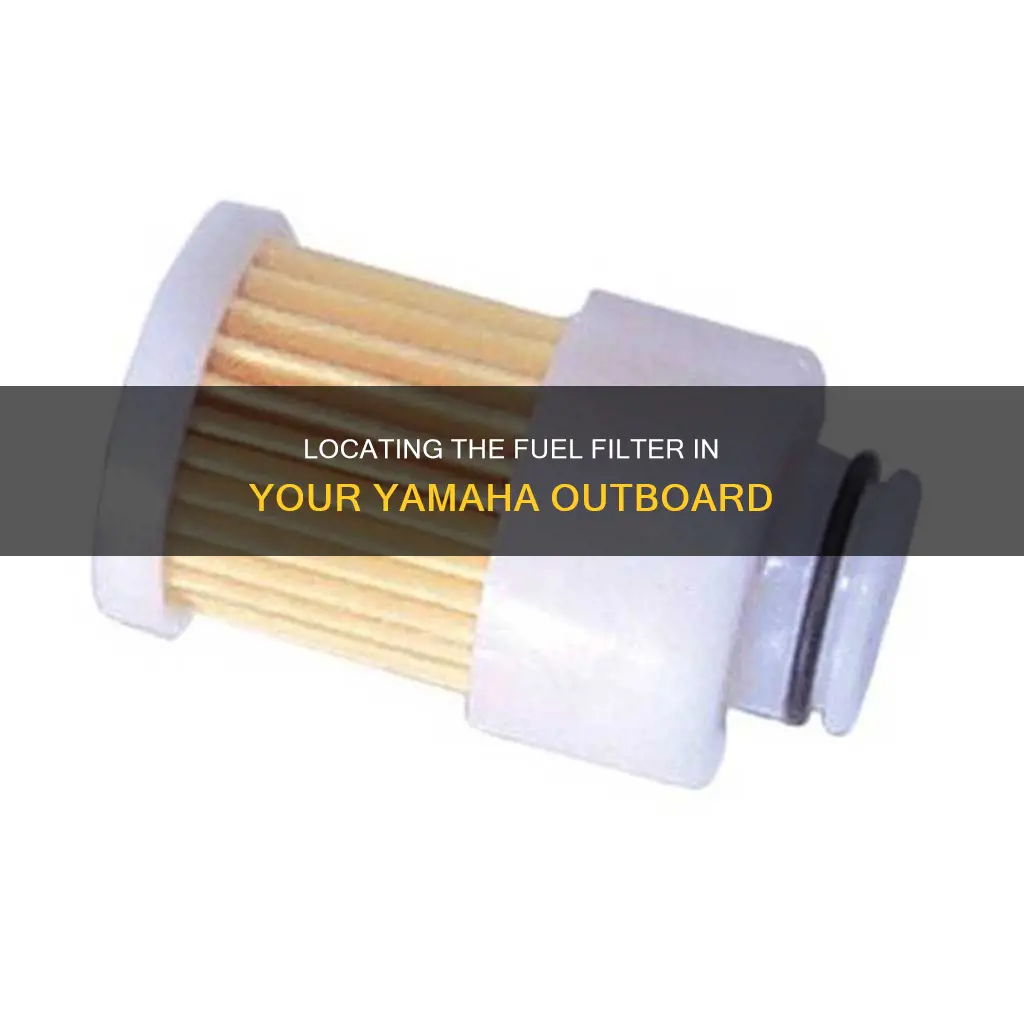

Yamaha outboard motors can have up to five different fuel filters, depending on the outboard's age and model. The fuel filter's location on a Yamaha outboard motor varies depending on the model. Generally, the fuel filter is placed on the front, side, or back of the powerhead, with an in-line filter located along the top of the outboard. The primary on-engine filter is usually housed in a translucent plastic cup on one of the vertical sides of the powerhead. Regularly changing the fuel filter is important to maintain the engine's performance and efficiency, as it prevents impurities such as dirt, debris, and water from entering the engine and causing damage.
| Characteristics | Values |
|---|---|
| Function | To trap impurities in the fuel and prevent them from entering the engine |
| Types | Primary fuel filter, 10-micron fuel/water separating filter, in-line filter, VST filter, fuel injector screen |
| Location | Front, side or back of the powerhead; inside the vapor separator tank; along the top of the outboard; within the fuel injector |
| Replacement Interval | Every 50-100 hours of operation or annually; when water is detected in the trap |
| Maintenance | Regular inspection and replacement to prevent engine damage and ensure optimal performance |
Explore related products
What You'll Learn
The fuel filter's location
The fuel filter is usually placed on the front, side, or back of the powerhead and is typically made of transparent plastic. It works by filtering the fuel before it enters the outboard. This "primary" filter typically contains a small water trap at the bottom. On Yamaha outboards, there may be a red ring in this filter. It is important to never take it out. If the red ring is floating, then there is water in the trap and it is time to replace the filter.
The fuel/water separator filter is a spin-on filter that traps water within a retention chamber. It also traps impurities as small as 10 microns (about 5% the width of a human hair). Located in the fuel line leading from the fuel tank to the powerhead, this filter should be replaced every 50 hours of engine use.
The primary on-engine filter is housed in a translucent plastic cup, trapping water and other impurities. If you can see water in the cup, remove it, drain it, and replace the filter element. Located on one of the vertical sides of the powerhead, the primary on-engine filter should be replaced every 100 hours.
The in-line filter is a secondary filter that traps impurities but not water. In-line filters are usually transparent, allowing you to see if the filter is clogged. Located in the fuel line either before or after the vapor separator tank, the in-line filter should be replaced every 100 hours. Some outboard motor models do not have an in-line filter.
The VST filter is located inside the vapor separator tank and should be replaced every 100 hours. Each fuel injector has a tiny screen filter built in as a last line of defence against impurities. Because the fuel injectors are hard to access and expensive to clean or replace, make sure to change the other fuel filters regularly to prevent contaminants from reaching the injectors.
Fuel Pump Filter Maintenance for Honda GX690 Engines
You may want to see also
Explore related products
How to remove the water sensor plug
To remove the water sensor plug, you must first locate the fuel filter. The fuel filter on a Yamaha outboard is typically placed on the front, side, or back of the powerhead. It is usually made of transparent plastic, but some models have a red ring inside. This "primary" filter contains a small water trap at the bottom.
Once you have located the fuel filter, follow these steps to remove the water sensor plug:
- Inspect the fuel filter: Look for the small black float inside the filter. If it is at the bottom, this indicates that there is no water in the fuel, and you can proceed to the next step.
- Remove the water sensor plug: Gently pull to detach the plug from the fuel filter.
- Prepare the housing for filter removal: Loosen the fuel filter housing from the top cap manually. Avoid using a wrench on the top cover, as it may crack the housing. Be cautious to ensure that the o-ring does not stick inside the housing, as this could cause a fuel leak when reassembling.
- Drain the fuel: Before removing the filter completely, drain the fuel from the fuel filter housing. This step allows you to examine the drained contents for any signs of water in the fuel. If the drained fuel is clear without any droplets, it indicates that your fuel system is in good shape.
By following these steps, you can safely remove the water sensor plug from your Yamaha outboard fuel filter. Remember to refer to your specific Yamaha outboard model's service manual or contact a dealer for more detailed instructions if needed.
Mustang Fuel Filter Replacement: Step-by-Step Guide for 1996 Models
You may want to see also
Explore related products
Preparing the housing for filter removal
Loosen the fuel filter housing: Start by manually loosening the housing from the top cap. Avoid using a wrench on the top cover, as it could easily crack the housing. This cautionary step is important for maintaining the integrity of the housing and preventing fuel leaks.
Be cautious with the o-ring: When removing the housing, pay close attention to the o-ring. Ensure that it doesn't stick inside the housing. An improperly seated o-ring during reassembly can lead to fuel leaks, so it's crucial to handle it with care.
Drain the fuel: Before removing the filter completely, drain the fuel from the fuel filter housing. This step allows you to inspect the drained contents for any signs of water contamination. Clear fuel without droplets is a positive indicator that your fuel system is in good shape.
Check for water: Examine the drained fuel for any signs of water contamination. Yamaha outboard engines typically have a small water trap at the bottom of the primary filter. If you notice water in the trap, it's a clear indication that you need to replace the filter.
Refer to the service manual: Keep in mind that not all Yamaha outboard engines are the same. If you're unsure about the specific location of the fuel filter or any other components, don't hesitate to refer to your engine's service manual or contact a Yamaha dealer for more detailed instructions specific to your model.
By following these steps, you'll be able to effectively prepare the housing for filter removal, ensuring a safe and efficient process for maintaining your Yamaha outboard engine.
Prius Fuel Filter: Does it Exist?
You may want to see also
Explore related products
The location of the in-line filter
The in-line filter is a secondary filter that traps impurities but not water. It is usually transparent, allowing you to see if the filter is clogged. This filter is typically placed in the fuel line either before or after the Vapor Separator Tank (VST). It can be found along the top of the outboard, but its exact location varies depending on the outboard's model and age.
The in-line filter is an important component of the fuel system, acting as a defence mechanism against water and particulates contaminating the fuel. Regular inspection and servicing of this filter are crucial to prevent blockages in the fuel line.
To determine the specific location of your in-line filter, refer to the service manual for your Yamaha outboard model or contact your dealer. It is also recommended to consult the manual for model-specific guidelines on maintenance schedules and intervals for replacing the in-line filter.
Additionally, it is advised to use premium low-ethanol gasoline and a high-quality fuel stabilizer to prevent issues caused by ethanol's ability to attract moisture and the formation of clogging in fuel lines.
Locating the Fuel Filter on a '97 GMC Sierra
You may want to see also
Explore related products
The function of the fuel injector screen
The fuel filter is an essential component of a Yamaha outboard engine. It ensures that only clean fuel enters the engine, maintaining fuel efficiency and preventing engine damage. Located on the front, side, or back of the powerhead, the fuel filter screens out dirt, debris, and other contaminants, allowing the engine to operate at peak performance.
The fuel injector screen is a critical component of the fuel injection system in a Yamaha outboard engine. It serves as the last line of defence against debris in the fuel line. As the name suggests, it is a fine-mesh screen that catches any last-minute particulates that might have passed through the other filters. While it is rare for debris to reach this stage, if it does, the fuel injector screen can become clogged, requiring professional cleaning or replacement by a certified Yamaha mechanic.
The fuel injector screen is an important safety measure, preventing debris from entering the fuel injectors and causing potential damage to the engine. It is designed to capture even the smallest particles that may have evaded the previous filters. By doing so, it helps maintain the performance, efficiency, and longevity of the Yamaha outboard engine.
The fuel injector screen is typically made of a fine-mesh material that allows fuel to pass through while trapping any remaining contaminants. This screen is positioned just before the fuel injectors, acting as the final barrier before the fuel enters the engine. Its strategic placement ensures that even if the previous filters miss something, the fuel injector screen will capture it, providing an additional layer of protection for the engine.
To maintain the optimal performance of a Yamaha outboard engine, it is crucial to regularly inspect and replace the fuel filters, including the fuel injector screen. While the fuel injector screen does not require frequent changes, keeping the other filters in the fuel line clean can help prolong its lifespan and maintain the overall health of the engine.
Draining Water from Your EcoDiesel Fuel Filter: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter is usually placed on the front, side, or back of the powerhead. The in-line filter can be found along the top of the outboard.
Many boat owners don't know about the in-line filter, but it is important for preventing water and particulates from contaminating the fuel. Refer to your service manual or contact your dealer to confirm if your engine has an in-line filter.
The replacement interval depends on several factors, such as usage, fuel quality, and specific recommendations for your Yamaha model. For frequently used boats, it is advisable to replace the primary fuel filter annually or every 100 hours of operation, whichever comes first.
