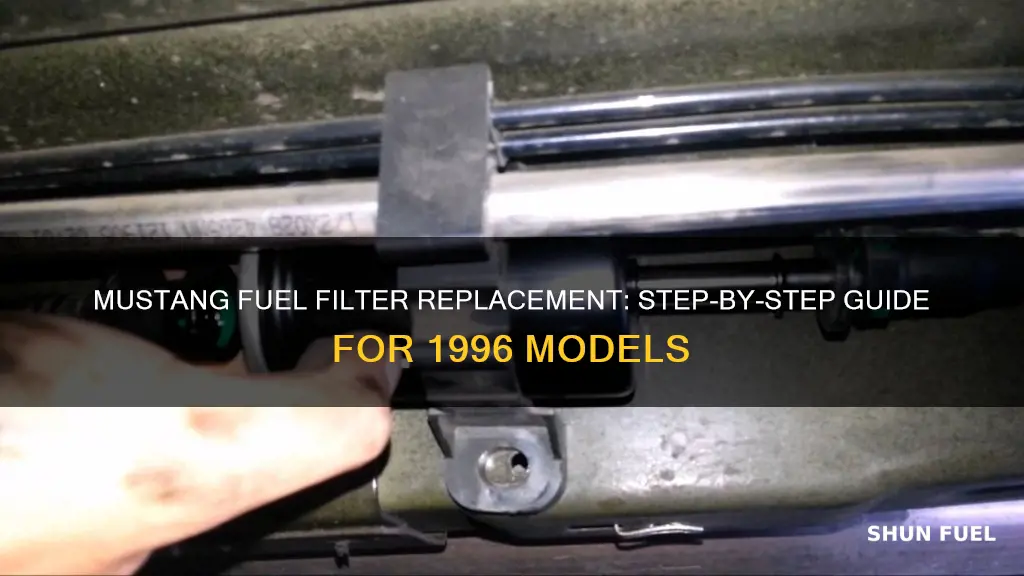

Replacing the fuel filter on a 1996 Mustang is a simple process that can be done in under 15 minutes and should be part of your regular maintenance schedule. A clogged fuel filter can decrease fuel economy and performance. To replace the fuel filter, first relieve the fuel pressure by letting the car sit for a few hours and then removing the fuel cutoff switch. Next, locate the fuel filter, which is on the rear of the vehicle, on top of the fuel tank. Remove the old filter by unclipping the two fuel lines and install the new filter in the reverse order, ensuring that the arrows indicating fuel flow direction are correct.
| Characteristics | Values |
|---|---|
| Fuel filter location | On top of the fuel tank, towards the inside of the car |
| Fuel filter replacement procedure | 1. Relieve fuel pressure by unplugging the electrical connector from the fuel cut-off switch in the trunk (driver's side, behind the side panel). 2. Start the vehicle and run it until it dies. 3. Remove the metal clips at the line ends. 4. Use a removal tool to release the inner clamps inside the end of the metal fuel lines. 5. Pull the line away from the filter. 6. Remove the retainer bracket/clamp and the old filter. 7. Install the new filter in the bracket/clamp and remount. 8. Push the fuel lines back on the filter and reinstall the clips. 9. Plug the electrical connector back onto the cut-off switch. 10. Start the vehicle and run it for a minute. Check for leaks. 11. Drive the vehicle slowly until fuel pressure is regained. Recheck for leaks. |
| Fuel filter replacement frequency | Every 24,000 km or as part of regular maintenance |
| Fuel filter replacement time | Less than 15 minutes |
| Fuel filter replacement cost | $6 for the removal tool |
| Fuel filter type | Motorcraft Fuel Filter (FG-800A) or a quality, made-in-USA filter |
Explore related products
What You'll Learn
Relieve fuel pressure by letting the car sit for a few hours
When replacing the fuel filter on a 1996 Mustang, it is important to relieve the fuel pressure in the system before removing the old filter. One way to do this is to let the car sit for a few hours, allowing the pressure to dissipate gradually.
This method of relieving fuel pressure is a safe and effective way to ensure that there is no residual pressure in the fuel lines when you start working on the filter. By letting the car sit, you can be sure that the fuel system is depressurized, reducing the risk of fuel spraying or leaking out when you disconnect the fuel lines from the filter.
Additionally, letting the car sit for a few hours can help to ensure that the fuel in the lines has time to cool down. This can make the process of replacing the fuel filter safer and more comfortable, as hot fuel can pose a safety hazard and make it challenging to work with.
However, it is important to note that simply letting the car sit may not completely relieve the fuel pressure. In some cases, you may need to take additional steps, such as disconnecting the fuel cutoff switch in the trunk or removing the fuel pump fuse, to ensure that the system is fully depressurized before proceeding with the fuel filter replacement.
Water-Removing Fuel Filters: How Do They Work?
You may want to see also
Explore related products
Remove the fuel cutoff switch
To remove the fuel cutoff switch on a 1996 Mustang, follow these steps:
Firstly, locate the fuel cutoff switch. This is found in the trunk on the driver's side, behind the side panel. Once located, unplug the electrical connector from the fuel cutoff switch. Then, start the vehicle and let it run until it dies. This step is important to relieve fuel pressure and ensure a safe removal of the fuel filter.
Next, you will need to access the fuel filter. Raise the rear of the vehicle using a jack and secure it on jack stands. This will allow you to safely work underneath the car. Now, you can proceed to unclip the two fuel lines from the filter. Be cautious as there may still be some fuel present.
After detaching the fuel lines, remove the retainer bracket or clamp, and the filter will come out together with it. Now, you have successfully removed the old fuel filter and can proceed to install the new one by following these steps in reverse. Remember to always exercise caution when working with fuel and ensure a well-ventilated workspace.
Fuel Filter Efficiency: Does Replacement Boost MPG?
You may want to see also
Explore related products
Disconnect the fuel lines from the filter
To disconnect the fuel lines from the filter in a 1996 Mustang, you must first relieve the fuel pressure. This can be done by letting the car sit for a few hours or by unplugging the electrical connector from the fuel cut-off switch in the trunk and starting the vehicle until it dies.
Once the pressure has been relieved, locate the fuel filter. In a 1996 Mustang, the fuel filter is located on top of the fuel tank, towards the inside of the car. To access it, you will need to raise the rear of the car and secure it with jack stands.
Now, you can begin disconnecting the fuel lines from the filter. The fuel lines are connected to the filter with metal or plastic clips. Remove these clips carefully, noting their position so that you can reinstall them correctly later.
Some fuel may still drain from the lines, so it is recommended to have a rag or towel handy to wipe up any spills. Be careful when handling fuel, as it is flammable and can be dangerous if it comes into contact with your skin or eyes.
If your Mustang model has internal clips, you will need a compression fitting disconnect tool or a \"quick disconnect tool\" to remove them. These tools can be purchased at any auto parts store. Simply slide the tool into the open end of the fitting and wiggle it until the connection pops loose.
Once the clips have been removed, pull the fuel line away from the filter straight out. Now you are ready to install the new fuel filter.
Signs of a Faulty Fuel Filter: What to Look For
You may want to see also
Explore related products
Install the new filter in the bracket
To install the new filter in the bracket, follow these steps:
Firstly, place the new filter in the bracket in the same direction as the old one was installed. It is important to pay attention to the direction of the old filter, as the new filter will need to be installed in the correct direction to ensure proper fuel flow. The filters are marked with arrows to indicate the fuel flow direction.
Next, connect the two lines on both ends of the new filter. Simply align them in place and snap them in securely. Make sure to use the new plastic U-clips to secure the in and out lines of the filter. These plastic clips can be a little tricky to figure out, so take your time and use a screwdriver if needed to pry them out.
Once the new filter is securely connected, put the two clips back in place. At this point, you can lower the car if it was raised to access the filter. Before completing the installation, be sure to check that there is no fuel present at the connections.
Now, you can start the vehicle and run it for about a minute. This will allow you to test the new filter and check for any leaks. Drive the vehicle slowly at first until fuel pressure is regained, as it may run a little rough for a minute or so. Recheck for leaks after driving to ensure that the new filter is installed correctly and securely.
Astro Safari Fuel Filter: Removal Guide
You may want to see also
Explore related products
Reattach the fuel lines and clips
To reattach the fuel lines and clips, first, push the fuel lines back onto the filter. Next, reinstall the clips. Make sure to wipe everything down and check that there is no fuel present at the connections. Now, plug the electrical connector back onto the cut-off switch. Start the vehicle and run it for a minute. Check for leaks. Finally, drive the vehicle slowly until fuel pressure is regained—it may run a little rough for a minute or so. Re-check for leaks.
It is important to note that newer Mustangs have a more difficult replacement procedure. There are no removable clips holding the lines onto the filter. Instead, there are internal clips that you need to remove with a "quick disconnect tool".
