The fuel filter is an essential component of a lawnmower, ensuring the engine receives clean fuel and preventing debris from reaching the carburetor. Its location varies across different lawnmower models, but it is typically found either inside the fuel tank or fitted into the fuel line between the tank and the carburetor. Some fuel tanks feature internal, non-serviceable fuel filters, while others have replaceable filters made of plastic canisters or thin, straw-like tubes with a fine mesh. Knowing the specific model of your lawnmower and referring to the operator's manual can help in identifying the exact location and type of fuel filter. Regular maintenance and replacement of the fuel filter are crucial to keep your lawnmower functioning optimally and prevent engine performance issues.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank, fitted into the fuel line, or non-existent in some engines |
| Function | Strains gas before it reaches the carburetor to prevent debris from disturbing the gas-air mixture |
| Maintenance | Regular cleaning and replacement to ensure optimal engine performance and longevity |
| Replacement | Purchase a suitable replacement filter based on the engine design and follow safety guidelines during installation |
Explore related products
What You'll Learn
The fuel filter's location
Some fuel tanks have internal, non-serviceable fuel filters, so if your filter is inside the tank, you will need to drain the tank before removing the filter for inspection or replacement. If your filter is installed in the fuel line, you can remove the metal clips on each side of the filter using needle-nose pliers and slide the filter out.
Lawn mower fuel filters can be replaceable or non-replaceable. Replaceable filters are typically small plastic canisters with pleated material inside or thin, straw-like tube-style devices with a fine mesh at one end. The canister style connects to one end of the fuel line, while the tube style slides inside the fuel line where it connects to the gas tank. The non-replaceable kind is a metal mesh at the bottom of the gas tank where it empties into the fuel line.
If you are unsure of where your fuel filter is located, refer to your lawn mower's manual to determine its location and the proper fuel filter for your machine.
Priming PX Ranger Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
How to change the fuel filter
Before you begin, ensure you are in a safe area with no open flame or fire source. Wear safety eyewear to protect your eyes from liquid fuel or fuel vapors. Have a dry cloth handy to hold the filter and catch any dripping fuel.
The fuel filter is typically found along the fuel line between the fuel tank and the carburetor. It could also be inside the fuel tank or attached to the fuel line.
If your filter is installed in the fuel line, do the following:
- Remove the metal clips on each side of the filter, using needle-nose pliers.
- Shake the filter over a clean cloth to displace any remaining fuel, then use the cloth to wipe away any residue from the outside of the filter.
- Slide the filter out of the fuel line.
If your filter is installed inside the tank, you will need to drain the tank before you can remove the filter for inspection or replacement. Shut the fuel valve, if equipped. It may be located at the base of the fuel tank, where the gas line is attached. If your tank is not equipped with a valve, clamp the gas line, using a fuel line clamp.
When you have a new filter, simply reverse the process. Be sure to reconnect the metal clips on both sides of the filter. Check for leaks. Do not operate the mower if any are found.
Types of Fuel Filters

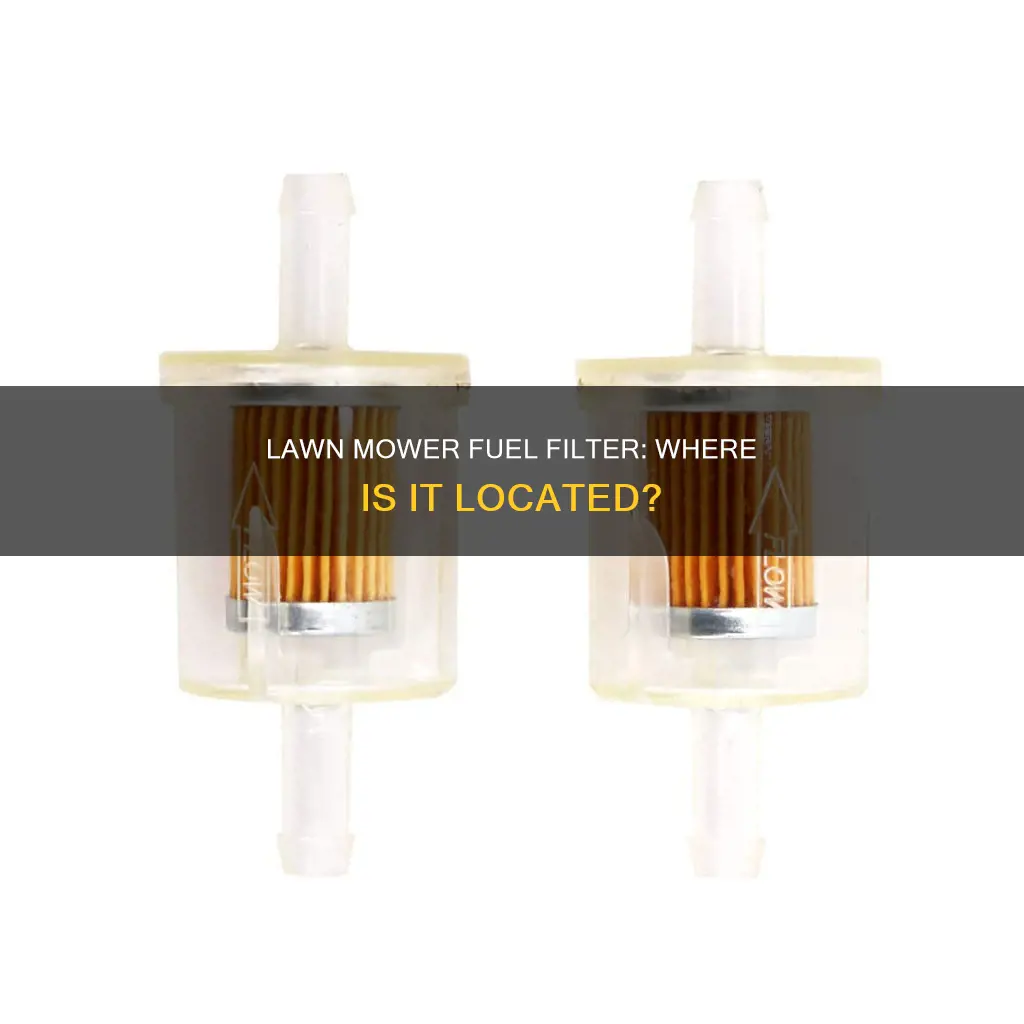

Canister-style filters are small plastic canisters with pleated material inside. Once you've removed the old filter, push the ends of the fuel line segments onto the spigots of the filter and use pliers to replace the spring clips. Be sure to install the canister-style filter in the correct direction, usually indicated by an arrow on the casing pointing in the direction of fuel flow.
Tube-style filters are thin, straw-like tube-style devices with a fine mesh at one end. Once you've pulled the old one out, pop in the new one. Be sure to orient it the same way the old one was.
Non-replaceable filters are a metal mesh in the bottom of the gas tank where it empties into the fuel line.
Draining Fuel Filter on Nissan Patrol: Step-by-Step Guide
You may want to see also
Explore related products
$6.99 $8.99
The fuel filter's function
The fuel filter in a lawn mower is designed to strain the gas before it reaches the carburetor. Dirty fuel filters can cause the engine to run poorly and lead to uneven operation. The fuel filter is generally located inside the fuel tank or fitted into the fuel line between the tank and the fuel pump.
The exact location of the fuel filter varies depending on the lawn mower model. However, it is typically found inside the fuel tank or attached to the fuel line. The fuel filter may be a small plastic canister with pleated material inside or a thin, straw-like tube with a fine mesh at one end. The canister-style filter connects to one end of the fuel line, while the tube-style filter slides inside the fuel line where it connects to the fuel tank.
If the fuel filter is installed inside the tank, the tank will need to be drained before removing the filter for inspection or replacement. It is important to shut the fuel valve, if the mower is equipped with one, or to clamp the gas line with a fuel line clamp if it is not. Once the filter is removed, it should be shaken over a clean cloth to catch any dripping fuel and to displace any remaining fuel. The cloth can then be used to wipe away any residue from the outside of the filter.
If the filter is installed in the fuel line, the metal clips on each side of the filter can be removed using needle-nose pliers, and the filter can be slid out of the fuel line. It is important to keep the filter at a safe distance from your face and to look through one end to check for debris clogging the mesh screen, pleated paper, or the inside of the casing. If debris is present, the old filter should be replaced with a new one. When replacing the fuel filter, the metal clips on both sides of the new filter should be reconnected, and the correct direction of the flow arrow should be followed.
Where is the Fuel Filter on a Yamaha AR210?
You may want to see also
Explore related products
How to identify a faulty fuel filter
A lawn mower's fuel filter is usually located in the fuel line or fuel tank of the mower. It is a small piece of equipment with a big job: to prevent foreign materials like water and debris from entering the combustion chamber of the lawnmower.
A clogged fuel filter is a common issue with fuel filters. If the filter gets clogged, you will likely encounter issues with your lawnmower. This can be something as simple as an annoying sputter when you try to start the mower, or difficulty getting it started. More serious issues include a lack of power when mowing, or the lawnmower not starting at all. If the filter is clogged and dirty, less fuel is given to the engine, which can cause engine failure.
To identify a faulty fuel filter, you can look through one end of the filter and check if you can see light shining through from the other side. If debris is clogging the mesh screen, the inside of the casing, or the pleated paper, you will need to replace the old filter with a new one.
For canister-style filters, look through the transparent plastic casing and examine the pleated material inside. If you see debris inside or it is severely discoloured, you will need to replace the filter. Tube-style filters should be examined by looking closely at the meshed end. If you see dirt or debris, carefully rinse it out with water until it is clear, or buy and install a new filter.
It is recommended that you replace the lawnmower fuel filter after about 200 hours of use.
Easy Guide: Installing the 320R-RAC-01 Racor Fuel Filter
You may want to see also
Explore related products
Fuel filter maintenance
Fuel filters are an essential component of a lawnmower's engine. They prevent dirt, dust, and debris from entering the carburetor, ensuring clean gas flow and proper combustion. Without a functional fuel filter, debris can enter the gas tank and flow through the fuel line, disrupting the gas-air mixture and leading to poor engine performance. Therefore, it is crucial to perform regular maintenance and replacement of the fuel filter to keep your lawnmower running smoothly. Here are some detailed instructions for fuel filter maintenance:
Locating the Fuel Filter:
The fuel filter's location can vary depending on the lawnmower model. It is typically found either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-serviceable fuel filters. Always refer to your lawnmower's operator's manual to determine the exact location of the fuel filter.
Checking and Cleaning the Fuel Filter:
Before performing any maintenance, ensure you are in a safe area with no open flames or fire sources. Wear safety eyewear to protect your eyes from liquid fuel and fuel vapors. Have a dry cloth handy to catch any dripping fuel. If your lawnmower has a canister-style filter, you can check for debris or severe discolouration by looking through the transparent plastic casing at the pleated material inside. If the filter is clogged or severely discoloured, it needs to be replaced. Canister-style filters cannot be conveniently cleaned, but they are inexpensive and easy to replace. For tube-style filters, carefully examine the meshed end for any dirt or debris. If the mesh is clogged, carefully rinse it with water until it is clear, or install a new filter.
Replacing the Fuel Filter:
To replace the fuel filter, start by draining the gas from the tank or running the mower dry outdoors. Disconnect the wire from the spark plug to prevent accidental engine startup during maintenance. Locate the fuel line and use pliers to release the spring clips holding the line to the gas tank spigot and filter. Pull the fuel line off the spigot and remove the old filter. When installing a new filter, ensure it is oriented in the correct direction, usually indicated by an arrow on the casing pointing in the direction of fuel flow. Reconnect the fuel line and replace the spring clamps. Check for any leaks, and do not operate the mower if leaks are detected.
Maintenance Interval:
It is recommended to replace the lawnmower fuel filter after approximately 200 hours of use or at least once a year. Regular maintenance of the fuel filter will ensure optimal performance and prolong the lifespan of your lawnmower.
Bleeding Your Oil Boiler: Fuel Filter Guide
You may want to see also
Frequently asked questions
The fuel filter is typically found along the fuel line between the fuel tank and the carburetor. However, the exact location varies from one machine to the next. It could be inside the fuel tank or attached to the fuel line.
Refer to your lawn mower's manual to locate the fuel filter. If you cannot find the manual, search for it online by searching for your lawn mower's make and model followed by "manual".
The fuel filter ensures that the fuel reaching your mower's engine is clean and free of contaminants. A dirty or clogged fuel filter can restrict fuel flow, causing the engine to run poorly or not start at all.
If your lawn mower is running poorly or not starting, it could be due to a clogged fuel filter. To check, locate the fuel filter and inspect it for debris or severe discolouration. If it is clogged or discoloured, it needs to be replaced.
To replace the fuel filter, first, make sure you are in a safe area with no open flames or fire sources. Wear safety eyewear to protect your eyes from fuel or fuel vapours. Drain the fuel tank and disconnect the fuel line from the fuel tank. Remove the old fuel filter by compressing the hose clips with pliers and sliding it off the hose ends. Install the new fuel filter by pushing it into the hose ends and securing it with the hose clips. Make sure the filter is installed in the correct direction, usually indicated by an arrow.
