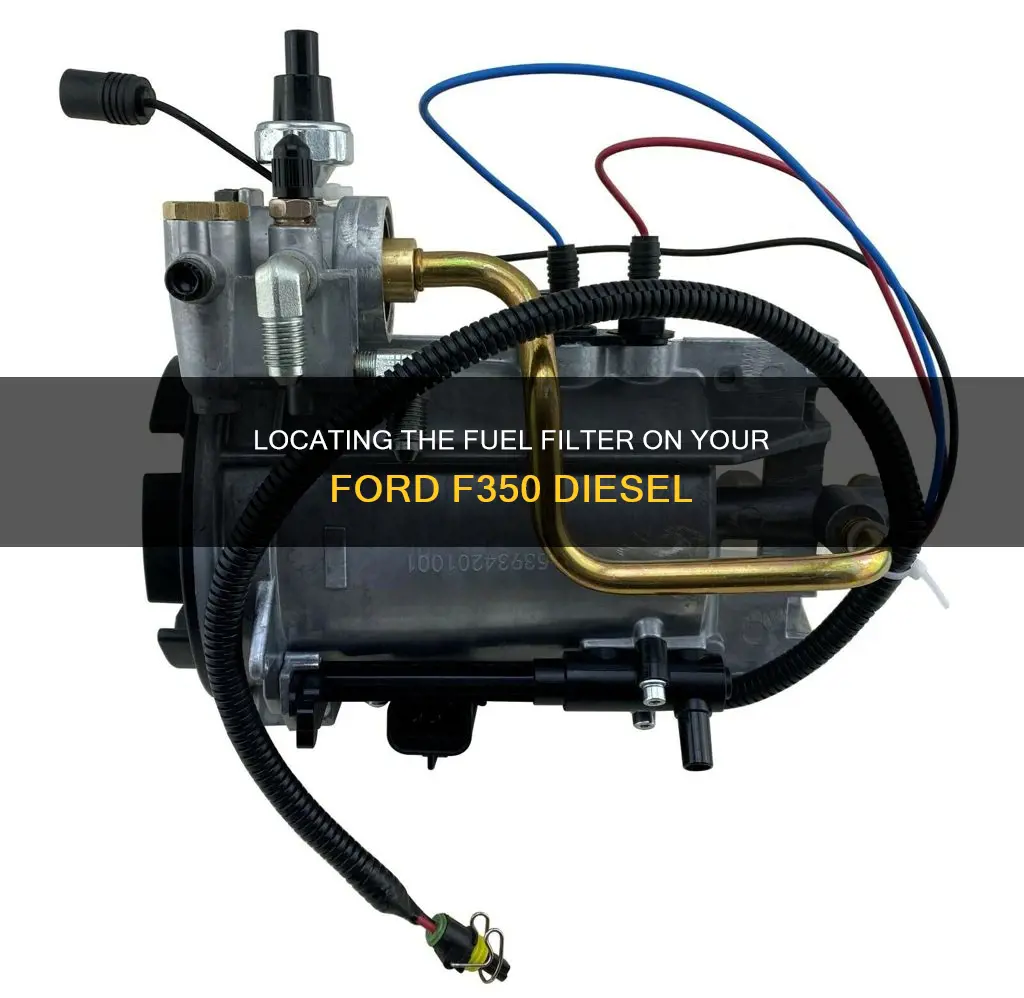

The fuel filter on a Ford F350 diesel engine is located on the driver's side, tucked into the inside of the frame rail. The filter is a black canister, and the bottom screws off. The vehicle has two fuel filters. The first is mounted on top of the engine on the left-hand side, while the second is inside the diesel fuel conditioner module, which is attached to the fuel tank.
| Characteristics | Values |
|---|---|
| Number of fuel filters | 2 |
| Location of first filter | Mounted on top of the engine on the left-hand side |
| Location of second filter | Inside the diesel fuel conditioner module |
| Location of diesel fuel conditioner module | Attached to the fuel tank at the front or at the front of the aft-axle fuel tank |
| Fuel filter replacement frequency | Not specified, but regular replacement is important for engine maintenance |
| Fuel filter replacement cost | $6.07 for Motorcraft FUEL FILTER, $26.98 for Motorcraft Fuel Hose KFL-34, $25.56 for PG Diesel Fuel Filter DF9667A, $79.95 for Fuel Filter compatible with 2011-2016 Ford F-350 Super Duty 6.7L V8 |
| Fuel filter housing | Plastic |
Explore related products
What You'll Learn
The fuel filter is tucked into the inside of the frame rail on the driver's side
The fuel filter on a 1997 Ford F350 Diesel is tucked into the inside of the frame rail on the driver's side. It is a canister filter, with a black canister, and the bottom screws off. This information was provided by a Level 3 Ford Master on Fixya.com, who has achieved this level by garnering 1000 points.
The fuel filter is located inside the frame rail on the driver's side of a 1997 Ford F350 Diesel. This means it is situated within the framework of the vehicle, tucked away safely and securely. The driver's side is the left-hand side of the car, and the frame rail runs along the length of the car, providing structural support.
The fuel filter is a crucial component of the Ford F350 Diesel's fuel system, responsible for filtering out impurities and contaminants from the fuel before it enters the engine. By trapping these impurities, the fuel filter helps to ensure that only clean fuel reaches the engine, contributing to optimal engine performance and longevity.
Being tucked into the inside of the frame rail on the driver's side, the fuel filter is well-protected from the elements and potential damage. Its location also allows for easy access for maintenance and replacement if needed.
It is important to note that the fuel filter should be replaced at regular intervals as part of routine maintenance to ensure the vehicle's fuel system and engine remain in good working condition. Referring to the owner's manual or seeking advice from a qualified mechanic can provide specific guidance on fuel filter replacement intervals and procedures.
Airlines' Fuel Choice: Diesel or Not?
You may want to see also
Explore related products
The filter mounts on top of the engine on the left-hand side
The fuel filter on a Ford F350 diesel is located on top of the engine, on the left-hand side. It is important to know the exact location of the fuel filter, as it is an essential part of engine maintenance. Regular fuel filter changes are necessary to ensure optimal engine performance and prevent fuel injection system damage.
The filter is tucked into the inside of the frame rail on the driver's side. It is a canister filter, with a black canister, and the bottom screws off.
To access the filter, you will need to open the hood of the vehicle and locate the engine. The filter will be mounted on top of the engine, on the left side. It may be helpful to refer to the owner's manual or a service technician for more detailed instructions on locating and replacing the fuel filter.
As the fuel filter is a crucial component of the fuel system, ensuring that it is properly maintained and replaced according to the recommended service intervals is important. This will help to keep the engine running smoothly and efficiently.
Understanding the Common Rail Diesel Fuel System
You may want to see also
Explore related products
The second filter is inside the diesel fuel conditioner module
The fuel filter system in a Ford F350 Diesel is an important component of the engine. The vehicle has two fuel filters. The first filter is mounted on top of the engine on the left-hand side. The second filter is inside the diesel fuel conditioner module. This module is attached to the fuel tank, with its location varying depending on the configuration of the truck. For example, in some models, the module is situated at the front of the fuel tank or at the front of the aft-axle fuel tank.
The diesel fuel conditioner module plays a crucial role in filtering the fuel before it enters the engine. It is essential to regularly change the fuel filter to maintain optimal engine performance and prevent damage to the fuel injection system. When replacing the filter, it is important to follow the manufacturer's recommendations and use only approved service parts.
To access the second filter inside the diesel fuel conditioner module, specific steps need to be followed. Firstly, for 2017 models, disconnect the fuel line quick-connect coupling from the in-tank fuel pump. Starting with 2018 models, skip this step but ensure that the fuel filler cap is closed before proceeding. This precaution prevents the siphoning of fuel from the tank when opening the drain screw.
The next step is to locate the diesel fuel conditioner module and turn the drain plug counterclockwise to drain the module's contents into an appropriate container. It is important not to reuse the drained fuel. After draining, disconnect the electrical connector and loosen the bolts securing the lower portion of the module housing. It is important not to completely remove these bolts. Finally, remove the lower portion of the module housing to access the second fuel filter.
By following these steps, owners of the Ford F350 Diesel can access the second fuel filter inside the diesel fuel conditioner module for maintenance or replacement. Regular attention to this component ensures the vehicle's fuel system operates efficiently and reduces the risk of performance issues and costly repairs.
How to Kill Bamboo with Diesel Fuel
You may want to see also
Explore related products
The module is attached to the fuel tank
The Ford F350 Diesel has two fuel filters. The first filter is mounted on top of the engine on the left-hand side. The second filter is inside the diesel fuel conditioner module, which is attached to the fuel tank. The module's location varies depending on the configuration of your truck. For some models, the module is at the front of the fuel tank or at the front of the aft-axle fuel tank.
The diesel fuel conditioner module houses the second fuel filter and plays a crucial role in the fuel system. It is important to regularly change the fuel filter as part of routine engine maintenance. Failing to do so may lead to engine performance issues and potential damage to the fuel injection system. When changing the fuel filter, it is recommended to use only authorized service parts that conform to the specified standards.
To access the second fuel filter within the diesel fuel conditioner module, follow these steps:
- Ensure that the fuel filler cap is closed before initiating the filter draining process. Leaving the cap open can result in the siphoning of the entire fuel tank's contents when the drain screw is opened.
- Locate the diesel fuel conditioner module.
- Turn the drain plug counterclockwise to drain the module's contents into an appropriate container. Do not reuse the drained fuel.
- Disconnect the electrical connector associated with the module.
- Loosen the bolts securing the lower portion of the module housing, but do not completely remove them.
- Remove the lower portion of the module housing to access the fuel filter for replacement.
By following these steps, you can effectively access and replace the second fuel filter within the diesel fuel conditioner module attached to the fuel tank of your Ford F350 Diesel. Regular maintenance of this filter is essential for optimal engine performance and the longevity of the fuel injection system.
Holley Electric Fuel Pumps: Compatible with Diesel?
You may want to see also
Explore related products
The filter housing must be loosened before draining
It is important to note that a loose drain valve can allow air to enter the fuel system and cause drivetrain issues, so it is crucial to fully tighten the drain valve after draining. Additionally, make sure that the fuel filler cap is closed before draining to prevent fuel siphoning.
To loosen the filter housing, you can use a strap wrench or a large pair of Channellock pliers. First, locate the fuel filter housing, which is underneath a cover. Remove the cover by taking out two 13mm nuts. Then, use the strap wrench or pliers to loosen the cap and twist it out.
Once the filter housing is loosened, you can proceed with draining the fuel filter. Place an appropriate container under the drain port and rotate the drain counterclockwise until the O-ring is visible. Allow it to drain for approximately 25 seconds or until clean fuel is observed. After draining, rotate the drain clockwise to tighten it.
Using Diesel Fuel in Parts Washers: Safe or Not?
You may want to see also
Frequently asked questions
The fuel filter is tucked into the inside of the frame rail on the driver's side. It is a canister filter, with a black canister, and the bottom screws off.
The PG Diesel Fuel Filter DF4615 is compatible with the 2011-2016 Ford F-350 Super Duty.
The 2003 model has a 6.0 engine. The fuel filter is located inside the frame rail on the driver's side.
The fuel filter is located inside the diesel fuel conditioner module, which is attached to the fuel tank.
The most effective method to bleed the system is to turn the ignition on multiple times without starting the engine. Cycling the key pumps the fuel up to the filter housing and returns it to the tank.
