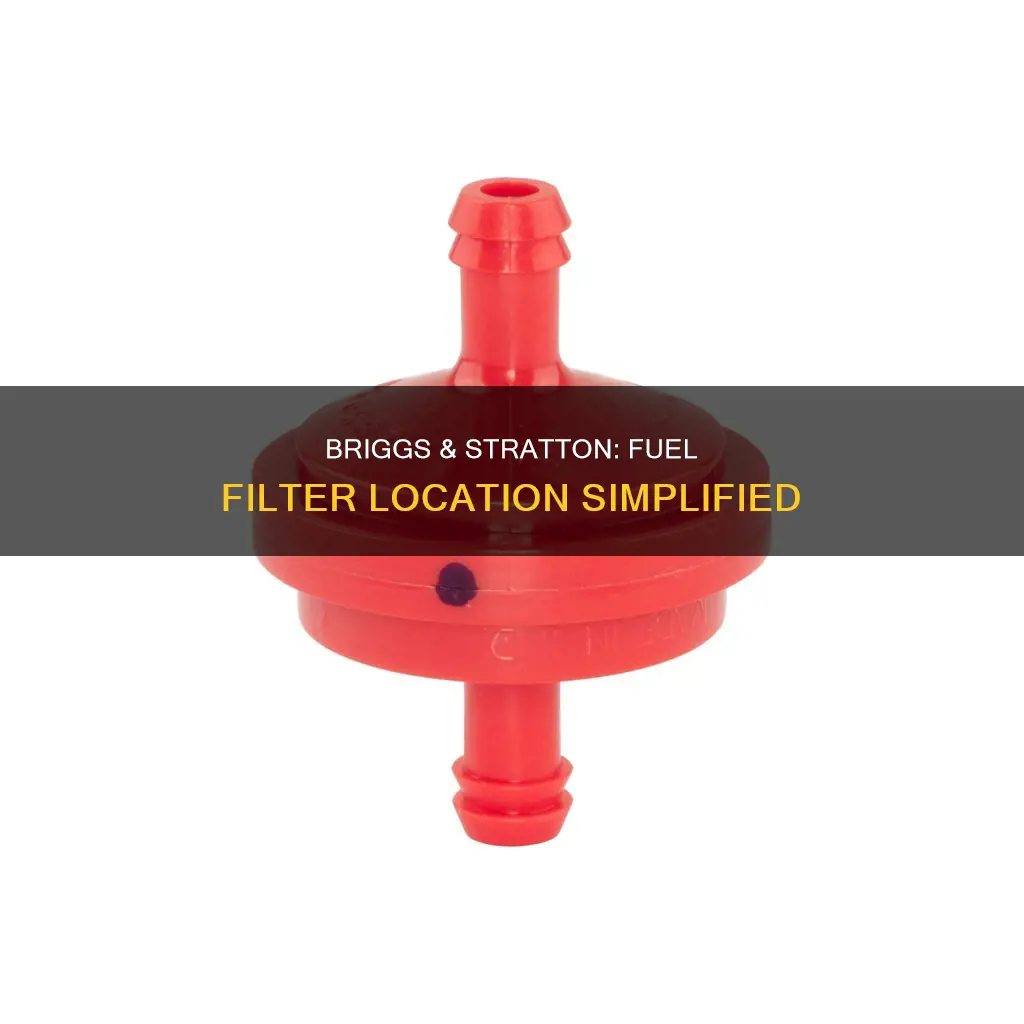

The fuel filter on a Briggs & Stratton engine is located in the fuel line. The fuel filter may be built into the fuel tank and may not be serviceable. The most common reasons for replacing the fuel filter are when the engine stops after a few seconds or runs poorly. When replacing the fuel filter, it is important to remove the metal clips on each side of the filter using needle-nose pliers and to check for leaks.
Explore related products
What You'll Learn
The fuel filter may be built into the fuel tank
If your Briggs & Stratton equipment has a removable fuel filter, you can access it by removing the metal clips on each side of the filter using needle-nose pliers. Once the clips are removed, slide the filter out of the fuel line. It is important to note that fuel may still be present in the filter, so shake it over a clean cloth to displace any remaining fuel. Use the cloth to wipe away any residue from the outside of the filter.
When inspecting the filter, keep it at a safe distance from your face and look through one end to check for debris clogging the mesh screen, pleated paper, or the inside of the casing. If debris is present, replace the old filter with a new one, ensuring that the direction of the flow arrow is correct. Reinstall the new filter and reconnect the metal clips on both sides.
It is recommended to change the fuel filter annually during routine maintenance to prevent costly repairs and extend the life of your engine. Additionally, always refer to the engine and equipment manuals before performing any maintenance or repairs to ensure safety and avoid damage.
Fuel Filter Location in 2002 Chevrolet Trailblazer
You may want to see also
Explore related products
How to remove a fuel filter
To remove a fuel filter on a Briggs & Stratton engine, there are several steps to follow. Firstly, ensure the engine has cooled down, and there is no fuel in the tank. Then, remove the wire and boot from the spark plug to prevent accidental ignition. Using a 5/16 inch socket or nut driver, unscrew the air filter cover and remove it, followed by the filter itself. Next, use a Phillips-head screwdriver to remove the screw securing the carburetor cover. With the carburetor exposed, you can now access the fuel filter.
The fuel filter's exact location will vary depending on the equipment. In some cases, it may be built into the fuel tank and not easily accessible. If the fuel filter is installed in the fuel line, you will need to remove the metal clips on each side of the filter using needle-nose pliers. Slide the filter out of the fuel line, being careful to catch any remaining fuel with a clean cloth. Wipe away any residue from the outside of the filter and inspect it for debris or clogging. If the filter is dirty or damaged, it should be replaced.
When replacing the fuel filter, trim the new line to match the length of the old one. Attach the shorter end of the fuel line to the port on the tank and the longer end to the carburetor port. Secure the line with retaining clamps. Reattach the wire and boot to the spark plug and refill the fuel tank. Finally, realign the carburetor cover and rethread the screw to secure it in place.
It is important to consult the engine and equipment manuals before performing any maintenance or repairs to ensure safety and avoid damage. Additionally, some filters have a direction of flow arrow, so ensure the new filter is installed correctly.
Locating the Fuel Filter in a 1999 Dodge Durango
You may want to see also
Explore related products
$5.46
How to install a fuel filter
To install a fuel filter on a Briggs & Stratton engine, there are a few steps to follow. Firstly, ensure the engine has cooled down, and there is no fuel in the tank. Remove the wire and boot from the spark plug to prevent accidental ignition.
Next, use a 5/16th inch socket or nut driver to remove the screw securing the air filter cover, and then take off the cover and the filter. Now, use a Phillips-head screwdriver to remove the screw securing the carburetor cover. With the carburetor exposed, you can prepare the new fuel filter and line assembly. Trim the new line to match the length of the old one.
Attach the shorter end of the fuel line to the port on the tank, and the longer end to the carburetor port. Secure the line with retaining clamps. Check that the gasket is in place on the air filter housing, then attach the breather tube to the breather post and realign the housing.
Finally, rethread the screws and torque them to three-and-a-half foot-pounds. Realign the carburetor cover and rethread that screw, then reposition the filter cover and rethread that screw to secure the filter.
Once complete, reattach the wire and boot to the spark plug, and refill the fuel tank. Your engine should now be ready for use.
It is important to note that fuel filters should be replaced annually as part of regular maintenance, and that some equipment may have a built-in fuel filter that is not serviceable.
Fitting Navara Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
When to replace the fuel filter
It is recommended to replace the fuel filter annually as part of a yearly tune-up. This will extend the life of your engine and prevent costly repairs.
You can't always tell if the fuel filter is restricted by particles, but there are some signs to look out for that indicate it's time to replace the filter. Firstly, if the fuel filter is installed in the fuel line, you can remove it with needle-nose pliers and inspect it. If you see debris clogging the mesh screen, pleated paper, or the inside of the casing, you should replace the filter. You should also replace the filter if the fuel line is cracking.
If the filter is installed inside the tank, you will need to drain the tank before removing and inspecting the filter.
When replacing the fuel filter, be sure to reconnect any metal clips on both sides of the filter. Some filters have a direction of flow arrow, so ensure the filter is installed correctly.
Fuel Filter Replacement: When is the Right Time?
You may want to see also
Explore related products
Tools needed to replace the fuel filter
To replace the fuel filter on a Briggs & Stratton engine, you will need a few tools. It is important to consult the engine and equipment manual(s) before starting to avoid any personal injury or property damage.
Firstly, you will need a Phillips-head screwdriver to remove the carburetor cover and the air filter cover. A 5/16th inch socket or nut driver will also be required to unthread the screws securing these covers.
Additionally, needle-nose pliers are useful for removing metal clips on each side of the filter. These clips need to be reconnected when installing the new fuel filter, so ensure they are not lost during the removal process.
A dry cloth is also essential to catch any dripping fuel and to wipe away any residue from the outside of the old filter. It is also recommended to wear safety eyewear to protect your eyes from liquid fuel or fuel vapors.
Finally, you will need a new fuel filter and line assembly. The new line should be trimmed to match the length of the old one.
Freeing a Stuck Fuel Filter: Quick and Easy Solutions
You may want to see also
Frequently asked questions
The fuel filter on a Briggs & Stratton engine is installed in the fuel line.
To access the fuel filter, you must first remove the metal clips on each side of the filter using needle-nose pliers.
The most common reasons for replacing the fuel filter are when the engine stops after a few seconds or runs poorly.
If the fuel line is cracked, it is recommended to replace it to prevent leaks.
