The fuel filter in a 1999 Chrysler Cirrus is located on top of the fuel tank. To replace the fuel filter, the fuel tank must be lowered. If the fuel filter is being replaced due to a running issue, it is recommended to check the fuel pressure and volume with a gauge as this can cause running problems.
Explore related products
What You'll Learn

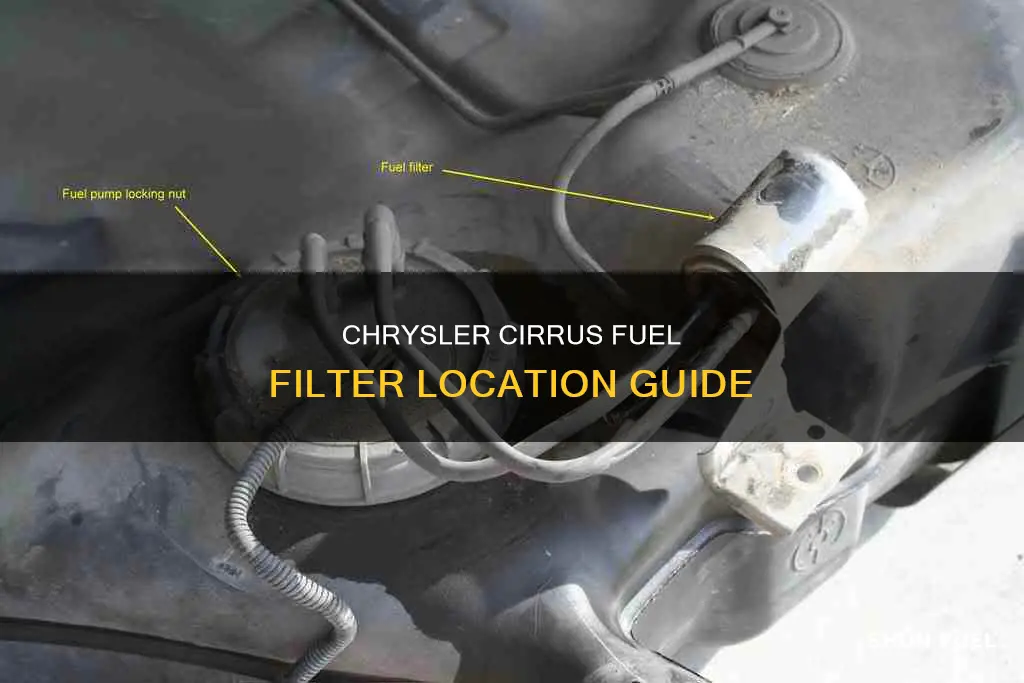

The fuel filter is located above the rear of the fuel tank
The fuel filter on a 1999 Chrysler Cirrus is located on the frame, above the rear of the fuel tank. To access the fuel filter, you will need to lower the fuel tank. This can be done by first releasing the fuel pressure from the fuel system. Then, remove the driver's side fuel tank strap and loosen the passenger's side strap to slowly lower the tank.
It is important to note that the fuel lines are permanently attached to the fuel filter, so you will need to disconnect them from the fuel pump module using the proper procedure for fuel line disconnect fitting. Once you have accessed the fuel filter, you can then remove it by taking out the retaining bolt.
Before replacing the fuel filter, it is recommended to check the fuel pressure and volume with a gauge, especially if you are experiencing running problems with your vehicle. This is because low fuel pressure or volume can cause running issues, so it is important to verify these readings before replacing the filter.
Additionally, when working with fuel and vehicle repairs, it is crucial to prioritize your safety and follow standard procedures and guidelines. Always refer to a certified mechanic or automotive professional if you are unsure about any part of the process.
Fuel Filter Failure: When Gas Stops Flowing
You may want to see also
Explore related products
The tank must be lowered to access and replace the filter
The fuel filter on a 1999 Chrysler Cirrus is located on top of the fuel tank. The tank must be lowered to access and replace the filter.
- Release the fuel pressure from the fuel system.
- Remove the rear seat cushion and cover to access the fuel pump module.
- Disconnect the fuel lines and electrical connector at the fuel pump module.
- Remove the retaining nuts and fuel pump module.
- Lower the fuel tank by removing the driver's side fuel tank strap. Loosen, but do not remove, the passenger's side fuel tank strap.
- Support the fuel tank with a transmission jack and slowly lower it, allowing the fuel tank filler neck to contact the rear suspension crossmember.
Once the fuel tank is lowered, you can access and replace the fuel filter. It is important to follow the proper procedures and safety guidelines when working on the fuel system of a vehicle. Always refer to the vehicle's service manual or seek the assistance of a qualified mechanic if you are unsure about any steps or procedures.
The Cost of Replacing Your Fuel Filter: A Guide
You may want to see also
Explore related products
Fuel lines are permanently attached to the fuel filter
The fuel filter on a 1999 Chrysler Cirrus is located directly above the fuel tank. To access and remove the fuel filter, the fuel tank must be lowered.
The fuel filter mounts to the frame above the rear of the fuel tank. The inlet and outlet tubes, or fuel supply and return tubes, are permanently attached to the filter. These tubes have different-sized quick-connect fittings. The larger quick-connect fitting connects to the large nipple (supply side) on the fuel pump module, while the smaller quick-connect fitting attaches to the small nipple (return side) on the fuel pump module.
To replace the fuel filter, first release the fuel system pressure. Disconnect the fuel pump module wiring jumper from the main body harness by locating the 4-pin connector under the trunk mat on the left side of the trunk near the base of the shock tower. Then, remove the rear seat and push out the body grommet for the jumper near the base of the rear seat. Feed the jumper through the hole in the body.
Next, slowly remove the fuel cap to release the tank pressure. With the vehicle on a hoist, drain the fuel from the tank and support the fuel tank with a transmission jack stand or similar support. Position a fuel-approved container with a capacity of at least 16 gallons under the drain plug located on the bottom left edge of the tank.
Testing Truck Fuel Filters: A Step-by-Step Guide
You may want to see also
Explore related products
The fuel tank is supported with a transmission jack
The fuel filter on a 1999 Chrysler Cirrus is located on top of the fuel tank. To access the fuel filter, the fuel tank must be lowered. This can be done by first releasing the fuel pressure from the fuel system. Then, the driver's side fuel tank strap can be removed, and the passenger's side strap loosened.
It is important to follow the proper procedure for fuel line disconnect fitting. This process will allow access to the fuel filter for replacement or other maintenance.
Additionally, if the fuel filter is being replaced due to running problems, it is recommended to check the fuel pressure and volume with a gauge, as issues with these can cause running issues.
Honda Mower Engines: Do They Have Fuel Filters?
You may want to see also
Explore related products
Disconnect the fuel lines from the fuel pump module
The fuel filter on a 1999 Chrysler Cirrus is located directly above the fuel tank. To disconnect the fuel lines from the fuel pump module, follow these steps:
- Ensure that the vehicle is parked on a level surface and engage the parking brake. Place wheel chocks around the wheels for added safety.
- Disconnect the negative cable from the battery to reduce the risk of sparks during the procedure.
- Lift the vehicle using a jack and secure it with jack stands. It is important to ensure the vehicle is stable and secure before proceeding.
- Place a container under the fuel tank drain plug, which is located on the driver's side of the tank. Use a socket wrench to remove the plug by turning it counterclockwise. Allow the fuel to drain completely and replace the drain plug.
- Loosen the clamp on the fuel filler hose attached to the fuel tank and remove the hose leading from the gas filler spout.
- Identify the fuel lines connected to the fuel pump module. The module is typically located on the passenger side of the fuel tank, on the top side.
- Depress the tab on the quick-release connector and separate the fuel lines from the fuel pump module. This should be a simple process, but be careful not to damage the connectors or the lines.
- Label the fuel lines to ensure proper reconnection during reassembly.
- Clean the area around the fuel pump module and the tank to prevent any debris or contaminants from entering the fuel system.
These steps will allow you to safely disconnect the fuel lines from the fuel pump module on your 1999 Chrysler Cirrus. Remember to work in a well-ventilated area and take the necessary precautions when handling fuel and working under a raised vehicle.
Fuel Filter Location in Your ML320 W163
You may want to see also
Frequently asked questions
The fuel filter is located on top of the fuel tank. To replace it, you will need to lower the tank a bit.
First, release the fuel pressure from the fuel system. Then, lower the fuel tank by removing the driver's side fuel tank strap and loosening the passenger's side strap. Support the tank with a transmission jack and slowly lower it.
Disconnect the fuel lines from the fuel pump module for the fuel filter. Remove the retaining bolt and the fuel filter.
