Mercedes Mullins

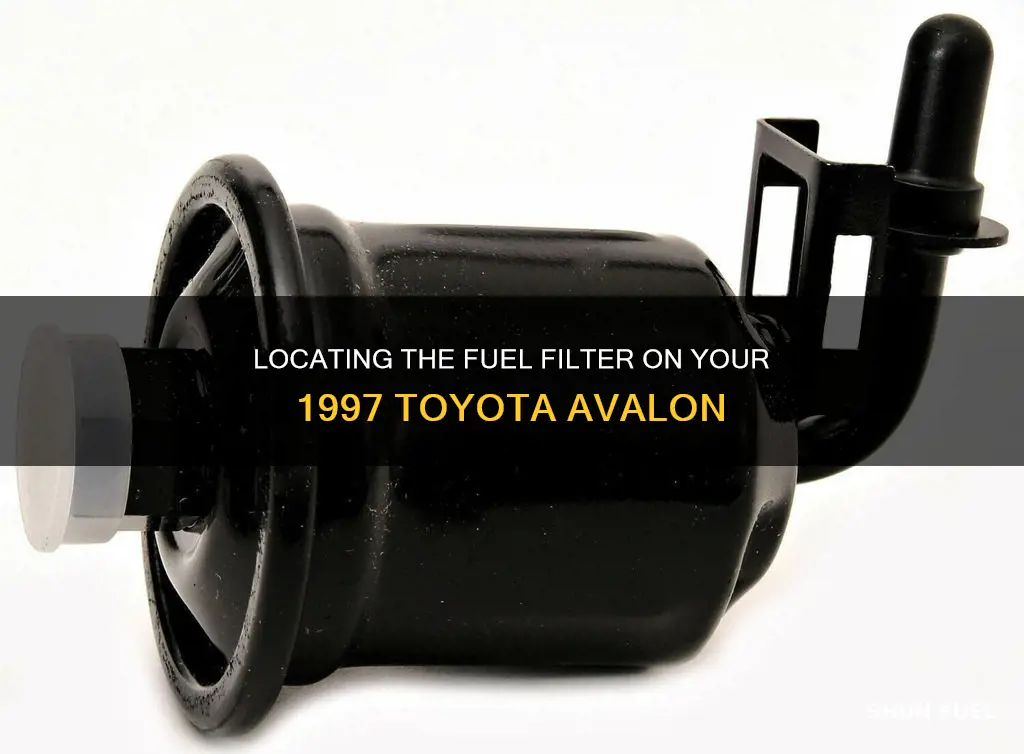

The fuel filter in a 1997 Toyota Avalon is located on the driver's side, below the master cylinder and the air filter box. It is a canister-type fuel filter with an inner filter made of fibres that trap and hold impurities and sediments, preventing them from entering the fuel injectors and engine. The fuel filter should be replaced between 30,000 and 40,000 miles of use. While the exact process may vary slightly, online forums provide guidance on replacing the fuel filter, including priming the new filter and checking for gas leaks.
| Characteristics | Values |
|---|---|
| Fuel filter location | Beneath the air filter box or between the air filter and the master cylinder |
| Fuel filter type | Canister-type with an inner filter made of fibers |
| Replacement mileage | Between 30,000 and 40,000 miles |
| Tools required | Metric open-end wrench, breaker bar, air gun |
Explore related products
What You'll Learn
- The fuel filter is located on the driver's side, below the master cylinder and air filter box
- It's hiding down low on the frame rail between the fuel injection, air cleaner, and master cylinder
- The fuel sensor is in the fuel tank, attached to the fuel pump bracket
- The fuel filter is between the air filter box and under the brake booster area
- To replace the fuel filter, you need to turn the ignition on and off a few times, then leave the motor running
The fuel filter is located on the driver's side, below the master cylinder and air filter box
If you're looking for the fuel filter in a 1997 Toyota Avalon, it is located on the driver's side, below the master cylinder and air filter box. This is the same for all model years with this generation of Avalon.
To replace the fuel filter, park your car on a level surface in a well-ventilated area. Pull the hood latch and raise the hood. Remove the fuel cap from the fill neck on the fuel tank to release the gas pressure from the fuel filter. You can then change the fuel filter without removing any other components.
The fuel filter should be replaced every 30,000 to 40,000 miles. To replace it, slide a drip pan under the car in the general location of the fuel filter. Loosen the bottom fuel line nut with a metric open-end wrench, turning it counterclockwise, and finish unscrewing it with your fingers. Pull the line out of the fuel filter and then unscrew the top fuel line nut with a wrench. Finish unscrewing with your fingers and pull the line out.
Loosen the metric bolt holding the bracket of the fuel filter to the mounting bracket with a metric wrench. Slide the bottom of the fuel filter away from the mounting bolt and out of the engine compartment. Slide the bracket of the new fuel filter onto the bracket bolt, ensuring the arrow on the new fuel filter is pointing upward.
Locating the Fuel Filter on a 2004 Honda Rancher ES
You may want to see also
Explore related products
It's hiding down low on the frame rail between the fuel injection, air cleaner, and master cylinder
The fuel filter on a 1997 Toyota Avalon is located on the driver's side, beneath the master cylinder and the air filter box. Specifically, it is hiding down low on the frame rail between the fuel injection, air cleaner, and master cylinder.
To access the fuel filter, first park your Avalon on a level surface in a well-ventilated work area. Pull the hood latch and raise the hood. Remove the fuel cap from the fill neck on the fuel tank to release the gas pressure from the fuel filter.
The fuel filter will be located beneath the air filter box. You will need to remove the upper air filter housing to access it. Once you have removed the housing, you will see three bolts inside; remove these, and then remove the bottom of the air cleaner housing. You should then be able to see and access the fuel filter.
To change the fuel filter, slide a drip pan underneath the Avalon, in the general location of the fuel filter. Hold the fuel filter with one hand and loosen the bottom fuel line nut with a metric open-end wrench. Turn the fuel line nut counterclockwise to loosen, then finish unscrewing with your fingers. Pull the line out of the fuel filter. Hold the fuel filter and unscrew the top fuel line nut with the wrench, then finish unscrewing with your fingers and pull the line out. Loosen the metric bolt holding the bracket of the fuel filter to the mounting bracket with a metric wrench. Slide the bottom of the fuel filter away from the mounting bolt and out of the engine compartment.
Fuel Filter Fundamentals: Racor Primary Filters Explained
You may want to see also
Explore related products
The fuel sensor is in the fuel tank, attached to the fuel pump bracket
The fuel sensor on a 1997 Toyota Avalon is located within the fuel tank, attached to the fuel pump bracket. This is the case for the 2004 model, and it is likely that the 1997 model is similar.
The fuel filter is located between the air filter box and under the brake booster area. It is a canister-type fuel filter, which can be accessed and replaced without removing any other components.
To replace the fuel filter, first park the car on a level surface in a well-ventilated area. Pull the hood latch, raise the hood, and remove the fuel cap from the fill neck on the fuel tank. This will release the gas pressure from the fuel filter. The fuel filter is located on the driver's side, below the master cylinder and the air filter box.
Using a metric open-end wrench, loosen the bottom fuel line nut by turning it counterclockwise. Finish unscrewing with your fingers, then pull the line out of the fuel filter. Repeat for the top fuel line nut. Loosen the metric bolt holding the bracket of the fuel filter to the mounting bracket. Finally, slide the bottom of the fuel filter away from the mounting bolt and out of the engine compartment.
The fuel filter should be replaced every 30,000 to 40,000 miles.
Fuel Filter Tools: How Do They Work?
You may want to see also
Explore related products
The fuel filter is between the air filter box and under the brake booster area
To replace the fuel filter on a 1997 Toyota Avalon, you must first locate it. The fuel filter is between the air filter box and under the brake booster area.
To access the fuel filter, you will need to open the hood and locate the air filter box. The air filter box is usually located on the driver's side of the vehicle, below the master cylinder. Once you have located the air filter box, you can follow the line from the engine, which leads to the fuel filter. The fuel filter has a quick-disconnect line on top and a 14mm flare fitting on the bottom.
When you have located the fuel filter, you can begin the process of replacing it. Place a drip pan under the vehicle to catch any fuel that may spill during the replacement process. Hold the fuel filter with one hand and use a metric open-end wrench to loosen the bottom fuel line nut. Turn the fuel line nut counterclockwise to loosen it, and then finish unscrewing it with your fingers. Pull the fuel line out of the fuel filter.
Repeat this process for the top fuel line nut, and then loosen the metric bolt holding the bracket of the fuel filter to the mounting bracket using a metric wrench. Slide the bottom of the fuel filter away from the mounting bolt and out of the engine compartment. Install the new fuel filter by sliding the bracket onto the mounting bolt and ensuring that the arrow on the new fuel filter is pointing upward.
After replacing the fuel filter, you will need to prime the new filter with fuel and remove any air. To do this, turn the ignition on for five seconds and then turn it off. Repeat this process three more times, leaving the motor running on the fifth turn of the key. Check for any gas leaks while the engine is running, and then shut off the engine and close the hood.
Toyota Fuel Filter Location: A Guide for 1994 Models
You may want to see also
Explore related products
To replace the fuel filter, you need to turn the ignition on and off a few times, then leave the motor running
To replace the fuel filter on a 1997 Toyota Avalon, you need to first park the car on a level surface in a well-ventilated area. Pull the hood latch and raise the hood. Next, remove the fuel cap from the fill neck on the fuel tank to release the gas pressure from the fuel filter. The fuel filter is located on the driver's side, below the master cylinder and the air filter box.
Now, to your specific question: to replace the fuel filter, you need to first turn the ignition on for five seconds and then turn it off. Repeat this process of turning the ignition on and off three more times, for five seconds each time. This procedure will prime the new filter with fuel and remove air from the fuel filter. On the fifth turn of the key, leave the motor running.
While the car is running, inspect the new fuel filter for any gas leaks. Once you've confirmed there are no leaks, shut off the engine and close the hood. It is important to ensure that the arrow on the new fuel filter is pointing upward, as this indicates the fuel flow direction.
Additionally, here are some detailed steps on how to physically replace the fuel filter:
- Slide a drip pan under the car, positioning it near the fuel filter.
- Hold the fuel filter with one hand and loosen the bottom fuel line nut with a metric open-end wrench. Turn the nut counterclockwise, then finish unscrewing it with your fingers.
- Pull the fuel line out of the fuel filter.
- Hold the fuel filter and unscrew the top fuel line nut with the same type of wrench. Again, finish unscrewing with your fingers and pull the fuel line out.
- Loosen the metric bolt holding the bracket of the fuel filter to the mounting bracket using a metric wrench.
- Slide the bottom of the fuel filter away from the mounting bolt and out of the engine compartment.
- Slide the bracket of the new fuel filter onto the bracket bolt, ensuring the arrow is pointing upward.
Diagnosing a Faulty Fuel Filter in Your '88 Jeep Cherokee
You may want to see also
Frequently asked questions
The fuel filter on a 1997 Toyota Avalon is located on the driver's side, below the master cylinder and the air filter box. It is a canister-type fuel filter.
To replace the fuel filter, first park your car on a level surface and pull the hood latch. Remove the fuel cap from the fill neck on the fuel tank to release gas pressure from the fuel filter. Then, slide a drip pan under the car, in the general location of the fuel filter. Loosen the bottom fuel line nut with a metric open-end wrench and finish unscrewing it with your fingers. Pull the line out of the fuel filter and unscrew the top fuel line nut. Finish by removing the metric bolt holding the bracket of the fuel filter.
Yes, there are two fuel filters on the 1997 Toyota Avalon. One is located in the fuel tank, and the other is on the firewall.
No, you can change the fuel filter without removing any other components.
It is recommended to replace the fuel filter on your 1997 Toyota Avalon every 30,000 to 40,000 miles.
