The fuel filter in a 1996 Chevy 1500, also known as the Chevrolet Silverado 1500, is located inside the driver's-side frame rail, between the driver's-side cab and the driver's-side rear tire. It is recommended to replace the fuel filter every 30,000 to 40,000 miles. To replace the fuel filter, park the car on level ground, set the emergency brake, and remove the gas cap to relieve pressure. Then, slide under the driver's side to locate the fuel filter and place a small fluid catch pan underneath to catch excess fuel.
| Characteristics | Values |
|---|---|
| Fuel filter location | Inside of the driver's-side frame rail, between the driver's-side cab of the truck and the driver's-side rear tire |
| Replacement frequency | Every 30,000 to 40,000 miles |
| Replacement procedure | Park on level ground, set the emergency brake, remove the gas cap, slide under the driver's side to locate the fuel filter, place a small fluid catch pan underneath, relieve fuel system pressure, and remove the filter |
Explore related products
What You'll Learn
- The fuel filter is located inside the driver's-side frame rail
- Slide under the driver's side to locate the filter
- Remove the gas cap to relieve pressure off the fuel filter
- Place a catch pan under the fuel filter to collect excess fuel
- Use compressed air to blow out dirt from the fitting at the end of the fuel filter
The fuel filter is located inside the driver's-side frame rail

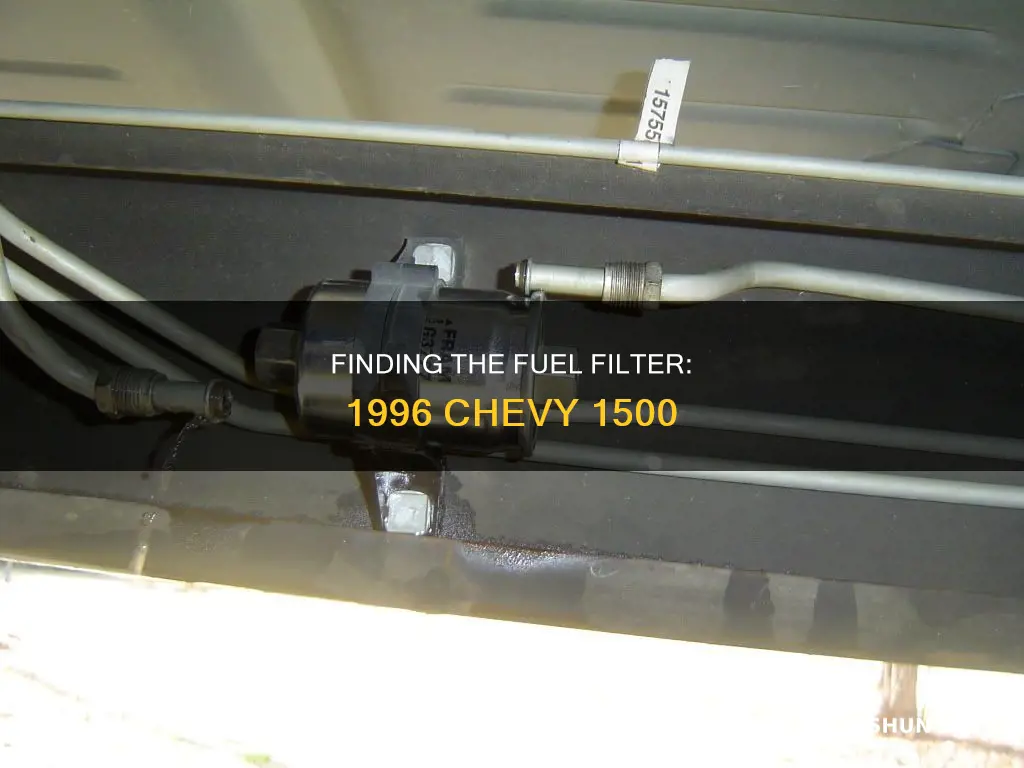

The fuel filter on a 1996 Chevy 1500, also known as the Chevrolet Silverado 1500, is located inside the driver's side frame rail. This is situated between the driver's side cab of the truck and the driver's side rear tire. It is an in-line fuel filter that catches and traps sediments from the fuel before it reaches the engine. Chevrolet recommends replacing the fuel filter every 30,000 to 40,000 miles.
To access the fuel filter, park your Chevy Silverado 1500 on level ground and set the emergency brake. Remove the gas cap from the gas tank to relieve the pressure off the fuel filter. Slide under the driver's side of the vehicle and locate the fuel filter inside the driver's side frame rail. Place a small fluid catch pan underneath the fuel filter to catch any excess fuel from the fuel lines and the filter itself.
When working with the fuel system, exercise extreme caution as fuel is highly flammable. It is recommended to have a fire extinguisher nearby as a safety precaution. Always relieve the fuel system pressure before proceeding. Additionally, ensure that the vehicle is securely supported with jack stands before beginning any work.
To remove the fuel filter, detach the quick-connect fitting by pushing inward and grasping the plastic tab around the connector. Pull the connector and filter apart. If needed, use a specialized tool like J 38778 to carefully force the two apart without bending the tool. Always use a backup wrench when removing or installing the fuel filter to prevent over-torquing the lines or fittings. Loosen and disconnect the feed line from the filter, being cautious to catch any remaining fuel with a rag. Finally, remove the fuel filter from the retaining bracket by pulling it outward.
Water-Separating Fuel Filters: Necessary or Not?
You may want to see also
Explore related products
Slide under the driver's side to locate the filter
To locate the fuel filter on a 1996 Chevy 1500, also known as the Chevrolet Silverado 1500, you will need to slide under the driver's side of the vehicle. This is an important first step in accessing the fuel filter for inspection, maintenance, or replacement.
Before sliding under the vehicle, it is crucial to take necessary safety precautions. Ensure that the vehicle is parked on level ground and engage the emergency brake to prevent any unintended movement. It is also recommended to remove the gas cap from the gas tank to relieve pressure from the fuel system and the fuel filter itself.
Now, you can carefully slide under the driver's side of the Chevrolet Silverado 1500. The fuel filter is strategically located inside the driver's-side frame rail, nestled between the driver's-side cab of the truck and the driver's-side rear tire. This placement is designed to protect the fuel filter and ensure easy access for maintenance.
As you slide under the vehicle, you will want to look for the fuel filter, which is an integral component of the fuel system. It is responsible for catching and trapping sediments from the fuel before it reaches the engine. By doing so, the fuel filter helps prevent contaminants and particles from clogging injectors or other sensitive parts of the fuel system.
Once you have located the fuel filter, you can proceed with any necessary maintenance or replacement procedures. Remember to exercise extreme caution when working with the fuel system, as fuel is highly flammable. Always have a fire extinguisher nearby as a safety precaution. Additionally, ensure that you relieve the fuel system pressure before disconnecting any fuel lines or performing any work on the fuel filter itself.
The Right Way to Change Fuel Dispenser Filters
You may want to see also
Explore related products
Remove the gas cap to relieve pressure off the fuel filter
To relieve the pressure off the fuel filter of your 1996 Chevy 1500, start by removing the gas cap from the gas tank. This is a necessary first step to relieve the pressure off the fuel filter. Removing the gas cap is simple and safe to do, and it is a prerequisite to many repairs and maintenance tasks.
The fuel filter on a 1996 Chevy 1500 is located inside the driver's side frame rail, between the driver's side cab and the driver's side rear tire. Before attempting any work on the fuel filter, it is important to relieve the pressure in the fuel system. This is because the fuel pressure in the rail when the engine is idling is low, but it increases when you are driving, especially when you press down on the throttle.
There are a few methods to relieve the pressure in the fuel system. One method is to start the car, cut off the electricity to the pump, and then let the car run until it stalls. This method may not reduce the pressure rapidly, so waiting a suitable amount of time may be necessary. It is also important to note that this method will not work if the pump is dead.
Another method to relieve the pressure is to sit in the driver's seat and turn the key to "Run", but not "Start". You should be able to hear the fuel pump whine for about three seconds, and then it will turn off. This quick test will tell you if the fuel pump is getting power and running. However, it won't tell you about the whole fuel line from the tank to the engine.
There is also a small Schrader valve located on the fuel rail at the front, or right side, of the engine. With the engine off, there should always be a small residual pressure in the fuel rail. If you press the little rod inside the valve, you should see a quick spurt of fuel. If you do not see this, you may have a fuel delivery problem.
Fuel Filter: Why It's Important and How to Maintain It
You may want to see also
Explore related products
Place a catch pan under the fuel filter to collect excess fuel
To place a catch pan under the fuel filter of a 1996 Chevy 1500 to collect excess fuel, follow these steps:
First, park the vehicle on level ground and engage the emergency brake. Remove the gas cap to relieve pressure from the fuel filter. Slide under the driver's side of the vehicle and locate the fuel filter. The fuel filter on a 1996 Chevy 1500 is located inside the driver's side frame rail, between the driver's side cab and the driver's side rear tire.
Now, place a small fluid catch pan or bucket underneath the fuel filter. This will catch any excess fuel that may leak from the fuel lines and the fuel filter during the maintenance or replacement process. Ensure that the catch pan is properly positioned to collect any dripping fuel.
It is important to note that gasoline is highly flammable, so exercise caution throughout the process. Before proceeding with any maintenance or repairs, ensure that you are comfortable working on a vehicle and have the necessary tools and safety equipment.
By placing a catch pan under the fuel filter, you can safely collect excess fuel and prevent it from spilling or dripping onto the ground, reducing the risk of fire and environmental hazards.
Draining Diesel Fuel Filters: How Much and How Often?
You may want to see also
Explore related products
Use compressed air to blow out dirt from the fitting at the end of the fuel filter
To use compressed air to blow out dirt from the fitting at the end of the fuel filter on a 1996 Chevy 1500, also known as the Chevrolet Silverado 1500, first locate the fuel filter. The fuel filter is inside the driver's side frame rail, between the driver's side cab and the driver's side rear tire.
Now, to blow out the dirt with compressed air, follow these steps:
- Park your Chevy 1500 on level ground and engage the emergency brake.
- Remove the gas cap from the gas tank to relieve the pressure off the fuel filter.
- Slide a small fluid catch pan under the fuel filter to catch any excess fuel that may drain from the fuel lines and the filter.
- Grasp the nylon fuel line fitting on the tank-to-filter line.
- Twist the quick-connect fitting a quarter turn in each direction to loosen any dirt within.
- Now, use compressed air to blow out the dirt from the fitting at the end of the fuel filter. Ensure that all dirt is removed.
It is important to note that Chevrolet recommends replacing the fuel filter on the Chevrolet Silverado 1500 every 30,000 to 40,000 miles.
Understanding the Functionality of a 3-Port Fuel Filter
You may want to see also
Frequently asked questions
The fuel filter is located inside the driver's-side frame rail, between the driver's-side cab of the truck and the driver's-side rear tire.
Chevrolet recommends replacing the fuel filter every 30,000 to 40,000 miles, or every 30 months.
Here is a simplified process:
- Park on level ground and set the emergency brake.
- Remove the gas cap to relieve pressure.
- Slide under the driver's side to locate the fuel filter.
- Place a small fluid catch pan under the fuel filter.
- Remove the fuel filter from the retaining bracket.
