The 3-port fuel filter system is designed to improve fuel efficiency and engine performance. It features two inlets and one outlet, with one of the ports returning fuel from the filter back to the tank. This return mechanism helps maintain fuel pressure and prevent vapor lock issues, which can cause engine stalling. By keeping a constant flow of fuel through the system, the filter also lowers the temperature of the fuel pump, preventing vaporization. The two inlet ports serve distinct functions: one supplies fuel to the engine, while the other returns unused or unburned fuel for reuse.
| Characteristics | Values |
|---|---|
| Number of inlets | 2 |
| Number of outlets | 1 |
| Purpose | To lower the temperature of the fuel pump and fuel, preventing vaporization |
| Return line | Diverts unused/unburned fuel back to be reused |
| Fuel pressure | Maintains 65 psi to the fuel rail |
| Vapor lock issues | Solves vapor lock issues at 3 to 6 PSI |
Explore related products
$6.08 $8.99
What You'll Learn
The engine supply line
In a 3-port fuel system, the engine supply line is typically one of the three hoses connected to the fuel filter. It is crucial to identify this line correctly, as confusion with the return line can lead to issues. The return line serves a different purpose, diverting unused or unburned fuel back to the system to be reused.
The specific configuration of the engine supply line can vary depending on the vehicle's make, model, and year. For example, in some Toyota Avensis models, the engine supply line is identified as hose number one among the three hoses connected to the fuel filter. It is essential to refer to the vehicle's manual or seek expert advice to accurately identify the engine supply line for a particular vehicle.
Understanding the function and importance of the engine supply line in a 3-port fuel system is crucial for proper maintenance and troubleshooting. It ensures that the engine receives the required fuel supply, contributing to the overall performance and efficiency of the vehicle.
Cleaning Fuel Filter Carburetor: DIY Guide
You may want to see also
Explore related products
The return line
In a 3-port fuel filter setup, the return line is typically connected to one of the ports on the fuel filter, allowing fuel to flow back towards the fuel tank or pump. This design helps maintain the necessary fuel pressure and prevents issues such as vapor lock, which can cause engine stalling.
One common configuration involves two inlet ports and one outlet port on the fuel filter. The return line is connected to one of the inlet ports, allowing fuel to flow back into the system. This setup ensures that the fuel pressure remains regulated and that excess fuel does not build up in the system.
In some cases, the return line may also be utilised to lower the pressure at the fuel rail, thereby reducing emissions. This configuration is often seen in vehicles designed to meet specific emission standards, such as the California models mentioned in the sources.
Maintain Duramax Performance: Replace Fuel Filter Regularly
You may want to see also
Explore related products
Fuel pump and low-pressure fuel line

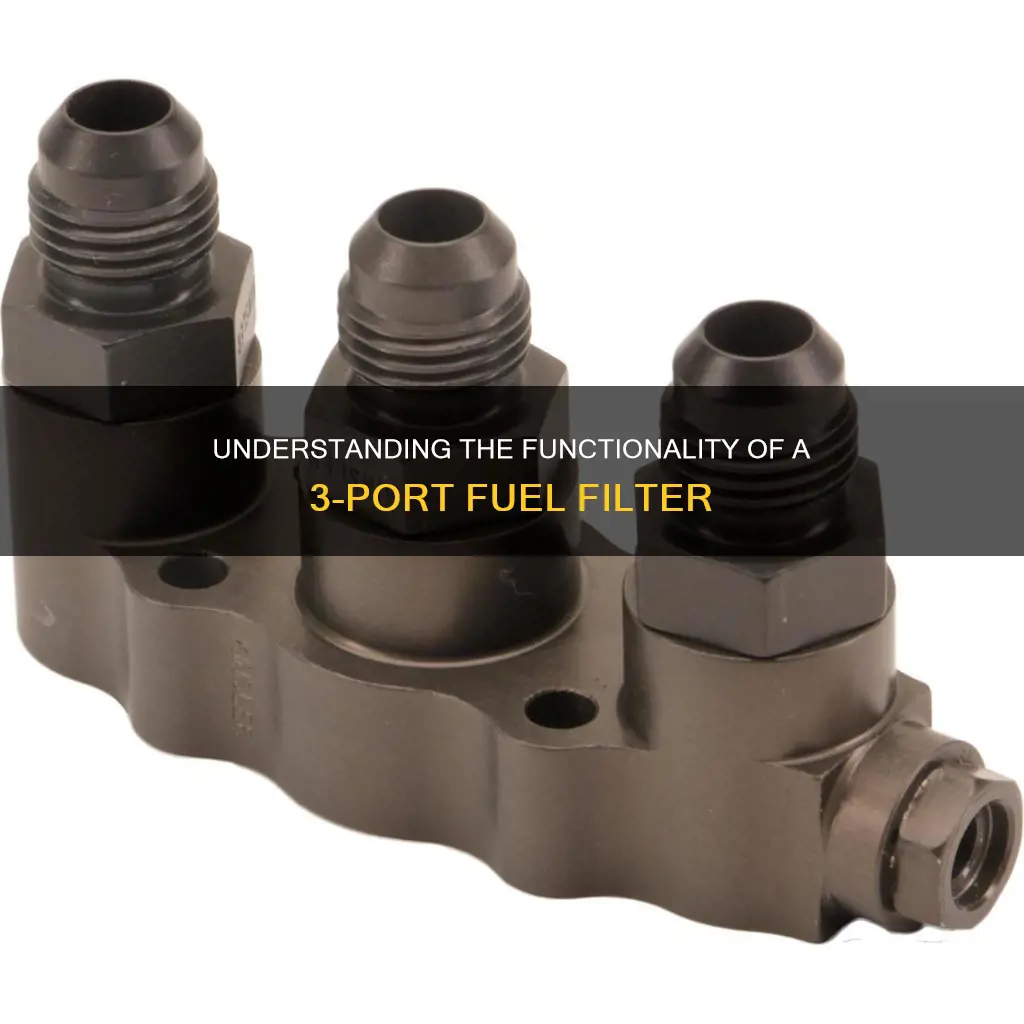

The 3-port fuel filter is used to keep the fuel cool in the engine compartment, where temperatures can exceed 200 degrees. By maintaining some fuel flow through the fuel pump and low-pressure fuel line, the temperature of the fuel and the fuel pump is significantly lowered, and vapour lock is avoided. This is particularly important given that there is very little fuel flow through the fuel lines, and the fuel can stagnate and heat up, leading to vaporization.
The 3-port fuel filter has three ports: an inlet port, an outlet port, and a bypass/vapor port. The bypass port is small and must be installed at the top so that vapour is returned to the tank. If it is installed at the bottom, the vapour will be trapped. The fuel pump can easily handle this circulating flow.
The 3-port fuel filter can be used with electric fuel pumps to manage the high temperatures in the engine compartment. It is suitable for Large Engine GM Trucks, Ford Trucks, and Jeep in their hot fuel packages.
Pre-pump filters, also known as straining filters, are important to prevent debris from damaging the fuel pump. They are typically coarse in nature to reduce pressure drop and ensure fine debris does not block the flow over time.
Changing Fuel Filter: Peugeot 307 HDi Guide
You may want to see also
Explore related products
Vapor lock issues
Vapor lock is a problem caused by liquid fuel turning into vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in a transient loss of power or complete stalling. Restarting the engine from this state may be difficult.
Vapor lock was far more common in older gasoline-fuel systems that incorporated a low-pressure mechanical fuel pump driven by the engine, located in the engine compartment, and feeding a carburetor. Such pumps were typically located higher than the fuel tank, were directly heated by the engine, and fed fuel directly to the float bowl inside the carburetor. Fuel was drawn under negative pressure from the feed line, increasing the risk of a vapor lock developing between the tank and pump.
A vapor lock being drawn into the fuel pump could disrupt the fuel pressure long enough for the float chamber in the carburetor to partially or completely drain, causing fuel starvation in the engine. Even temporary disruption of the fuel supply into the float chamber is not ideal; most carburetors are designed to run at a fixed level of fuel in the float bowl, and reducing the level will reduce the fuel-to-air mixture delivered to the engine.
Vapor lock is more likely to occur in hot weather or at high altitudes. The higher the volatility of the fuel, the more likely it is that vapor lock will occur. Historically, gasoline was a more volatile distillate than it is now and was more prone to vapor lock. Conversely, diesel fuel is far less volatile than gasoline, so diesel engines almost never suffer from vapor lock.
To prevent vapor lock, it is recommended to keep the fuel line as far away from the head, intake manifold, and header as possible, and to use insulating reflective material around the line portion closest to the heat source. Installing a return regulator can also help, as it keeps the fuel moving and doesn't give the heat a chance to boil it in the line. Moving the fuel pump to the interior of the tank also helps prevent vapor lock since the entire fuel delivery system is under positive pressure and the fuel pump runs cooler than it would in the engine compartment.
Fuel Cleaner: Cleaning Fuel Filter or Not?
You may want to see also
Explore related products
Fuel pressure regulator
A fuel pressure regulator (FPR) is a device that controls the pressure of fuel supplied to the fuel injectors on an engine. It is responsible for providing the correct fuel pressure to either the carburetor or fuel injection system. The FPR is usually mounted after the fuel rail, ensuring that the fuel rail has priority in fuel flow.
The FPR works by bleeding off a portion of the fuel flow to the injectors from the fuel pump to control the fuel pressure. Fuel is pumped from the fuel tank to the fuel rail by the fuel pump. The valve in the FPR controls the amount of fuel that is bled from the fuel rail by opening an outlet port, allowing fuel to flow back into the fuel tank. This process is also known as fuel atomization, which refers to breaking down fuel into small, uniformly distributed droplets. This ensures proper fuel atomization, allowing for thorough mixing of fuel with air, promoting complete combustion and maximizing power output.
The fuel pressure regulator consists of a diaphragm that controls the bypass valve, which can open and close to adjust for a steady fuel delivery. When pressure is applied to the top of the regulator, the diaphragm, attached to the bypass valve, is forced down by a spring, reducing the amount of fuel flow. This maintains a steady fuel supply, even during dramatic changes in fuel demand.
The FPR is especially important in high-horsepower cars running a mechanical fuel pump, as a high-flowing FPR is required to divert large amounts of fuel. This ensures the fuel pressure differential between the inlet and outlet of the injector is optimal.
Cleaning Your XRP Fuel Filter: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A 3-port fuel filter has two inlets and one outlet.
By keeping some fuel flowing through the fuel pump and low-pressure fuel line, the temperature of the fuel pump and fuel is significantly lowered and vapour lock is avoided.
Vapour lock occurs when the fuel in the fuel line or fuel pump starts to boil, creating an air gap between the fuel pump and carburettor. This causes the car to stop running.
The engine supply line supplies the injectors.
The return line diverts unused or unburnt fuel back to be reused.
