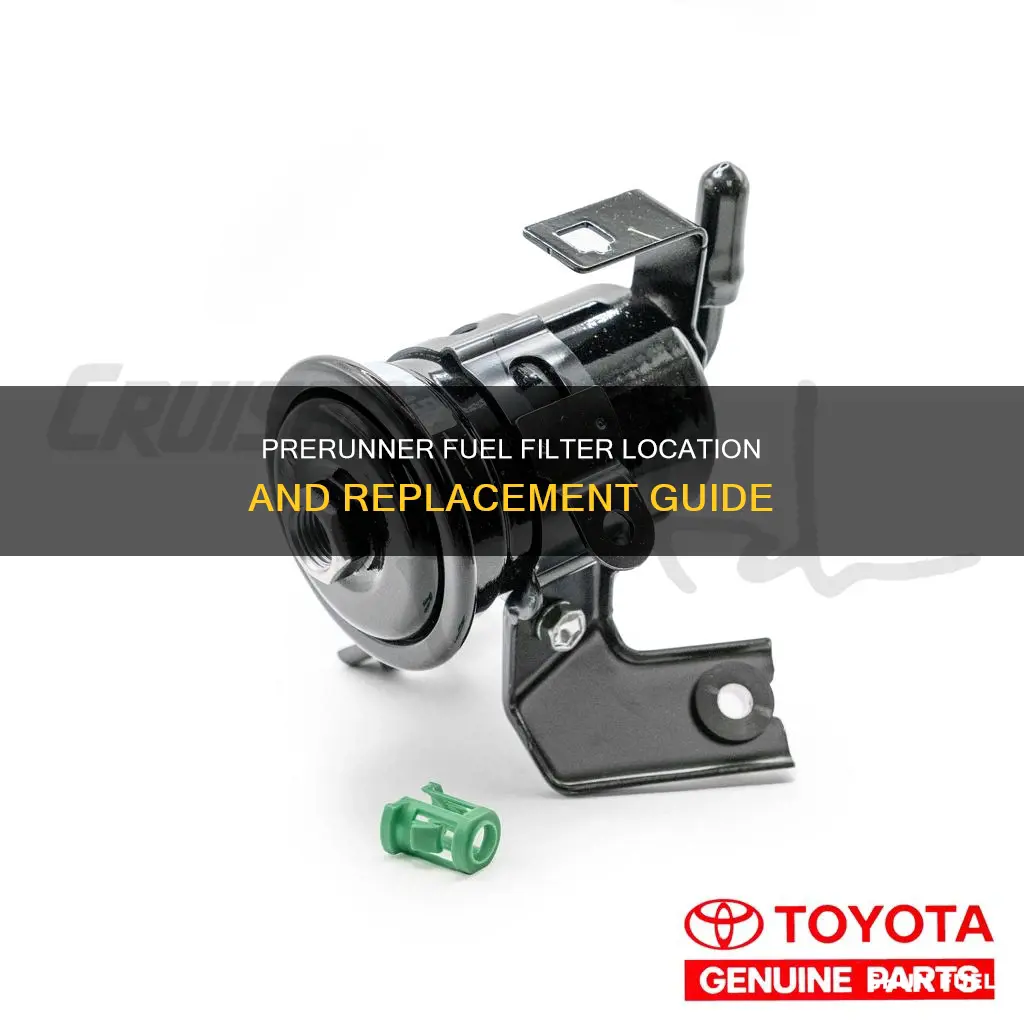

The fuel filter in a 2002 Toyota Prerunner is located under the driver's door, along the frame rail. It is recommended to replace the fuel filter every 90,000 miles or 30,000 miles if the car is driven in a dusty environment. The process of replacing the fuel filter involves disconnecting the fuel pump, removing the fuel line nuts and bolts, and replacing the old filter with a new one.
| Characteristics | Values |
|---|---|
| Location of the fuel filter | Under the driver's door, along the frame rail |
| Tools required | 14mm flare nut wrench, 19mm open-end wrench, 10mm socket, pair of needle-nose pliers |
| Process | Disconnect fuel pump connector, remove nuts securing fuel line, loosen flare nuts, remove nuts securing the fuel filter, disconnect fuel lines |
Explore related products
What You'll Learn
The fuel filter is located under the driver's door
The fuel filter in your 2002 Toyota Prerunner is located under the driver's door, along the frame rail. This is a relatively easy DIY project, and you won't need many tools to replace the fuel filter. You will need a 14mm flare nut wrench, a 19mm open-end wrench, and a 10mm socket. You may also need a pair of needle-nose pliers.
Before you begin, some people like to remove the gas cap to depressurize the system. However, this is not necessary, and you can carefully disconnect the lines from the filter to release the fuel. Be prepared for some fuel to leak out of the filter when you remove it.
To replace the fuel filter, first, use your wrench to remove the two fuel line nuts on each side of the filter. Pull the lines off, then remove the two bolts holding the filter in place. Make sure the new filter is facing the right way, then tighten the two bolts to hold it in place. Install the two lines and tighten their nuts. Finally, close the gas cap and connect the negative battery terminal.
By replacing your fuel filter, you can keep your fuel pump and engine running smoothly. It is recommended to change your fuel filter every 90,000 miles or every 30,000 miles if you are in a very dusty environment.
Fuel Filter Mileage: When to Change It?
You may want to see also
Explore related products
You need to disconnect the fuel pump connector
To disconnect the fuel pump connector on a 1996-2002 Toyota 4Runner, you will need to follow a few steps. Firstly, open the driver's side rear door and fold the rear seat bottom forward. Remove the two screws that secure the rear door threshold trim and then take off the trim. Next, pull the carpet and carpet pad forward to reveal a small cap under the driver's seat. Remove the three screws that are holding the cap in place.
Now, you will need to use a pair of needle-nose pliers to disconnect the fuel pump connector. Be careful and gentle during this step. Once the connector is disconnected, use a 10mm socket wrench to completely remove the nuts that secure the fuel line to the underside of the vehicle. There will be three nuts to the rear of the filter and two in front of it. Removing these nuts will make the fuel lines more flexible, which will assist in removing the filter.
It is important to note that the Toyota Factory Service Manual (FSM) recommends a different procedure for disconnecting the fuel pump connector. According to the FSM, you should disconnect the connector, run the engine until the engine stalls due to a lack of fuel, and then remove the filter. This method releases the pressure in the fuel lines before disconnecting them. However, some people find this step unnecessary and choose to carefully disconnect the lines from the filter and allow the fuel to leak into a catch basin.
Fuel Filter: Essential or Unnecessary?
You may want to see also
Explore related products
Remove the two fuel line nuts on each side of the filter
To remove the two fuel line nuts on each side of the filter, you will need a 14mm flare nut wrench and a 19mm open-end wrench. The 14mm flare nut wrench is used to loosen the flare nuts on the fuel lines, while the 19mm open-end wrench provides back pressure on the fuel filter.
First, locate the fuel filter under the driver's door, along the frame rail. Then, use your 14mm flare nut wrench to loosen the two flare nuts on the fuel lines that are connected to the filter. Do not remove these nuts completely. Next, use your 19mm open-end wrench to hold the fuel filter in place and provide back pressure while you loosen the nuts with the 14mm flare nut wrench. Once the nuts are loose, you can remove the two fuel lines from the filter by hand. Be prepared for some fuel to leak out of the lines when you remove them.
It is important to note that some forum enthusiasts recommend disconnecting the fuel pump connector and allowing the engine to stall before removing the fuel lines. This releases the pressure in the fuel lines prior to disconnection. However, others have found this to be unnecessary and instead recommend carefully disconnecting the lines and allowing the fuel to leak into a catch basin.
Chevy Trailblazer Fuel Filter: Location and Access
You may want to see also
Explore related products
Disconnect the two line nuts and two bolts on the top
To disconnect the two line nuts and two bolts on the top of a 1996-2002 Toyota 4Runner, you'll need to locate the fuel filter first. It is situated under the driver's door, along the frame rail.
Once you have located the fuel filter, follow these steps:
- Use a 14mm flare nut wrench to loosen the two fuel line nuts on each side of the filter.
- Pull the lines off.
- Remove the two bolts holding the filter in place with a 19mm open-end wrench.
- Disconnect the two line nuts and two bolts on the top.
It is important to note that you should expect some fuel leaking from the filter when you remove it. This is normal and only consists of the pressurized fuel in the line. Additionally, if you are concerned about fuel leaking, you can disconnect the fuel pump connector using a pair of needle-nose pliers before proceeding with the steps outlined above. This will release the pressure in the fuel lines prior to disconnection.
Locating the Fuel Filter in a 2001 Nissan Sentra
You may want to see also
Explore related products
![DNA Motoring AFPN-093-RD Clean Air Washable Drop In Panel Air Filter Enhance Engine Performance [Compatible with 03-09 GX470 4.7L / 03-08 4Runner 4.7L / 01-07 Sequoia 4.7L / 00-06 Tundra 3.4L 4.7L]](https://m.media-amazon.com/images/I/71yCHECGFJL._AC_UY218_.jpg)
Install the new filter and tighten the bolts
To install the new filter, first, ensure that the new filter is facing the right way, similar to the old one. Then, tighten the two bolts to hold it in place. Next, install the two lines and tighten their nuts.
If you have a 2002 2.7 prerunner (2WD), you will need to install new banjo washers. These are the thin copper or brass wavy washers used for compression. You will find two washers on each side of the fuel filter, placed on the inside of the 17 mm bolt.
Finally, close the gas cap and connect the negative battery terminal.
The Ultimate Guide: Changing In-Tank Fuel Filter
You may want to see also
Frequently asked questions
The fuel filter is located under the driver's door, along the frame rail.
Toyota says their fuel filters don't need to be replaced. However, replacing the fuel filter is recommended every 90,000 miles or every 30,000 miles if you're in a very dusty environment.
You will need a 14mm flare nut wrench, a 19mm open-end wrench, and a 10mm socket.
First, disconnect the fuel pump connector using a pair of needle-nose pliers. Then, remove the nuts securing the fuel line to the underside of the vehicle using a 10mm socket. Next, use a 14mm flare nut wrench and a 19mm open-end wrench to loosen the flare nuts securing the fuel lines to the fuel filter. Finally, remove the two nuts securing the fuel filter to the truck using a 10mm socket.
The fuel filter is designed to filter the fuel going to the engine. Over time, it can get clogged, decreasing the amount of fuel reaching the engine and resulting in hesitation when stepping on the gas. In some cases, a clogged fuel filter may even prevent the car from starting.
