The fuel filter location on a 1991 S10 Blazer depends on the engine type. For a 2.5/151 4-cylinder engine, the fuel filter is located under the hood/engine compartment by the brake master cylinder. For a 2.8/173 6-cylinder engine, the fuel filter is located under the hood/engine compartment on the driver's side. For a 4.3/262 6-cylinder engine, the fuel filter is located under the truck, ahead of the fuel tank, attached to the inner side of the frame rail.
Explore related products
![ECCPP® Fuel Pump for: Chevy S10 Blazer & GMC S15 Jimmy 98-03, GMC Envoy 98-00, Oldsmobile Bravada 99-01 [4 DOOR MODELS] E3992M 323-01213](https://m.media-amazon.com/images/I/61phqMlJIIL._AC_UY218_.jpg)
What You'll Learn
- The fuel filter is under the hood/engine compartment by the brake master cylinder
- For a 2.8/173 6-cylinder engine, the fuel filter is under the hood
- For a 4.3/262 6-cylinder engine, the fuel filter is under the truck
- The fuel filter is attached to the inner side of the frame rail
- Relieve fuel pressure by pulling the fuel pump relay
The fuel filter is under the hood/engine compartment by the brake master cylinder
The fuel filter on a 1991 S10 Blazer with a 2.5/151 4-cylinder engine can be found under the hood/engine compartment by the brake master cylinder. This is one of three possible locations for the fuel filter on a 1991 Chevy S10. The other two depend on the number of cylinders in the engine.
If you are attempting to locate the fuel filter, it is recommended that you first relieve the fuel system's pressure. The fuel system is always pressurised, even if the truck is not running. To do this, pull the fuel pump relay, which can be found in the glove box on older trucks, or under the hood on newer models. You could also try pulling the fuse. Once this is done, turn the key to the 'run' position, and you should not hear the fuel pump prime.
If you are looking to replace the fuel filter, you will need to buy a replacement filter, as well as anti-seize, a rag, a pan or shallow bucket, and the proper wrenches. You may also need a small flathead screwdriver and some penetrating oil. Before beginning, make sure the truck is safely secured with properly rated jack stands.
The fuel filter can then be accessed under the hood/engine compartment, by the brake master cylinder.
Locating the Fuel Filter in Your Mercedes E320
You may want to see also
Explore related products
For a 2.8/173 6-cylinder engine, the fuel filter is under the hood
If you own a 1991 S10 Blazer, there are a few possible locations for the fuel filter, depending on the engine type. For a 2.8/173 6-cylinder engine, the fuel filter is located under the hood, or engine compartment, on the driver's side. To access it, follow the fuel line from the throttle body along the front of the engine, and you will find the filter just below and behind the power steering pump.
Now, locating the fuel filter on your 1991 S10 Blazer with a 2.8/173 6-cylinder engine is just the first step. If you're planning to replace the fuel filter or perform any maintenance or repairs on it, there are a few important additional considerations and steps to keep in mind to ensure a safe and successful process.
Firstly, it's crucial to understand that the fuel system is always pressurized, even when the vehicle is not running. Therefore, before initiating any work on the fuel filter, you must relieve at least some of the pressure in the system. One way to do this is by pulling the fuel pump relay, which can typically be found in the glove box or, in later models, under the hood. Once the relay is pulled, turn the key to the "run" position, and you should not hear the fuel pump prime, indicated by a whining or hissing noise.
Additionally, when working on the fuel filter, it's important to have the necessary tools and materials on hand. This includes items such as a new fuel filter, anti-seize rag, pan or shallow bucket, proper wrenches, and a small flathead screwdriver. You may also need penetrating oil.
With the necessary preparations and tools in place, you can proceed with replacing or servicing the fuel filter on your 1991 S10 Blazer with a 2.8/173 6-cylinder engine. Remember to always refer to your vehicle's manual for specific instructions and safety precautions, and if you're unsure about any aspect of the process, don't hesitate to consult a qualified mechanic.
Fuel Filter: High Consumption Culprit or Coincidence?
You may want to see also
Explore related products
For a 4.3/262 6-cylinder engine, the fuel filter is under the truck

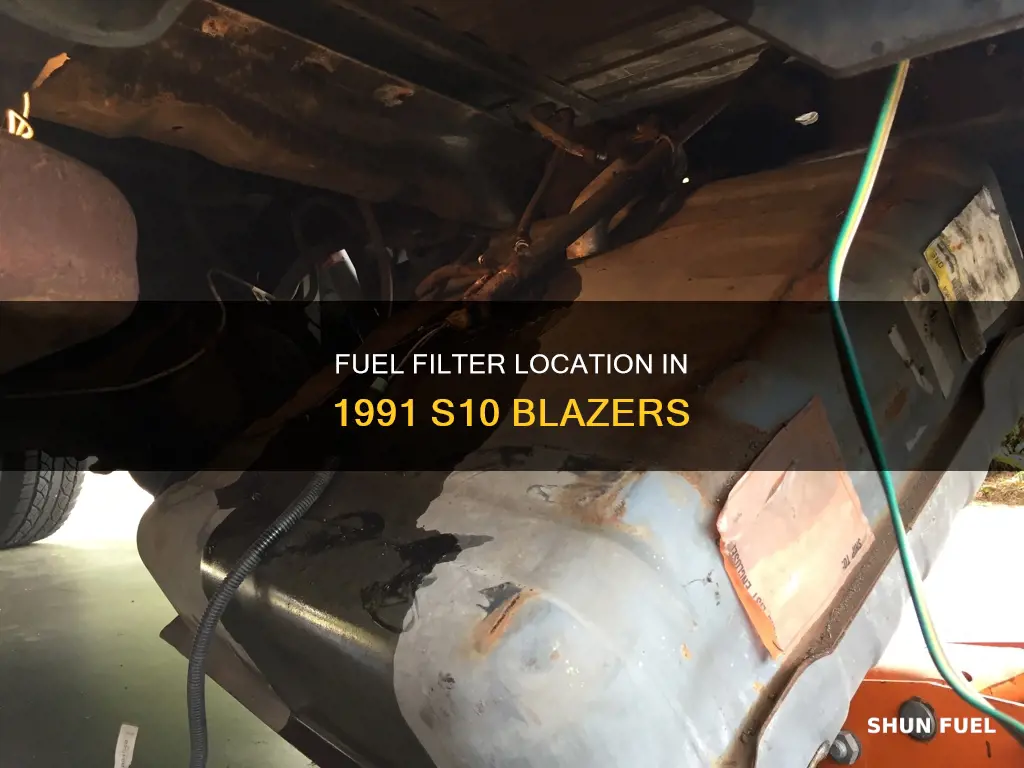

For those with a 1991 Chevrolet S10 Blazer with a 4.3/262 6-cylinder engine, the fuel filter is located under the truck, ahead of the fuel tank. Specifically, it is attached to the inner side of the frame rail.
Now, if you are looking for the fuel filter on a 1991 Chevrolet S10 Blazer with a 2.8/173 6-cylinder engine, the fuel filter is located in a different place. For this engine, the fuel filter is located under the hood/engine compartment on the driver's side. To access it, follow the fuel line from the throttle body along the front of the engine, and you will find it just below and behind the power steering pump.
It is important to know that the fuel system is always pressurised, even when the truck is not running. Therefore, you must relieve some of the pressure before attempting any work on the fuel filter. One way to do this is to pull the fuel pump relay or fuse, which you can find in the glove box on some models or under the hood on later trucks. Once the relay is pulled, turn the key to the "run" position, and you should not hear the fuel pump prime, indicated by a whining or hissing noise.
When it comes to replacing the fuel filter on your 1991 S10 Blazer, it is recommended to have the necessary parts and tools on hand. This includes a new fuel filter, anti-seize lubricant or penetrating oil, a rag or pan, and the proper wrenches and screwdrivers. If your truck is lowered, you may need to drive it up on ramps or jack it up, ensuring it is safely secured with properly rated jack stands.
By following these steps and consulting additional resources specific to your vehicle, you can successfully locate and replace the fuel filter on your 1991 S10 Blazer with a 4.3/262 6-cylinder engine.
Signs of a Faulty Fuel Filter: What to Look For
You may want to see also
Explore related products
The fuel filter is attached to the inner side of the frame rail
The fuel filter on a 1991 S10 Blazer is located under the truck, ahead of the fuel tank. Specifically, the fuel filter is attached to the inner side of the frame rail. This is the case for the 4.3/262 6-cylinder engine option.
The frame rail is located on the driver's side, right in the middle of the truck, generally under where the back door is (if it is a 4-door). There is a strap holding the fuel filter in place, with a bolt at the top and bottom.
To access the fuel filter, you will need to relieve the fuel system's pressure. This can be done by pulling the fuel pump relay (or fuse) with the key in the 'run' position. You should not hear the fuel pump prime (a whining/hissing noise).
The fuel filter is an important component of the fuel system, ensuring that clean fuel is delivered to the engine. By trapping impurities, the fuel filter helps to prevent damage to the engine and fuel injection system.
Locating the Fuel Filter in Your 2005 Town & Country
You may want to see also
Explore related products
Relieve fuel pressure by pulling the fuel pump relay
The fuel system of a 1991 S10 Blazer is always pressurised, even when the vehicle is not running, so it is important to relieve some of the pressure before attempting to work on it. One way to do this is by pulling the fuel pump relay.
The fuel pump relay is an electronic component found on all vehicles with an internal combustion engine. It supplies electricity to the fuel pump, which creates pressure in the fuel lines to push gasoline to the engine. When the ignition is turned on, the fuel pump relay passes a consistent voltage to the fuel pump, and when the engine is running, the relay shuts off.
To relieve fuel pressure by pulling the fuel pump relay, first locate the relay. It can usually be found in the fuse box in the engine bay, which is often a long black box containing various fuses and relays. On some vehicles, the relay may be located under the hood, on the firewall, or near the steering column.
Once you have located the fuel pump relay, pull it out. Then, turn the key to the "run" position. If the fuel pump relay has been successfully pulled, you should not hear the fuel pump priming, which sounds like a whine or hiss.
It is important to note that a faulty fuel pump relay can cause issues with the vehicle's performance and may require replacement. Some common symptoms of a failing fuel pump relay include an engine that stalls or refuses to start, multiple attempts to start the vehicle, and unexplained battery drainage.
Jeep Grand Cherokee Fuel Filter Cost and Replacement Guide
You may want to see also
Frequently asked questions
The fuel filter is located under the hood on the driver's side.
The fuel filter is located under the truck, ahead of the fuel tank, attached to the inner side of the frame rail.
The fuel filter is located under the hood/engine compartment by the brake's master cylinder.
Yes, there are three possible locations for the fuel filter on a 1991 Chevy S10 Blazer. The exact location depends on the engine type.
You will need a fuel filter, anti-seize, a rag, a pan/shallow bucket, and proper wrenches. A small flathead screwdriver and penetrating oil may also be required.
