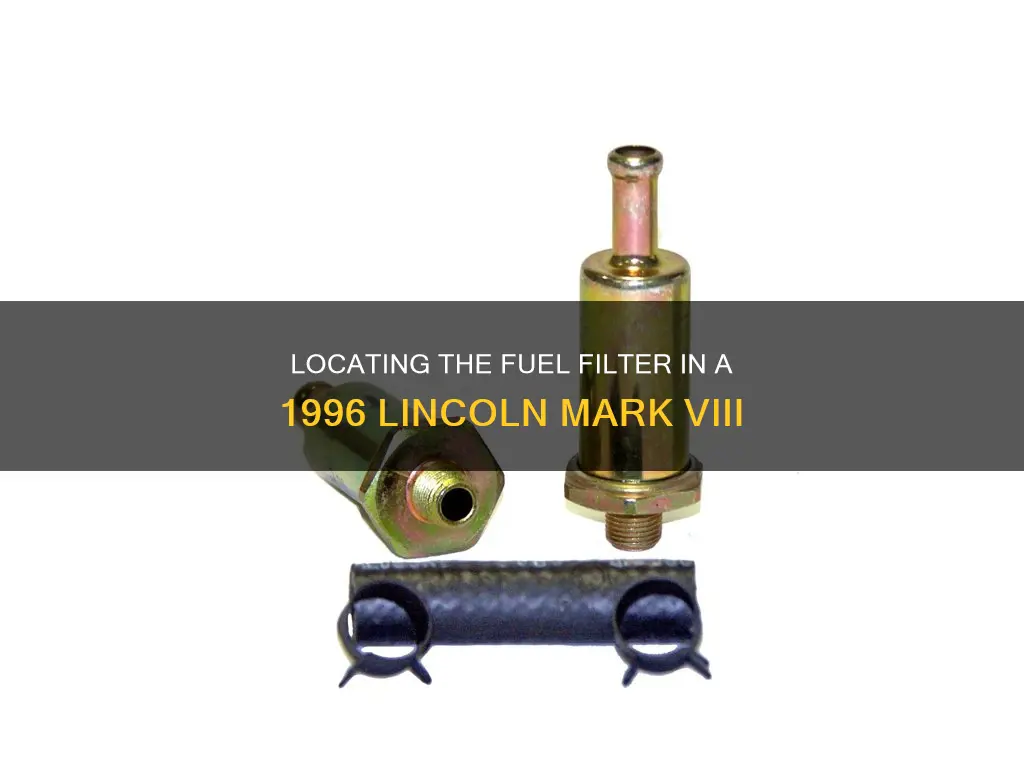

The fuel filter on a 1996 Lincoln Mark VIII is located under the vehicle, on the passenger side, below the seating area, and on the passenger side of the transmission. It is mounted on the frame in the fuel line. The fuel filter can be accessed by removing the right front wheel and the black plastic inner fender shield, which is held on by screws and special plastic clips. To remove the fuel filter, a 3/8 fuel line disconnect tool is required.
| Characteristics | Values |
|---|---|
| Location | Under the vehicle, passenger side, below the seating area, passenger side of transmission, mounted on the frame in the fuel line |
| Replacement Cost | $90 to $207 (including parts and labor) |
| Replacement Interval | Every 5 years/50,000 miles, but may vary based on factors such as driving habits and location |
| Symptoms of a Clogged Fuel Filter | Problems with starting, stalling, excessive vibration while driving, rough slow-speed cruising |
| Removal Process | Relieve pressure from the fuel line, remove the right front wheel, remove the black plastic inner fender shield, unscrew the bracket holding the fuel filter, detach the fuel lines |
| Tools Required | Jack, jack stands, trim removal tool, rag, 3/8" fuel line disconnect tool or small flathead screwdriver |
Explore related products
What You'll Learn
- The fuel filter is located under the vehicle, on the passenger side
- It is behind the right inner splash shield, below the seating area
- The fuel filter can be detached using a 3/8 fuel line disconnect tool
- To relieve pressure from the fuel line, press the Schrader valve on the fuel rail
- Symptoms of a clogged fuel filter include problems with starting and excessive vibration
The fuel filter is located under the vehicle, on the passenger side
The fuel filter on a 1996 Lincoln Mark VIII is located under the vehicle, on the passenger side. More specifically, it is situated below the seating area, on the passenger side of the transmission, mounted on the frame in the fuel line. It is placed behind the right inner splash shield, behind the right front wheel.
To access the fuel filter, you will first need to relieve the pressure from the fuel line by pressing on the Schrader valve on the fuel rail on top of the motor. This valve, covered by a small black cap, should be pressed with a rag to soak up the gas. This step is crucial, especially as fuel-injected cars have gas under high pressure.
Next, you will need to loosen the right front wheel lugs and jack up the car, securing it with jack stands. After removing the right front wheel, take out the black plastic inner fender shield, which is held on by screws and special plastic clips. A trim removal tool can be used to remove this.
The fuel filter is an essential component of your vehicle, and regular maintenance is necessary to ensure optimal performance. Most car companies recommend changing the fuel filter every 5 years or 50,000 miles, but this may vary depending on factors such as your driving habits and local conditions.
Additionally, it is important to be vigilant for any signs of a clogged fuel filter, which may include problems with starting the vehicle, stalling, excessive vibration while driving, and rough slow-speed cruising. If you encounter any of these issues, it may be necessary to replace the fuel filter or seek professional assistance.
Fuel Filter Absence in 4G Eclipse Models
You may want to see also
Explore related products
It is behind the right inner splash shield, below the seating area
The fuel filter on a 1996 Lincoln Mark VIII is located behind the right inner splash shield, below the seating area. This is on the passenger side of the vehicle, below the seating area, and on the passenger side of the transmission.
To access the fuel filter, you will need to jack up the car and remove the right front wheel. You will then need to remove the black plastic inner fender shield, which is held on by screws and special plastic clips. A trim removal tool can be used to remove the shield by hooking under both sides of the center round insert of the clip.
It is recommended to change the fuel filter every 5 years or 50,000 miles, but this may vary depending on factors such as where you live and your driving habits. Symptoms of a clogged fuel filter include problems with starting the car, stalling, excessive vibration while driving, and rough slow-speed cruising.
When replacing the fuel filter, it is important to relieve the pressure from the fuel line by pressing on the Schrader valve on the fuel rail on top of the motor. This should be done when the engine is cold to avoid excess gasoline spray and fire. You will also need a 3/8" fuel line disconnect tool to detach the fuel lines from the fuel rail.
Fuel Filter Size: Does It Really Matter?
You may want to see also
Explore related products
The fuel filter can be detached using a 3/8 fuel line disconnect tool
The fuel filter on a 1996 Lincoln Mark VIII is located under the vehicle, on the passenger side, below the seating area, and on the passenger side of the transmission. It is mounted on the frame in the fuel line, behind the right inner splash shield, and behind the right front wheel.
To remove the fuel filter, you must first relieve the pressure from the fuel line by pressing on the Schrader valve on the fuel rail on top of the motor. This is done when the engine is cold to avoid excess gasoline spray and fire. Next, loosen the right front wheel lugs, jack up the car, and secure it with jack stands. Remove the right front wheel, then remove the black plastic inner fender shield.
The fuel filter can then be detached using a 3/8 fuel line disconnect tool. The fuel lines on most Mark VIIIs can be detached by removing the white or plastic clips that go through both ends of the fuel lines. These clips may be broken off, but it is important to ensure you have new clips before removing the old ones. The 1993 Mark VIII uses this type of clip for the rear fuel line, but the front fuel line uses a special Ford-type fuel/AC spring connector that requires a special tool. This tool can be purchased online or at auto parts stores.
If you do not have access to the special tool, some people have suggested cutting the old filter off and leaving the stubs of the old filter in the factory connectors. Then, you can slide a plastic pen cap that fits over the stub into the connector and grip it tightly. Another workaround involves using a small metal clamp, wrapping it around the fuel line, and pushing it in with your fingers and a screwdriver.
Tundra Truck Maintenance: Fuel Filter Checks
You may want to see also
Explore related products
To relieve pressure from the fuel line, press the Schrader valve on the fuel rail
To relieve pressure from the fuel line of your 1996 Lincoln Mark VIII, you will need to locate the Schrader valve on the fuel rail. The Schrader valve is located on the fuel rail on the passenger side of the car, usually covered by a small black plastic cap. Before you begin, ensure the engine is cold and has not been recently started to avoid excess gasoline spray and the risk of fire.
Once located, remove the plastic cap to expose the valve stem. Place a rag over the valve stem to catch any gasoline that may spray out. Then, press down on the centre of the valve to relieve the pressure. You should feel a small amount of resistance, and you may notice a small amount of fuel being released, which the rag will absorb. This step is crucial as fuel-injected cars operate with gas under high pressure.
After relieving the pressure, you can proceed to remove the fuel filter, which is located under the vehicle, on the passenger side, below the seating area, and mounted on the frame in the fuel line. To remove the fuel filter, first, loosen the right front wheel lugs, jack up the car, and secure it with jack stands. Then, remove the right front wheel and the black plastic inner fender shield, which is held in place by screws and special plastic clips.
It is important to note that the fuel lines on the Mark VIII may require different removal methods. The rear fuel line typically uses white or plastic clips, while the front fuel line may use a special Ford-type fuel/AC spring connector, requiring a specific 3/8-inch tool for removal. If you do not have access to this tool, an alternative method involves cutting off the old filter and leaving the stubs connected to the factory connectors.
By following these steps, you can safely relieve the pressure from the fuel line and proceed with removing the fuel filter on your 1996 Lincoln Mark VIII.
Fuel Filters in Generators: How Many Do You Need?
You may want to see also
Explore related products
Symptoms of a clogged fuel filter include problems with starting and excessive vibration
The fuel filter on a 1996 Lincoln Mark VIII is located under the vehicle, on the passenger side, below the seating area, and on the passenger side of the transmission. It is mounted on the frame in the fuel line.
Symptoms of a clogged fuel filter include problems with starting the engine and excessive vibration. A clogged fuel filter may cause the engine to misfire or run erratically, and in some cases, the engine may not start at all. Other symptoms include reduced power during acceleration, a decrease in fuel efficiency, and rough idling. In some cases, the engine may stall when starting the car after it has been warmed up.
A clogged fuel filter can restrict the flow of fuel to the engine, resulting in reduced performance and difficulty starting. The engine may hesitate or stumble, especially during high-power settings or when the fuel demand is highest, such as during takeoff. In some cases, the engine may run slightly hotter due to the restricted fuel flow.
It is important to note that fuel filters rarely clog, and there may be other issues causing similar symptoms, such as a faulty fuel pump or intake restriction. Proper maintenance, such as using high-quality fuel and fuel additives, can help prevent fuel filter clogging and ensure optimal engine performance.
Hooking Up a Boat Fuel Filter: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter is located under the vehicle, on the passenger side, below the seating area, on the passenger side of the transmission, mounted on the frame in the fuel line.
First, relieve the pressure from the fuel line by pressing on the Schrader valve on the fuel rail on top of the motor. Then, loosen the right front wheel lugs, jack up the car, and secure it using jack stands. Remove the right front wheel, then remove the black plastic inner fender shield.
You will need a 3/8" fuel line disconnect tool. You can purchase this at your local auto parts store for around $6.
Many car companies recommend changing the fuel filter every 5 years/50,000 miles. However, you should check your owner's manual for specific information about the maintenance interval for your Lincoln.
The average cost to change a vehicle's fuel filter is between $90 and $207 (including parts and labor).
