Sylvie Willis

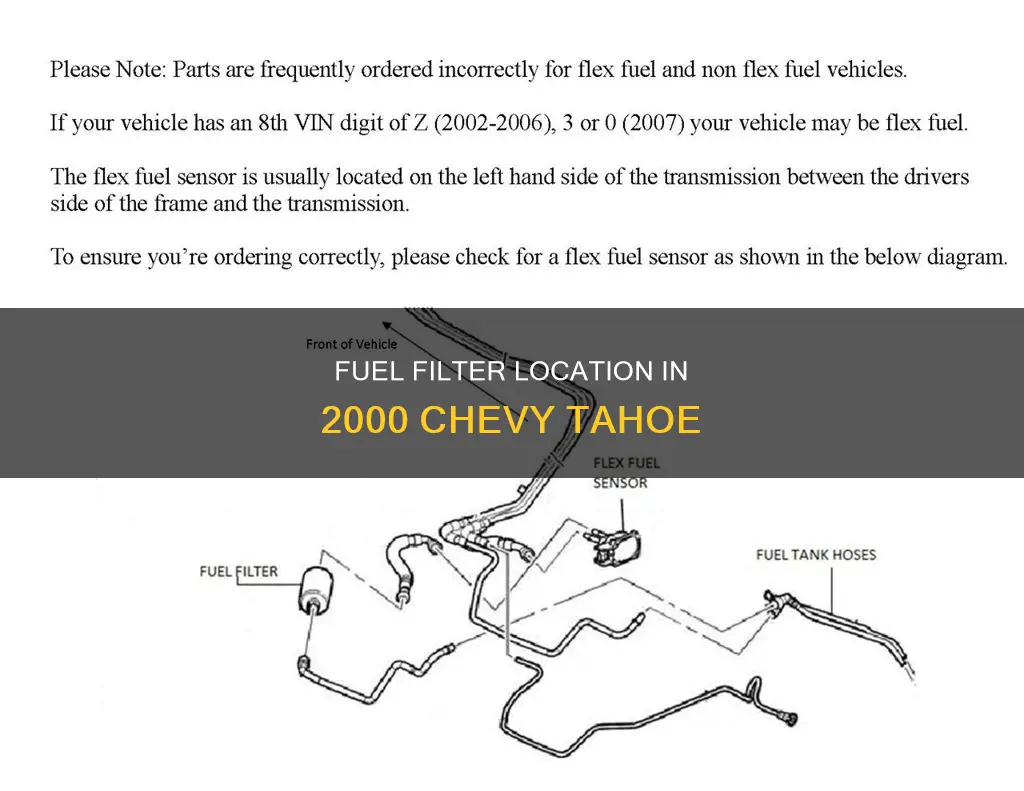

The fuel filter on a 2000 Chevy Tahoe is located under the driver's side door, tucked on the inside of the frame. It is placed in-line between the tank and the engine. The filter is a silver tube with threads on both ends and a rib on one end, pointing towards the engine.
| Characteristics | Values |
|---|---|
| Location | Under the driver's side door, tucked on the inside of the frame |
| Appearance | Silver tube with threads on both ends |
| End towards the engine | Has a rib on the end |
| Support | Black plastic support harness |
| Fuel line nut | Needs a wrench to loosen |
| Fuel spill | Catch with something to avoid spillage |
| Fuel pump relay | Pull before starting the engine |
| Fuel filter placement | In-line between the tank and the engine |
Explore related products
What You'll Learn
The fuel filter is located under the driver side door
The fuel filter on a 2000 Chevy Tahoe is located under the driver's side door. It is tucked on the inside of the frame, so you will need to get under the car to access it. Before you start, it is recommended that you pull the fuel pump relay/fuse and start the engine. Let it run until it dies on its own, as this will decrease the amount of fuel spilled when you change the filter.
To remove the fuel filter, you will need two wrenches. Put one on the fuel line nut and one on the filter and loosen the filter. Be careful not to twist too hard, and do not let the fuel lines twist. Fuel will start spilling out, so be ready to catch it with a container.
The fuel filter is a silver tube with threads on both ends. One end, the end toward the engine, has a rib on it. There is also a black plastic support harness that holds the filter to the frame. Do not remove the bolts on this. The fuel filter will slide out of it.
Once you have removed the old filter, simply install the new one, and you're done!
Maintain Duramax Performance: Replace Fuel Filter Regularly
You may want to see also
Explore related products
It's tucked on the inside of the frame
The fuel filter on a 2000 Chevy Tahoe is located under the driver's side door, tucked on the inside of the frame. It is placed in-line between the tank and the engine.
Before starting any work on the fuel filter, it is recommended to pull the fuel pump relay/fuse and start the engine, letting it run until it dies. This will help to depressurize the system and reduce the amount of fuel spilled.
To remove the fuel filter, you will need two wrenches. One wrench should be placed on the fuel line nut, and the other on the filter itself. Loosen the filter, but be careful not to twist too hard, and ensure that the fuel lines do not twist. Fuel will start spilling out at this point, so be prepared to catch it.
Next, follow the fuel line to the other end of the filter, closest to the engine. Here, you will see that the fuel line is pliable. Follow it until you see a small black clip. Remove the fuel line from this clip, and the line will be out of the way of the filter. The filter can then be slid out of its harness.
The fuel filter is a silver tube with threads on both ends and a rib on the end closest to the engine. It is held to the frame by a black plastic support harness. Do not remove the bolts on this harness, as the fuel filter will simply slide out of it.
Resetting Your Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
It's placed in-line between the tank and the engine
The fuel filter on a 2000 Chevy Tahoe is placed in-line between the fuel tank and the engine. It is located under the driver's side door, tucked on the inside of the frame. The fuel filter is a silver tube with threads on both ends and a rib on the end that faces the engine. It is held in place by a black plastic support harness attached to the frame.
To access the fuel filter, first, pull the fuel pump relay/fuse and start the engine, letting it run until it dies. This will reduce the amount of fuel in the lines. Then, locate the fuel line and follow it to the filter. Place one wrench on the fuel line nut and one on the filter, loosening the filter and repeating on the other end. Be careful not to twist too hard, and ensure that the fuel lines do not twist. Fuel will spill out, so be ready to catch it.
Next, look at the end of the filter closest to the engine. You will see a pliable fuel line attached by a black clip. Remove the fuel line from this clip to slide the line out of the way and access the filter. The filter will slide out of its harness, allowing you to install a new one.
It is important to note that you should not remove the bolts on the black plastic support harness. Leave this harness intact, as the fuel filter will slide out of it without needing to detach it from the frame. Overall, the process of changing the fuel filter on a 2000 Chevy Tahoe is relatively straightforward and should not take more than 30 minutes.
Fuel Filter Maintenance: How Much Fuel is Enough?
You may want to see also
Explore related products
It has a compression fitting on the rear connection
The fuel filter on a 2000 Chevy Tahoe is located under the driver's side door, tucked on the inside of the frame. The fuel filter is a silver tube with threads on both ends. One end, the end toward the engine, has a rib on it. There is also a black plastic-looking support harness that holds the filter to the frame.
The fuel filter on a 2004 Chevy Tahoe is placed in-line between the tank and the engine and located just about under the driver's seat. It has a compression fitting on the rear connection and a push-in type tube connection on the front connection. A male union extends out from the filter front side and is attached by being pushed up into the fuel line coming off to the engine.
The rear compression fitting on the fuel filter of the 2004 Chevy Tahoe can be released before back blowing the remaining fuel out of the front line section from the fuel rail pressure connector. This is part of the procedure for replacing the fuel filter.
When changing the fuel filter, it is important to first pull the fuel pump relay/fuse and start the engine, letting it run until it dies on its own. This will decrease the amount of fuel spilled as it depressurizes the system. Two wrenches are required to remove the fuel filter. One wrench is placed on the fuel line nut, and the other is placed on the filter to loosen it. This process is repeated on the other end, being careful not to twist too hard and ensuring that the fuel lines do not twist. Fuel will spill out, so it is important to be ready to catch it.
After loosening the filter, follow the fuel line to the end closest to the engine, where you will see a little black clip. Removing the fuel line from this clip will allow you to slide the filter out of its harness. Then, a new filter can be installed.
Motorcycle Fuel Filters: Are They Necessary?
You may want to see also
Explore related products
It has a push-in type tube connection on the front connection
The fuel filter on a 2000 Chevy Tahoe is located under the driver's side door, tucked on the inside of the frame. The filter is a silver tube with threads on both ends and a rib on the end that faces the engine.
The 2004 Chevy Tahoe has a similar design, with the fuel filter placed in-line between the tank and the engine, located under the driver's seat. This model has a compression fitting on the rear connection and a push-in type tube connection on the front connection.
The front connection of the fuel filter features a male union that extends out and attaches to the fuel line by being pushed up into it. This male extrusion is secured in place by expansion clips located inside the female side of the fuel line. To release the male union from the fuel line, a ring-shaped tool must be inserted and slid up to expand the internal clips, allowing the line to be backed off the male extension.
This design allows for easy access and replacement of the fuel filter when needed. It is important to note that the fuel filter should be installed in the same way it was removed, as flow is a major factor in its functionality.
Jeep Patriot Fuel Filter: Where is it?
You may want to see also
Frequently asked questions
The fuel filter is located under the frame under the driver's side door.
First, pull the fuel pump relay/fuse and start the engine. Let it run until it kills over on its own. Then, use two wrenches to remove the fuel filter. Put one wrench on the fuel line nut and one on the filter, and loosen the filter. Repeat on the other end.
The fuel filter is a silver tube with threads on both ends. One end, the end toward the engine, has a rib on it.
You will need two wrenches.
Changing the fuel filter on a 2000 Chevy Tahoe should take no more than 30 minutes.
