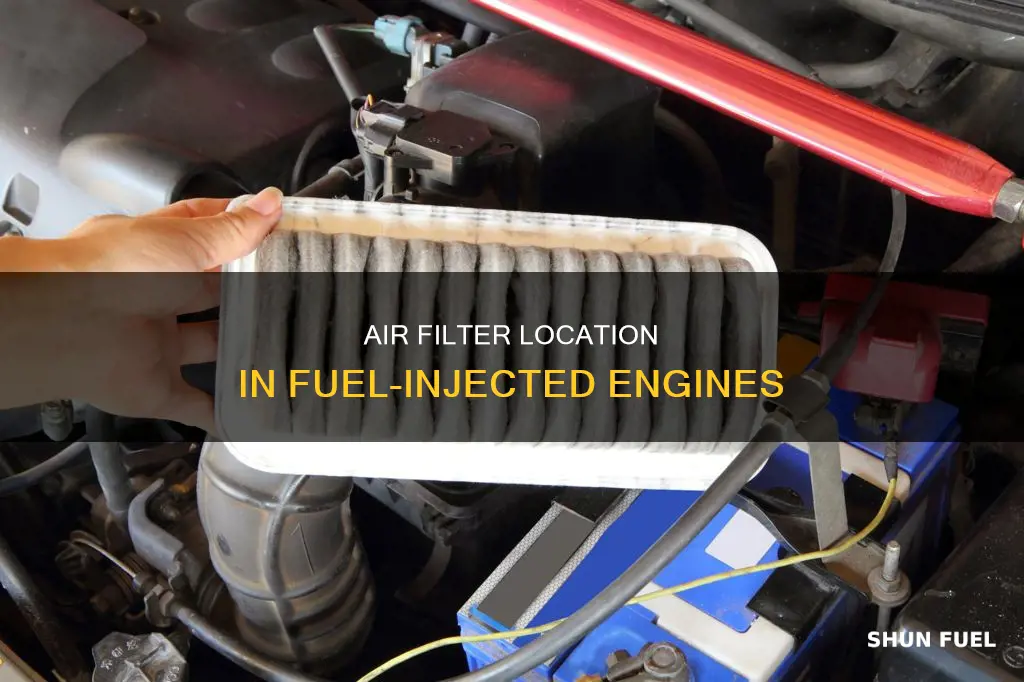

The air filter on fuel-injected engines is usually square-shaped and located under the hood, in a rectangular box that can be opened by releasing some tabs. It is typically found on one side of the engine compartment, near the fender, in a black plastic box with a large hose attached. The air intake tube leads directly to the air filter box. The air filter is responsible for keeping the air entering the engine clean and unrestricted, ensuring optimal combustion and engine performance. Regular replacement, typically recommended every 12,000 to 15,000 miles or annually, is crucial to maintain engine efficiency and prevent issues caused by clogged filters.
Characteristics and Values of Air Filters on Fuel-Injected Engines
| Characteristics | Values |
|---|---|
| Shape | Square |
| Diameter | 12 inches (30 cm) |
| Location in Older Vehicles | Large round housing on the top of the engine |
| Location in Newer Vehicles | End of the large black intake hose opposite the engine, mounted on one of the fender wells |
| Replacement Interval | Every 12,000 to 30,000 miles or once a year to every three years, depending on driving conditions |
| Replacement Procedure | Simple, requiring few or no tools |
| Replacement Time | Approximately 5 minutes |
| Testing Method | Shine a flashlight from the inside out; if very little or no light is visible, it needs replacement |
Explore related products
What You'll Learn
Air filter location on newer vehicles
The air filter is an important component of your car that works to clean the air of contaminants before they reach your engine. Regularly changing your car's air filter maintains good airflow to the engine, which can increase fuel efficiency, optimise emissions, and extend engine life. It is recommended to change the air filter every 12,000 to 15,000 miles, or annually, and more often if you live in a dusty or dirty area.
On newer vehicles, the air filter is usually located under the hood, in a rectangular box that can be opened by releasing some tabs. It is typically found on the end of the large black intake hose opposite the engine, mounted on one of the fender wells. It will likely be square (on fuel-injected engines) and about 12 inches (30 cm) in diameter.
Some models have the air filter located on one side of the engine compartment, near the fender. It is housed in a black plastic box with a large hose attached to it. The air intake tube will also lead you to the air filter box. If you have trouble locating the air filter box, you can always refer to your vehicle's owner's manual for guidance.
To access the air filter, you will need to remove the housing cover by releasing the hooks or unscrewing it. Be careful not to apply excessive force during this process. Once the cover is off, you can proceed to take out the old filter and replace it with a new one, ensuring that it sits properly and fits snugly without any bent edges.
The Right Way to Change Your Fuel Filter
You may want to see also
Explore related products
Air filter location on older vehicles
The air filter is an essential component of a vehicle's engine, and its location can vary depending on the type and age of the vehicle. Let's focus on older vehicles and explore the typical locations of their air filters.
Older vehicles with carbureted engines typically have round metal air cleaners that are quite noticeable. These air cleaners are often housed in a large, round metal housing mounted on top of the engine. This central location makes it easy to access and service the air filter. The air cleaner is connected to an air inlet duct, also known as the air intake hose, which plays a crucial role in drawing air into the engine.
In contrast, modern vehicles usually have their air filters located under the hood, near the front of the engine compartment. These air filters are often housed within a rectangular cold air collector box. However, older vehicles might deviate from this standard layout.
Some older vehicles feature permanent air filters, which are designed to last the lifetime of the vehicle. These permanent air filters are often found in off-road vehicles, where they are more complex and incorporate both wet and dry elements. Cleaning and maintaining these permanent air filters is essential to ensure optimal engine performance.
To inspect the air filter, one common method is to shine a flashlight from the inside out. If you can observe light passing through the filter, it indicates that the filter is still relatively clean and does not require immediate replacement. Conversely, if little to no light is visible, it's a sign that the air filter is clogged and needs to be replaced.
Additionally, it's worth noting that the cabin air filter, which is responsible for filtering the air entering the vehicle's cabin, is a relatively new technology. Introduced in high-end vehicles in 1989, cabin air filters are now commonplace, and you can typically find them behind the glove box or elsewhere in the dashboard area.
Bleeding the Duramax Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
$8.09 $12.49
Air filter replacement frequency
Air filters should be replaced routinely as part of an engine's maintenance schedule. The frequency of replacement depends on several factors, including the driving environment, driving habits, and the type of filter.
For example, vehicles driven in dusty or dirty areas will require more frequent air filter replacements than those operated in cleaner environments. Similarly, regular driving in heavy traffic, during hot weather, or on unpaved roads falls under the category of "severe service," which necessitates more frequent replacements.
The type of air filter also plays a role in replacement frequency. Filters vary in size, quality, and thickness, with larger and thicker filters generally lasting longer than smaller and thinner ones. Engine air filters can typically last anywhere from three to twelve months or between 3,000 and 15,000 miles, depending on the factors mentioned above.
It is recommended to inspect the air filter regularly and replace it when it becomes excessively dirty or clogged. This proactive approach helps to maintain optimal engine performance and fuel efficiency while extending the service life of the engine. Checking the air filter before each oil change is a good strategy, as it allows for timely replacement and can save costs by avoiding more significant issues down the line.
Some modern vehicles with user-friendly tracking solutions may also provide notifications or alerts when the air filter needs to be replaced, making it easier to stay on top of engine maintenance.
Signs Your Fuel Filter Needs Replacing
You may want to see also
Explore related products
Air filter replacement procedure
The air filter on a fuel-injected engine is usually square-shaped and located on the end of the large black intake hose, opposite the engine, and mounted on one of the fender wells.
Now, here is a step-by-step guide on how to replace your air filter:
- Locate the air filter: On fuel-injected engines, the air filter is typically square-shaped and located on the end of the large black intake hose, opposite the engine, and mounted on one of the fender wells.
- Gather the necessary tools: You will likely need a screwdriver to open the air box and possibly disconnect electrical connectors.
- Open the air box: Use the screwdriver to open the air box and access the air filter.
- Remove the old air filter: Take out the old air filter and inspect it. If it is heavily discoloured, clogged with dirt and dust, or you cannot see the pleats, it needs to be replaced.
- Purchase the correct replacement: When buying a new air filter, ensure it is compatible with your vehicle's year, make, model, and engine size.
- Compare the old and new filters: Before installing the new air filter, place the old and new filters side by side to confirm they are the same and ensure a proper fit.
- Install the new air filter: Place the new air filter into the air box, making sure it is properly seated and aligned.
- Secure the air box: Close the air box securely, ensuring that the air filter and tabs are properly positioned and that the screws or latches are tightened.
- Reconnect any disconnected components: Reconnect any electrical connectors or other components that were adjusted during the process.
- Replace the PCV filter (optional): It is recommended to replace the PCV (positive crankcase ventilation) filter as well when changing the air filter. This step should only take about 5 minutes.
By following these steps, you can ensure that your air filter is replaced correctly and maintain the performance and health of your engine. Remember to refer to your owner's manual for any additional vehicle-specific instructions or variations in the air filter replacement procedure.
Fuel Filter Bracket: Necessary or Not?
You may want to see also
Explore related products
Air filter replacement parts
Air filters should be replaced routinely, either every 15,000 miles or once a year. If your vehicle is often driven in dusty or dirty areas, the air filter should be replaced more frequently. To check if your air filter needs to be replaced, shine a flashlight from the inside out. If you can't see any light or very little light, the air filter needs to be replaced. On fuel-injected engines, air filters are usually square-shaped and around 12 inches in diameter. They are located on the end of the large black intake hose, opposite the engine, and mounted on one of the fender wells.
When replacing the air filter, you should also replace the PCV filter. This process should take around 5 minutes. To purchase the correct air filter replacement parts, you will need to know the year, make, model, and in some cases, the engine type of your car. There are various companies that offer air filter replacement parts, such as Summit Racing, which provides a wide selection of air/fuel delivery parts for fuel-injected engines. Additionally, NAPA Auto Parts offers the required parts and has a Know-How app that allows you to scan your VIN to access the necessary information for your vehicle.
Other replacement parts that may be required when servicing your air filter include the breather filter and the filter service kit. It is recommended to change the breather filter at the same time as the air filter. Furthermore, the air filter housing may require certain replacement parts, such as a lid clip, clamp, screw, bolt, or washer. These parts ensure the proper functioning and securement of the air filter housing.
It is important to note that the specific replacement parts required may vary depending on the vehicle's year, make, and model. Therefore, it is advisable to consult a mechanic or refer to the vehicle's service manual for a comprehensive list of replacement parts specific to your vehicle.
Oil Change Places: Fuel Filter Replacement?
You may want to see also
Frequently asked questions
The air filter on fuel-injected engines is likely to be square-shaped and located under the hood, in a rectangular box that can be opened by releasing some tabs. It will be on the end of the large black intake hose opposite the engine, mounted on one of the fender wells.
The colour of your air filter may indicate that it needs to be replaced. A new air filter is usually white, light yellow, or cream-coloured. If your air filter is black or dark brown, it may not be allowing sufficient air into your engine, and you should replace it. You can also test your air filter by shining a flashlight from the inside out; if you can't see the light or very little light, it needs to be replaced.
It is recommended that you replace your air filter every 12,000 to 15,000 miles or once a year. If you live in a dusty or dirty area, you should replace it more frequently.
