Diesel fuel filters are critical to the smooth operation of diesel-powered vehicles. Most diesel vehicles have two fuel filters: a primary filter and a secondary filter. The primary filter is typically located between the fuel tank and the engine, providing an initial clean to the fuel before it reaches the fuel transfer pump. The secondary filter is usually found near the engine, ensuring the fuel is thoroughly cleaned before reaching the fuel injectors. The location of the fuel filters can vary depending on the vehicle, so it is recommended to refer to the owner's manual for specific information. Regular maintenance and replacement of the diesel fuel filters are essential to ensure optimal performance and longevity of the diesel engine.
| Characteristics | Values |
|---|---|
| Purpose | To extract dirt, debris, and other contaminants and impurities from the fuel before it reaches the injectors to power the engine |
| Number of filters | Most diesel vehicles have two filters, a primary and a secondary filter, but this can differ from vehicle to vehicle |
| Primary filter location | Between the vehicle's fuel tank and the engine |
| Secondary filter location | Near the engine, usually in the engine bay under the hood |
| Replacement frequency | Every 10,000 to 25,000 miles, depending on usage, type of vehicle, and driving style |
| Maintenance | Regular maintenance is critical to the smooth operation of the vehicle, and a clogged filter can cause poor fuel efficiency and engine trouble |
Explore related products
What You'll Learn
Primary filter location
The primary filter is typically located between the vehicle's fuel tank and the engine. This provides the fuel with an initial cleaning before it reaches the fuel transfer pump. The primary filter is designed to remove larger particulates from diesel fuel. These first-line filters can be designed to catch particulates ranging in size from 50 microns to 7 microns. Many primary filters can also remove free water from the fuel.
The primary filter is usually located on the truck frame and is plumbed between the fuel tank and the engine's gear pump. It is important to note that the location of the primary filter can vary depending on the vehicle's make and model. For example, for 2017 Ford models, the fuel line quick connect coupling needs to be disconnected from the in-tank fuel pump. For 2018 models and later, this step can be skipped, but it is crucial to ensure that the fuel filler cap is closed before draining the filter.
The primary filter is an essential component of the diesel fuel system, as it helps to ensure that the engine receives clean fuel. Over time, the fuel filter can become clogged with contaminants, leading to poor fuel efficiency and potential damage to the engine and fuel injectors. Therefore, it is recommended to change the fuel filter regularly, typically every 10,000 to 25,000 miles, to maintain optimal performance and prevent engine issues.
To locate the primary fuel filter, refer to the vehicle's owner's manual. It is usually found on the fuel line and underneath the vehicle. When replacing the primary fuel filter, place an oil drain pan directly underneath the filter to catch any excess fuel. Use the appropriate tools, such as an Allen wrench or a hex tool, to remove the fuel filter housing plug and allow the fuel to drain completely. Once drained, secure the plug and remove the old filter.
Titan Cummins Fuel Filter: Microns Matter
You may want to see also
Explore related products
Secondary filter location
The secondary fuel filter in a diesel engine is typically located near the engine, allowing the fuel to be thoroughly cleaned before it reaches the fuel injectors. This location ensures that the fuel entering the injectors is as clean as possible, as any contaminants in the fuel can cause issues with the engine's performance and fuel efficiency.
The primary and secondary filters are located at different stages of the fuel system, each serving a specific purpose. The primary filter is usually situated between the fuel tank and the engine, providing an initial cleaning of the fuel before it reaches the fuel transfer pump. The secondary filter, on the other hand, is positioned right before the fuel injectors, operating at a much higher pressure than the primary filter. This strategic placement ensures that the fuel is sufficiently cleaned before entering the sensitive and critical components of the engine.
The secondary filter operates at significantly higher pressure than the primary filter, and its specific location depends on the vehicle and engine design. It is designed to remove even the smallest particulates, typically using filter mediums with tighter micron ratings, ranging from 5 microns to 2 microns. This fine filtration ensures that the fuel is free of contaminants that could cause damage to the fuel injectors and other precision components.
The exact location of the secondary filter can be determined by referring to the vehicle's manual. It is crucial to replace clogged or damaged filters promptly, as they can cause unnecessary strain on the vehicle, leading to poor fuel efficiency and potential damage to the engine and fuel injectors over time. Regular maintenance of the diesel fuel filter is essential, with recommended replacement intervals ranging from 10,000 to 25,000 miles, depending on various factors.
Where is the Fuel Filter on a Can-Am Commander?
You may want to see also
Explore related products
Replacing the filter
Locate the Primary Fuel Filter:
The primary fuel filter is usually underneath the vehicle, on the fuel line. Place an oil drain pan directly under the filter to catch any spills or leaks during the replacement process.
Remove the Fuel Filter Housing Plug:
Using the appropriate tool, such as an Allen wrench or a hex tool, remove the fuel filter housing plug. Allow the fuel to drain completely into the pan before securing the plug back in place.
Remove the Primary Fuel Filter:
Use a wrench and socket to loosen the cap and remove the primary fuel filter. Be cautious, as some fuel may still remain in the filter.
Dispose of the Old O-Ring:
Separate the O-ring from the cap using a flathead screwdriver. The old O-ring should be disposed of, as a new filter will come with a replacement O-ring.
Install the New Filter:
Insert the new filter into the housing, ensuring the new O-ring is properly seated against the ridge all around the cap. Tighten the cap by hand, then use a torque wrench to finish tightening to the manufacturer's specifications.
Bleed Air Bubbles and Prime the Fuel System:
Before driving the vehicle, it is important to bleed any air bubbles and prime the fuel system. This prevents vapor lock, which is the conversion of liquid fuel into gas vapour before it reaches the fuel rail.
Additional Considerations:
When replacing the fuel filter, it is recommended to clean the entire fuel system thoroughly. Additionally, consult the vehicle's maintenance manual for specific instructions related to your vehicle's make and model.
By following these steps, you can effectively replace the diesel fuel filter, ensuring optimal performance and longevity of your diesel engine.
Clearing Fuel Filter Clogs: DIY Solutions and Tips
You may want to see also
Explore related products
Maintenance
The fuel filter is a crucial component of a diesel engine, protecting it from impurities and water residue that could damage the injectors and lead to costly repairs. Therefore, regular maintenance and timely replacement of the diesel fuel filter are essential to ensure the engine's optimal performance and longevity.
When to Change the Filter
Typically, diesel fuel filters should be replaced every 10,000 to 25,000 miles or at least once a year. However, this interval can vary depending on factors such as vehicle usage frequency, type of vehicle, and driving conditions. For example, some sources recommend changing the filter every 15,000 to 30,000 km (10,000-20,000 miles). It is always advisable to follow the vehicle manufacturer's guidelines and recommendations for maintenance and replacement intervals.
Signs That the Filter Needs Changing
- Engine Warning Light: If the fuel is not reaching the engine properly, the warning light ("check engine" or "MIL") may illuminate, indicating a potential issue with the fuel filter.
- Difficulty Starting the Engine: A clogged fuel filter can cause difficulty in starting the engine as the clean fuel cannot pass through the congested filter.
- Engine Stalling: Even with a smooth engine start-up, a clogged fuel filter can lead to unexpected engine stalling due to the high stress of attempting to draw fuel from the jammed filter.
- Loss of Power or Difficulty Accelerating: A blocked fuel filter can result in a loss of power, especially in uphill driving or when the engine is under heavy load, such as towing or hauling heavy cargo.
- Increased Fuel Consumption: When the filter is clogged, the engine requires more fuel to run correctly, leading to higher fuel consumption.
- Poor Engine Idling: A clogged filter can cause rough or shaky engine operation when idling, indicating that the engine is not receiving a smooth flow of fuel.
Replacing the Filter
When replacing the diesel fuel filter, it is recommended to follow these general steps:
- Locate the Primary Fuel Filter: The first filter is usually found underneath the vehicle, on the fuel line.
- Place a Drain Pan: Position an oil drain pan underneath the filter to catch any spilling fuel during the replacement process.
- Drain the Fuel: Using the appropriate tool (typically an Allen wrench or a hex tool), remove the fuel filter housing plug and allow the fuel to drain into the pan.
- Remove the Old Filter: Once drained, secure the plug and then remove the old filter using a wrench and socket to loosen the cap.
- Install the New Filter: After disposing of the old O-ring, install the new filter with its accompanying O-ring. Ensure the O-ring is properly seated to prevent leaks. Tighten the cap by hand, and then use a torque wrench to finish tightening to the manufacturer's specifications.
- Bleeding Air Bubbles: Before driving the vehicle, bleed any air bubbles and prime the fuel system to prevent vapor lock, which is the conversion of liquid fuel to gas vapour before it reaches the fuel rail.
It is important to consult the vehicle's maintenance manual for specific instructions and discrepancies, as procedures may vary slightly depending on the vehicle's application.
EFI Fuel Filter: Signs of Blockage
You may want to see also
Explore related products
Filter function
The function of a diesel fuel filter is to screen out foreign particles or liquids from the fuel. This is important because most internal combustion engines use fuel filters to protect the components in the fuel system.
Unfiltered fuel may contain various kinds of contamination, such as paint chips, dirt, or rust caused by moisture in the tank. These substances can cause rapid wear and failure of the fuel pump and injectors if not removed before the fuel enters the system. Diesel fuel filters are typically made into cartridges containing a filter paper, which can be replaced at regular intervals to maintain the efficiency of the filter.

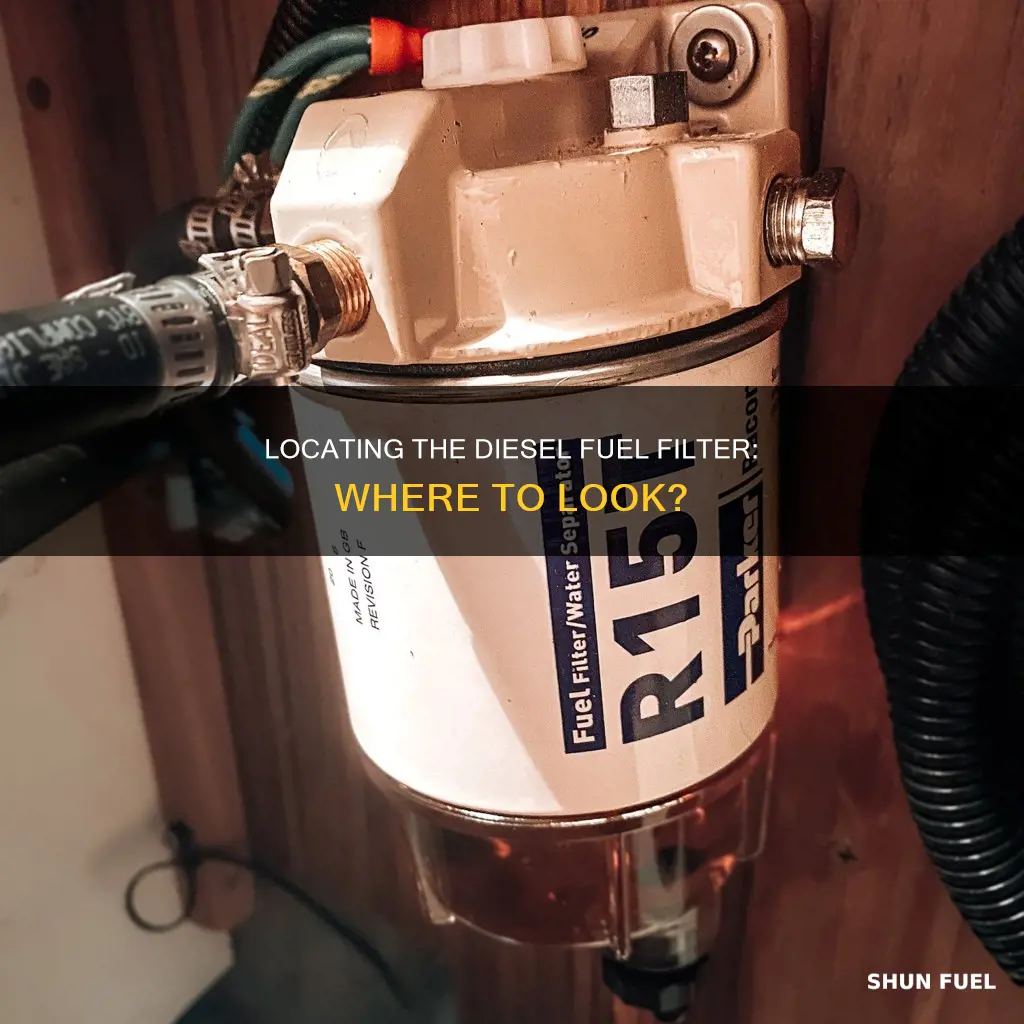

Some diesel engines use a unique bowl-like design to separate water from the fuel, as diesel floats on top of water. This design allows for the drainage of water by opening a valve at the bottom of the bowl, releasing the water without affecting the diesel above it. This feature further ensures the purity of the diesel fuel and helps prevent potential issues caused by water contamination.
The fuel filter plays a critical role in maintaining the performance and longevity of diesel engines. By effectively filtering out contaminants, the fuel filter ensures that only clean fuel reaches the engine, promoting efficient combustion and minimizing the risk of damage to vital engine components. Regular maintenance and replacement of the fuel filter are essential to maintain optimal engine performance and prevent costly repairs.
Cleaning Fuel Filters: DIY Without Removal
You may want to see also
Frequently asked questions
The primary diesel fuel filter is typically located between the vehicle's fuel tank and engine. It can also be found on the truck frame, plumbed between the fuel tank and the engine's gear pump.
The secondary diesel fuel filter is usually found in the engine bay under the hood. It is located near the engine, right before the fuel injectors.
The pre-filter diesel fuel filter is positioned somewhere between the fuel tank and the fuel pump, usually on the undercarriage along the frame rail.
You can refer to your vehicle's service or owner's manual to determine the location of your diesel fuel filter.
