The fuel pump fuse location in a 1995 Chevy can vary depending on the specific model, but it is typically found in one of two places: either in the under-hood fuse box or inside the cabin fuse panel. For most 1995 Chevy models, such as the Silverado or Camaro, the fuel pump fuse is often located in the under-hood fuse box, usually labeled as FUEL PUMP or ECM B. However, it’s essential to consult the vehicle’s owner’s manual or a repair guide specific to your model to confirm the exact location, as some variations may exist. Identifying the correct fuse is crucial for troubleshooting fuel pump issues or performing maintenance on your 1995 Chevy.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1995 Chevrolet (Chevy) |
| Fuse Location | Under the hood in the fuse relay center (also called the underhood fuse box) |
| Fuse Box Name | Underhood Fuse Block / Relay Center |
| Fuse Number | Typically Fuse #20 (but verify in the owner's manual or fuse box lid) |
| Fuse Rating | 15 Amps |
| Fuse Color | Blue (standard for 15A fuses) |
| Purpose | Controls power to the fuel pump relay and fuel pump |
| Additional Notes | The fuel pump relay is often located near the fuse in the same box. |
| Troubleshooting Tip | Check both the fuse and the fuel pump relay if the fuel pump is not working. |
Explore related products
What You'll Learn

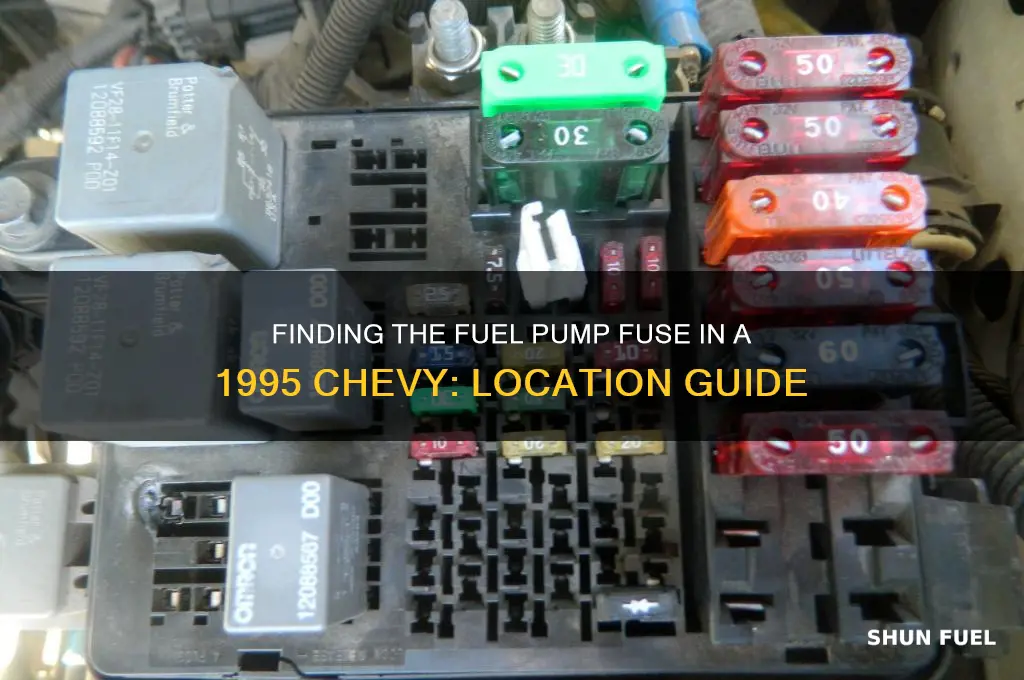

Under Hood Fuse Box
The under hood fuse box in a 1995 Chevy is a critical component for troubleshooting electrical issues, including those related to the fuel pump. Located near the battery, this fuse box houses relays and fuses that protect and control various systems, such as the fuel pump, cooling fans, and ignition. Identifying the correct fuse for the fuel pump is essential for diagnosing no-start conditions or fuel delivery problems. Always consult the owner’s manual or the diagram on the fuse box lid to locate the specific fuse, typically labeled "FUEL" or "FP."
Analyzing the under hood fuse box reveals its role as a central hub for high-amperage circuits. Unlike the interior fuse panel, which handles lower-power accessories, the under hood box manages systems that draw significant power, like the fuel pump. If the fuel pump fuse is blown, it’s often a symptom of a larger issue, such as a faulty pump, wiring short, or excessive current draw. Inspecting the fuse for signs of melting or discoloration can provide clues about the underlying problem before replacing it.
To access the under hood fuse box, start by propping open the hood and locating the rectangular black box near the battery. Remove the lid by pressing the release tabs or unsnapping it, depending on the design. Inside, you’ll find a diagram indicating the position of each fuse and relay. The fuel pump fuse is typically a 15- or 20-amp blade-type fuse, though this can vary by model. Use a fuse puller or needle-nose pliers to extract the fuse carefully, avoiding damage to the terminals.
A practical tip for troubleshooting the fuel pump fuse is to test it with a multimeter. Set the multimeter to the continuity or resistance setting and touch the probes to both ends of the fuse. A reading of zero or near zero indicates the fuse is intact; infinite resistance means it’s blown. If the fuse is blown, replace it with one of the same amperage rating and retest the system. If the new fuse blows immediately, stop and investigate further to prevent additional damage.
In comparison to other fuse boxes, the under hood unit is more exposed to environmental factors like heat, moisture, and debris. Regular inspection of this area is crucial, especially in older vehicles like a 1995 Chevy, where corrosion or loose connections can disrupt electrical flow. Keeping the fuse box clean and ensuring all components are securely seated can prevent intermittent issues and extend the life of the vehicle’s electrical system.
Do Mopeds Have Fuel Pumps? Understanding Moped Fuel Systems
You may want to see also
Explore related products
Interior Fuse Panel Diagram
The interior fuse panel diagram is a critical tool for diagnosing electrical issues in a 1995 Chevy, particularly when locating the fuel pump fuse. This diagram, typically found in the owner’s manual or on the underside of the fuse panel cover, maps out the function of each fuse, relay, and circuit breaker. For a 1995 Chevy, the fuel pump fuse is often labeled as "ECM B" or "FUEL PUMP" and is usually located in the underhood fuse block, not the interior panel. However, understanding the interior fuse panel diagram is essential for ruling out other electrical problems that might mimic fuel pump failure.
Analyzing the interior fuse panel diagram reveals a systematic layout designed for ease of troubleshooting. Fuses are grouped by function, with power accessories, lighting, and engine management systems often separated into distinct sections. For instance, the fuel pump fuse, if located in the interior panel (which is rare for this model), would likely be near other engine-related fuses. Cross-referencing the diagram with the fuse box itself ensures accuracy, as some diagrams may vary slightly depending on the trim or model year. Always verify the correct diagram for your specific vehicle to avoid confusion.
To effectively use the interior fuse panel diagram, start by identifying the fuse panel’s location, typically beneath the dashboard on the driver’s side. Remove the cover to expose the fuses and relays, and compare the physical layout to the diagram. If the fuel pump fuse is not in the interior panel, the diagram will guide you to the underhood fuse block, where it is more commonly found. Use a fuse puller to safely extract and inspect fuses, checking for signs of burning or breakage. A blown fuse in the interior panel might indicate a related issue, such as a short circuit in the fuel pump wiring.
A practical tip for working with fuse panel diagrams is to keep a labeled copy in your glove compartment for quick reference. Highlight critical fuses like the fuel pump, ignition, and battery to save time during emergencies. Additionally, carry spare fuses of common amperage ratings (e.g., 10A, 15A, 20A) to replace any that fail. If the fuel pump fuse repeatedly blows, this could signal a deeper problem, such as a faulty fuel pump or wiring harness, requiring professional diagnosis.
In conclusion, while the fuel pump fuse in a 1995 Chevy is typically located in the underhood fuse block, the interior fuse panel diagram remains an invaluable resource for troubleshooting. It provides a clear roadmap for identifying and resolving electrical issues, ensuring you don’t overlook related components. By familiarizing yourself with this diagram and its nuances, you’ll be better equipped to maintain your vehicle’s electrical system and address problems efficiently.
Will Volvo Fuel Pump 9445444 Fit 1994 940 Models?
You may want to see also
Explore related products
Fuel Pump Relay Location
The fuel pump relay in a 1995 Chevrolet is a critical component that ensures the fuel pump operates only when the engine is running or being started, conserving energy and enhancing safety. Located under the hood, this relay is typically housed in the underhood fuse/relay box, often found near the battery or firewall. Identifying the correct relay involves consulting the vehicle’s manual or the diagram on the fuse box cover, which labels the fuel pump relay as "FP" or "FUEL PUMP." Unlike the fuel pump fuse, which protects the circuit from overcurrent, the relay acts as a switch, controlled by the ignition system to activate the fuel pump when the key is turned.
To locate the fuel pump relay in a 1995 Chevy, start by opening the hood and identifying the fuse/relay box. This box is usually a black rectangular unit with a removable lid. Once opened, you’ll find a series of relays and fuses, often arranged in rows. The fuel pump relay is typically larger than most fuses and may have a distinct shape or color. If the diagram on the lid is missing or unclear, refer to the owner’s manual for precise placement. In some models, the fuel pump relay may be labeled as "ECMR" (Engine Control Module Relay), which also controls the fuel pump circuit.
Testing the fuel pump relay is a practical step if you suspect it’s malfunctioning. Begin by locating the relay and swapping it with another relay of the same type in the fuse box (e.g., the horn relay). If the fuel pump begins to hum when starting the vehicle, the original relay is likely faulty. Alternatively, use a multimeter to check for continuity across the relay’s terminals when activated. A functioning relay should show a closed circuit when power is applied. Always ensure the ignition is off when handling relays to avoid electrical hazards.
Comparing the fuel pump relay to the fuel pump fuse highlights their distinct roles. While the fuse is a passive safety device that breaks the circuit during an overload, the relay is an active switch that completes the circuit under specific conditions. In a 1995 Chevy, the fuse is typically located in the same underhood box as the relay, but it serves as a secondary safeguard. If the fuel pump isn’t activating, check both the fuse and relay, as either could be the culprit. However, a blown fuse often indicates a short circuit, whereas a faulty relay suggests wear or internal failure.
For DIY enthusiasts, replacing the fuel pump relay is a straightforward task. After purchasing a compatible relay from an auto parts store, locate the existing relay in the fuse box and pull it straight out. Insert the new relay, ensuring it clicks into place securely. Test the fuel pump by turning the ignition to the "ON" position (without starting the engine) and listening for the pump’s hum. If the issue persists, further diagnosis of the fuel pump or wiring may be necessary. Regularly inspecting the relay and fuse can prevent unexpected breakdowns, especially in older vehicles like the 1995 Chevy, where electrical components are prone to wear.
Signs Your Car Needs a New Fuel Pump: What to Look For
You may want to see also
Explore related products
Common Fuse Sizes for 95 Chevy
The 1995 Chevrolet lineup, with its diverse range of models from compact cars to full-size trucks, relies on a variety of fuse sizes to protect its electrical systems. Understanding these sizes is crucial for troubleshooting and maintenance, especially when dealing with critical components like the fuel pump. Fuses in a 95 Chevy typically range from 5 to 30 amperes, with the most common sizes being 10, 15, and 20 amps. Each size corresponds to the electrical load of the circuit it protects, ensuring that overcurrent conditions do not damage wiring or components.
For instance, the fuel pump fuse in a 95 Chevy is often a 15- or 20-amp fuse, depending on the model and engine configuration. This higher amperage is necessary to handle the power demands of the fuel pump, which operates continuously while the engine is running. Identifying the correct fuse size is the first step in locating the fuel pump fuse, as it narrows down the search to specific fuse box areas. Always refer to the owner’s manual or a vehicle-specific repair guide for precise fuse ratings and locations.
When replacing a fuse, it’s essential to use the correct size to avoid electrical issues. Using a higher-amp fuse can lead to circuit damage, while a lower-amp fuse may blow prematurely. For example, if the fuel pump fuse is rated at 20 amps, substituting it with a 30-amp fuse could allow excessive current to flow, potentially damaging the wiring harness or the pump itself. Conversely, a 10-amp fuse would likely blow under normal operating conditions, causing the fuel pump to shut off.
Practical tips for working with fuses in a 95 Chevy include keeping a spare set of common sizes (10, 15, 20 amps) in your vehicle for emergencies. Use a fuse puller to safely remove fuses without damaging the fuse box. When inspecting fuses, look for signs of corrosion or melting, which indicate underlying electrical problems. Regularly checking the fuse box can prevent unexpected failures, especially in older vehicles like the 95 Chevy, where electrical systems may be more prone to wear.
In summary, understanding common fuse sizes for a 95 Chevy is vital for maintaining its electrical integrity, particularly when addressing issues like a malfunctioning fuel pump. By knowing the correct amperage, using the right replacement parts, and practicing proper maintenance, owners can ensure their vehicle’s electrical systems remain reliable and safe. This knowledge not only saves time and money but also enhances the overall driving experience.
DIY Guide: Replacing Inline Fuel Pump on 1988 Ford Ranger
You may want to see also
Explore related products
Troubleshooting Blown Fuses
A blown fuse can be a frustrating issue, especially when it affects critical systems like the fuel pump in a 1995 Chevy. Understanding how to troubleshoot and address this problem is essential for any vehicle owner. The fuel pump fuse in a 1995 Chevy is typically located in the under-hood fuse box, often labeled as "FUEL" or "FUEL PUMP." However, identifying a blown fuse is just the first step. Troubleshooting requires a systematic approach to prevent recurring issues and ensure the safety and reliability of your vehicle.
Identifying the Problem: Start by visually inspecting the fuse. A blown fuse often has a broken or melted wire inside the transparent casing. If the fuse appears intact, use a multimeter to test for continuity. Set the multimeter to the continuity setting and touch the probes to the fuse terminals. A beep indicates the fuse is functioning; no beep suggests it’s blown. Always check the fuse while the vehicle is off to avoid electrical hazards. If the fuse is blown, replace it with one of the same amperage rating, typically 15–20 amps for fuel pump fuses.
Analyzing the Cause: A blown fuel pump fuse is often a symptom of an underlying issue. Common causes include a faulty fuel pump drawing excessive current, a short circuit in the wiring harness, or a malfunctioning fuel pump relay. To diagnose, inspect the fuel pump wiring for damage or corrosion. If the fuse blows again immediately after replacement, disconnect the fuel pump connector and retest the fuse. If it no longer blows, the fuel pump is likely the culprit. If the fuse still blows, the issue may lie in the wiring or relay.
Preventive Measures: To avoid repeated fuse failures, address the root cause. If the fuel pump is faulty, replace it promptly. Inspect the wiring harness for chafing or exposed wires, and repair or replace damaged sections. Test the fuel pump relay by swapping it with a similar relay in the fuse box (e.g., the horn relay) to see if the issue persists. Regularly inspect fuses and wiring during routine maintenance to catch potential problems early.
Practical Tips: Keep a spare fuse of the correct amperage in your vehicle for emergencies. Use a fuse puller to remove fuses safely without damaging the fuse box. If troubleshooting seems complex, consult a professional mechanic to avoid misdiagnosis. Always refer to the vehicle’s manual for specific fuse locations and ratings. By taking a methodical approach, you can resolve blown fuse issues efficiently and maintain your 1995 Chevy’s performance.
Diagnosing Fuel Pump Issues: Measuring Current Draw Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump fuse in a 1995 Chevy is typically located in the underhood fuse box, often labeled as "F/P" or "Fuel Pump."
Refer to the owner’s manual for the exact location, or check the fuse box cover for a diagram. If still unsure, consult a repair manual or a mechanic for assistance.
No, the fuel pump fuse in a 1995 Chevy is usually located in the underhood fuse box, not inside the cabin.
