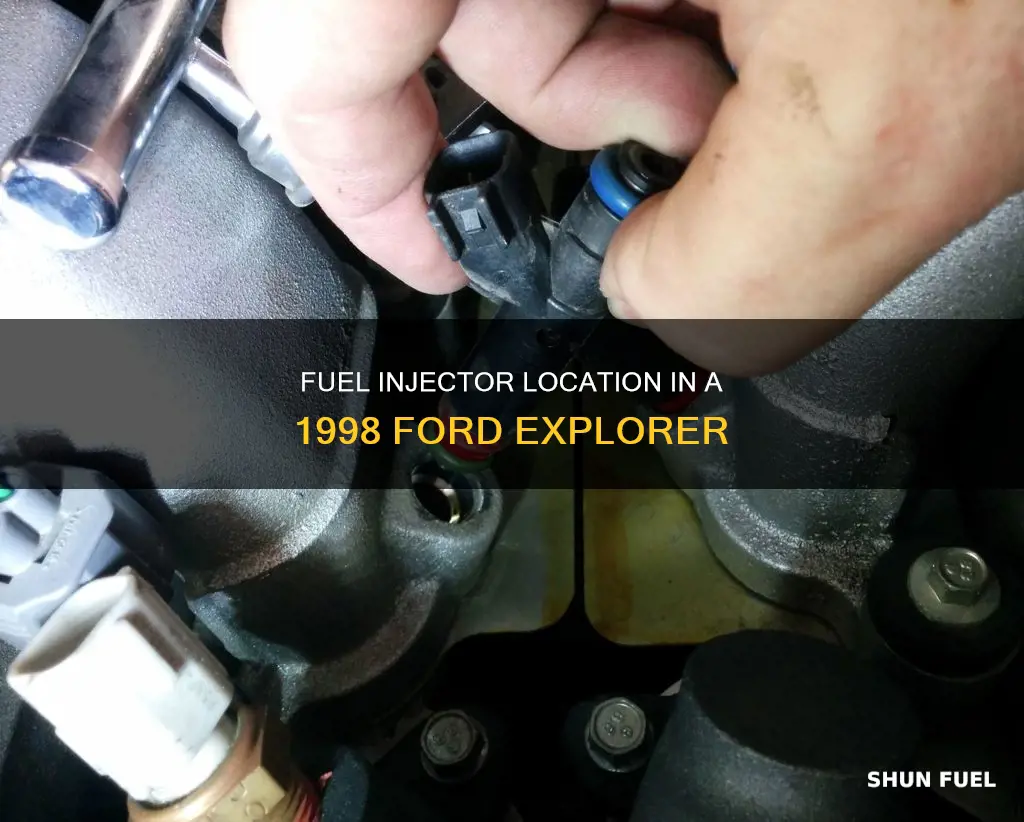

The fuel injectors in a 1998 Ford Explorer are located on the left-hand side, at the back, with the shortest spark plug wire. They are situated on top of the engine, bolted to the intake manifold under the plenum. The fuel injectors are housed in the upper intake manifold, which partially covers them, and sit outboard of the large port holes in the lower intake manifold.
Explore related products
What You'll Learn
The fuel injectors are located on top of the engine
The fuel injectors on a 98 Ford Explorer are located on top of the engine, bolted to the intake manifold under the plenum. They are situated close to the spark plugs.
To access the injectors, you will need to relieve the fuel pressure at the shredder valve, remove the intake manifold upper plenum, and disconnect the fuel lines from the fuel injection rail. The injectors are held in place by injector rail bolts, which need to be removed. Once this is done, gently pry up on one injector until it comes out of the intake. Repeat this process for each injector.
The fuel injectors are fed by a fuel rail, which sits on top of them. Each injector has a 2-wire connector attached, which operates the injector.
It is important to note that replacing fuel injectors is not a straightforward repair job and requires careful attention to detail.
Fuel Injector Upgrade: Performance, Efficiency, and the Power Boost
You may want to see also
Explore related products
They are bolted to the intake manifold under the plenum
The fuel injectors in a 1998 Ford Explorer are bolted to the intake manifold under the plenum. This is not a straightforward repair job, as you will first need to relieve the fuel pressure at the shredder valve and remove the intake manifold upper plenum to access the injectors. The injectors are situated on top of the engine, close to the spark plugs.
To replace the fuel injectors, you will also need to disconnect the fuel lines from the fuel injection rail and remove the injector rail bolts that hold it to the intake manifold. Once this is done, gently pry up on one injector until it pops out of the intake and repeat until each injector is separated. The injectors are held in the rail by a C-clip, which can then be removed, allowing the injectors to be taken out of the rail. Lubricate new injector seals before installing them to ensure they seat and seal properly.
To clean the fuel injectors, you will need to identify the number of the injector you wish to check. The numbers of the cylinders are marked on the coil pack that the spark plug wires go to. Follow the wire to the spark plug with the corresponding number next to it.
Fuel Injector Problems: Can a Treatment Fix Them?
You may want to see also
Explore related products
The injectors are close to the spark plugs
The fuel injectors on a 1998 Ford Explorer are located on the top of the engine, bolted to the intake manifold under the plenum. The injectors are situated close to the spark plugs.
To access the injectors, you will need to relieve the fuel pressure at the shredder valve and remove the intake manifold upper plenum. The upper plenum partially covers the injectors, which sit just outboard of the large port holes in the lower intake manifold.
Each injector has a fuel rail on top, which feeds it fuel, and a 2-wire connector to operate it. The fuel lines from the fuel injection rail will also need to be disconnected.
To identify the number 3 fuel injector, look for the coil pack that the spark plug wires lead to. The numbers of the cylinders are indicated on this pack. Follow the wire to the spark plug marked with a 3. This injector is on the left-hand side, at the very back, and has the shortest spark plug wire.
How Ford Focus Fuel Injectors Are Pulsed
You may want to see also
Explore related products
The injector rail bolts must be removed to access the injectors
To access the fuel injectors in a 1998 Ford Explorer, you must first relieve the fuel pressure at the shredder valve and remove the intake manifold upper plenum. Once this is done, you can disconnect the fuel lines from the fuel injection rail.
The injector rail bolts must then be removed to access the injectors. These bolts hold the injector rail to the intake manifold. After removing the bolts, gently pry up on one injector until it pops out of the intake. Repeat this process until all injectors are separated.
The injectors are held in the rail by a C-clip, which can now be removed, allowing the injectors to be taken out of the rail. Before installing new injectors, it is important to lubricate the injector seals so that they seat and seal properly.
It is also recommended to install the injectors into the fuel rail first and then press the rail into place. Additionally, the O-rings that seal the injectors to the fuel rail and engine should be lubricated with a light grease to make them easier to seat.
Unfastening Ford Fuel Injector Connectors: A Step-by-Step Guide
You may want to see also
Explore related products
The fuel lines must be disconnected from the fuel injection rail
To disconnect the fuel lines from the fuel injection rail on a 1998 Ford Explorer, you will need to relieve the fuel pressure at the schrader valve. This is an important safety step to prevent fuel leakage and potential injury. Once the pressure is relieved, you can proceed with the following steps:
Firstly, locate the fuel injection rail. It is found on top of the engine, bolted to the intake manifold, which is under the plenum. The fuel lines connect to the top of the fuel tank.
Now, identify the type of connectors used on the fuel lines. On the 1998 Ford Explorer, the fuel lines that connect to the top of the fuel tank have two different spring lock sizes. The return line connector is smaller than the fuel output line connector, while the nylon lines themselves are the same size.
To disconnect the lines, you may need a special tool, such as a fuel line disconnect tool or a release tool. These tools vary depending on the style of the fittings and connectors. Some lines may have plastic clips or nuts that need to be loosened, while others may have metal fittings that require a different approach.
If you are unable to locate the correct tool or if the lines are difficult to disconnect, it is recommended to seek professional assistance. An experienced mechanic will have the necessary tools and knowledge to safely and effectively disconnect the fuel lines from the fuel injection rail.
Before proceeding with any repairs or maintenance involving the fuel system, always ensure that you are working in a well-ventilated area and take the necessary precautions to avoid any potential hazards.
Testing Fuel Injectors on a 1997 Jeep Cherokee: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel injectors are located on the left-hand side of the engine, all the way back, with the shortest spark plug wire. They are on top of the engine, bolted to the intake manifold under the plenum.
To access the fuel injectors, you need to relieve the fuel pressure at the shredder valve, remove the intake manifold upper plenum, disconnect the fuel lines from the fuel injection rail, and remove the injector rail bolts.
To clean the fuel injectors, you can use a fuel injector cleaner. Follow the wire to the spark plug that says "3" next to it, and refer to the numbers of the cylinders on the coil pack that the spark plug wires go to.
To replace the fuel injectors, gently pry up on one injector until it pops out of the intake and repeat for each injector. Remove the C-clip that holds the injectors in the rail, and lubricate the new injector seals before installing them.
