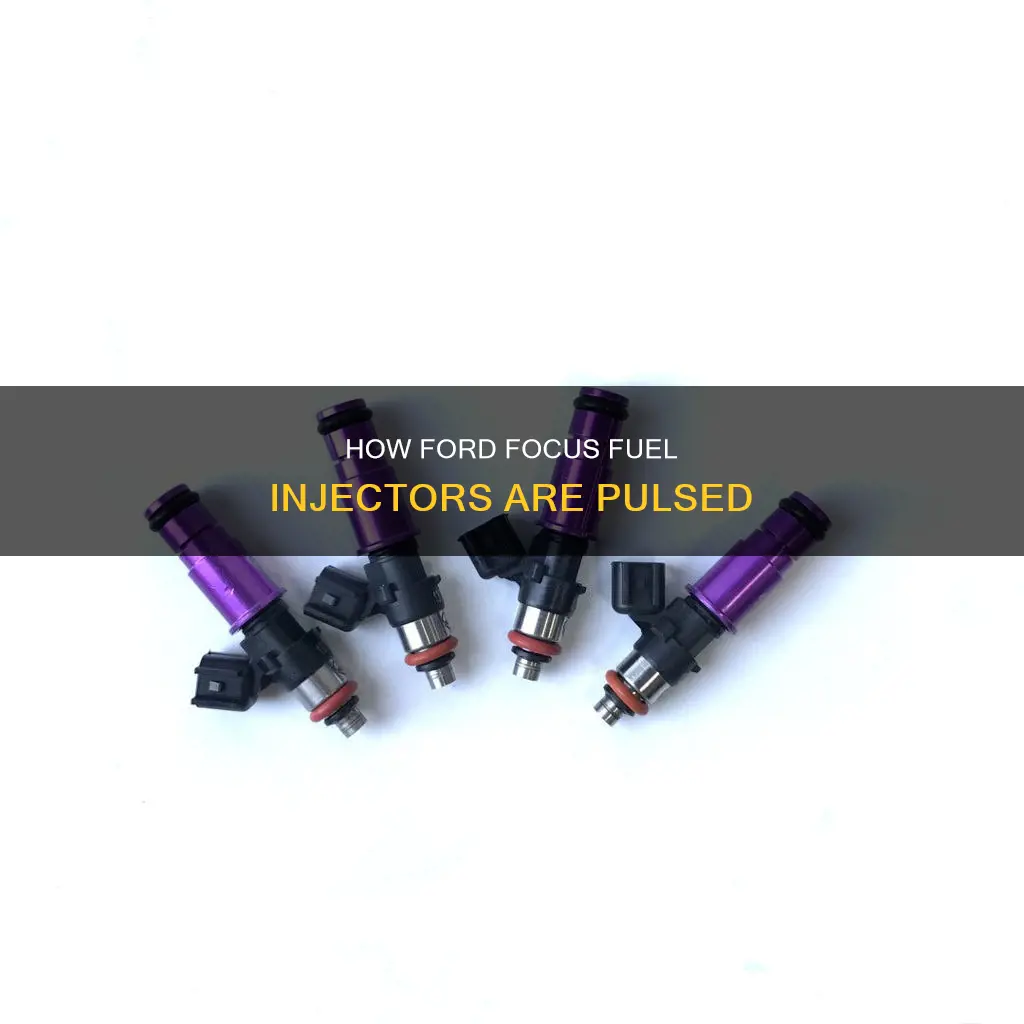

The fuel injectors on a 2003 Ford Focus are pulsed by the PCM (Powertrain Control Module), which grounds each injector. The PCM commands power to the injectors via a fuse. The injectors should have power with the key turned on as they are wired directly to the fuse.
| Characteristics | Values |
|---|---|
| Quantity per car | 4 |
| Recommendations | Fuel filter replacement |
| Injector pulse issues | Could be due to bad gas, bad connection with the noid light, or a faulty PCM |
| PCM | Grounds each injector to pulse |
| PATS | Disables the injectors so the car can't be started |
Explore related products
No fuel injector pulse
If your 2003 Ford Focus won't start and you're experiencing no fuel injector pulse, there are several potential causes and troubleshooting steps you can take.
First, check the battery, particularly the terminal connections, to ensure they are not corroded. Next, verify if there are any loose wires or connections, especially where the wires go into the connector. You may need to unbolt the fuse panel to access the connectors properly.
In some cases, the issue could be related to the camshaft sensor or the computer. Replacing these components might be necessary if they are faulty. Additionally, it's recommended to check the fuel pump module and ensure you're using the correct type of fuel.
If the problem persists, consider seeking assistance from a professional mechanic. They will have access to diagrams and specific knowledge of your vehicle's systems to help diagnose and resolve the issue.
It's important to note that fuel injectors are powered with the key on, as they are wired directly to the fuse. The PCM (Powertrain Control Module) grounds each injector to pulse, so there could be an issue with the PCM or its associated wiring.
Code Reader: Detecting Faulty Fuel Injectors?
You may want to see also
Explore related products
PCM commands
The 2003 Ford Focus is equipped with a Powertrain Control Module (PCM) that plays a crucial role in the operation of the fuel injectors. The PCM is responsible for commanding the fuel injectors to pulse, which is essential for the engine's proper functioning.
The PCM is a vital component of the Ford Focus's engine management system, and it has several functions related to the fuel injection system. One of its primary tasks is to control the fuel injection process by sending electrical signals to the fuel injectors, telling them when to open and close. This precise control ensures that the correct amount of fuel is injected into the engine at the right time, optimizing performance, fuel efficiency, and emissions.
In the 2003 Ford Focus, the PCM grounds each injector to pulse. This means that the PCM provides a path to the ground for the electrical current that powers the fuel injectors. The PCM's ability to ground the injectors is essential for their operation, as it allows the injectors to receive the necessary electrical signal to open and deliver fuel to the engine.
The PCM's role in pulsing the fuel injectors is further highlighted by its connection to the fuse. The injectors are wired directly to the fuse, but the PCM commands the fuse to power them. This means that the PCM controls the flow of electricity to the injectors, allowing it to regulate their operation precisely. Without the PCM's command, the fuse remains inactive, and the injectors do not receive the necessary power to function.
While the PCM is responsible for pulsing the fuel injectors, it is important to note that other factors can influence their operation. For example, issues with the fuel pump, crank sensor, or the Passive Anti-Theft System (PATS) can impact the injectors' ability to pulse and deliver fuel. Therefore, proper maintenance and troubleshooting are crucial to ensure the PCM and the fuel injection system's overall performance.
Fuel Injector Installation: Sitting Pretty in the Manifold
You may want to see also
Explore related products
Bad gas
The 2003 Ford Focus has been known to have some issues with its fuel injectors. If your 2003 Ford Focus is not starting, it could be due to a lack of fuel injector pulse.
One possible cause of this issue is a faulty battery. Check the battery terminal connections for corrosion and try jumping the battery or having it tested to determine if it is weak.
Another potential cause is a faulty starter motor. Have the starter motor tested to ensure it is functioning properly and engaging the flywheel to crank the engine.
A faulty ignition switch could also be the culprit, as it may not be sending the proper signal to the starter motor. To test this, push in on the key while trying to start the car and jiggle it in the fully turned position. This is a common problem in the Ford Focus due to a poor switch design.
Additionally, a faulty fuel pump could be preventing the engine from starting. Check the fuel pump relay and fuse to ensure they are functioning properly.
Other potential causes include a faulty Engine Control Module (ECM) or issues with the camshaft or crankshaft position sensors.
It is recommended to consult a professional mechanic to properly diagnose and address any issues with your vehicle.
How Bad Injectors Damage Diesel Engines
You may want to see also
Explore related products
Fuel pump running
If your 2003 Ford Focus is not starting due to a lack of fuel injector pulse, there are a few things you can check and some troubleshooting steps you can take.
Firstly, check the battery, particularly the terminal connections, and ensure they are not corroded. Next, check the power and ground connections at the PCM (Powertrain Control Module). The PCM is responsible for commanding the fuse that powers the injectors, so a faulty PCM could be the cause of the issue.
If the PCM and battery connections seem fine, you may need to check the fuel pump. Ensure that the fuel pump is running and that you are getting adequate fuel pressure. If the fuel pump is not working, it may need to be replaced.
If you are experiencing fuel pressure and spark issues, the crank sensor or camshaft sensor may be at fault. Try replacing these sensors and see if that resolves the issue.
- Check the injector fuse and ensure it is not blown. The injectors are wired directly to the fuse, so a blown fuse could be the culprit.
- Verify that the wires at the fuse connectors are not loose. You may need to unbolt the fuse panel to access the connectors properly.
- Disable the fuel pump and put gas directly into the intake. If the car starts and runs smoothly with this method, the issue may be related to bad gas or a faulty fuel pump.
- Remove and replace the fuel injectors. This process will require some mechanical knowledge and tools. You will need to remove the throttle body, disconnect the fuel injector electrical connectors, and disconnect the fuel line from the fuel rail. Always use a rag when handling the fuel line, as fuel will spill out.
By following these steps and performing the necessary checks and replacements, you should be able to resolve the issue of a lack of fuel injector pulse in your 2003 Ford Focus.
The Evolution of Auto Fuel Injectors: How They Work
You may want to see also
Explore related products
Fuel filter replacement
The fuel filter in a 2003 Ford Focus is positioned in the line leading from the gas tank to the engine. It prevents contaminants from entering the engine, which could lead to a loss in performance and potential damage to the cylinder lining.
Fuel filters are typically mounted to the undercarriage, on the main fuel line after the fuel pump. The filter traps particulates as the fuel flows through it, keeping contaminants away from sensitive fuel injectors, rails, and fuel pressure regulators. When the fuel filter becomes clogged, the engine suffers from fuel starvation, resulting in a significant reduction in power and potential engine misfire.
Some signs that your 2003 Ford Focus may require a fuel filter replacement include:
- Stalling, especially while idling at a stop sign or red light
- Excessive vibration while driving
- Rough slow-speed cruising
- Problems with starting the engine
The average cost to replace a fuel filter in a 2003 Ford Focus is between $62 and $87, but can vary depending on your location and specific vehicle. The replacement procedure typically involves lifting and safely supporting the vehicle to access the filter, and sometimes requires the removal of under-body paneling. It is recommended to use fuel line release tools to carefully remove the fuel lines and catch any fuel that falls from the filter or line during the service.
