The fuel filter in a lawn mower is a small but important piece of equipment that prevents foreign materials like water and debris from entering the combustion chamber. It strains the impurities from the fuel before it enters the carburetor. The fuel filter will be located either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-replaceable fuel filters. If you are unsure of where your fuel filter is located, refer to your owner's manual.
| Characteristics | Values |
|---|---|
| Location of the fuel filter | Inside the fuel tank or fitted into the fuel line between the tank and the fuel pump |
| Replaceable | Yes/No |
| Type | Canister-style or tube-style |
| Installation | The canister-style filter should be installed in the direction of the fuel flow. The tube-style filter should be oriented in the same way as the old one |
| Maintenance | Refer to the owner's manual before performing maintenance. Disconnect the spark plug to prevent accidental starting |
| Cleaning | Canister-style filters cannot be cleaned. Tube-style filters can be rinsed with water and cleaned |
Explore related products
What You'll Learn

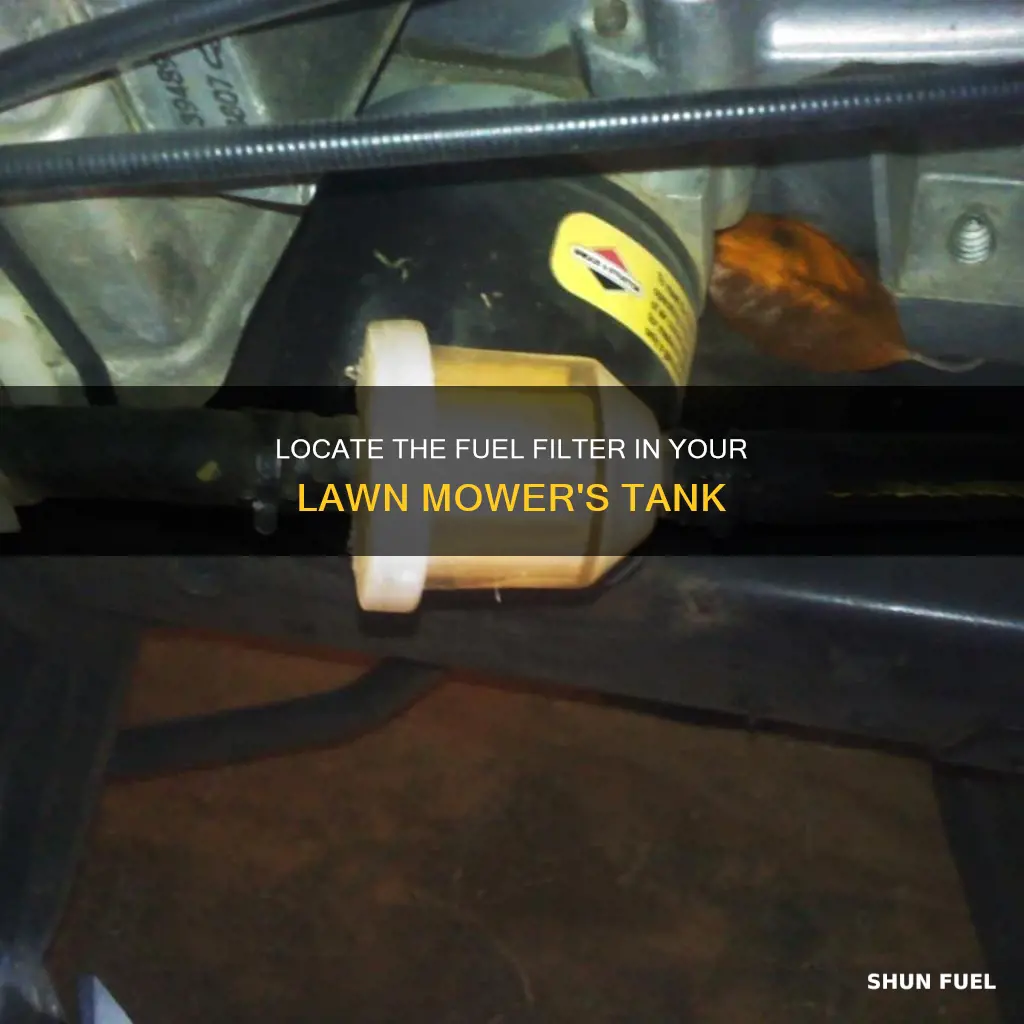

Fuel filters are usually located in the fuel tank or fuel line
Fuel filters play a crucial role in ensuring the optimal performance of your lawnmower by preventing foreign materials, such as dirt, dust, water, and debris, from entering the carburetor and combustion chamber. These filters are usually located either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump.
The exact location of the fuel filter in your lawnmower may vary depending on the specific model and design. Some lawnmowers have fuel filters that are integrated directly into the fuel tank, while others have them installed in the fuel line. If you are unsure about the location of your fuel filter, it is recommended to refer to your lawnmower's operator's manual or seek guidance from the manufacturer or a qualified technician.
Fuel filters inside the fuel tank are often non-serviceable, meaning they cannot be easily accessed or replaced. In such cases, you may need to drain the fuel tank and remove the filter for inspection or replacement. This process requires careful handling and adherence to safety precautions, such as working in a well-ventilated area and wearing protective eyewear to shield against liquid fuel or fuel vapors.
On the other hand, fuel filters installed in the fuel line are typically more accessible. To remove and replace these filters, you can use needle-nose pliers to detach the metal clips on both sides of the filter, allowing you to slide it out of the fuel line. Remember to catch any dripping fuel with a dry cloth and properly dispose of it afterward.
It is important to regularly maintain and replace your lawnmower's fuel filter, as recommended by the manufacturer. A clogged or dirty fuel filter can lead to issues such as difficulty starting the mower, uneven idling, reduced power, or even complete failure to start. Proper maintenance of the fuel filter will help extend the lifespan of your lawnmower and ensure its smooth and efficient operation.
Effective Rust Removal Solutions for Your Fuel Tank
You may want to see also
Explore related products
They can be replaced or non-replaceable
The fuel filter in a lawn mower can be located either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-replaceable fuel filters.
If your fuel filter is replaceable, you will need to drain the tank before removing the filter for inspection or replacement. Shut the fuel valve, if your tank has one, or clamp the gas line with a fuel line clamp if it does not. If your filter is installed in the fuel line, simply remove the metal clips on each side of the filter using needle-nose pliers and slide the filter out of the fuel line.
If your fuel filter is non-replaceable, you may be able to bypass the current tank and filter by using a temporary external tank to feed fuel to the engine. This can be difficult to set up if you do not have a suitable container to use as a tank. Alternatively, you can try to clean the filter, although this may not be possible depending on the type of filter and the severity of the clog.
It is important to regularly maintain and replace your fuel filter to keep your lawn mower performing at its best and prevent costly repairs. A clogged fuel filter can cause a range of issues, including difficulty starting the engine, strange noises from the fuel pump, low fuel pressure, and poor performance, especially when accelerating or driving uphill.
Applying POR 15 to Your Motorcycle Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
To replace, drain the tank and remove the filter
To replace the fuel filter in your lawn mower, you'll first need to locate it. The fuel filter will either be inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-serviceable fuel filters. If you are unsure of where your fuel filter is located, refer to your lawn mower's manual to determine the location.
Once you've located the fuel filter, you can begin the replacement process. If the filter is installed inside the tank, you will need to drain the tank before removing the filter. Here are the detailed steps:
- Ensure you are in a safe area with no open flames or fire sources nearby.
- Put on safety eyewear to protect your eyes from liquid fuel or fuel vapors.
- Have a dry cloth handy to catch any dripping fuel.
- Shut the fuel valve if your mower is equipped with one. It is usually located at the base of the fuel tank, where the gas line is attached.
- If your tank does not have a valve, use a fuel line clamp to clamp the gas line. Avoid pinching the fuel line as this could damage it.
- Once the fuel line is secured, remove any metal clips on each side of the filter using needle-nose pliers.
- Carefully slide the filter out of the fuel line.
- Shake the filter over a clean cloth to remove any remaining fuel, and then wipe the filter with the cloth to remove any residue.
Now that the old filter has been removed, you can install the new fuel filter. Here are the steps for installation:
- Slide the new filter into the fuel line, ensuring that it is secure and properly seated.
- Reattach the metal clips on both sides of the filter using needle-nose pliers.
- If your mower has a fuel valve, reopen the valve or remove the clamp on the fuel line.
- Check for any leaks. Do not operate the mower if any leaks are found.
- If the fuel line appears cracked or damaged, replace it to ensure no leaks occur.
- Always refer to your lawn mower's manual for additional safety information and instructions before operating the mower.
By following these steps, you can safely replace the fuel filter in your lawn mower's tank, ensuring optimal performance and proper fuel flow to the carburetor.
Building an In-Bed Fuel Tank: TIG Welding Guide
You may want to see also
Explore related products
To check, look for debris or discolouration
To check the fuel filter of your lawn mower for debris or discolouration, you must first locate it. The fuel filter is usually located either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-serviceable fuel filters. If you are unsure of where your fuel filter is located, refer to your owner's manual.
Once you have located the fuel filter, you will need to remove it for inspection. If the filter is installed inside the tank, you will need to drain the tank before removing the filter. If your filter is installed in the fuel line, remove the metal clips on each side of the filter using needle-nose pliers, and slide the filter out of the fuel line.
Now, you can check the filter for debris or discolouration. For canister-style filters, look through the transparent plastic casing and examine the pleated material inside. If you see debris or severe discolouration, you will need to replace the filter. Tube-style filters may be rinsed and reused if they are not too dirty. To clean a tube-style filter, rinse it carefully with water until it is clear, then reinstall it.
After inspecting and/or cleaning your fuel filter, you can reinstall it. For canister-style filters, push the ends of the fuel line segments onto the spigots of the filter and use pliers to replace the spring clips. Be sure to install the canister-style filter in the correct direction, usually indicated by an arrow on the casing pointing in the direction of fuel flow. For tube-style filters, simply pop the new filter into place, orienting it the same way as the old one. Reconnect the fuel line and replace the spring clamps.
Draining a Tiller Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Rinse tube-style filters or replace if needed
Rinsing tube-style filters is a common practice for filters used in aquariums. All aquarium power filters need to be cleaned occasionally, and this holds true for the popular hang-on-back (HOB) style. This filter style, which simply hangs on the back wall of your aquarium, is popular because it is easy to maintain and easy to clean. Power filters draw water up a lift tube and into a filter chamber; from there, the water is pushed through a series of filter media, providing biological, chemical, and/or mechanical filtration.
After the water goes through the filter media, it flows out of an overflow lip and back into the aquarium. The water moves with the aid of a water pump that pulls it through the lift tube, or the water may be transported by air bubbles that bring water into the lift tube and then the filter box. A HOB filter cartridge needs to be cleaned only if the water flow rate through the filter diminishes or if the water level in the filter box increases because it is not flowing back into the aquarium via the overflow outlet.
To clean a HOB filter cartridge, you can rinse the sponge insert in dechlorinated water, such as the water drained from the aquarium during water changes. You can also squeeze the sponges in a bucket of tank water to remove detritus and ensure the filter doesn't get clogged. It is important to disturb the filter as little as possible to avoid disturbing the bacteria on the sponges.
In the context of lawn mowers, fuel filters are typically located either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-serviceable fuel filters. If the filter is installed inside the tank, you will need to drain the tank before removing the filter for inspection or replacement. If your filter is installed in the fuel line, you can remove the metal clips on each side of the filter using needle-nose pliers and slide the filter out of the fuel line.
While the above instructions do not specifically refer to tube-style filters in lawn mowers, they provide general guidance on cleaning and replacing fuel filters in small engines, which can be applied as needed depending on the specific design of your lawn mower's fuel filter.
How to Upgrade Freightliner Fuel Tank Capacity
You may want to see also
Frequently asked questions
The fuel filter is typically found along the fuel line between the fuel tank and the carburetor. Some fuel tanks have internal, non-serviceable fuel filters. If you are unsure of where your fuel filter is located, refer to your owner's manual.
First, make sure you are in a safe area with no open flame or fire source. Wear safety eyewear to protect your eyes from liquid fuel or fuel vapors. If the filter is installed inside the tank, you will need to drain the tank before removing the filter. If your filter is installed in the fuel line, remove the metal clips on each side of the filter using pliers, and slide the filter out of the fuel line.
A dirty or clogged fuel filter can restrict fuel flow, causing the engine to run poorly or not start at all. If your lawn mower is not starting or experiencing loss of power, you may need to change the fuel filter.
Regular oil changes are crucial for keeping your lawn mower’s engine running smoothly. Refer to your mower’s manual to determine the correct type and amount of oil. Change the oil at least once a season or every 50 hours of use.
