The fuel filter on a 1990 Ford Ranger is located under the driver's seat, on the driver's side frame rail, about where the seat is. It is a metal can about the size of a pop can. It is important to wear eye protection when attempting to locate and replace the fuel filter, as there may still be pressure in the fuel system, which can spray out.
Explore related products
What You'll Learn
- The fuel filter is under the driver's seat, mounted to the driver's side frame rail
- Disconnect the negative battery cable and release fuel pressure before removing the filter
- Wear eye protection when removing the filter, as there is pressure in the fuel system
- The filter can be removed by squeezing and twisting the retainer clips to release the tab and slot
- Reinstalling a new filter is the reverse of the removal process
The fuel filter is under the driver's seat, mounted to the driver's side frame rail
The fuel filter in a 90 Ranger is located under the driver's seat, mounted to the driver's side frame rail. This is the metal frame that runs under the back of the cab, and the filter is about the size of a pop can.

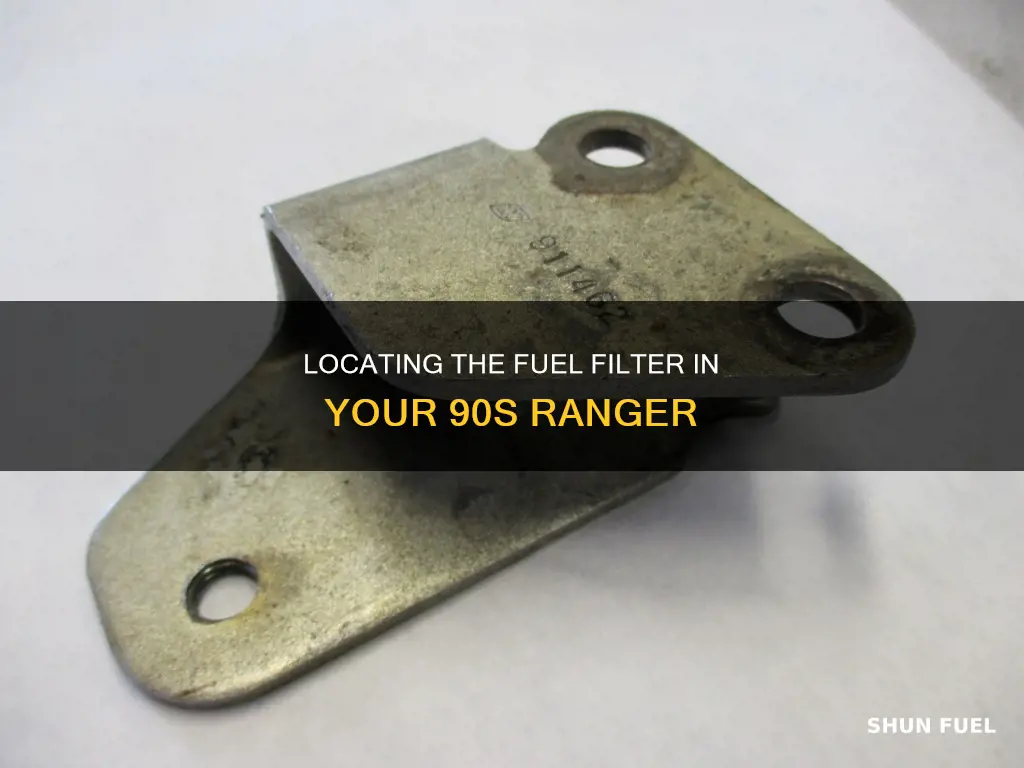

To locate the fuel filter, look on the left frame rail by the tank or fuel valve. It is mounted to the frame rail by a bracket, which also acts as a protective shield. The bracket can be removed by loosening the retaining nuts.
The filter is held in place by spring clips that attach it to the frame. To remove the filter, first relieve the pressure in the fuel system. Then, squeeze and twist the spring clips to release the tab and slot that hold them together. With the filter released from the frame, the fuel line can be gently held with pliers while the filter is pulled out.
It is important to wear eye protection when working on the fuel system, as there may still be pressure in the lines, which could spray fuel.
Removing a Rusty Fuel Filter: Tips and Tricks
You may want to see also
Explore related products
Disconnect the negative battery cable and release fuel pressure before removing the filter
To disconnect the negative battery cable and release fuel pressure before removing the filter of your 1990 Ranger, follow these steps:
First, locate the negative battery cable on your Ranger's battery. The cable should be clearly marked with a minus (-) symbol or a black cover. Once located, loosen the nut or bolt that secures the cable to the battery terminal using a suitable wrench or socket size. Be careful not to let the wrench touch any other metal parts, as this could result in an electrical short circuit.
Next, carefully remove the cable from the battery terminal. You may need to wiggle the cable gently to detach it. Be cautious not to let the cable touch any metal parts, including the battery terminal, to avoid potential sparks or short circuits. Set the cable aside, ensuring it doesn't touch any metal surfaces.
Now, let's release the fuel pressure. Put on your safety goggles and identify the fuel pump fuse in the fuse box under the hood. With the truck running, carefully pull out the fuse for the fuel pump, causing the truck to stall and relieving the pressure in the system. Be aware that fuel may spray out, so maintain a safe distance and protect your eyes.
Alternatively, if your Ranger model year is 2004 or newer, you can release the fuel pressure by pushing the green or orange tabs on the fuel line connectors. For older models, a special tool might be required. You can also try cycling the ignition several times (around 4) in the "on" position for a few seconds to build up pressure and then attempt to start the engine.
Remember, safety should always be your top priority when working on your fuel system. Always relieve the pressure in the system and wear protective gear, including goggles and wrap-around safety glasses, to safeguard your eyes from potential fuel spray.
Chevy Cobalt Fuel Filter: Is It Necessary?
You may want to see also
Explore related products
Wear eye protection when removing the filter, as there is pressure in the fuel system
When removing the fuel filter from your 90 Ranger, it is important to wear eye protection. This is because there is still pressure in the fuel system, and you risk getting fuel sprayed into your eyes. Safety goggles or safety glasses (with full wrap-around protection) are recommended.
It is also advised to keep some eyewash nearby, as even with eye protection, there is a chance of fuel reaching your eyes. This is a vital step in the process of replacing your fuel filter, as your eyesight is extremely important and valuable.
Before attempting to remove the fuel filter, you must relieve the pressure in the fuel system. This can be done by loosening the fuel cap, disconnecting the electrical connector from the inertia switch, and cranking the engine for 15-30 seconds or until the vehicle runs out of fuel. You should also disconnect the negative battery cable from the battery.
The fuel filter on a 90 Ranger is located under the driver's side frame rail, on the inside, about where the driver's seat is. It is the size of a pop can and is mounted to the frame rail by a bracket.
Once the pressure is relieved and the fuel filter is located, you can put on your eye protection and proceed with removing the old filter. Remember to also wear gloves and old clothing, as it can be a messy process.
Bleeding Your Oil Boiler: Fuel Filter Guide
You may want to see also
Explore related products
The filter can be removed by squeezing and twisting the retainer clips to release the tab and slot
When removing a fuel filter, it is important to relieve the pressure in the fuel system. This can be done by disconnecting the electrical connector from the inertia switch and cranking the engine for 15-30 seconds. It is also crucial to wear eye protection, such as safety goggles, as there is still pressure in the fuel system, and it may spray out.
Now, to remove the filter by squeezing and twisting the retainer clips to release the tab and slot, you will need to locate the filter first. On a Ford Ranger, the fuel filter is mounted to the driver's side frame rail by a bracket, which is located under the driver's seat frame rail on the inside.
The filter is secured by retainer clips, also known as hairpin clips, that need to be removed. These retainer clips have a "`magic` button" that needs to be depressed before attempting to disconnect them. This can be done with a flat-blade screwdriver. While depressing the button, insert a second screwdriver between the clip and the filter and rotate it to gently push the clip past its engagement point.
Once the clip is disengaged, you can remove it by hand. This process may vary slightly depending on the specific design of the retainer clips on your vehicle, but the basic principle of squeezing, twisting, and releasing the tab and slot remains the same.
After removing the retainer clips, you can proceed to detach the fuel lines from both ends of the fuel filter. Be sure to note the direction the existing filter is facing so that you can install the new one correctly.
Wix Fuel Filter 33097: Which Vehicles Does It Fit?
You may want to see also
Explore related products
Reinstalling a new filter is the reverse of the removal process
Firstly, ensure you are wearing safety goggles or glasses to protect your eyes from any fuel spray. Then, locate the new fuel filter. The new filter will have two nipples, one large and one small, with the connectors being the same way. Simply clip the hoses back into the filter.
Next, plug the fuel pump fuse back in and turn the key to 'Run' without starting the engine. Allow the engine to sit for around five seconds before cranking it. The engine may take a few seconds to start due to air in the system being pushed out.
After this, you can start the truck. It is recommended to cycle the ignition several times (around four) with it in the On position for a few seconds. This will allow the engine to fire up.
Finally, check for any leaks.
Locating Your Car's Fuel Filter: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter on a 1990 Ford Ranger is located under the driver's seat, mounted to the driver's side frame rail by a bracket.
Look on the driver's side frame rail under the back of the cab and you will see a metal can the size of a pop can. That is your fuel filter.
You will need safety goggles and a metal Quick Disconnect tool.
A fuel filter is designed to remove particles and contaminants from the fuel before they enter the fuel injection system.
The inline reservoir type fuel filter should last the life of the vehicle under normal driving conditions. However, if the filter becomes clogged and reduces efficiency, it should be replaced.
