Rajan Wilcox
The fuel tank is an essential component of an F1 car, and its design and placement are critical to both performance and safety. Historically, F1 fuel tanks were made of aluminium and located behind the cockpit, but today, they are positioned in the centre of the car, between the driver and the engine, to reduce the risk of fires and improve safety. The tanks are now constructed as a single rubber bladder made of military-grade ballistic material, such as Kevlar, and reinforced with rubber to prevent punctures and leaks in the event of a crash. This design also allows for the use of sustainable fuels, an important trend in F1 racing as the sport aims to become carbon neutral by 2030.
Explore related products
F1 fuel tank safety
The safety of fuel tanks in Formula 1 is governed by stringent regulations set by the Fédération Internationale de l’Automobile (FIA). These regulations are designed to ensure that fuel tanks can withstand the extreme conditions of high-speed racing and potential crash impacts. The FIA has played a key role in improving F1 fuel tank safety over the years, with the biggest leap in safety occurring when they introduced mandatory flexible fuel cells in 1970. This type of aircraft-style bag tank prevented ruptures, fuel spillage, and fires in the event of accidents.
Prior to the 1970s, F1 fuel tanks were prone to rupturing during accidents and impacts, which often resulted in fuel spillage and major fires. The introduction of flexible fuel tanks, or bladders, has made F1 racing significantly safer. These bladders are composed of military-grade ballistic material Kevlar, reinforced with rubber, and are housed within a strong composite structure. This construction makes them practically indestructible, even in the event of a major impact.
Another important safety feature of modern F1 fuel tanks is the use of multiple fuel flow meters, which monitor fuel usage and detect any anomalies that might indicate a leak or other issues. These meters are part of a broader set of safety protocols that include non-return valves and anti-surge baffles, which prevent fuel from moving around excessively within the tank during high-speed maneuvers. Additionally, the tanks must be fire-resistant and capable of withstanding high temperatures without igniting, a crucial safety measure to protect drivers in the event of a crash.
The design of the modern F1 fuel tank is tailored specifically for the sport, maximizing safety, optimizing space usage, and maintaining flexibility and adaptability during races. The position of the tank is also carefully considered, situated between the engine and the driver. This unconventional placement ensures the tank is carefully constructed to meet the unique demands of F1 racing.
Furthermore, F1 has banned refuelling during races since 2010, reducing the risk of fires and other incidents associated with refuelling. This ban was implemented due to safety concerns and the development of larger fuel tanks that can hold enough fuel for the entire race.
Australia's Most Fuel-Efficient Car: Green Machine on Roads
You may want to see also
Explore related products
Fuel tank design
The design of the modern F1 fuel tank is tailored specifically for the sport to maximize safety, optimize space usage, and maintain flexibility and adaptability during races. The fuel tank is located in the centre of the car, behind the driver's seat and directly in front of the engine. The position of the tank is designed to keep it away from the red-hot exhaust pipes, the brakes, and the engine. The size of the tank must be calculated against fuel consumption, expected average stint or race length, aerodynamics, etc. The further back the tank is placed, the cleaner the air will be onto the sidepods.

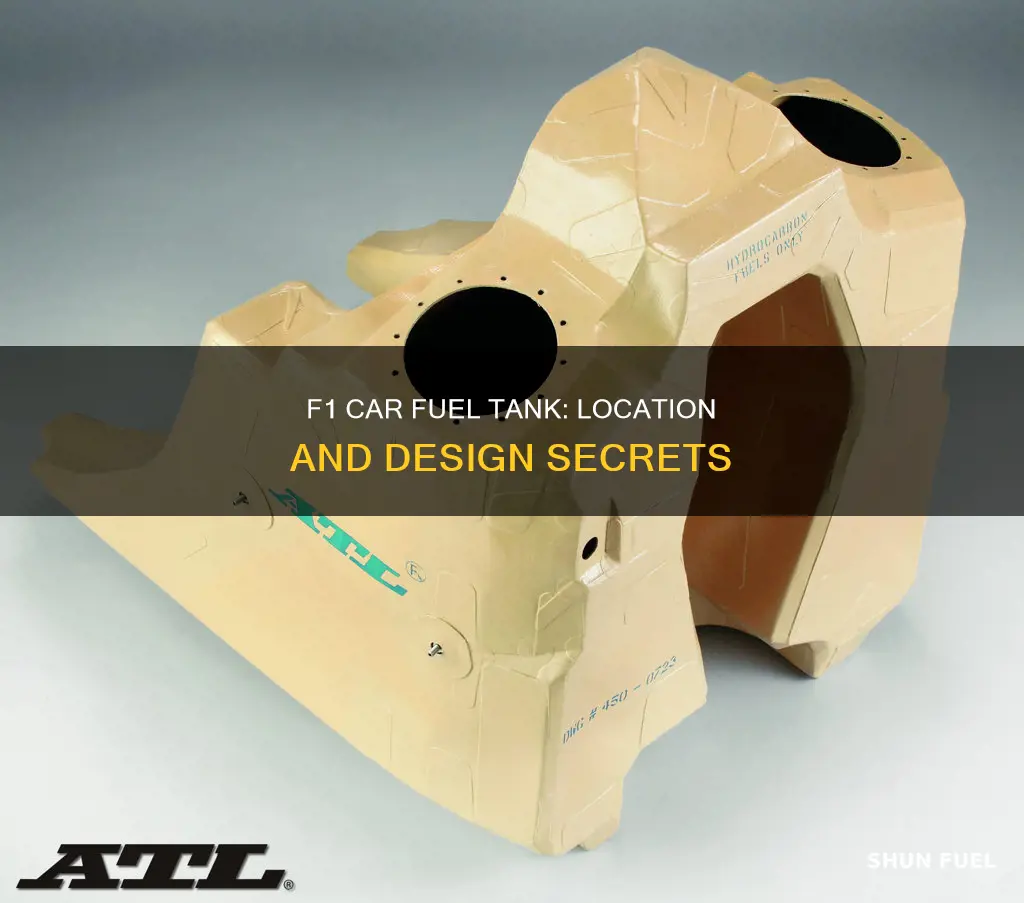

F1 fuel tanks are made of a single puncture-proof bladder composed of military-grade ballistic material Kevlar, reinforced with rubber. The bladder is flexible and must fit the profile of the monocoque. The bladder is placed inside the monocoque of the car, well protected within a sort of box made of several layers of composite material. The fuel system is designed to recover fuel from the tank and increase and regulate pressure by means of a sophisticated mechanical pump. The tank contains a number of low-pressure electrically powered “lift pumps”, typically 3 or 4 of them, positioned to suck up fuel from the tank corners. The fuel must be delivered to the injectors at the correct pressure so the quantity injected can be accurately metered.
The fuel tanks are designed to withstand the extreme conditions of high-speed racing and potential crash impacts. The FIA has set stringent regulations to ensure the safety of the fuel tanks. These regulations include the use of multiple fuel flow meters to monitor the amount of fuel being used and to detect any anomalies that might indicate a leak or other issues. The hoses feeding fuel to the engine are equipped with dry-break frangible couplings so that if the engine and chassis become separated in an accident, fuel cannot leak from the broken hose.
The manufacturing process of the fuel tank is complex and involves numerous internal baffles and fuel collection chambers. About 80% of the fabrication process is done by hand, with technicians making more than 100 folds and installing joints, inserts, and reinforcements. The bladder has a predetermined life expectancy. Once this "mileage" is reached, each bladder is stripped of its internal components, tested for possible leaks, and carefully inspected.
The Thrill of Top Fuel Funny Cars Explained
You may want to see also
Explore related products
Fuel tank location
The location of the fuel tank in an F1 car is a crucial aspect of its design, with safety, space optimisation, and performance all being key considerations. The fuel tank in an F1 car is located in the centre of the vehicle, between the driver's seat and the engine. This placement is strategically chosen to keep the tank away from the red-hot exhaust pipes, brakes, and engine, reducing the risk of fires in the event of a crash.
Historically, F1 fuel tanks were made of aluminium and positioned behind the cockpit, with fuel lines running past the driver to the engine. This design posed safety hazards, as ruptures and fuel spillage during accidents could easily lead to fires. In the 1970s, the introduction of flexible fuel cells, or bladders, revolutionised F1 car safety. These bladders are now mandatory and are designed to be virtually indestructible, even in high-impact crashes.
The fuel bladder in modern F1 cars is carefully crafted by hand, with technicians making over 100 folds and installing joints, inserts, and reinforcements. It is made of military-grade ballistic material, such as Kevlar, reinforced with rubber, to create a strong composite structure. This design ensures that the bladder can withstand the extreme conditions of high-speed racing and protect the fuel from igniting during accidents.
The bladder is placed inside the monocoque of the car, well-protected within a box made of several layers of composite material. This flexible bladder conforms to the shape of the monocoque, allowing for efficient space utilisation. The position of the tank, between the engine and the driver, also influences its unconventional shape. The bladder is designed to hold approximately 160 kilograms of fuel, enough to last the entire race, and represents about 1% of the car's total weight.
The fuel system in an F1 car plays a crucial role in recovering fuel from the tank and regulating pressure through the use of mechanical pumps and lift pumps. The system is designed to deliver fuel at the correct pressure and optimise combustion for enhanced engine performance. The hoses feeding fuel to the engine are equipped with dry-break frangible couplings, preventing fuel leaks and mitigating fire risks in the event of a crash.
Finding the Right Fuel Injector for Your Car
You may want to see also
Explore related products
Fuel system
The fuel system in F1 cars is a complex piece of technology that has undergone significant changes over the years to improve safety, performance, and sustainability. The system is comprised of two main components: the fuel tank and the fuel pump system.
Fuel Tank
Historically, F1 fuel tanks were made of metal and placed wherever they could fit, often behind the cockpit or on the sides. However, these tanks were prone to rupturing during accidents, leading to fuel spillage and fires. To address this, the Fédération Internationale de l’Automobile (FIA) introduced mandatory flexible fuel tanks, also known as fuel cells or bladders, in 1970. These bladders are made of military-grade ballistic material, such as Kevlar, and are housed within a strong composite structure. They are designed to be puncture-proof and practically indestructible, even during accidents, to prevent fuel leakage and reduce the risk of fires. The position of the tank has also evolved, with modern F1 cars placing the bladder between the engine and the driver.
Fuel Pump System
The fuel pump system is responsible for delivering fuel from the tank to the engine. It consists of an array of pumps, including lift pumps and a main fuel pump, that work together to increase and regulate fuel pressure. The system also includes injectors, which are precision electro-mechanical solenoid valves controlled by the Standard Electronic Control Unit (SECU). These injectors deliver fuel at high pressure into the intake air, optimizing cylinder filling and mixture preparation for efficient combustion and improved engine performance.
Safety and Sustainability
FIA has implemented stringent regulations to ensure the safety of F1 fuel tanks and systems. These regulations include the use of multiple fuel flow meters to monitor fuel usage and detect leaks, non-return valves, and anti-surge baffles to prevent excessive fuel movement during high-speed maneuvers. Additionally, FIA has committed to making F1 carbon neutral by 2030, promoting the development and use of sustainable fuels, such as synthetic and biofuels.
What Fuel Does My Car Need?
You may want to see also
Explore related products
Fuel usage
Since 1996, the Fédération Internationale de l'Automobile (FIA) has heavily regulated the fuel used in F1 cars. The regulations ensure that the fuel composition is similar to commercial fuel, consisting of a mixture of unleaded petrol and ethanol. The ethanol content was increased from 5.75% bio-components in 2021 to 10% (E10 fuel) in 2022, with an ultimate goal of achieving 100% sustainable fuel. This shift towards sustainability is a significant trend in F1, with the FIA aiming for carbon neutrality by 2030.
F1 cars are designed to be fuel-efficient, with a maximum fuel capacity of 110 kg per race since 2019. This regulation allows drivers to push their cars to the limit without worrying about conserving fuel, resulting in more intense races. The fuel system employs multiple fuel flow meters to monitor fuel usage and detect anomalies, ensuring the engine consumes no more than 100 kg per hour.
Refuelling during races has been prohibited since 2010 for safety and budget reasons, marking a significant shift in race strategy. Teams must now ensure their cars have enough fuel to last the entire race, impacting their approach to fuel management and race tactics.
The design of the fuel tank, or "fuel cell," is a critical aspect of F1 car construction. The fuel cell is a flexible bladder made of high-quality rubber lined with Kevlar, providing exceptional puncture resistance and crash protection. This design ensures that the fuel tank is practically indestructible, even in the event of accidents, significantly reducing the risk of fuel spillage and fires.
The position of the fuel tank is also carefully considered, typically located in front of the engine and behind the cockpit, sitting between the engine and the driver. This unconventional placement optimises space utilisation and contributes to the overall safety of the vehicle.
F1 cars also feature Energy Recovery Systems (ERS) that enhance fuel efficiency. The MGU-H collects wasted energy from the turbocharger, while the MGU-K recovers waste kinetic energy from the braking system. These systems contribute to F1's road relevancy, as breakthroughs in fuel efficiency can have broader societal benefits.
Using Premium Fuel: Is It Worth It for Your Car?
You may want to see also
Frequently asked questions
The fuel tank in an F1 car is located within the monocoque, behind the driver's seat, but in front of the engine.
The fuel tank is made of a single puncture-proof bladder composed of military-grade ballistic material Kevlar, reinforced with rubber.
An F1 car needs approximately 160 kg or 230 L of fuel for a single race.
Fuel tanks in F1 cars have evolved from metal tanks placed behind the cockpit to flexible, leak-proof bladders made of military-grade ballistic material. The change was made to improve safety and prevent ruptures, fuel spillage, and fires in the event of accidents.
