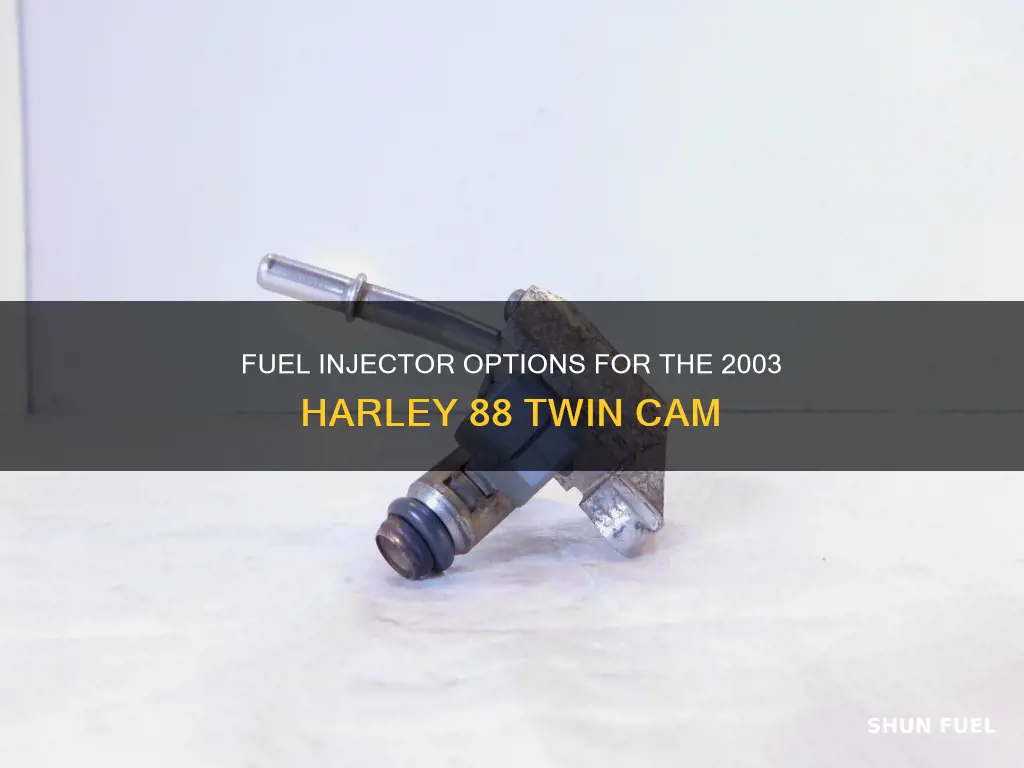

Fuel injectors are a critical component of a Harley-Davidson Twin Cam engine's performance and tuning capabilities. While the specific fuel injectors for the 2003 Harley 88 Twin Cam model are not explicitly mentioned, sources indicate that early Delphi Twin Cams had 4.3g/s brown band injectors, which were later updated to white band injectors due to low-speed fueling issues. It is important to select the right fuel injector size, as using one that is too small or too large can lead to performance and tuning problems. Aftermarket fuel injectors are available, and some Harley-Davidson models have used an assortment of injector sizes.
Explore related products
$54.88
What You'll Learn
- Fuel Moto offers high-performance custom-built fuel injectors for Harley-Davidson engines
- OEM injectors may be large enough to support mild horsepower increases without needing replacement
- Injector duty cycle is the amount of time the fuel injector is energised during an engine cycle
- Delphi Twin Cams with brown band 4.3g/s injectors are known to develop low-speed fuelling issues
- Fuel injectors are classified by their flow rate and spray pattern
Fuel Moto offers high-performance custom-built fuel injectors for Harley-Davidson engines
The Fuel Moto injectors are custom-built to spec from genuine Bosch cores and are suitable for both Milwaukee-8 and Twin Cam applications. Each injector is individually tested and flow-matched dynamically to within ±1% of listed specifications, ensuring precise fuel delivery and optimal performance.
Fuel Moto offers a range of injector sizes, including 5.3, 7.1, and 12.0, allowing you to choose the optimal injector for your specific Harley-Davidson model and performance goals. It is important to select the right injector size for your engine, as too small an injector can lead to duty cycle issues, while an overly large injector can cause low RPM drivability and tuning problems.
For example, the 4.38 injectors are suitable for stock and stage 1 applications, and can even accommodate an aftermarket camshaft up to the mid-upper 110s HP range. However, if you have a high-performance cam and exhaust setup, you may need to upgrade to larger injectors, such as the 5.5gm or 6.3gm options.
When choosing fuel injectors, it is crucial to consider the duty cycle, which refers to the amount of time the injector is energised during an engine cycle. Harley-Davidson engines can typically handle a duty cycle of up to 90% without issues, providing better injector control at lower RPMs.
Lucas Fuel Injector Cleaner: Top-Tier Gas Alternative?
You may want to see also
Explore related products
OEM injectors may be large enough to support mild horsepower increases without needing replacement
When it comes to the fuel injectors for your Harley-Davidson Twin Cam engine, making the right choice is crucial for both performance and tuning ease. While larger fuel injectors do not directly translate to more horsepower, they are necessary to support horsepower levels beyond the capacity of the stock injector.
The Original Equipment Manufacturer (OEM) injectors in some applications are large enough to accommodate mild to moderate horsepower increases without requiring replacement. Harley-Davidson has utilised a range of injector sizes, and in certain cases, these OEM injectors can support minor upgrades like an aftermarket camshaft. However, for higher power levels, larger injectors become a necessity.
The specific fuel injectors for your 2003 Harley-Davidson 88 Twin Cam engine will depend on the exact specifications and requirements of your motorcycle. The 4.38 injectors, for instance, are suitable for stock and stage 1 applications, and they can even work with an aftermarket camshaft up to the mid-upper 110s HP range. If you have more substantial upgrades, such as a top-performing cam and exhaust, transitioning to 5.5gm injectors is recommended.
It's important to remember that injector sizing plays a critical role. Injectors that are too small can lead to duty cycle issues, resulting in a loss of fuel control. On the other hand, overly large injectors can cause low RPM drivability and tuning challenges due to reduced resolution during tuning at low duty cycles. The duty cycle of an injector refers to the proportion of time it is energised during an engine cycle, and it's influenced by the injector pulse width and specific RPM.
While the OEM injectors may suffice for mild horsepower enhancements, it's always recommended to consult reliable sources and professionals for specific advice regarding your 2003 Harley-Davidson 88 Twin Cam. They can provide guidance tailored to your unique combination of engine specifications and modifications.
Securing Fuel Injectors: Preventing Engine Issues and Ensuring Performance
You may want to see also
Explore related products
Injector duty cycle is the amount of time the fuel injector is energised during an engine cycle
Fuel injectors are a critical aspect of the performance and ease of tuning of your Harley Davidson Twin Cam engine. The 2003 Harley 88 Twin Cam model comes with 4.38 injectors, which work well in stock and stage 1 applications. These injectors can also be used with an aftermarket camshaft up to about the mid to upper 110s HP range.
Now, let's delve into the concept of injector duty cycle, which is crucial for understanding the performance of your fuel injectors. Injector duty cycle refers to the amount of time a fuel injector is energised or activated during an engine cycle. An engine cycle consists of four stages: intake, compression, combustion, and exhaust. For a four-stroke engine, completing a cycle requires two complete rotations of the crankshaft.
The injector duty cycle is calculated based on the engine's revolutions per minute (RPM). By dividing the RPM by 60, we can determine the revolutions per second. Subsequently, dividing this value by two gives us the cycles per second. This calculation helps us establish the time available between injector pulses.
The injector duty cycle is then computed using the formula: IDC = PW/Period, where PW represents the pulse width or the length of each pulse, and Period is the time available between injector pulses. The pulse width is measured in milliseconds and plays a crucial role in determining the injector's behaviour.
It's important to note that the injector duty cycle should typically not exceed 80% in a running engine. Maintaining this range ensures that the injector can effectively control fuel delivery. Going beyond 80% can lead to potential issues with fuel control and engine performance.
By understanding the injector duty cycle and its calculations, you can optimise the performance of your fuel injectors in your 2003 Harley 88 Twin Cam.
Flex Fuel Vehicle Maintenance: Injector Cleaner Solution
You may want to see also
Explore related products
$29.29 $49.95
Delphi Twin Cams with brown band 4.3g/s injectors are known to develop low-speed fuelling issues
The Delphi Twin Cams with brown band 4.3g/s injectors are known to develop low-speed fuelling issues. This problem was discovered around 2004, and there is now an updated version of the injector with a white band. The brown band injectors have a fuel delivery rate of 4.3gps (33.3lbs/h) and are a direct stock replacement. They are sold in pairs and are compatible with various Harley models, including Dyna, FL Touring, Softail, Sportster, and Tri-Glide.
It is important to select the appropriate fuel injectors for your Harley-Davidson Twin Cam engine to ensure optimal performance and tuning ease. The right injectors will depend on the specific model and engine specifications. For example, the 4.38 injectors work well for stock and stage 1 applications and can be used with an aftermarket camshaft up to the mid-upper 110s HP range. However, if you have a high-performance cam and exhaust, you may need to upgrade to larger injectors, such as the 5.5gm or 6.3gm injectors.
It is worth noting that simply increasing the size of the fuel injectors will not directly result in more horsepower. However, larger injectors are necessary to support additional horsepower beyond what the stock injectors can handle. Harley-Davidson has utilised various injector sizes, and in some cases, the OEM injectors can support mild to moderate horsepower increases without requiring replacement.
To ensure proper injector sizing, it is crucial to consider the duty cycle, which refers to the amount of time the fuel injector is energised during an engine cycle. Using injectors that are too small can lead to running out of duty cycle and losing fuel control. On the other hand, using overly large injectors can cause low RPM drivability and tuning issues due to losing resolution at an excessively low duty cycle. Therefore, it is recommended to consult resources such as charts or specialists to determine the optimal injector size based on your specific Harley-Davidson Twin Cam model's rear wheel horsepower.
Testing Fuel Injectors: A Guide for Ship Main Engines
You may want to see also
Explore related products
$71.99 $78.99
Fuel injectors are classified by their flow rate and spray pattern
Fuel injectors are critical components of an engine's performance and tunability. The selection of the right fuel injectors for a Harley-Davidson Twin Cam engine is essential, as it impacts performance and ease of tuning. Fuel injectors are classified and selected based on their flow rate and spray pattern, which are determined by factors such as duty cycle, fuel pressure, and injector design.
The flow rate of a fuel injector refers to the amount of fuel it delivers over a specific period, typically measured in lbs/hr for domestic cars and cc's for imports. Injectors with higher flow rates can deliver more fuel in a given time, and are often chosen for high-performance applications. The duty cycle, or the percentage of time the injector is open, plays a crucial role in determining the flow rate. For example, a performance vehicle at a drag strip may operate at a 100% duty cycle, keeping the injectors constantly open, while at idle, the duty cycle may drop to 20%.
The spray pattern of a fuel injector dictates where the fuel goes. Some injectors produce a wide-angle, conical, or diffused spray pattern for optimal atomization, burn efficiency, and power. This type of spray pattern is designed to ensure that the fuel is delivered cleanly into the combustion chambers. On the other hand, some injectors are designed to deliver a narrower spray pattern to prevent the fuel from hitting and condensing on the intake and cylinder walls. The spray cone angle and the fuel droplet size influence the spray pattern, with smaller droplets being more easily manoeuvrable and burning more efficiently.
Additionally, the geometry and design of the injector nozzles play a significant role in the spray pattern and overall engine performance. The number, length, and diameter of the orifices, as well as the nozzle sac diameter and needle seat angle, all contribute to the efficiency of the injector. For diesel engines, the hole diameter is considered the most critical geometrical factor.
When choosing fuel injectors for a Harley-Davidson Twin Cam engine, it is important to consider the specific requirements of the engine and the desired performance outcomes. The stock injectors in a Twin Cam engine are typically in the range of 4.35 to 4.38 gm and can support mild to moderate horsepower increases. However, for higher power levels or when installing a big bore kit, larger injectors, such as the 5.5gm or 6.3gm injectors, may be necessary. It is also worth noting that simply increasing the size of the injectors does not directly translate to more horsepower, but rather, they are essential to support additional horsepower beyond what the stock injector can deliver.
Understanding Fuel Injector Solenoids: How Do They Work?
You may want to see also
Frequently asked questions
The 2003 Harley 88 Twin Cam came with Delphi 4.3g/s fuel injectors with a brown band. These injectors were known to develop low-speed fueling issues, so an updated version with a white band was released.
The brown band fuel injectors were known to develop low-speed fueling issues and were replaced by updated white band fuel injectors.
Using the correct fuel injector size is critical for performance and tunability. Injectors that are too small can run out of duty cycle, resulting in a loss of fuel control. Injectors that are too large can cause low RPM drivability and tuning issues.
Fuel Moto offers high-performance fuel injectors custom-built for Harley-Davidson engines. You can also find fuel injectors and fuel injector kits on eBay and other online retailers.
