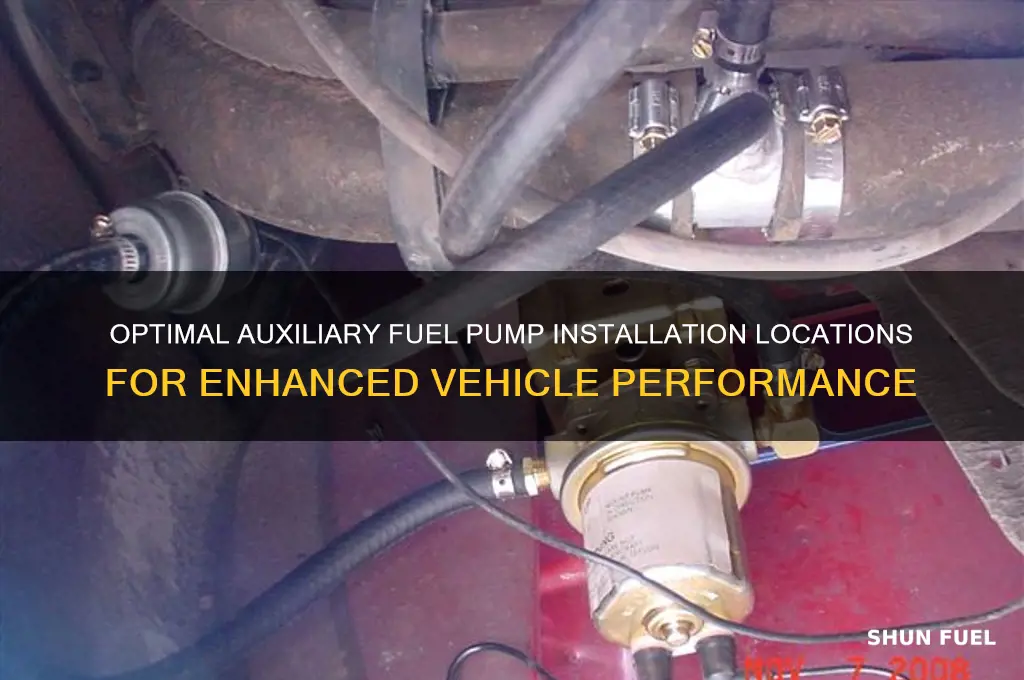

Installing an auxiliary fuel pump is a common modification for vehicles that require additional fuel delivery, such as high-performance engines, off-road vehicles, or those with fuel system upgrades. The ideal location for installation depends on the vehicle's design and the pump's purpose. Typically, an auxiliary fuel pump is installed in-line between the main fuel tank and the engine, often near the fuel filter or within the fuel line to ensure consistent pressure and flow. For lifted vehicles or those prone to fuel starvation during extreme angles, mounting the pump close to the fuel tank can help maintain a steady supply. It’s crucial to ensure the pump is securely mounted, protected from heat and debris, and wired to a reliable power source, often with a relay to prevent electrical issues. Always consult the vehicle’s manual or a professional to ensure compatibility and safety.
| Characteristics | Values |
|---|---|
| Location | Typically installed in the fuel tank or along the fuel line. |
| Purpose | Boosts fuel pressure, ensures consistent fuel delivery, and prevents fuel starvation. |
| Compatibility | Must be compatible with the vehicle's fuel system (e.g., EFI or carbureted). |
| Power Source | Usually powered by the vehicle's electrical system (12V or 24V). |
| Installation Position | Often mounted near the fuel tank or in the engine bay for easy access. |
| Fuel Type | Compatible with gasoline, diesel, or ethanol-blended fuels. |
| Flow Rate | Varies based on vehicle requirements, typically 30-100 liters per hour. |
| Pressure Rating | Matches or exceeds the vehicle's OEM fuel pressure specifications. |
| Material | Constructed from durable materials like aluminum or stainless steel. |
| Wiring | Requires proper grounding and relay wiring to prevent electrical issues. |
| Safety Considerations | Must be installed away from heat sources and with proper fuel line seals. |
| Maintenance | Regularly check for leaks, clogs, and electrical connections. |
| Legal Compliance | Ensure installation meets local vehicle modification regulations. |
| Additional Components | May require a fuel pressure regulator, filter, or check valve. |
| Cost | Varies by brand and specifications, typically $50–$200. |
| DIY vs Professional Installation | Can be DIY with basic tools, but professional installation recommended for complex systems. |
Explore related products
What You'll Learn
- Engine Bay Installation: Mounting the pump near the fuel tank for direct fuel line access
- Trunk Placement: Installing the pump in the trunk for rear-mounted fuel tank setups
- Underbody Mounting: Securing the pump beneath the vehicle for space optimization and safety
- Cabinet Integration: Placing the pump inside a custom cabinet for indoor or mobile use
- Fuel Cell Adjacency: Installing the pump directly beside a racing fuel cell for high-performance setups
Engine Bay Installation: Mounting the pump near the fuel tank for direct fuel line access
Mounting an auxiliary fuel pump in the engine bay near the fuel tank offers direct fuel line access, minimizing the need for extensive plumbing modifications. This setup is particularly advantageous in performance vehicles where fuel demand exceeds the stock pump’s capacity. By placing the pump close to the tank, you reduce the risk of fuel starvation during hard acceleration or high-G maneuvers, as gravity assists in maintaining consistent fuel flow. This installation method is also ideal for vehicles with in-tank pumps that cannot be upgraded or accessed easily, such as in older models or compact designs.
To execute this installation, begin by identifying a secure mounting location in the engine bay that is within 12–18 inches of the fuel tank. Use a pump with a flow rate compatible with your engine’s requirements—typically 30–60 gallons per hour (GPH) for naturally aspirated engines and 100+ GPH for turbocharged or supercharged setups. Ensure the pump is mounted on a vibration-dampening pad to prevent premature wear. Connect the pump directly to the fuel tank using a high-pressure fuel line rated for ethanol blends if applicable. Avoid sharp bends in the line to maintain optimal flow.
A critical consideration is electrical wiring. Run a dedicated 10–12 gauge wire from the pump to a relay near the battery, ensuring it’s fused at 20–30 amps for safety. Ground the pump securely to the chassis to prevent voltage drops. If using a PWM (Pulse Width Modulation) controller, mount it near the pump to reduce signal interference. Test the system for leaks and proper operation before driving, using a fuel pressure gauge to verify the pump delivers the required 40–60 PSI, depending on your fuel injection system.
While this setup is efficient, it’s not without challenges. Heat from the engine bay can affect pump performance, so consider adding a heat shield or choosing a pump designed for high-temperature environments. Additionally, ensure the pump is mounted above the fuel tank’s lowest point to prevent air pockets. For vehicles with return-style fuel systems, install a check valve to prevent backflow. This method, though more complex than in-tank installations, provides a reliable solution for boosting fuel delivery without tank modifications.
In summary, engine bay installation near the fuel tank is a strategic choice for direct fuel line access and improved performance. By following precise mounting, wiring, and safety protocols, you can achieve a robust auxiliary fuel system tailored to high-demand applications. This approach balances accessibility and functionality, making it a preferred option for enthusiasts seeking to upgrade their vehicle’s fuel delivery without extensive tank alterations.
