If you're wondering where the fuel injectors are on your 1996 Toyota Pickup, it's important to understand their function and the potential issues they can cause if they malfunction. Fuel injectors are fuel metering devices that spray atomized fuel droplets into the engine's intake manifold or combustion chamber. They are connected to a fuel rail, which is supplied with fuel from the fuel pump located in the fuel tank. If your Toyota Pickup is experiencing poor engine performance, such as rough idle, loss of power, or misfiring, it could be due to issues with the fuel injection system, including the fuel injectors. Fuel injectors can malfunction and cause performance issues, and in some cases, you may notice an odour of raw gas or visible leaks, indicating a leaking fuel injector. Regular servicing and replacement of fuel injectors are necessary to ensure optimal engine performance and avoid potential fire hazards.
| Characteristics | Values |
|---|---|
| Fuel Injector Replacement Cost | Between $1,331 and $1,791 |
| Fuel Injector Failure Mileage | 80,000 miles |
| Fuel Injector Function | Regulate the amount of pressurized fuel used for each engine cycle |
| Fuel Injector Cleaning | On-car cleaning is less effective than off-the-car cleaning |
| Fuel Injector Replacement | Requires removing many engine components, draining coolant and oil, and replacing the intake manifold gasket |
| Fuel Injector Symptoms | Rough idle, loss of power, misfiring, reduced engine power, engine stalling, vibrating, loss of acceleration, smoking from the tailpipe, drop in fuel economy |
| Fuel Injector Part Number | 23209-35040 2325035040 T194-4 |
| Fuel Injector Design | Metal and composite plastic |
| Fuel Injector Compatibility | Toyota 4Runner (1989-1995), Toyota Pickup (1989-1995), Toyota T100 (1993-1994) |
Explore related products
What You'll Learn
- XtremeAmazing offers a set of four fuel injectors for the Toyota Pickup 1989-1995
- Fuel injectors regulate the amount of fuel used for each engine cycle
- Fuel injectors are connected to a fuel rail on top of the engine
- Fuel injectors should be replaced if there is an external leak
- Fuel injector replacement costs for the Toyota Pickup range from $1,331 to $1,791

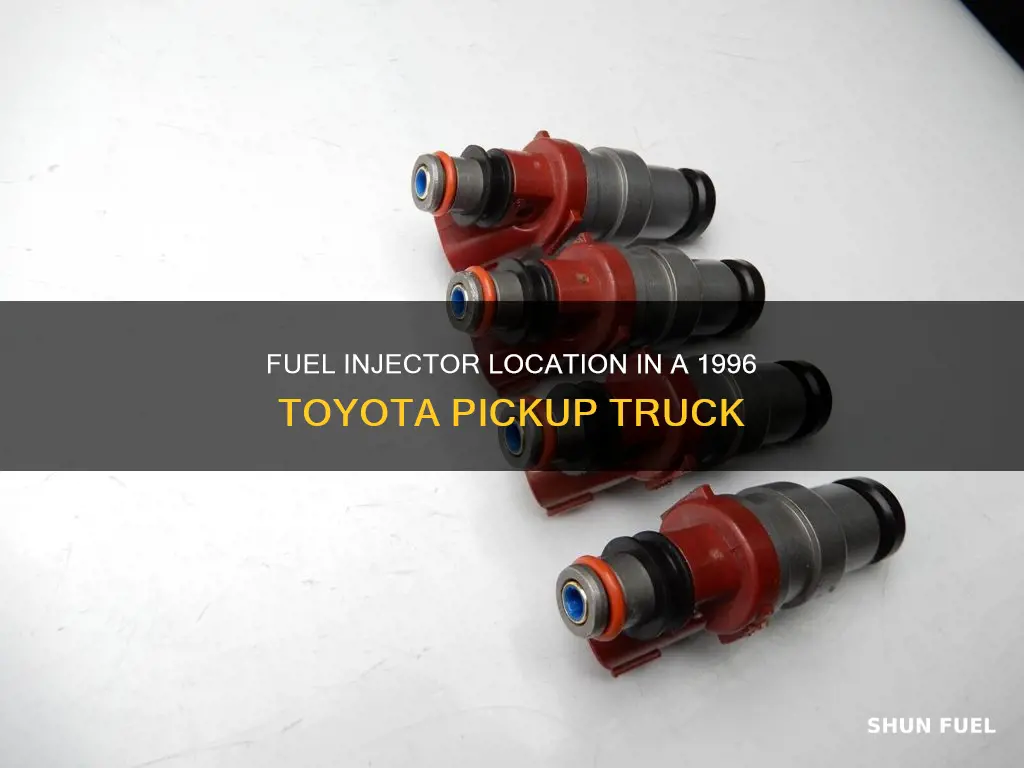

XtremeAmazing offers a set of four fuel injectors for the Toyota Pickup 1989-1995
The XtremeAmazing fuel injectors are designed to replace the original injectors in your Toyota Pickup, improving its performance and fuel efficiency. These injectors feature a metal and composite plastic design with a plug-and-play connector type, making them easy to install. They also come with pre-installed O-rings, ensuring a secure and leak-proof connection.
One of the standout features of these fuel injectors is the upgraded four-hole disc fuel delivery nozzle, which provides superior fuel atomisation. This results in a more efficient and complete combustion process, enhancing your vehicle's power and fuel economy. The basket filter design at the inlet further contributes to the efficient fuel delivery system by capturing any impurities before they can enter the engine.
If you're considering purchasing these fuel injectors, it's important to note that they are specifically designed for the Toyota Pickup models manufactured between 1989 and 1995. While they are compatible with various Toyota vehicles, always verify the compatibility with your vehicle's make, model, and year before purchasing. Additionally, it is recommended to refer to the pictures provided by the seller to ensure proper fitment.
Green Fuel Injector O-Rings: What Do They Mean?
You may want to see also
Explore related products
Fuel injectors regulate the amount of fuel used for each engine cycle
Fuel injectors are an essential component of modern automotive engines, playing a crucial role in regulating fuel delivery to the engine. The amount of fuel supplied to the engine is directly related to the duration the fuel injector remains open, known as the "pulse width". This pulse width is adjusted according to the engine's requirements, ensuring that the correct amount of fuel is injected with each cycle.
The fuel injector itself is a sophisticated valve system, supplied with pressurised fuel by the fuel pump. This fuel pump operates at a high pressure of around 6 bar, providing a consistent and regulated fuel supply to the injectors. The fuel injector then releases this pressurised fuel through a tiny nozzle, atomising it into a fine mist that can be easily burned. This atomisation process is a key advantage of fuel injectors over carburetors, which rely on suction from intake air.
The engine control unit (ECU) is the brains behind the operation, ensuring precise fuel metering and control. Sensors within the system monitor the mass of air entering the engine and the oxygen content in the exhaust. This information is relayed to the ECU, which adjusts the fuel consumption and delivery in real-time, optimising the air-to-fuel ratio. This closed-loop control system is a significant improvement over carburetors, enabling stricter emissions requirements to be met.
In a typical setup, the fuel injectors are connected to the fuel rail, which distributes fuel to each injector. The fuel rail receives fuel from the fuel pump located in the fuel tank, and a pressure regulator ensures that the fuel pressure remains constant. This constant pressure is crucial as variations can impact the quantity of fuel injected, affecting engine performance.
While fuel injectors have revolutionized fuel delivery in automotive engines, they are not without their maintenance needs. Over time, fuel injectors can become dirty or clogged, leading to potential performance issues. Regular cleaning and servicing of the injectors are recommended to prevent such problems. Additionally, fuel injectors should be monitored for any signs of external leaks, as fuel leaks can pose a fire hazard.
Fuel Injector Cleaning: Necessary Maintenance or Unneeded Expense?
You may want to see also
Explore related products
Fuel injectors are connected to a fuel rail on top of the engine
Fuel injectors are connected to a fuel rail located on top of the engine. The fuel rail is supplied with fuel under pressure from the fuel pump, which is located in the fuel tank. When replacing a fuel injector, the fuel rail is removed by first relieving the pressure within it by briefly running the engine with the fuel pump fuse out. The electrical connectors to each fuel injector are then unlocked and removed, and the fuel rail is unbolted from the intake manifold.
The fuel injector itself is then removed from the fuel rail, taking care to prevent any debris from entering the exposed openings. It is important to note that the "O-rings", or small rubber pieces at the end of each injector, should be changed to avoid the possibility of a fuel leak. The new fuel injector is then installed in the reverse order, connecting the fuel rail to the intake manifold, securing the electrical connectors, and finally, reconnecting the fuel pump fuse.
The fuel injector has a solenoid and valve within, and the operation of the solenoid is controlled by the powertrain control module (PCM). The PCM controls the solenoid's "on" time to maintain the optimal air-fuel ratio as the engine load and operating conditions change. Faults in the fuel injection system, including the fuel injectors, can cause issues such as rough idle, loss of power, or misfiring.
Servicing of the fuel injectors can be performed once they are removed from the car. However, this requires specialized cleaning and test equipment. It is recommended to replace the fuel injectors with high-quality, OEM parts to ensure even power distribution across the engine and a proper air-fuel mixture for all cylinders, resulting in a smoother ride.
Fuel PSI Requirements for Ford 42lb Injectors
You may want to see also
Explore related products
Fuel injectors should be replaced if there is an external leak
Fuel injectors are a crucial component of your Toyota Pickup's engine, and their proper functioning is essential for optimal performance. While the multiport fuel injection system used by Toyota in the 1990s has earned a reputation for being relatively trouble-free, issues with fuel injectors can still arise, especially in older, high-mileage vehicles.
One issue that may occur is an external fuel leak from a faulty injector. If you notice any signs of a fuel leak, such as the smell of raw gas or visible fuel around your car, it is crucial to take immediate action. Firstly, do not start your car, as a leaking fuel injector poses a serious fire hazard. Instead, have the car towed to a safe location, preferably an auto repair shop, to diagnose and address the issue.
In some cases, the root cause of the external leak may be a damaged O-ring, which can be replaced without the need to replace the entire fuel injector. O-rings are relatively inexpensive and can be purchased from automotive dealers. Coating the O-ring with a small amount of Vaseline or engine oil during installation can help prevent damage and ensure a proper seal.
However, if the fuel injector itself is cracked or broken, replacement is necessary. Fuel injectors can be serviced or replaced once removed from the car. Specialized cleaning and testing equipment may be required for servicing. The choice between repairing and replacing the injector will depend on the specific issue, the extent of the damage, and customer preference.
To replace a fuel injector, the engine must first be allowed to cool down. Then, the pressure within the fuel rail is relieved by briefly running the engine with the fuel pump fuse removed. The upper plenum and any cables, hoses, or wiring restricting access are removed, followed by the supply and return lines from the fuel rail. The electrical connectors to the fuel injector are then unlocked and removed, and the fuel rail is unbolted from the intake manifold. Finally, the faulty injector is removed from the fuel rail, taking care to prevent any debris from entering the exposed openings. A new injector can then be installed, and the removal process is followed in reverse to reassemble the components.
Fuel Injector Upgrade: Stock WRX Bigger Injectors – Worth It?
You may want to see also
Explore related products
Fuel injector replacement costs for the Toyota Pickup range from $1,331 to $1,791
It is important to note that fuel injectors should not be leaking fuel into the intake manifold when the car is turned off. If you notice any fuel odour around your car, a leaking fuel injector may be the cause. In this case, do not start your car due to the fire hazard. Some fuel injection failures, such as a faulty solenoid, can cause a trouble code to be set in the PCM, which will illuminate the check engine light. The codes can then be read, and the fuel injector is tested directly to identify the issue.
The choice to repair or replace a fuel injector will depend on the specific issue with the injector, as well as customer preference. Fuel injectors can be serviced once removed from the car, and specialized cleaning and test equipment are required for this process. On the other hand, replacing a fuel injector will involve purchasing a new injector and installing it in the fuel rail. This process typically costs around $450, but prices can vary depending on the mechanic and the specific model of the car.
It is worth noting that some Toyota Pickup owners have reported being quoted prices as high as $750 for injector replacement, which some consider excessive. Additionally, there are DIY options for those who have the tools and a place to work on their car, which can bring the cost down to less than $200. Overall, the cost of fuel injector replacement or service for a Toyota Pickup can vary depending on the specific issue, the mechanic, and the customer's preferences.
Fuel Injectors: Bigger Pump Needed for Larger Injectors?
You may want to see also
Frequently asked questions
You can find fuel injectors for your 1996 Toyota Pickup on Amazon, eBay, and AutoZone.
There are a few signs that indicate your fuel injectors need to be replaced or serviced. These include:
- A strong fuel odour around your car
- Rough idle, loss of power, or misfiring
- Smoking from the tailpipe
- Poor fuel economy
- Check engine light is on
Fuel injectors spray atomized droplets of fuel in a specific pattern into the engine's intake manifold or directly into the combustion chamber. They are controlled by the powertrain control module (PCM), which optimizes the air-fuel ratio.
The process for replacing fuel injectors involves the following steps:
- Relieve pressure in the fuel rail by running the engine briefly with the fuel pump fuse out.
- Remove the upper plenum and any cables, hoses, or wiring that restricts access.
- Disconnect the supply and return lines from the fuel rail.
- Unlock and remove the electrical connectors to the fuel injectors.
- Unbolt the fuel rail from the intake manifold.
- Remove the fuel injectors from the fuel rail, being careful not to let debris enter the openings.
