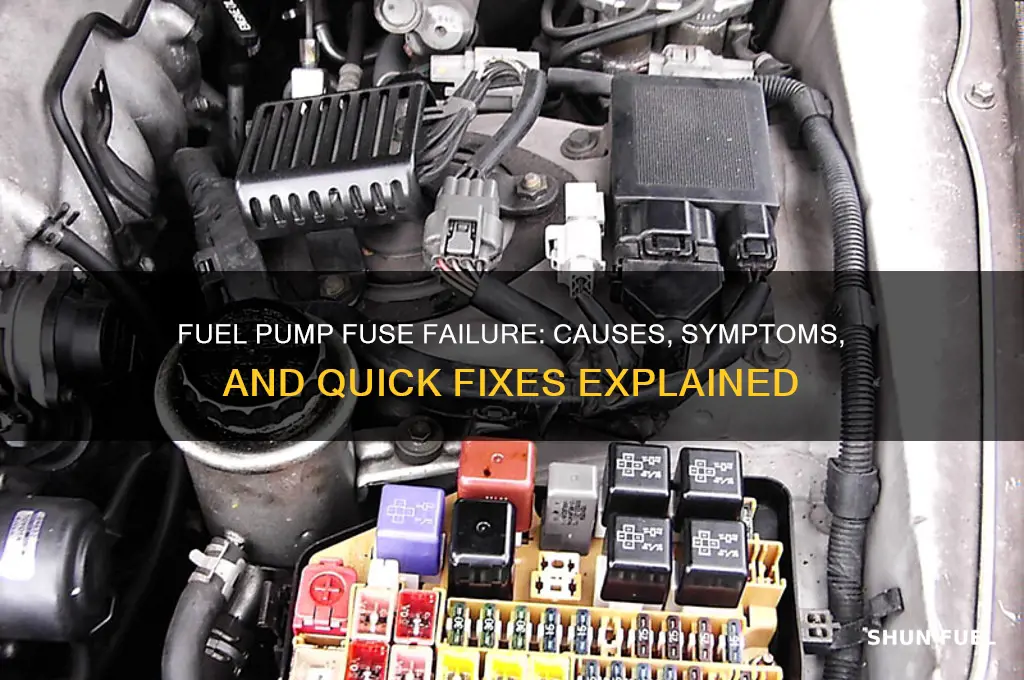

When the fuse for the fuel pump goes out, it can cause a vehicle to stall or fail to start altogether, as the fuel pump is responsible for delivering fuel from the tank to the engine. This issue often manifests as a sudden loss of power or difficulty starting the engine, accompanied by symptoms like sputtering or a complete lack of response when the ignition is turned. Identifying a blown fuse typically involves checking the fuse box, usually located under the dashboard or in the engine compartment, and looking for a broken or discolored fuse. Replacing the fuse is a straightforward fix, but if the problem persists, it may indicate a deeper electrical issue, such as a faulty fuel pump relay or wiring problem, requiring further diagnosis by a professional mechanic.
| Characteristics | Values |
|---|---|
| Symptoms | Engine stalls, difficulty starting, no start condition, loss of power. |
| Common Causes | Blown fuse, electrical short, faulty fuel pump, wiring issues. |
| Fuse Location | Typically found in the fuse box under the hood or near the driver's side dashboard. |
| Fuse Rating | Varies by vehicle (commonly 10-20 amps). |
| Diagnostic Steps | Check fuse for continuity, inspect wiring, test fuel pump relay. |
| Repair Solutions | Replace blown fuse, fix wiring issues, replace faulty fuel pump or relay. |
| Prevention Tips | Regularly inspect electrical system, avoid overloading circuits. |
| Related Components | Fuel pump relay, fuel pump, wiring harness, ECU. |
| Impact on Vehicle | Immediate drivability issues, potential engine damage if ignored. |
| DIY Difficulty | Moderate (requires basic electrical knowledge and tools). |
Explore related products
What You'll Learn
Symptoms of a blown fuel pump fuse
A blown fuel pump fuse can cripple your vehicle, leaving you stranded if not addressed promptly. One of the most immediate symptoms is a complete loss of engine power, often accompanied by a sputtering sound as the engine starves for fuel. This occurs because the fuel pump, responsible for delivering fuel from the tank to the engine, ceases to function without power from the fuse. If your car stalls abruptly and refuses to restart, check the fuel pump fuse first.
Another telltale sign is the absence of fuel pressure. Use a fuel pressure gauge to test the system; if the gauge reads zero, the fuel pump is likely not operating. This symptom often overlaps with a blown fuse, as the pump relies on the fuse to activate. However, low fuel pressure can also indicate other issues, such as a failing pump or clogged fuel filter, so further diagnosis is necessary. Always ensure safety by relieving fuel system pressure before testing.
Modern vehicles often provide diagnostic clues through the check engine light. If the fuel pump fuse blows, the engine control unit (ECU) may detect the disruption and trigger the light. While this symptom is less specific than others, it serves as an early warning. Use an OBD-II scanner to retrieve error codes, which can pinpoint the issue to the fuel pump circuit. Codes like P0087 (low fuel pressure) or P0191 (fuel rail pressure sensor circuit) often accompany a blown fuse.
Lastly, listen for unusual noises from the fuel tank area. A functioning fuel pump emits a faint humming sound when the ignition is turned on. If this sound is absent, the pump may not be receiving power due to a blown fuse. However, silence could also indicate a failed pump, so combine this observation with other symptoms for accuracy. Always inspect the fuse box for visible damage, such as a broken or discolored fuse, before replacing components.
2005 Expedition Fuel Pump Relay Location: A Quick Guide
You may want to see also
Explore related products
Common causes of fuel pump fuse failure
A blown fuel pump fuse can leave you stranded, often with little warning. Understanding the common culprits behind this failure is crucial for prevention and swift diagnosis. One primary cause is an electrical overload, typically stemming from a short circuit within the fuel pump system. This can occur due to damaged wiring, a faulty fuel pump, or even a malfunctioning fuel pump relay. When the electrical current exceeds the fuse's rating, it blows to protect the circuit, cutting power to the fuel pump and leaving your engine starved for fuel.
Another frequent offender is corrosion and poor connections. Over time, moisture and dirt can accumulate around the fuse box, leading to corrosion on the fuse terminals. This corrosion increases resistance in the circuit, causing heat buildup and potentially melting the fuse. Regular inspection and cleaning of the fuse box, especially in older vehicles, can mitigate this risk. Ensuring secure connections and using dielectric grease can further prevent moisture-related issues.
Age and wear also play a significant role in fuse failure. Fuses, like all components, degrade over time. The metal strip inside the fuse can weaken, making it more susceptible to blowing under normal operating conditions. Additionally, frequent exposure to high temperatures under the hood can accelerate this degradation. Replacing fuses as part of routine maintenance, especially if they show signs of discoloration or damage, can prevent unexpected failures.
Lastly, improper fuse replacement is a common yet avoidable cause. Using a fuse with the wrong amperage rating can lead to immediate or premature failure. Always replace a blown fuse with one of the correct rating, as specified in your vehicle’s manual. Using a higher-rated fuse as a temporary fix is dangerous, as it defeats the protective purpose of the fuse, potentially causing severe electrical damage or fire.
By addressing these common causes—electrical overloads, corrosion, age, and improper replacement—you can significantly reduce the likelihood of a fuel pump fuse failure. Regular inspections, proper maintenance, and adherence to manufacturer guidelines are key to keeping your vehicle’s fuel system reliable.
Heat Pumps vs. Dual Fuel Systems: Efficiency, Cost, and Performance Compared
You may want to see also
Explore related products
Steps to replace a blown fuel pump fuse
A blown fuel pump fuse can leave you stranded, but replacing it is often a straightforward fix. Before diving into the process, it’s crucial to understand that fuses are safety devices designed to protect electrical circuits from overcurrent. If your fuel pump fuse blows, it’s a symptom of an underlying issue—whether a short circuit, faulty wiring, or a failing fuel pump. Addressing the root cause is essential, but for immediate resolution, replacing the fuse is the first step.
Step 1: Locate the Fuse Box
Start by consulting your vehicle’s manual to identify the fuse box location. Most cars have two fuse boxes: one under the hood near the battery and another inside the cabin, often beneath the dashboard or near the driver’s side door. The fuel pump fuse is typically found in the under-hood fuse box, labeled as “Fuel Pump” or “FP” on the fuse box diagram. If you’re unsure, cross-reference the diagram with the fuse’s amperage rating, usually between 15 and 20 amps.
Step 2: Inspect and Remove the Blown Fuse
Using a fuse puller or a pair of needle-nose pliers, carefully remove the suspected fuse. Inspect it for visible signs of damage, such as a broken filament or discoloration. A blown fuse is often obvious, but if it looks intact, test it with a multimeter to confirm continuity. If the fuse is indeed blown, proceed to replace it, but avoid inserting a higher-amperage fuse as a temporary fix—this can cause severe damage to the wiring harness.
Step 3: Install the New Fuse
Insert a replacement fuse of the same amperage rating. Ensure it clicks securely into place. If the new fuse blows immediately, stop and investigate further. This indicates a persistent issue, such as a short circuit or a malfunctioning fuel pump. Continuing to replace fuses without addressing the root cause can lead to fire hazards or further electrical damage.
Cautions and Practical Tips
Always work with the ignition off to prevent accidental electrical surges. If you’re uncomfortable diagnosing the issue, consult a professional mechanic. Keep a spare fuse of the correct amperage in your vehicle for emergencies. Additionally, consider testing related components like the fuel pump relay or wiring harness if the problem persists. Replacing a fuse is a temporary solution—the goal is to identify and fix the underlying problem to ensure long-term reliability.
Diagnosing Fuel Pump Issues in a 2002 Dodge Dakota
You may want to see also
Explore related products
Location of the fuel pump fuse in vehicles
The fuel pump fuse is a critical component in your vehicle's electrical system, ensuring the fuel pump operates safely by preventing electrical overloads. When this fuse blows, your engine may stall or fail to start, leaving you stranded. Locating the fuse quickly can save time and frustration, but its position varies widely across makes and models. Most vehicles house the fuel pump fuse in one of three places: the engine bay fuse box, the interior fuse box (often near the driver’s side dashboard or under the steering column), or a dedicated fuse box in the rear of the vehicle. Always consult your vehicle’s manual for precise location details, as manufacturers often provide diagrams tailored to your specific model.
Analyzing the placement of the fuel pump fuse reveals a balance between accessibility and protection. In older vehicles, the fuse is often found in the engine bay, close to the battery or main fuse box, for ease of access during maintenance. However, this location exposes it to heat, moisture, and debris, increasing the risk of corrosion or damage. Newer vehicles increasingly locate the fuse inside the cabin, shielding it from harsh conditions while keeping it within reach for troubleshooting. Some high-performance or luxury models may even use a relay or control module instead of a traditional fuse, adding complexity but enhancing reliability. Understanding these trends helps predict where to look first when diagnosing a blown fuse.
If you suspect a blown fuel pump fuse, start by identifying the correct fuse box. For engine bay fuse boxes, ensure the vehicle is off and cooled down to avoid burns or electrical shocks. Interior fuse boxes typically require no special precautions but may involve removing a panel or cover. Once located, use the fuse diagram (often found on the box lid or in the manual) to pinpoint the fuel pump fuse. It’s usually labeled as “FUEL PUMP,” “FP,” or “INJ” (for injectors). Extract the fuse with a pair of needle-nose pliers and inspect it for visible damage, such as a broken filament or discoloration. If the fuse appears intact, test it with a multimeter to confirm continuity, as some failures aren’t visible to the naked eye.
Replacing a blown fuel pump fuse is straightforward but requires caution. Always use a fuse of the same amperage rating, typically 10 to 20 amps, depending on your vehicle. Using a higher-rated fuse can damage the wiring or fuel pump, while a lower-rated one may blow prematurely. After replacement, start the engine to verify the issue is resolved. If the new fuse blows immediately, this indicates an underlying problem, such as a short circuit, faulty fuel pump, or wiring issue. In such cases, avoid repeatedly replacing the fuse, as this can exacerbate the problem. Instead, consult a professional mechanic to diagnose and repair the root cause.
A practical tip for preventing future fuse failures is to inspect the fuel pump and its wiring during routine maintenance. Look for frayed wires, loose connections, or signs of corrosion, especially in older vehicles. If you frequently drive in harsh conditions, such as dusty or wet environments, consider using dielectric grease on electrical connections to repel moisture and debris. Additionally, keep a spare fuse of the correct rating in your vehicle’s emergency kit, along with a fuse puller, to simplify roadside repairs. By understanding the location and function of the fuel pump fuse, you’ll be better equipped to handle this common issue efficiently and safely.
How Motorcycle Carburetors Efficiently Pump Fuel for Optimal Performance
You may want to see also
Explore related products
Preventive measures to avoid fuel pump fuse issues
A blown fuel pump fuse can leave you stranded, often at the most inconvenient times. While replacing the fuse is a temporary fix, understanding and addressing the root causes can prevent future occurrences. Here’s how to proactively safeguard your fuel pump fuse.
Regular Electrical System Inspections: Start by incorporating electrical system checks into your routine maintenance. Inspect the fuse box for signs of corrosion, loose connections, or overheating. Corroded terminals can increase resistance, leading to excessive heat that may blow the fuse. Clean terminals with a wire brush and apply dielectric grease to prevent future corrosion. Additionally, ensure all wiring connected to the fuel pump is intact and insulated, as exposed wires can short circuit and overload the fuse.
Monitor Fuel Pump Strain: The fuel pump operates under specific pressure and flow requirements. Overloading it can cause excessive current draw, blowing the fuse. Avoid running your fuel tank consistently low, as this forces the pump to work harder to draw fuel. Aim to refill when the gauge reaches a quarter full. If you frequently tow heavy loads or drive in high-altitude areas, consider installing a fuel pressure gauge to monitor pump performance. If pressure drops significantly, consult a mechanic to assess whether the pump is undersized for your driving conditions.
Upgrade to High-Quality Fuses: Not all fuses are created equal. Standard fuses may have lower tolerance thresholds, making them more prone to blowing under minor voltage fluctuations. Invest in high-quality, temperature-resistant fuses rated for your vehicle’s electrical system. These fuses are designed to handle brief surges without failing, providing an extra layer of protection. However, avoid using fuses with higher amperage ratings than specified, as this can lead to electrical fires or damage to the wiring harness.
Address Underlying Issues Promptly: A blown fuel pump fuse is often a symptom of a larger problem. Common culprits include a failing fuel pump, clogged fuel filter, or malfunctioning fuel pressure regulator. If the fuse blows repeatedly, diagnose the issue immediately. Ignoring these signs can lead to permanent damage to the fuel pump or other components. For instance, a clogged fuel filter restricts flow, causing the pump to overwork and draw excessive current. Replacing the filter and inspecting the pump can resolve the issue before it escalates.
By adopting these preventive measures, you can minimize the risk of fuel pump fuse failure and ensure your vehicle’s reliability. Regular maintenance, mindful driving habits, and proactive upgrades are key to keeping your fuel system—and your journeys—running smoothly.
How Long Should Fuel Pump Run with Key On?
You may want to see also
Frequently asked questions
Common symptoms include the engine not starting, a lack of fuel pressure, the fuel pump not making its usual humming noise when the key is turned to the "on" position, and the vehicle stalling or misfiring.
Consult your vehicle's manual to find the fuse box location and the specific fuse for the fuel pump. Typically, fuse boxes are under the dashboard or in the engine compartment. Identify the fuel pump fuse, remove it using a fuse puller or pliers, and replace it with a fuse of the same amperage rating.
A blown fuse itself usually doesn’t damage the fuel pump or other components. However, the underlying issue that caused the fuse to blow (e.g., a short circuit, overheating, or electrical fault) could potentially damage the fuel pump or other parts of the fuel system if not addressed promptly. Always investigate the root cause after replacing a blown fuse.
