Fuel injectors are an essential component of modern engines, with all cars sold in the United States now featuring fuel injection systems. These electronically controlled valves supply pressurised fuel, which is sprayed directly at the intake valves. The amount of time a fuel injector is active, spraying fuel, is measured in milliseconds, and this is referred to as the duty cycle. The ideal spray pattern is a fine, conical mist, and the latest technology can achieve multiple injections within a cycle. Fuel injection systems are designed to inject very little fuel during the first phase, with highly atomised fuel and intensive mixing during the second phase. This process is crucial for achieving clean and efficient combustion.
| Characteristics | Values |
|---|---|
| Spray pattern | Conical mist |
| Fuel Injector Type | Solenoid, PZO or piezo-electric |
| Fuel Injector Controls | Electronically controlled |
| Fuel Injector Location | Mounted in the intake manifold |
| Fuel Injector Spray Direction | Directly at the intake valves |
| Fuel Injector Pressure | Up to 1500 bar |
| Fuel Injector Activation Time | Measured in milliseconds |
| Fuel Injector Activation Frequency | Multiple injections within a cycle |
Explore related products
What You'll Learn
Injector cleanliness
There are several ways to ensure injector cleanliness and enhance engine performance. One way is to use high-quality, additive-rich diesel fuel, which can help clean and prevent injector deposits. These additives can disperse wax, eliminate water, and prevent carbon build-up. Regular fuel filter maintenance is also crucial, as clean fuel filters prevent contaminants from reaching the injectors. Additionally, fuel system cleaning products can be used periodically to remove carbon deposits and dissolve impurities. However, it is important to consult with a fuel provider before using aftermarket cleaning agents to avoid any potential harm.
Another way to maintain injector cleanliness is to avoid long periods of engine idling, as this can increase carbon build-up within the fuel system. Regular check-ups and the use of fuel additives can also help prevent issues. For diesel fuel systems, it is important to monitor water separators daily and drain them when necessary, especially in regions with high humidity or frequent temperature changes. Additionally, keeping the injection system clean with products like Injector Xtrem Cleaner can boost engine performance and reduce over-consumption and emissions.
Cleaning and unclogging fuel injectors at home is possible with the proper equipment and steps. It is important to follow safety measures and work diligently to avoid any damage. By maintaining injector cleanliness, you can improve engine performance, increase fuel efficiency, and extend the life of your engine.
Cleaning Stuck Fuel Injectors: DIY Guide and Tips
You may want to see also
Explore related products
Injector spray patterns

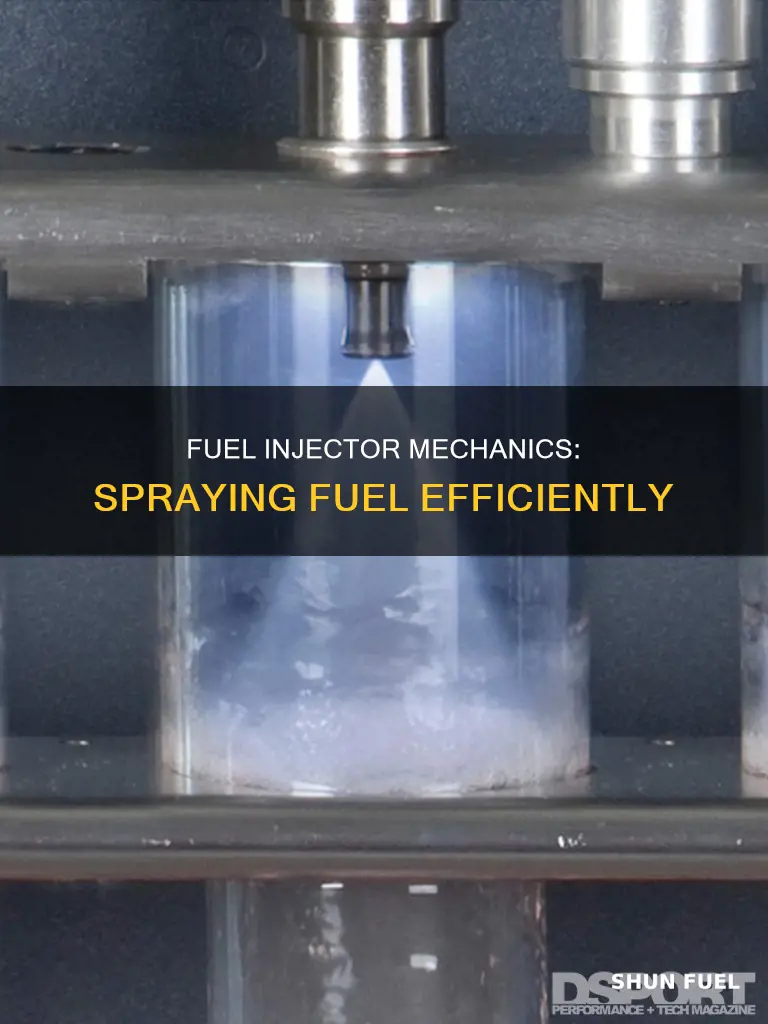

The spray pattern of a fuel injector is critical for clean combustion and good engine performance. The injector opens and closes very quickly, multiple times a second, to control the amount of fuel delivered. The amount of time an injector is turned on and spraying fuel is measured in milliseconds, and the on/off time is called the duty cycle.
There are several types of fuel injector spray patterns. The earliest and most common design, used from the 1970s through the 1980s, is the tapered pintle, which has a mushroom-shaped tip that causes the spray to diverge as it leaves the injector. This type of injector has a plate with a single hole that creates a very narrow spray. Another type is the two-hole spray pattern, which can direct the spray to the back of a single or double intake valve system. These can be clocked at various angles and have either a narrow or wide "V". Some have a bent spray pattern and do not spray straight down.
More modern fuel injectors may have 10 holes in the diffuser plate and spray in a "V" pattern. This newer style has an extended tip with a "V"-shaped spray pattern bent 25 degrees off-axis. Throttle body injectors (TBIs) are located where the carburettor used to be, and they spray fuel in a wider pattern to help mix it with air better.
The spray pattern of an injector is designed to work at a specific distance, angle, and alignment. If the injector is too far away, the fuel could be directed towards the port walls, which is undesirable. The shape and direction of the spray pattern are critical, and if the injector nozzle is dirty, the pattern may be distorted, causing a lean spot in the combustion chamber that can lead to misfire or pre-ignition.
Fuel Injectors in 2000 Dodge Neon: Are They There?
You may want to see also
Explore related products
Injector control systems
The amount of fuel supplied to the engine is determined by the length of time the injector stays open, known as the pulse width. This is controlled by the engine control unit (ECU), which uses a formula and lookup tables to determine the pulse width for given operating conditions. The ECU also increases the fuel rate when the gas pedal is pressed, as the throttle valve opens to let in more air.
Electronic unit injectors (EUI) are a type of injector control system designed for high-end, heavy-duty applications. They offer accurate timing and fuel metering, improved injector control, and enhanced fuel economy, resulting in optimised vehicle performance. EUIs consist of several components, including a spring-loaded plunger and barrel, a poppet valve, an electric solenoid, return passageways, and a nozzle valve.
Another type of injector control system is the unit injector, which generates high fuel pressure using an integrated piston pump and injects precise fuel quantities into the combustion chamber. The unit injector is a single-cylinder injection pump with an integrated injection nozzle and solenoid valve installed directly in the cylinder head. The injection start and quantity can be freely selected in the program and are determined by the fast-switching solenoid valve.
Identifying Fuel Injector Issues in a 2003 Honda Pilot
You may want to see also
Explore related products
Injector combustion
The fuel injection system must be capable of injecting very little fuel during the first phase and providing highly atomized fuel to promote intensive mixing during the second phase. The newest concept is the quiescent chamber, where all the mixing is achieved by injecting fuel at very high pressures to promote the fine atomization and complete penetration of air in the combustion chamber. New fuel injection systems using unit injectors can achieve pressures of up to 1500 bar, twice as high as previously used. Quiescent combustion chamber designs with high-pressure fuel injection systems have proven to be very fuel-efficient and are becoming widespread in heavy-duty truck engines.
In a common-rail system, fuel is supplied to a common header (accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers. The accumulator has a high-pressure relief valve to maintain pressure and return excess fuel to the fuel tank. The fuel is sprayed with the help of a nozzle that is opened and closed with a solenoid-operated needle valve. Third-generation common-rail diesels use piezoelectric injectors for increased precision, with fuel pressures up to 300 MPa or 44,000 psi.
In a manifold injection system, air and fuel are mixed outside the combustion chamber, and this mixture is then sucked into the engine. The main types of manifold injection systems are multi-point injection and single-point injection. These systems use either a continuous injection or an intermittent injection design. In a continuous injection system, fuel flows at all times from the fuel injectors but at a variable flow rate.
In direct-injection engines, especially modern engines using high-pressure common rail fuel systems, keeping fuel filters in good condition is critical as debris can damage the pumps and injectors when waste vegetable oil or waste engine oil are used. Direct injection allows the fuel to be precisely metered into the combustion chamber under high pressure, which can lead to greater power and fuel efficiency. However, it typically leads to greater amounts of particulate matter, and carbon can accumulate on the intake valves over time.
The Secret Ingredients in Lucas Fuel Injector Cleaner
You may want to see also
Explore related products
Injector efficiency
Fuel injectors are electronically controlled valves (solenoids) that are supplied with pressurised fuel from the fuel pump. They open and close very quickly (many times a second) to control the amount of fuel delivered. The amount of time an injector is turned on and spraying fuel is measured in milliseconds. The on/off time is called the duty cycle.
The efficiency of a fuel injector is also impacted by the fuel injection system's ability to inject very little fuel during the first phase and provide highly atomised fuel during the second phase. New fuel injection systems using unit injectors can achieve pressures in excess of 1500 bar, promoting fine atomisation and complete penetration of the air in the combustion chamber. This results in very fuel-efficient combustion.
Additionally, the size of the fuel injector relative to the horsepower of the engine is a critical factor in injector efficiency. The term BSFC (brake-specific fuel consumption) is used to understand an engine's efficiency in fuel consumption concerning horsepower. A lower BSFC number indicates greater engine efficiency.
Finally, injector ageing and the use of fuel additives can also impact injector efficiency. Aged injectors have been shown to deliver larger quantities of fuel for a given injection strategy, leading to higher power output and deviating emissions. The use of certain fuel additives, such as TPGME, can help reduce soot emissions and improve overall injector efficiency.
Ford Ranger Fuel Injectors: How They Work
You may want to see also
Frequently asked questions
A fuel injector is an electronically controlled valve (solenoid) that is supplied with pressurized fuel from the fuel pump. It opens and closes very quickly (many times a second) to control the amount of fuel delivered.
The fuel injectors are mounted in the intake manifold so that they spray fuel directly at the intake valves. A pipe called the fuel rail supplies pressurised fuel to all the injectors. The engine control unit (ECU) is equipped with sensors to monitor the amount of fuel needed.
The spray pattern of a fuel injector should look like a conical mist. The finer the spray pattern, the better.
