The fuel injector in a Honda Pilot is a vital part of the vehicle, and when it breaks, problems such as failed emissions, smoke from the tailpipe, and surging under varying throttle loads can occur. Fuel injectors are components of the fuel delivery system in a gasoline or diesel engine that atomize pressurized fuel and spray it into the engine's combustion chamber. They are responsible for controlling the amount of fuel that enters the engine and the timing of its delivery. If you are experiencing issues with your 2003 Honda Pilot fuel injector, it is recommended to consult a professional as it can be a complicated and risky process involving the removal of the intake manifold, fuel rail, and other components. The average cost for a Honda Pilot Fuel Injector replacement is between $546 and $686.
Explore related products
What You'll Learn
Signs of a bad fuel injector
A fuel injector is a vital part of any vehicle, and when it breaks, it inhibits the proper delivery of gasoline. Faults in the fuel injection system are high on the list of possibilities for poor engine operation. Here are some signs that indicate a bad fuel injector in your 2003 Honda Pilot:
- Engine misfires: Misfiring occurs when the vehicle's computer sends a signal to the fuel injectors to spray fuel, and due to a clog or failure, the engine power is reduced. This can also be caused by an aggressive pull of fuel, resulting in misfires.
- Check Engine Light: When a fuel injector fails or clogs, the check engine light will turn on. A faulty solenoid may also cause a trouble code to be set in the PCM, illuminating the check engine light.
- Engine Stalling: As the issue with the fuel injector progresses, the engine may stall immediately after starting or fail to start at all.
- Rough Idle: A rough idle could be caused by dirty fuel injectors, faulty spark plugs, or an electrical problem with the engine control system.
- Loss of Power: A loss of power could be an indication of a bad fuel injector. This could also be caused by a clogged fuel filter or faulty spark plug wires.
- Poor Fuel Economy: Poor fuel economy could be a sign of a bad fuel injector, although it could also be caused by a loose gas cap or clogged fuel filters and lines.
- Fuel Odor: The presence of gasoline fumes in your car could indicate a leaking fuel injector. However, it could also be due to a loose or damaged gas cap, or a leak in the Evaporative Emission Control System's (EVAP) hoses.
- Failed Emissions: A defective fuel injector can cause failed emissions, smoke from the tailpipe, and surging under varying throttle loads.
Replacing Fuel Injectors in Your Dodge Ram: Step-by-Step Guide
You may want to see also
Explore related products
Fuel injector replacement
Fuel injectors regulate the amount of pressurised fuel used for each engine cycle. They are a vital part of any vehicle, and when they break, problems such as failed emissions, smoke coming from the tailpipe, and surging under varying throttle loads can occur.
- Start with a cold car, disconnect the battery, and remove the connectors on top of the fuel rail.
- Remove any clips or nuts holding the fuel rail in place.
- Remove the metal rod over the fuel injectors (the fuel rail) by removing the bolts and brackets holding it in place with a socket and ratchet.
- Depending on the model, some engines will need the fuel line disconnected from the fuel rail in order to move the rail.
- Gently wiggle the injectors until they pop out.
- Clean the ports with a non-abrasive cleaner and wipe them with a lint-free cloth.
- Install the new injectors into the throttle body.
- Install the injector retainer bracket and screw the bolts down hand-tight. Tighten the retainer bracket bolts 1/8 turn from the centre to the outside.
- Hook up the harness to the fuel injectors.
- Install the air cleaner housing and element onto the top of the throttle body.
- Install new O-rings onto the new injectors.
- Place the injectors into the intake ports and push them down into place.
- Install the fuel rail onto the injectors. Screw in the mounting bolts all the way down to hand-tight and turn an additional 1/8 turn to secure the bolts.
- Reinstall all of the connectors and clips that hold the fuel rail in place.
- Put the fuel injectors back where they belong.
- Screw in any corresponding retaining screws or reattach any clips you removed.
- Reconnect the battery.
- Turn the key to the 'on' position and wait 10 seconds before turning to the engine start.
- After the engine drops to the normal idle RPM, turn the engine off.
- Check the dash for any engine lights and listen to the engine operation for any cylinders not firing correctly.
- If your engine light comes on after replacing the fuel injectors, then there may be further diagnosis of the fuel system needed or a possible electrical issue within the fuel system.
Testing Voltage to Fuel Injectors in a '95 YJ
You may want to see also
Explore related products
Fuel injector cleaning
Fuel injectors are a critical part of any vehicle, and when they break, problems such as failed emissions, smoke from the tailpipe, and surging under varying throttle loads can occur. Dirty and clogged fuel injectors can also seriously affect a vehicle's performance and, in some cases, even prevent it from starting altogether. Therefore, it is important to regularly check and clean your fuel injectors. Here is a step-by-step guide on how to clean your fuel injectors:
Step 1: Identify the Problem
Firstly, you need to identify whether your fuel injectors need cleaning or are otherwise functioning improperly. This can usually be identified by a decrease in engine performance, such as a stalling or
Step 2: Prepare for Cleaning
Before you begin the cleaning process, it is important to take some precautionary measures. Ensure that the engine is cold before you start. Working on a hot engine can be dangerous. Additionally, use an onboard diagnostic tool (OBD) to check the pressure inside the fuel system. It is safe to disconnect the fuel injectors if the reading is under 3 bar.
Step 3: Locate and Disconnect the Fuel Injectors
The fuel injectors are typically located in the inlet manifold. Disconnect the pipe work and remove any necessary components to access the fuel injectors. This may include draining the coolant and oil and removing the intake manifold gasket.
Step 4: Test the Fuel Injectors
Before cleaning, it is important to test the fuel injectors to confirm they are the source of the problem. You can use a testing machine to spray fuel through the injectors and observe the spray pattern. This will help you determine if there is an issue with the fuel supply or the angle of the spray.
Step 5: Choose a Cleaner
Select a high-quality injector cleaner that is compatible with your vehicle's fuel type (petrol or diesel). There are hundreds of cleaners on the market, and you can choose one based on your personal preference and brand loyalty. However, ensure that you use it at 100% strength for the best results.
Step 6: Clean the Fuel Injectors
Follow the instructions on your chosen cleaner and carefully clean the fuel injectors, ensuring that you remove any carbon buildup, gunk, or rust that may be present. Pay close attention to the diffusing tip of the injectors, as carbon accumulation here can affect fuel economy.
Step 7: Reassemble and Test the Vehicle
Once the fuel injectors have been cleaned and dried, carefully reassemble all the components, including the fuel injectors, fuel rail, supply and return lines, and the plenum. Finally, start the engine and test the vehicle to ensure that the problem has been resolved and that there are no leaks.
It is important to note that fuel injector cleaning and replacement can be complex tasks, and it may be advisable to consult a professional technician, especially if you are uncomfortable with any of the steps or procedures.
Replacing Fuel Injectors: 2002 Mazda 626 ES Guide
You may want to see also
Explore related products
Fuel injector testing
Fuel injectors regulate the amount of pressurised fuel used for each engine cycle. When they go bad or get clogged, they can cause problems like rough idling, knocking, poor gas mileage, and smoky exhaust. If you notice any fuel odour around your car, you should suspect a leaking fuel injector.
There are several ways to test fuel injectors. Firstly, the listening test helps to identify injectors that don't work. To do this, start the engine and let it idle. While the engine is running, place the tip of a long metal screwdriver against one of the fuel injectors.
You can also do a visual inspection to check for leaks. If there is no visible leak, the technician will connect a computerised scanner to the vehicle to read its sensors. If there is a fuel injector problem, the technician will likely find that misfires are happening frequently on one cylinder.
Another way to test fuel injectors is to use a flow test. This involves checking the pattern and atomization of the fuel spray to determine if the injector is functioning optimally. The more atomized the fuel is, the better it will mix with the air and ignite evenly.
It is important to note that fuel injector replacement should be left to a professional due to the risk of fire and the complexity of the repair process.
Using Fuel Injector Cleaner: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel injector parts

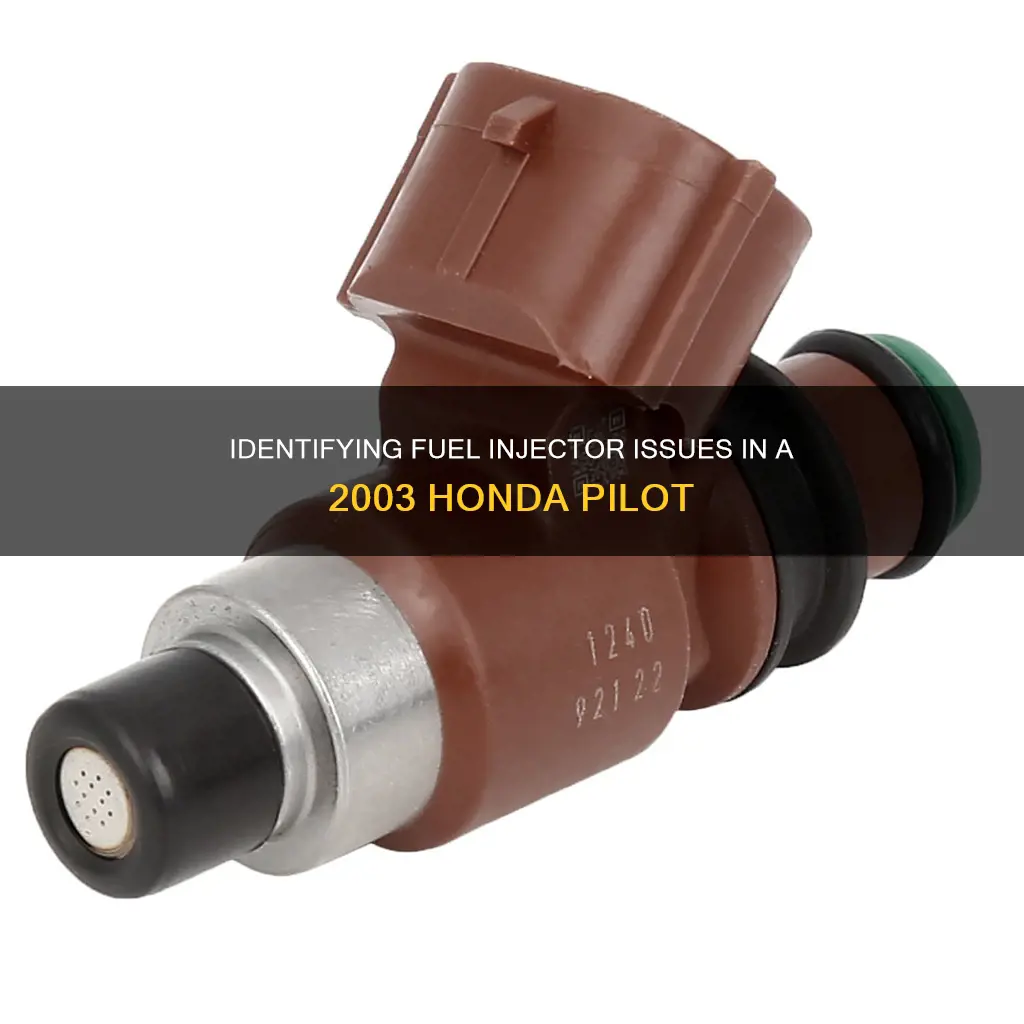

A fuel injector is a fuel metering device that sprays atomized droplets of fuel into the engine's intake manifold or directly into the combustion chamber. The injector has a solenoid and valve within, and the operation or pulsing of the solenoid is controlled by the powertrain control module (PCM). The PCM controls the solenoid's "on" time to maintain the optimal air-fuel ratio while the engine load and operating conditions are subject to change.
The fuel injectors regulate the amount of pressurised fuel used for each engine cycle. There is one injector per cylinder in an engine. Each time an intake stroke occurs in the engine, the vehicle's computer sends a signal to the fuel injectors, requesting that they spray fuel. For heavy acceleration, the duration of the fuel spraying will be longer than when the engine is idling.
When a fuel injector fails or clogs, engine power is reduced, and misfires will occur. The check engine light will turn on, and as the issue progresses, the engine may exhibit further problems, such as stalling immediately after starting, failing to start, hesitating under throttle, or vibrating roughly. A malfunctioning injector can also cause engine misfires, excessive emissions, or, in the case of a badly leaking injector, can overload and overheat the catalytic converter.
Fuel injectors have tiny internal filter baskets that should be replaced as part of the process of servicing a fuel injector. The injector is re-inserted into the fuel rail using a new O-ring, and engine oil is applied to the O-ring to prevent damage. The fuel rail is then re-installed, and the supply and return lines are re-connected. Finally, the engine is run, and a careful check for leaks is performed before the vehicle is road-tested.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Frequently asked questions
There are several signs that your fuel injector may be faulty. These include a strong fuel odour, a check engine light, rough idling, loss of power, engine misfires, and increased fuel consumption. If you notice any of these issues, it is recommended that you visit a technician to have your vehicle inspected.
No, it is not recommended to replace the fuel injector yourself. This job should be left to a professional technician as it involves a risk of fire and can be very complicated. Removing the injectors, intake manifold, fuel rail, and other components requires a good amount of knowledge, and incorrect removal can further damage your vehicle.
The cost of replacing a fuel injector can vary depending on the vehicle and the technician, but typically, the cost for a Honda Pilot fuel injector replacement ranges from $546 to $686.
