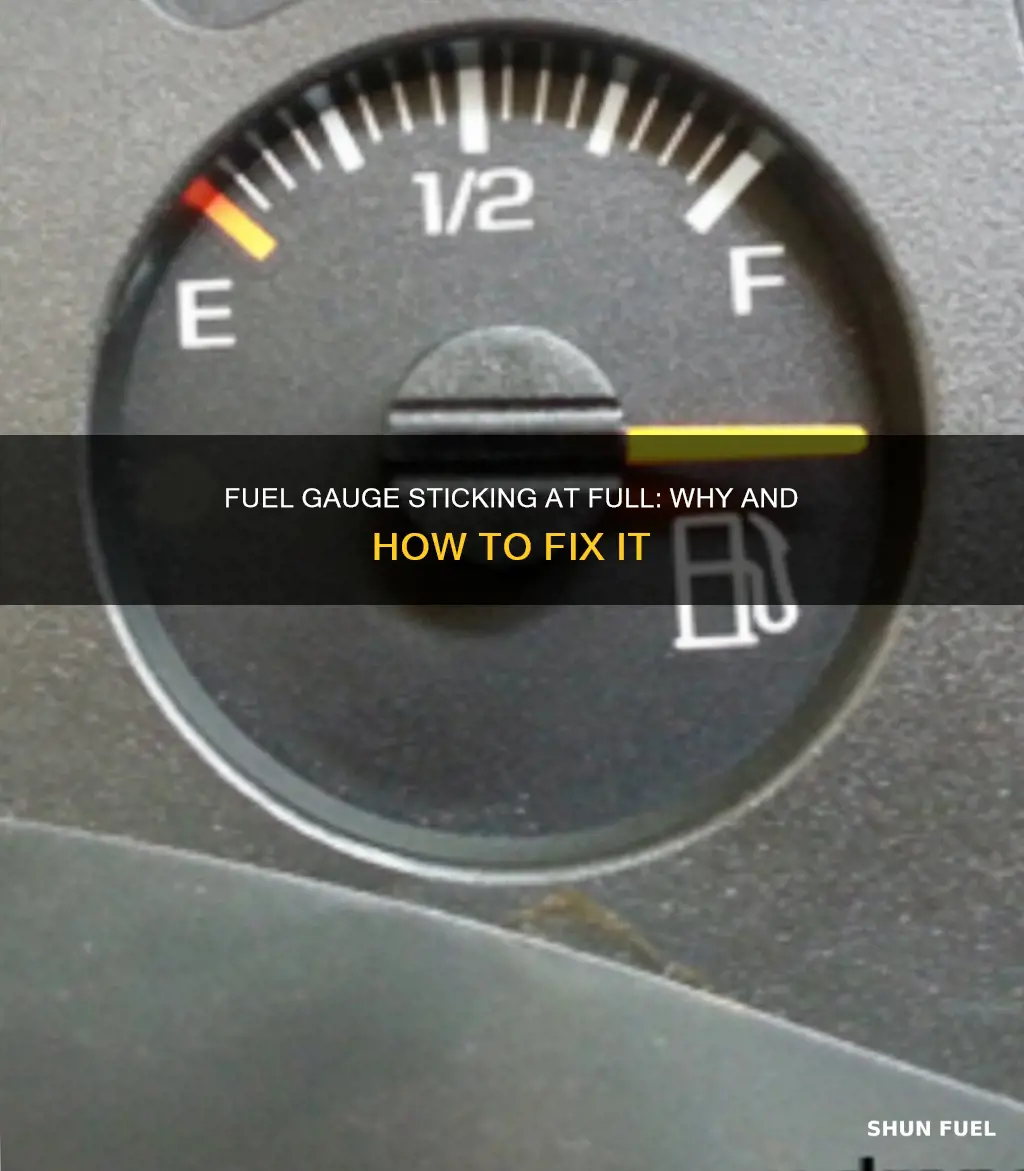

A car's fuel gauge is a handy indicator that tells you how much fuel you have and when you need to fill up. However, sometimes the gauge can malfunction and get stuck on full. This can be caused by a variety of issues, such as a faulty fuel gauge, a frayed electrical connection, a broken float gauge, or a problem with the wiring or circuitry. A faulty fuel gauge resistor can also be the culprit, sending full voltage to the gauge at all times. In some cases, the issue may lie with the fuel sending unit, which is used to measure the amount of fuel in the tank and communicate that information to the gauge. This can be due to a shorted signal, a bad ground wire, or an open or shorted circuit caused by friction.
| Characteristics | Values |
|---|---|
| Common Causes | Bad fuel sending unit, faulty fuel gauge, frayed electrical connection, broken float gauge, faulty resistor, corroded wires, loose connection, faulty ground wire, shorted signal, open circuit, broken float arm, mechanical failure |
| Fuel Gauge Diagnosis | Check fuses, check power at the gauge, check voltage at the fuel gauge, check wiring, check model number of the gauge, check resistance, check ground |
| Fuel Sending Unit Diagnosis | Check resistance, check wiring, check power, check ground, disconnect one of the wires on the top of the tank sender |
Explore related products
What You'll Learn
A faulty fuel gauge resistor
The fuel sending unit is used to measure the amount of fuel in the fuel tank and communicate the fuel level to the fuel gauge on the vehicle dashboard. The float in the fuel tank moves up or down according to the fuel level. The metal rod pivots in relation to the float, causing the wiper inside the variable resistor to move as well. The wiper moves along a strip of resistive material connected to a ground on one end, and the strength of the electric current from the resistor is determined by the wiper's position relative to the ground. The wiper then sends the electric current to the fuel gauge, which displays the fuel level accordingly.
Fuel gauges typically read full when they receive maximum power, so if they don't have any power, they'll always read empty. A faulty fuel gauge resistor can send a faulty signal to the instrument cluster, causing the gauge to read full permanently. The fuel gauge might interpret voltage feedback from a dead sender as "Empty" or "Full", resulting in the fuel gauge reading full regardless of the actual fuel level.
To test the fuel sending unit, fill the tank with gas and use a multimeter to test the resistance. If the resistance reading is off by several ohms, the issue is likely with the fuel sending unit. Before replacing the unit, try using a bottle of fuel system cleaner, as the float on the sending unit may be corroded with sulfur from low-grade fuel.
Diesel Cars: What You Need To Know
You may want to see also
Explore related products
A faulty fuel sending unit
Over time, the constant motion of the wiper can wear down the resistive material strip, creating an open circuit. This can cause the fuel gauge to be stuck on full as the faulty resistor sends the full voltage to the fuel gauge at all times. A faulty fuel sending unit can also cause the fuel gauge to read empty when the tank is full, due to the float separating from the arm, causing the components in the unit to stop completely. In some cases, a faulty resistor can restrict the signal completely, leading to an empty reading.
Corroded wires, especially in the case of a fuel sending unit located on the fuel pump, can also cause issues with voltage transmission to and from the fuel gauge. Additionally, wiring problems can cause shorted signals or a bad ground wire to the grounding terminal, resulting in inaccurate fuel gauge readings.
To verify if the fuel sending unit is faulty, you can use a multimeter to test the resistance of the sender. Alternatively, you can disconnect and reconnect the sending unit and observe the gauge's response. If the fuel gauge always reads full, it may be stuck due to a faulty fuel gauge or a constantly full signal from the float gauge.
Why Running a Car Lean Creates White Smoke
You may want to see also
Explore related products
A loose connection or corrosion in the circuit
The fuel gauge system consists of several parts, including the fuel sending unit, the float, the metal rod or arm, and the variable resistor. The sending unit is located inside the fuel tank and is responsible for measuring the amount of fuel and sending a signal to the gauge. The float, attached to the metal rod or arm, sits on top of the fuel and moves up or down according to the fuel level. This movement is translated into an electrical signal by the variable resistor, which the fuel gauge interprets as the fuel level.
Over time, constant movement of the components within the sending unit can lead to wear and tear. This can result in a loose connection between the sending unit and the gauge, causing an interruption in the signal transmission. Additionally, corrosion can build up on the sending unit, particularly the float, due to exposure to fuel and other contaminants. This corrosion can interfere with the electrical current, leading to a faulty reading on the fuel gauge.
To diagnose a loose connection, one can start by inspecting the wiring between the sending unit and the gauge. Ensure that all connections are secure and free from damage or corrosion. A multimeter can be used to test the continuity and voltage of the wires. If voltage is low, it indicates a potential wiring issue, and further inspection of the wiring from the fuel pump to the fuel gauge may be necessary.
In some cases, the issue may lie with the sending unit itself. If the sending unit is faulty or damaged, it may send an incorrect signal to the gauge, resulting in a false reading. To check the sending unit, one can refer to the vehicle's repair manual and test the resistance using a multimeter. If the resistance reading deviates significantly, it may be necessary to replace the sending unit.
Can Aviation Fuel Power Cars?
You may want to see also
Explore related products
A short in the S terminal of the gauge
A faulty fuel gauge can cause a car's fuel gauge to always read full. The fuel gauge is made up of a float, a metal rod or arm, and a variable resistor. The float sits on top of the fuel and is attached to a two-part metal rod with a split in the middle. This split allows the rod to bend and turn the entire device into a mechanical arm that can keep the buoyant part of the gauge on top of the fuel. The float gauge actively measures the bend in the arm and converts this bend into an electrical signal that it sends to the fuel gauge.
The metal rod pivots in relation to the float, which causes the wiper inside the variable resistor to move as well. The wiper moves along a strip of resistive material connected to a ground on one end, and the strength of the electric current from the resistor is determined by the position of the wiper to the ground. The wiper sends the electric current to the fuel gauge, which displays the fuel level accordingly on the vehicle dashboard.
If the S terminal of the gauge is shorted to the chassis ground or the sender is internally shorted to ground, it can cause the fuel gauge to read full. To check the gauge, remove the sender wire from the back of the gauge and leave the power and ground hooked up. Turn the power on, and if the gauge reads empty with nothing attached to the S terminal, the gauge is likely fine.
A faulty fuel sending unit can also cause the fuel gauge to read incorrectly. The fuel sending unit is used to measure the amount of fuel in the fuel tank and communicate the fuel level to the gauge on the dashboard. If something happens to the fuel sending unit, the fuel gauge may always read full.
Another issue could be a defect in the wiring from the fuel sending unit to the fuel gauge, causing a shorted signal or a bad ground wire to the grounding terminal.
Fuel Filters: Essential Car Maintenance for Engine Health
You may want to see also
Explore related products
A faulty float gauge
The float gauge consists of a buoyant part, typically made of plastic, that floats on top of the fuel. It is attached to a two-part metal rod with a split in the middle, allowing the rod to bend and convert the bend into an electrical signal that corresponds to the fuel level. This signal is sent to the fuel gauge, which then displays the amount of fuel in the tank.
However, if the float gauge becomes faulty, it can send incorrect signals, leading to inaccurate fuel gauge readings. One common issue is a stuck float, where the float gauge becomes stuck at certain levels, causing the fuel gauge to fluctuate between empty and full. This can be due to mechanical failure or a loose float gauge that moves up and down with the vehicle's movement, such as when driving over bumps or parking on a hill.
Another issue that can cause a faulty float gauge is a problem with the variable resistor. Over time, the constant movement of the wiper in the variable resistor can wear down the resistive material strip, creating an open circuit. This can result in the fuel gauge being stuck on full or empty, as the faulty resistor sends the wrong voltage to the fuel gauge.
To diagnose a faulty float gauge, it is recommended to check the fuses and power at the gauge. Additionally, observing the fuel gauge's behaviour when turning the vehicle on and off can provide valuable information. If the gauge resets to empty when the vehicle is turned off, it may indicate a faulty float gauge. However, this can vary depending on the vehicle type, as some fuel gauges lock at their last setting.
Hydrogen Fuel for Cars: Powering the Future of Transportation
You may want to see also
Frequently asked questions
The most common cause of this issue is a faulty fuel gauge or a frayed electrical connection. If the gauge is stuck on full, it could be because the float gauge is always sending a full signal or the fuel gauge itself is faulty.
Before diving into any repairs, check the fuses and for power at the gauge. If your fuel gauge always reads full, disconnect one of the two wires at the top of the tank sender. If the gauge goes to zero, the sender is bad. If the gauge stays full, then the gauge itself is bad or the wiring between the sender and the gauge is faulty.
The fuel sending unit is constantly in motion when the vehicle is being used, which can cause the resistive material strip to wear down, creating an open circuit. A faulty fuel sending unit is the most common problem that causes the fuel gauge to read incorrectly.
If the voltage is good, the gauge is faulty and you can order a factory replacement or upgrade with a high-quality aftermarket replacement gauge. If the voltage is low, complete the rest of the diagnosis to discover if it is a wiring issue.
