Ameer Randolph

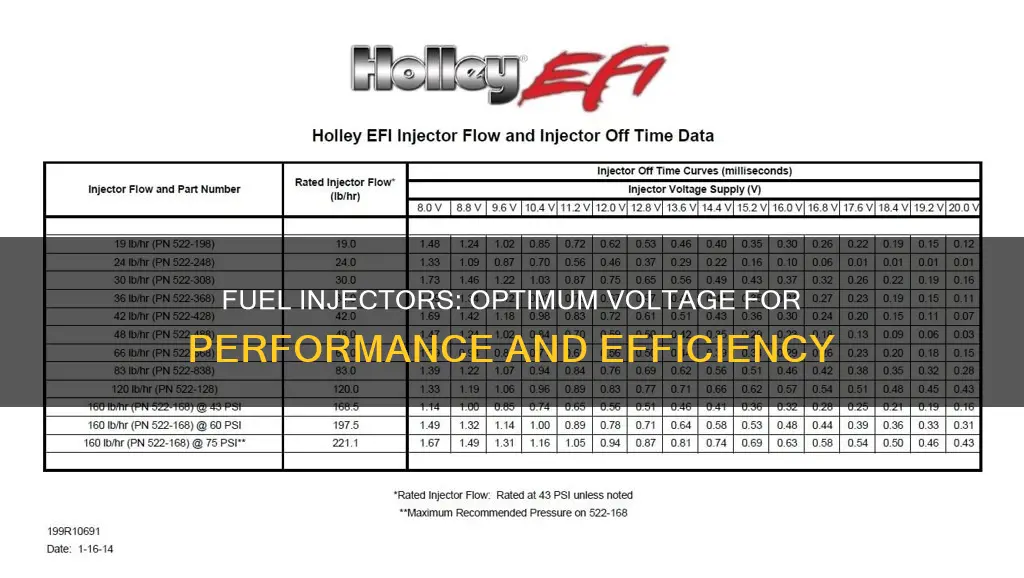

Fuel injectors are responsible for passing the right amount of fuel into a car's cylinders. Faulty fuel injectors can affect fuel economy and cause a misfire. To ensure fuel injectors are receiving the correct voltage, one terminal should read 0 volts and the other should read 12 volts or around that. If the reading is too low, there may be a problem with the wiring.
Fuel Injector Characteristics and Values
| Characteristics | Values |
|---|---|
| Voltage | 12 volts or around 12 |
| Resistance | High impedance: 12-17 ohms; Low impedance: 2-5 ohms |
| Effect of Faulty Injectors | Poor fuel economy, engine misfire, loss of power, stalling, overheating, backfiring |
Explore related products
What You'll Learn
- Faulty fuel injectors can cause a misfire and affect fuel economy
- A Digital Volt-Ohmmeter (DVOM) or multimeter can be used to test injector resistance
- A reading of 0 volts on one terminal and 12 volts on another indicates that the injectors are functioning correctly
- Injectors with high impedance will have a range of 12 to 17 ohms
- If there is a significant difference in resistance between injectors, there may be an issue with the wiring
Faulty fuel injectors can cause a misfire and affect fuel economy
Fuel injectors are responsible for spraying fuel as a fine mist into the intake manifold or combustion chamber of an engine. Well-performing fuel injectors ensure that your vehicle gets the kind of gas mileage that manufacturers advertise. However, faulty fuel injectors can cause a misfire and negatively impact fuel economy.
A misfire occurs when the engine begins losing its power, fuel consumption rises, emissions increase, and the engine starts vibrating, jerking, or stalling. Faulty fuel injectors are one of the leading causes of engine misfires. Specifically, dirty, faulty, or clogged fuel injectors can cause the engine to misfire. Dirty fuel injectors can cause the motor to feel like it is sputtering and send vibrations through the car. This happens because the dirty fuel injector messes up the delicate balance between fuel and air entering the engine.
Other signs that your fuel injector is faulty and causing a misfire include a strange smell, delivering too much or too little fuel to the engine, making the car struggle to start, and causing a loss in power or acceleration. If the engine light on your dashboard is flashing or illuminated, it could also mean that the fuel injector is malfunctioning and supplying too little or too much fuel to the engine. This will cause a decrease in overall engine performance and fuel economy.
If you suspect that your fuel injector is faulty, it is important to address the issue promptly. Misfiring can damage the entire engine if left unaddressed. To resolve the issue, you must first find the cause. If a dirty or clogged fuel injector is the issue, cleaning and unclogging it will resolve the problem. If the issue is due to a faulty fuel injector, it will need to be replaced.
Building a Fuel Injector Flow Bench: DIY Guide
You may want to see also
Explore related products
A Digital Volt-Ohmmeter (DVOM) or multimeter can be used to test injector resistance
To test the resistance, first, turn off the ignition and disconnect the injector's electrical connector. Then, set the multimeter to ohms and touch the two probes to the injector's electrical terminals. The reading on the multimeter will indicate the resistance of the injector. A typical specification is 10 ohms or more, but the exact numbers will vary depending on the vehicle. The resistance of the coils should be within about plus or minus 10% of each other. For example, if one injector measures 8 ohms when the others measure around 12 ohms, the former is likely faulty and needs replacement.
If the injector resistance is normal, the next step is to remove the injector and test the spray pattern it produces on an injector tester. This can help determine if the injectors are delivering approximately equal amounts of fuel. If they are not, they may need cleaning or replacement.
It is important to ensure your fuel injectors receive the correct voltage to work properly. Faulty fuel injectors can affect fuel economy and cause a misfire.
Pound-for-Pound Power: Injector Size for Performance
You may want to see also
Explore related products
A reading of 0 volts on one terminal and 12 volts on another indicates that the injectors are functioning correctly
Fuel injectors are responsible for passing the right amount of fuel into the cylinders. They work millions of times and, as a result, may wear out. Faulty fuel injectors can affect fuel economy and cause a misfire. Therefore, it is important to check that they are receiving the correct voltage.
To ensure fuel injectors are receiving the correct voltage, you should first test the injector resistance and then check the wiring. You will need a Digital Volt-Ohmmeter (DVOM) or multimeter with ohms setting. Ensure the engine is off, as you don't need power for this check. You can access the injectors in the engine or refer to the manual. There may be a plastic shield that needs to be removed to access the injectors.
Once you have access to the injectors, remove the injector wiring harness. If there is a slide lock, remove it first to access the wiring harness. Now, set the DVOM to measure ohms and check the resistance of each injector one by one. If the meter doesn't auto-range, set it to the lowest range. Common high impedance injectors have a range from 12 to 17 ohms, while low impedance injectors display a range from 2 to 5 ohms. Each injector should have a similar resistance; a major difference indicates a problem with that injector.
After testing the injector resistance, you can test the injector wiring. With the ground lead in position, test the wiring harness of all the injectors. A reading of 0 volts on one terminal and 12 volts on another indicates that the injectors are functioning correctly. If the reading is around 12 volts for each injector, everything is fine. However, if the reading is too low, there may be a problem with the wiring. A significant difference between injectors is also a cause for concern.
Fuel Injector Failure: Common Causes and Solutions
You may want to see also
Explore related products
Injectors with high impedance will have a range of 12 to 17 ohms
Fuel injectors are classified as either high-impedance or low-impedance. Injector impedance is the electrical resistance of the electromagnetic coil inside the injector, which is measured in ohms.
High-impedance injectors, also known as saturated injectors, usually have a coil resistance ranging from 8 to 16 ohms. This range of high-impedance injectors is more widely used than any other injector type due to the simplicity of their drive circuitry. High-impedance injectors are also more cost-effective than low-impedance injectors. They are triggered by a low constant current signal of around 1.2 amps and are kept open by the same constant current throughout their cycle. High-impedance/saturated injectors can send 11-12 amps of current.
Low-impedance injectors, on the other hand, have a coil resistance of 4 ohms or lower. They are typically used in high-performance or large-sized injectors and are driven by peak-and-hold signals. Low-impedance injectors allow more current to flow across the injector with high consistency. The circuit driver can regulate the current from 4-10 amps to open the injector, and then decreases the current flow to keep the injector open. Low-impedance injectors send a more robust electrical signal of 56 amps, but they get hotter in a short amount of time.
It is important to determine whether an injector is low-impedance or high-impedance by measuring the resistance across its electrical terminals. If the resistance is between 1.5 and 4 ohms, the injector is low-impedance, whereas if it is between 8 and 16 ohms, it is high-impedance.
Removing Fuel Injectors: A Step-by-Step Guide for 96 4Runners
You may want to see also
Explore related products
If there is a significant difference in resistance between injectors, there may be an issue with the wiring
Fuel injectors are a particular type of solenoid designed to actuate their pistons very quickly. This allows the injector to deliver precise amounts of fuel to the cylinder, even when the engine is spinning at higher RPMs. Over time, the injectors fire millions of times and can wear out or clog up, preventing the engine from operating correctly.
It is important to ensure that fuel injectors are receiving the correct voltage. They should all be around 12 volts. A lower reading indicates excess resistance in the wire somewhere. If there is a significant difference in resistance between injectors, there may be an issue with the wiring. This could be due to exposed wires touching each other or other metal surfaces, potentially causing a short circuit and damaging the electrical system.
If the injectors are receiving the correct voltage, they can still cause issues. They may clog up, decreasing the spray inside the cylinder, which in turn causes the fuel to not burn completely and creates a misfire. Faulty fuel injectors can also affect fuel economy and cause a misfire.
It is important to note that using fuel injectors with lower resistance than designed can cause problems. The engine's fuel system is calibrated to work with fuel injectors of a specific resistance. Installing injectors with lower resistance can overload the fuel system's electrical circuits, leading to potential damage to components such as the fuel pump, fuel pressure regulator, and the PCM. This can cause the engine to run rich, resulting in increased fuel consumption, emissions, and performance issues.
Fuel Injector Cleaning: Essential Car Maintenance for Performance
You may want to see also
Frequently asked questions
You can test the voltage with a Digital Volt-Ohmmeter (DVOM) or multimeter with ohms setting. Check the injector resistance and then the wiring. If the meter doesn't auto-range, set it to the lowest range. If you have high impedance injectors, the range would be from 12 to 17 ohms, and low impedance injectors would display a range from 2 to 5 ohms.
If you find that your fuel injectors are faulty, you should take your car to a professional repairer. They will be able to diagnose the problem and replace any bad fuel injectors.
If your engine won't start, there's a loss of power, the car stalls or overheats, or the car backfires, you may have faulty fuel injectors. You can also test the spray pattern your injectors produce on an injector tester.
Faulty fuel injectors affect fuel economy and can cause a misfire. This is because fuel injectors are responsible for passing the right amount of fuel into the cylinders, and when they wear off, they don't maintain fuel consistency.
