Building a fuel injector flow bench is a complex process that requires careful planning and execution. It involves constructing a machine that can test and clean fuel injectors, ensuring they are functioning optimally. The process typically includes assembling the necessary components, such as pipes, valves, gauges, and cleaners, and then connecting them to create a functional system. The machine's settings and parameters are crucial, as they determine the duration and intensity of the fuel injection tests. Some people opt to design and build their own flow benches from scratch, while others may purchase pre-made fuel rails or rent the required tools. Safety considerations are also essential when working with flammable fluids and high-pressure systems.
Explore related products
What You'll Learn

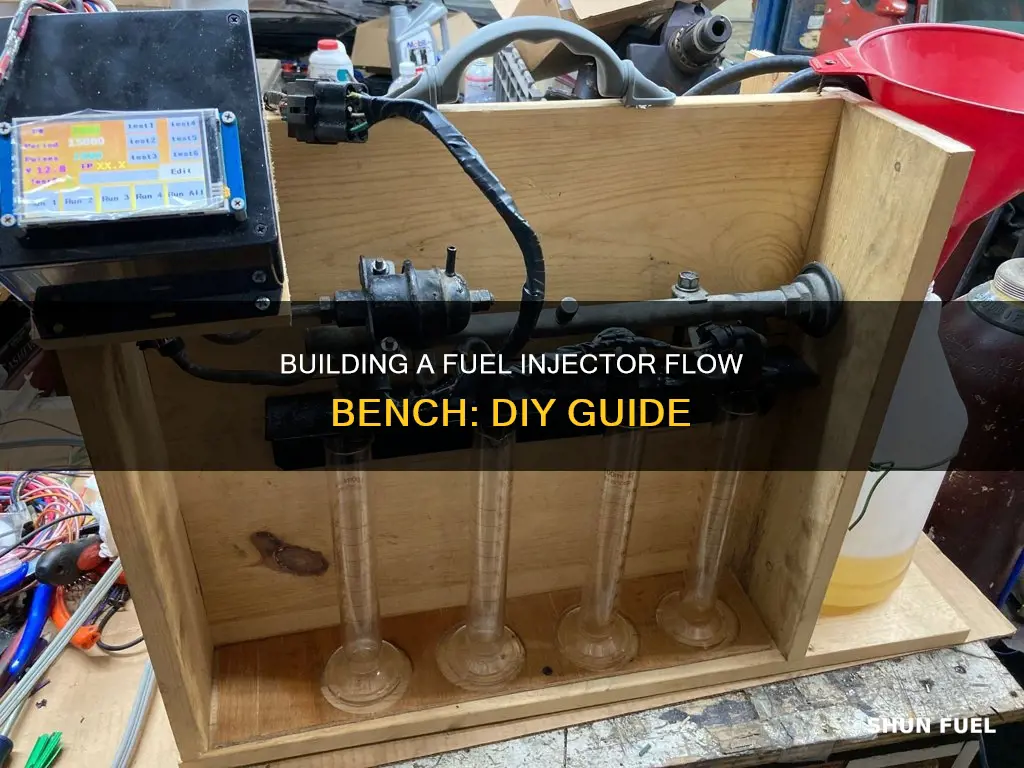

Building a DIY injector flow bench
Step 1: Understanding the Basics
Firstly, it is essential to understand the purpose and functionality of a fuel injector flow bench. This equipment is used to test and clean fuel injectors, ensuring optimal performance and identifying any issues. The flow bench simulates the operating conditions of the injectors, allowing for precise adjustments and measurements.
Step 2: Gathering Materials and Tools
The specific materials and tools required for building a DIY injector flow bench can vary depending on individual preferences and the complexity of the design. However, some essential components typically include a fuel injector tester, a fuel pressure regulator, a graduated cylinder, an injector pulse tool, a fuel filter, and various connectors and adapters. Additionally, consider the type of fluid that will be used for testing, with options such as alcohol, deionized water, or industry-standard fluids like Stoddard solvent or Viscor.
Step 3: Assembly and Setup
The assembly process involves connecting the various components to create a functional flow bench. This includes mounting the injectors securely, setting up the fuel pressure regulator, and connecting the necessary hoses and adapters. The specific setup may vary depending on the chosen design and the type of injectors being tested. It is crucial to ensure that all connections are secure and airtight to prevent leaks and ensure accurate testing.
Step 4: Testing and Calibration
Once the flow bench is assembled, it's time for testing and calibration. This involves running the injectors, measuring fuel flow rates, and making any necessary adjustments. The testing process may involve using different pulse widths and duty cycles to simulate various operating conditions. It is important to note that accurate and repeatable flow testing is crucial, and proper calibration ensures the reliability of the results.
Step 5: Software and User Interface
While the hardware setup is essential, the software and user interface play a vital role in the functionality of the DIY injector flow bench. This includes programming the system to control the injectors, process data, and provide a user-friendly interface for adjusting settings and viewing results. The software can be customized to suit specific needs, and open-source platforms like Arduino or Linux can be considered for added flexibility.
Piezo Fuel Injectors: Understanding Their Functionality
You may want to see also
Explore related products
Choosing a suitable test fluid
When choosing a suitable test fluid for a fuel injector flow bench, there are several factors and options to consider. The ideal test fluid should be cheap, non-flammable, and have similar physical properties to gasoline without causing any adverse effects on the injectors.
One option is to use alcohol, as it dries quickly without leaving a residue. However, it is important to note that alcohol has a different viscosity than water, which can cause oxidation and potential damage to the injector during long-term testing. Deionized water can also be used, but it will not dry as fast as alcohol. A combination of both, with a squirt of alcohol after using water, may be a viable option.
Another option is to use non-flammable fluids with similar properties to gasoline, such as Viscor (also known as ISO fluids). These fluids are commonly used by fuel injection companies and offer the advantage of not burning easily and being safe for your health. However, the viscosity and density of Viscor may not perfectly match gasoline, requiring flow correction factors for absolute accuracy.
Additionally, some sources suggest using Stoddard solvent, which is an auto industry standard, or industrial white spirit. These solvents can effectively clean the injectors, but it is important to prioritize health and safety precautions when working with such substances.
It is worth noting that water-based solutions are generally not recommended for fuel injectors, as they can cause potential damage over time.
Cleaning Lexus Fuel Injectors: How Often Should You Do It?
You may want to see also
Explore related products
Cleaning and flow testing fuel injectors
Cleaning Fuel Injectors:
- External Cleaning and Inspection: Start by externally cleaning the injectors to remove any dirt or residue on the outside. Inspect the injectors for any visible signs of damage or leaks.
- Ohm Testing: Perform an ohm test to check for resistance. If an injector fails this test, it is not suitable for further cleaning or testing.
- Leak Testing: Conduct a leak test to identify any leaking injectors.
- Ultrasonic Cleaning: Place the injectors in an ultrasonic cleaner with a special cleaning solution for a thorough internal cleanse. This step may vary depending on the equipment available. Some professionals use heated ultrasonic cleaners, while others perform a three-step ultrasonic cleaning process.
- Back-Flushing: After ultrasonic cleaning, perform a high-pressure back-flush to remove any remaining particles and flush out the cleaning fluids. This step ensures that the injectors are thoroughly cleaned.
- Installation of New Components: If needed, install new filter baskets, O-rings, and pintle caps. These components are crucial for the proper functioning of the injectors.
- Lubrication: Lubricate the injectors with a special lubricant to protect and preserve them. This step ensures the injectors are ready for reinstallation.
Flow Testing Fuel Injectors:
- Mounting and Testing: Mount the injectors on a test rig or a flow bench, simulating their operation in an engine. This step allows for dynamic analysis, including spray pattern checks and flow rate measurements.
- Spray Pattern Analysis: Observe and record the spray pattern of each injector. A consistent spray pattern is essential for optimal fuel distribution.
- Flow Rate Measurement: Measure the flow rate of each injector by recording the amount of fuel sprayed in a specified time (e.g., 30 seconds) and then converting it to cc/min of flow.
- Comparison and Re-testing: Compare the flow rates of all injectors, ensuring they are within a close range of each other (e.g., within 2% deviation). If an injector deviates significantly, consider re-testing and cleaning it again until it meets the desired standards.
- Final Inspection: After flow testing, perform a final visual inspection of the injectors to ensure they are clean and free of any residue or blockages.
It is important to note that the specific steps and procedures may vary depending on the equipment and methods used. Some professionals may use different cleaning solutions, testing parameters, or additional steps to ensure thorough cleaning and accurate flow testing.
Tightening Fuel Injector Inlet Screws for Optimal Performance
You may want to see also
Explore related products
Using a fuel injector tester
Before beginning the testing process, it is important to identify the location of your fuel injectors. Typically, there is one fuel injector per cylinder, and they are usually located directly above the cylinder, housed in black plastic. Once you have located the injectors, you can proceed with the testing.
Firstly, disconnect the electrical connector for the fuel injector you want to test. Use a multimeter to take a resistance reading. Ensure your vehicle is turned off during this process. Check your vehicle's service manual or search online to find the correct resistance value, which is typically between 10 and 18 ohms for most fuel injectors. If your readings are off, the injector may be faulty and need repair or replacement.
If you suspect that your fuel injectors are dirty or clogged, you can use a fuel injector tester to clean them. There are various methods for cleaning fuel injectors, and some people even build their own cleaning rigs. One method involves using a tube filled with cleaning fluid, such as carburetor cleaner or a specially formulated injector cleaner, which is pressurised using an air compressor. The injector is then activated, and the cleaning fluid is forced through it. This process can be enhanced by using a device like an Arduino, which allows for different pulsing modes, including single pulses and multiple pulses at different rpms.
After cleaning, it is important to backflush the injectors to remove any remaining dirt or debris. This can be done by attaching the injectors upside down and running cleaning fluid or fuel through them. Finally, test the flow rate of the injectors by measuring the amount of fuel sprayed in a set time, usually 30 seconds, and multiplying that amount by two to get the cc/min of flow. A consistent flow rate and proper spray pattern indicate that the injectors are functioning optimally.
Additionally, there are commercial fuel injector testers available for purchase, such as the OTC Fuel Injector Tester, which can be found on Amazon or eBay. These testers offer different pulse modes and timers, allowing for a more comprehensive evaluation of your fuel injectors.
Fuel Injector Failure: A Costly and Dangerous Problem
You may want to see also
Explore related products
Testing for accurate, repeatable flow
Another important consideration is the testing procedure. One method involves using a graduated cylinder to measure the amount of fuel sprayed in a given time interval, typically 30 seconds, and then multiplying that amount by two to get the cc/min of flow. This can be done with a basic injector pulse tool that has preset timers, or a more advanced tool that allows for user-adjustable pulse width and "engine RPM" simulation. It is also important to clean the injectors before testing, which can be done with an ultrasonic cleaner and a specific cleaning solution.
Additionally, it is recommended to test the injectors in both forward and backward directions to ensure any debris or buildup is removed. This can be done by installing the injectors backwards in the rail and running them for a brief period before retesting in the forward direction. It is also suggested to use a fuel pressure regulator to control the pressure during testing.
By following these procedures and utilising appropriate tools and fluids, it is possible to achieve accurate and repeatable flow testing with a fuel injector flow bench.
Fuel Injector Treatment: How Often Should You Use It?
You may want to see also
Frequently asked questions
The key components of a fuel injector flow bench include a fuel injector tester, a fuel pressure regulator, a fuel rail, a pump, a tank for the fluid, a rail with an adjustable fuel pressure regulator and a gauge, and graduated cylinders to measure the output.
It is important to consider the size of the injectors and the flow rate when designing the flow bench. Additionally, the type of fluid used for testing is important, with options including alcohol, deionized water, Stoddard solvent, and Viscor.
The process for testing fuel injectors using a flow bench typically involves pouring a specially formulated injector cleaner into the pipe, attaching shop air, setting the desired pressure, attaching the injector, and then measuring the amount of fuel sprayed into a graduated cylinder over a set period of time. This process can be repeated with different injectors to compare spray patterns and flow rates.
