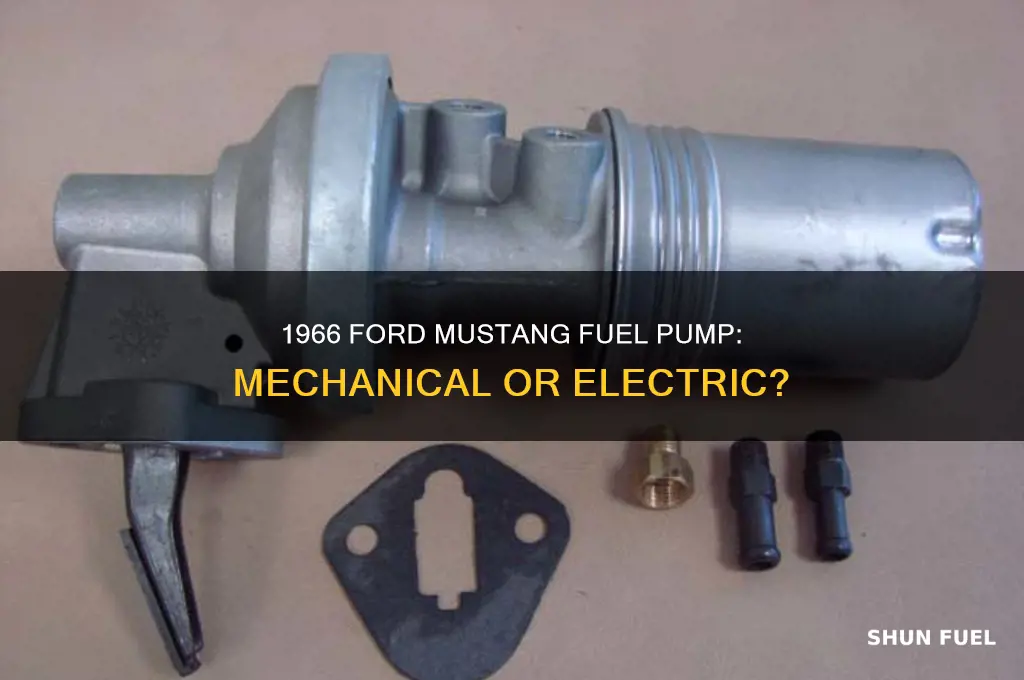

The 1966 Ford Mustang, a quintessential icon of American muscle cars, featured a mechanical fuel pump as standard equipment. This type of fuel pump, driven by the engine's camshaft, was commonly used in carbureted engines of that era. It operated by creating a vacuum to draw fuel from the tank and deliver it to the carburetor, ensuring a consistent supply of gasoline for combustion. While not as advanced as modern electric fuel pumps, the mechanical fuel pump in the 1966 Mustang was reliable and well-suited to the vehicle's design, contributing to its enduring reputation as a classic and beloved automobile.
| Characteristics | Values |
|---|---|
| Type of Fuel Pump | Mechanical Fuel Pump |
| Operation | Engine-driven via eccentric cam on the camshaft |
| Fuel Delivery | Low-pressure fuel delivery to the carburetor |
| Material | Typically cast iron or aluminum body with internal diaphragm |
| Flow Rate | Approximately 30-40 gallons per hour (GPH), depending on engine demands |
| Pressure | 4-6 psi (pounds per square inch) |
| Compatibility | Designed for carbureted engines (e.g., 289 V8, 200 I6) |
| Mounting Location | Typically mounted on the engine block or near the carburetor |
| Power Source | Mechanical (driven by the engine, no electrical components) |
| Common Manufacturers | Ford, Carter, Autolite (OEM and aftermarket replacements) |
| Replacement Options | Available in rebuilt, remanufactured, or new old stock (NOS) forms |
| Maintenance | Requires periodic inspection for leaks, diaphragm wear, and proper operation |
| Upgrade Options | Electric fuel pumps available for conversions to higher-performance setups |
Explore related products
What You'll Learn
Mechanical Fuel Pump Overview
The 1966 Ford Mustang, a classic American muscle car, relied on a mechanical fuel pump to deliver gasoline from the tank to the carburetor. This type of pump, driven by the engine’s camshaft, operates through a simple yet effective mechanism. As the camshaft rotates, a lobe presses against a diaphragm within the pump, creating a vacuum that draws fuel through the lines. This design ensures consistent fuel delivery without the need for electricity, making it a reliable choice for the era’s vehicles.
Mechanical fuel pumps are known for their durability and ease of maintenance. Unlike electric pumps, they have fewer components that can fail, reducing the likelihood of sudden breakdowns. However, their performance is directly tied to engine speed, which means fuel delivery may be less consistent at idle or during low RPMs. For the 1966 Mustang, this characteristic aligns well with its carbureted engine, which requires a steady but not precisely metered fuel supply.
One key advantage of mechanical fuel pumps is their ability to operate without a dedicated power source. This makes them ideal for older vehicles like the 1966 Mustang, which were designed before the widespread use of electronic fuel injection systems. Installation and replacement are straightforward, typically requiring only basic hand tools and a gasket to ensure a proper seal. However, it’s crucial to check for leaks after installation, as even a small fuel leak can pose a safety hazard.
When troubleshooting a mechanical fuel pump, listen for unusual noises, such as a high-pitched whine, which may indicate wear or misalignment. Additionally, monitor fuel pressure using a gauge to ensure it falls within the manufacturer’s specifications (typically 4–6 PSI for carbureted engines). If the pump fails, replacement is often the best course of action, as repairs can be time-consuming and unreliable. Modern reproductions are widely available, ensuring compatibility with the 1966 Mustang’s original setup.
In summary, the mechanical fuel pump in the 1966 Ford Mustang exemplifies the simplicity and reliability of mid-20th-century automotive engineering. While it may lack the precision of modern electric pumps, its robust design and ease of maintenance make it a fitting choice for this iconic vehicle. Understanding its operation and limitations allows enthusiasts to keep their Mustangs running smoothly, preserving the car’s authentic performance and charm.
Electric vs. Mechanical Fuel Pumps: Which One Powers Your Engine Better?
You may want to see also
Explore related products
1966 Mustang Fuel System Design
The 1966 Ford Mustang utilized a mechanical fuel pump as part of its carbureted fuel system. This design, driven by the engine's camshaft, was a standard feature in most American vehicles of the era. Unlike modern electric fuel pumps, the mechanical pump relied on a diaphragm and lever mechanism to draw fuel from the tank and deliver it to the carburetor. This system was simple, reliable, and well-suited to the low-pressure demands of the Mustang's carburetor setup.
One key aspect of the 1966 Mustang's fuel system design was its integration with the engine's operation. The fuel pump's diaphragm was actuated by an eccentric lobe on the camshaft, ensuring that fuel delivery was synchronized with engine RPM. This mechanical linkage meant the pump operated only when the engine was running, conserving energy and reducing the risk of fuel system issues when the vehicle was idle. However, this design also introduced a dependency on engine speed, with fuel pressure varying slightly with RPM.
A notable challenge with the mechanical fuel pump was its susceptibility to wear and tear. The diaphragm and lever mechanism could degrade over time, leading to reduced fuel pressure or pump failure. Symptoms of a failing pump included hard starting, stalling, or a lack of power under acceleration. To address this, Ford designed the pump to be serviceable, with replacement diaphragms and check valves readily available. Regular maintenance, such as checking for leaks and ensuring proper fuel filter cleanliness, was crucial to prolonging the pump's lifespan.
In comparison to modern fuel injection systems, the 1966 Mustang's carbureted setup with a mechanical fuel pump was less efficient but more straightforward to diagnose and repair. The low-pressure system (typically 4-6 PSI) meant that fuel leaks were less hazardous, and the absence of electronic components simplified troubleshooting. For enthusiasts restoring or maintaining a 1966 Mustang, understanding this system's nuances—such as the pump's mounting location near the oil pan and its pushrod-driven operation—is essential for accurate repairs and upgrades.
Finally, for those considering upgrading a 1966 Mustang's fuel system, compatibility with the original design is critical. While electric fuel pumps offer higher pressure and reliability, they require modifications to the fuel lines, regulator, and carburetor. Retaining the mechanical pump preserves the vehicle's authenticity and ensures compliance with restoration guidelines. However, if performance enhancements are the goal, a carefully integrated electric pump can provide the necessary fuel delivery for higher-horsepower applications, though this should be approached with caution to avoid compromising the car's classic character.
Understanding the Function and Importance of a Bus Fuel Pump
You may want to see also
Explore related products
Carburetor-Compatible Pump Features
The 1966 Ford Mustang, a classic icon of American muscle cars, typically came equipped with a mechanical fuel pump designed to work seamlessly with its carburetor system. This pump, driven by the engine’s camshaft, operates via a lever and diaphragm mechanism, creating a vacuum to draw fuel from the tank and deliver it to the carburetor. Understanding the features of a carburetor-compatible fuel pump is essential for restoration or maintenance, ensuring the Mustang’s performance remains authentic and reliable.
One critical feature of a carburetor-compatible pump is its pressure output, which must align with the carburetor’s requirements. For the 1966 Mustang’s 289 V8 or inline-six engines, the pump typically delivers fuel at 4 to 6 psi (pounds per square inch). This low-pressure range is crucial because carburetors, unlike fuel injection systems, rely on gravity and venturi effect to mix air and fuel. Exceeding this pressure can flood the carburetor, while insufficient pressure results in lean mixtures and poor performance. Always verify the pump’s specifications against the carburetor’s needs to avoid mismatches.
Another key feature is the pump’s material and construction. Original 1966 Mustang fuel pumps were often made of cast iron or aluminum, with a diaphragm made of neoprene or similar durable rubber. Modern replacements may offer upgraded materials like stainless steel or high-grade polymers for improved longevity. However, purists restoring a Mustang to original specifications should prioritize OEM-style pumps to maintain authenticity. Inspect the diaphragm for cracks or wear, as this component is prone to failure over time, especially in pumps exposed to ethanol-blended fuels.
Compatibility with the fuel system’s design is also vital. The 1966 Mustang’s fuel pump is mounted on the engine block, directly driven by the camshaft. This setup requires precise alignment and secure mounting to prevent leaks or mechanical failure. When installing a replacement pump, ensure the inlet and outlet ports match the original configuration. Additionally, check the pushrod length and adjustment to maintain proper diaphragm travel. Incorrect installation can lead to inefficient fuel delivery or damage to the pump mechanism.
Finally, consider the pump’s durability in the context of modern fuel blends. Ethanol-containing fuels can degrade rubber components faster, so choosing a pump with ethanol-resistant materials is advisable for daily drivers. For show cars or occasional use, an original-style pump may suffice. Regular maintenance, such as cleaning the fuel filter and inspecting fuel lines, complements the pump’s function and extends its lifespan. By focusing on these carburetor-compatible pump features, enthusiasts can ensure their 1966 Mustang’s fuel system operates as it did when it first rolled off the assembly line.
Do Two-Stroke Engines Require a Fuel Pump? Explained Simply
You may want to see also
Explore related products
Restoration Parts Availability Today
The 1966 Ford Mustang originally came equipped with a mechanical fuel pump, a common feature in carbureted engines of that era. This pump was driven by the camshaft and relied on engine motion to operate, delivering fuel from the tank to the carburetor. Today, restoring a classic like the ’66 Mustang raises questions about the availability of such parts. Fortunately, the mechanical fuel pump remains widely accessible, thanks to a thriving aftermarket industry dedicated to classic car restoration.
For enthusiasts seeking authenticity, original equipment manufacturer (OEM) parts are still available through specialty suppliers and online platforms like eBay Motors or Hemmings. However, these can be pricey and may require patience to locate. Alternatively, modern reproductions offer a cost-effective solution, often improving on the original design with upgraded materials or performance enhancements. Brands like Holley, Carter, and Spectre produce reliable mechanical fuel pumps that fit the ’66 Mustang’s specifications, ensuring compatibility without sacrificing originality.
One trend worth noting is the shift toward electric fuel pumps as a retrofit option. While not period-correct, electric pumps provide consistent fuel pressure, which can benefit engines modified with performance upgrades. For purists, this is a trade-off between historical accuracy and functionality. If opting for an electric pump, ensure the wiring and fuel lines are upgraded to handle the new system, and consult a restoration guide for proper installation.
When sourcing parts, consider joining online forums like Mustang Monthly or Vintage Mustang Forums. These communities offer firsthand advice on reputable suppliers and potential pitfalls to avoid. Additionally, local swap meets and car shows can be treasure troves for rare or discounted components. Always verify the part’s condition and compatibility before purchasing, as returns on restoration parts can be complicated.
In conclusion, restoring a ’66 Mustang’s fuel system today is more accessible than ever, thanks to a blend of OEM parts, high-quality reproductions, and modern alternatives. Whether prioritizing authenticity or performance, careful research and community engagement will ensure a successful restoration project.
Understanding Pulse-Driven Fuel Pumps: Function, Benefits, and Applications
You may want to see also
Explore related products
Upgrading to Electric Fuel Pumps
The 1966 Ford Mustang originally came equipped with a mechanical fuel pump, typically driven by the camshaft. This design, while reliable for its time, has limitations in modern performance applications. Upgrading to an electric fuel pump can significantly enhance fuel delivery, especially for engines with higher horsepower or those running on ethanol blends. Electric pumps offer consistent pressure, better efficiency, and the ability to handle increased fuel demands, making them a popular choice for restorations and performance builds.
When considering an upgrade, compatibility is key. Electric fuel pumps come in various types, including inline and in-tank models. For a 1966 Mustang, an inline pump mounted near the fuel tank or along the fuel line is often the easiest to install, as it doesn’t require modifying the tank. However, in-tank pumps provide a cleaner look and better cooling, as the fuel surrounds the pump. Ensure the pump’s flow rate matches your engine’s requirements—a pump rated for 30-40 psi and 40-60 gallons per hour (GPH) is suitable for most stock to mildly modified engines.
Installation requires careful planning. Start by disconnecting the battery and relieving fuel system pressure. Remove the mechanical pump and install a block-off plate to seal the engine. Route the electric pump’s wiring to a switched power source, such as the fuel pump relay or ignition circuit, and use a fuse to protect the circuit. Install a pre-filter before the pump and a post-filter after it to prevent debris from damaging the pump. Test the system for leaks and ensure the pump primes correctly before starting the engine.
One common mistake is overlooking the need for a fuel pressure regulator. Electric pumps deliver constant pressure, so a regulator is essential to prevent over-pressurizing the carburetor or fuel injectors. Adjust the regulator to match your engine’s specifications—typically 4-6 psi for carburetors. Additionally, consider upgrading fuel lines to high-pressure hoses rated for ethanol-blended fuels, as older rubber lines can deteriorate over time.
Finally, the benefits of upgrading to an electric fuel pump extend beyond performance. Improved fuel delivery ensures smoother idling, better throttle response, and more consistent power output. For enthusiasts looking to modernize their 1966 Mustang while preserving its classic appeal, this upgrade strikes a balance between reliability and performance. With proper installation and maintenance, an electric fuel pump can be a transformative addition to any restoration or build.
Removing the Fuel Pump Relay in a 1990 Ford Bronco: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The 1966 Ford Mustang typically came equipped with a mechanical fuel pump, which was driven by the engine's camshaft.
The 1966 Ford Mustang used a mechanical fuel pump, not an electric one, as it was standard for most vehicles of that era.
Yes, you can replace the mechanical fuel pump with an electric fuel pump, but it requires modifications to the fuel system and may involve additional wiring and plumbing.
