When selecting the correct size fuse for a TBI (Throttle Body Injection) fuel pump, it's essential to ensure compatibility with the pump's electrical requirements to prevent damage or malfunction. The appropriate fuse size typically depends on the fuel pump's amperage draw, which can vary based on the vehicle's make, model, and specific fuel pump design. Most TBI fuel pumps operate within a range of 10 to 20 amps, so a fuse rated at 15 amps is commonly recommended as a safe and effective choice. However, always consult the vehicle’s manual or the fuel pump manufacturer’s specifications to confirm the exact amperage and fuse size needed. Using an incorrect fuse size can lead to electrical issues, such as blown fuses or potential fire hazards, making proper selection critical for reliable performance and safety.
| Characteristics | Values |
|---|---|
| Fuse Size | Typically 15-20 amps, but can vary depending on the specific fuel pump and vehicle |
| Fuse Type | Blade-type fuse (ATC/ATO) |
| Wire Gauge | 14-16 AWG (American Wire Gauge) for fuel pump circuit |
| Voltage | 12 volts (standard automotive electrical system) |
| Fuel Pump Current Draw | 5-10 amps (average), but can be higher during startup or high-demand conditions |

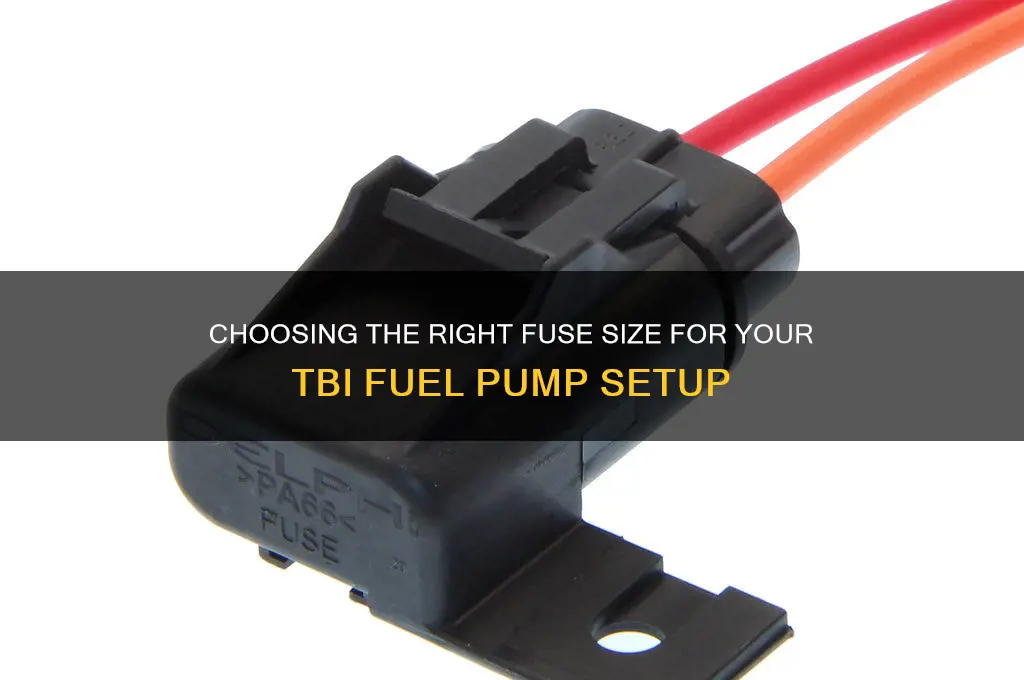

| Fuse Holder | In-line fuse holder or fuse block, often located near the fuel pump relay or in the engine bay fuse box |
| Compatibility | Check vehicle manufacturer's specifications or consult a repair manual for exact fuse size and type |
| Common Fuse Sizes | 15 amp (most common), 20 amp (for high-performance fuel pumps), 10 amp (less common) |
| Replacement Fuses | Always replace with the correct amp rating and type; using a higher-amp fuse can be dangerous |
| Diagnostic Tip | If the fuel pump fuse blows repeatedly, check for short circuits, damaged wiring, or a faulty fuel pump relay |
Explore related products
What You'll Learn
Understanding TBI Fuel Pump Requirements
The TBI (Throttle Body Injection) fuel pump operates within a specific electrical current range, typically drawing between 5 to 10 amps during normal operation. This current draw is critical for determining the appropriate fuse size, as an undersized fuse can lead to frequent blowing, while an oversized fuse may fail to protect the circuit adequately. Understanding this range is the first step in selecting the correct fuse to ensure both safety and functionality.
Selecting the right fuse involves more than just matching the pump’s current draw. A common rule of thumb is to choose a fuse rated 125% to 150% of the pump’s maximum current draw. For a TBI fuel pump drawing up to 10 amps, a 15-amp fuse is often recommended. This provides a buffer for temporary current spikes without compromising circuit protection. However, always refer to the manufacturer’s specifications or consult a wiring diagram for your specific vehicle to confirm compatibility.
While a 15-amp fuse is a standard choice, certain factors may necessitate adjustments. For instance, if the fuel pump is part of an upgraded system or operates in high-demand conditions, such as in racing applications, a 20-amp fuse might be more appropriate. Conversely, in low-draw systems or older vehicles with less robust wiring, sticking to a 10-amp fuse could be safer. Always consider the overall electrical system’s capacity and the pump’s operational demands before finalizing your decision.
Proper fuse selection is not just about preventing electrical failures—it’s also about safety. An incorrectly sized fuse can lead to overheating, wire damage, or even fire hazards. For example, using a 30-amp fuse in a circuit designed for lower current can allow excessive current flow, bypassing the protective function of the fuse. Conversely, a 5-amp fuse in a high-draw system will blow repeatedly, rendering the pump inoperable. Balancing protection and functionality is key to maintaining a reliable fuel delivery system.
To ensure long-term reliability, inspect the fuse and wiring periodically, especially after installing a new fuel pump or fuse. Look for signs of corrosion, fraying, or melting, which can indicate an underlying issue. Additionally, test the pump’s current draw using a multimeter to verify it aligns with expected values. This proactive approach can prevent unexpected failures and extend the lifespan of your TBI fuel pump system.
Signs Your Car Needs a New Fuel Pump: What to Look For
You may want to see also
Explore related products
$42.29 $62.49
Fuse Size Calculation for TBI Pumps
Selecting the correct fuse size for a TBI (Throttle Body Injection) fuel pump is critical to ensure both performance and safety. The fuse acts as a protective device, preventing electrical overloads that could damage the pump or cause a fire. To determine the appropriate fuse size, start by identifying the fuel pump’s current draw, typically measured in amperes (A). This information is often found in the pump’s specifications or the vehicle’s manual. For example, a common TBI fuel pump might draw 10–15A under normal operating conditions. The fuse rating should be slightly higher than the pump’s maximum current draw to allow for brief surges without blowing unnecessarily.
A practical approach to fuse size calculation involves a simple formula: Fuse Rating = (Pump Current Draw × 1.25). This 25% buffer accounts for startup surges or temporary spikes in current. For instance, if the pump draws 12A, the fuse rating would be 15A (12 × 1.25). However, always ensure the fuse rating does not exceed the wiring’s ampacity, as this could lead to overheating or fire hazards. Using a fuse that is too large defeats its protective purpose, while one that is too small will blow frequently, disrupting fuel delivery.
When in doubt, consult the vehicle manufacturer’s recommendations or a professional mechanic. Some TBI systems may have unique requirements due to modifications or specific engine demands. For example, high-performance engines with upgraded fuel pumps may require larger fuses, such as 20A or 25A, to handle increased current draw. Conversely, stock systems typically use smaller fuses, like 10A or 15A. Always verify compatibility with the pump and wiring to avoid electrical issues.
A common mistake is assuming a "bigger is better" approach to fuse sizing. This is incorrect and dangerous. Overfusing can lead to wires melting or components overheating before the fuse blows. Conversely, underfusing results in frequent interruptions and potential fuel delivery problems. For instance, a 30A fuse on a 12A pump provides no additional protection and increases risk. Stick to the calculated or recommended size for optimal safety and reliability.
Finally, consider environmental factors and system longevity. Extreme temperatures or aging wiring may affect current draw, so periodic inspection is advisable. If the fuse blows repeatedly, investigate the cause rather than simply replacing it with a larger one. Practical tips include using high-quality fuses, checking for corrosion in connections, and ensuring the fuel pump is functioning efficiently. By following these guidelines, you can confidently select the correct fuse size for your TBI fuel pump, balancing protection and performance.
Can a Fuel Pump Operate Without Gasoline? Exploring the Mechanics
You may want to see also
Explore related products
Common Fuse Ratings for TBI Systems
Selecting the correct fuse size for a TBI (Throttle Body Injection) fuel pump is critical to ensure both performance and safety. Most TBI systems operate on a 12-volt electrical system, and the fuel pump typically draws between 5 to 15 amps during normal operation. As a result, a 15-amp fuse is commonly recommended for TBI fuel pumps. This rating provides sufficient protection against overcurrent while allowing the pump to function efficiently under typical load conditions. Always consult your vehicle’s manual or wiring diagram for specific recommendations, as some systems may vary.
While a 15-amp fuse is standard, certain factors may influence the choice of fuse rating. For instance, if the fuel pump is part of a modified or high-performance TBI system, it may draw more current, necessitating a 20-amp fuse. However, using a higher-rated fuse without proper justification can compromise safety by failing to protect the circuit in case of a fault. Conversely, a fuse rated too low, such as 10 amps, may blow prematurely under normal operating conditions, leading to unnecessary downtime. Understanding the pump’s current draw and the system’s requirements is essential for making an informed decision.
Another consideration is the type of fuse used. Blade fuses, commonly found in modern vehicles, are the standard choice for TBI systems. These fuses are available in various ratings, including 10, 15, and 20 amps, making them versatile for different applications. For older vehicles or custom setups, cartridge fuses may still be in use, though they are less common today. Regardless of the type, ensure the fuse is compatible with your vehicle’s fuse box and meets the electrical demands of the fuel pump.
Practical tips can further enhance the reliability of your TBI fuel pump’s electrical circuit. Always inspect the wiring for signs of wear, corrosion, or damage, as these issues can cause excessive current draw. Use a multimeter to measure the pump’s actual current consumption under load, which can help confirm whether the chosen fuse rating is appropriate. Additionally, installing an inline fuse holder near the pump can provide added protection and simplify troubleshooting in case of a blown fuse.
In summary, while a 15-amp fuse is the most common choice for TBI fuel pumps, the specific rating should align with the pump’s current draw and the system’s requirements. Avoid over-fusing or under-fusing, as both can lead to operational issues or safety hazards. By combining the right fuse rating with proper maintenance and testing, you can ensure your TBI system operates reliably and safely.
Carter Fuel Pumps: Performance, Reliability, and Value Reviewed
You may want to see also
Explore related products
Safety Tips for Fuse Installation
Fuses are critical safety devices, but improper installation can turn them into hazards. Always match the fuse size to the circuit’s amperage rating—using a higher-rated fuse risks overheating wires, while a lower-rated one may blow prematurely. For TBI fuel pumps, consult the manufacturer’s specifications or vehicle manual; common sizes range from 10 to 20 amps, but this varies by model and system demands.
Before installation, inspect the fuse holder for corrosion, cracks, or loose connections. A compromised holder can cause arcing or poor contact, leading to intermittent power loss or fire risks. Clean terminals with a wire brush and apply dielectric grease to prevent oxidation. Ensure the fuse fits snugly—a loose fuse may not conduct properly or could overheat.
Never bypass a blown fuse with makeshift solutions like aluminum foil or higher-rated fuses. This practice circumvents the safety mechanism designed to protect the circuit. Instead, investigate the root cause of the blown fuse—frequent failures often indicate a short circuit, overloaded system, or failing component, such as a malfunctioning fuel pump.
When working with automotive electrical systems, disconnect the battery to eliminate the risk of accidental short circuits. Wear insulated gloves and use non-conductive tools to avoid shocks. Label circuits or take photos before removing fuses to ensure correct reinstallation. For TBI fuel pump circuits, double-check polarity and wiring diagrams to avoid reversing connections, which can damage the pump or ECU.
Finally, test the system after installation. Start the vehicle and monitor the fuse for signs of overheating or abnormal behavior. Use a multimeter to verify voltage and continuity in the circuit. Regularly inspect fuses during routine maintenance, especially in high-vibration areas like engine bays, where mechanical stress can weaken connections over time.
Locate the Fuel Pump on Your 2009 Brute Force 750
You may want to see also
Explore related products
Troubleshooting TBI Fuel Pump Fuse Issues
The TBI fuel pump fuse is a critical component in ensuring your vehicle's fuel system operates efficiently. A blown fuse can lead to a no-start condition, leaving you stranded. Understanding the correct fuse size is essential, but troubleshooting fuse issues goes beyond mere replacement. It involves a systematic approach to identify and rectify the root cause.
Identifying the Problem: Symptoms and Initial Checks
When your vehicle fails to start or the fuel pump isn’t priming, the first suspect is often the fuse. Symptoms include a dead engine, sputtering, or a complete lack of fuel delivery. Start by locating the fuse box, typically found under the dashboard or in the engine compartment. Consult your vehicle’s manual to identify the specific fuse for the TBI fuel pump. Most TBI systems use a 10- to 20-amp fuse, but this can vary by make and model. Visually inspect the fuse for signs of damage, such as a broken filament or discoloration. A blown fuse is a clear indicator, but don’t stop there—the issue may be deeper.
Diagnosing the Root Cause: Beyond the Fuse
Replacing a blown fuse only to have it blow again indicates an underlying problem. Common culprits include a short circuit in the fuel pump wiring, a faulty fuel pump drawing excessive current, or a malfunctioning relay. Use a multimeter to test the continuity of the wiring and the resistance of the fuel pump. If the pump’s resistance is outside the manufacturer’s specifications (typically 1–3 ohms), it may be drawing too much power. Additionally, check the relay by swapping it with a similar one in the fuse box. If the problem persists, the relay may be defective.
Practical Tips for Prevention and Maintenance
To avoid recurring fuse issues, inspect the fuel pump wiring for fraying, corrosion, or loose connections. Ensure the pump’s ground connection is secure, as a poor ground can cause excessive current draw. Regularly clean the fuse box terminals to prevent corrosion, which can lead to intermittent connections. If you’ve replaced the fuse and addressed wiring issues but still experience problems, consider testing the fuel pump’s pressure and volume. A failing pump may operate within specs momentarily but degrade under load, causing the fuse to blow during operation.
Step-by-Step Guide: Installing Walbro Fuel Pump in 2007 MDX
You may want to see also
Frequently asked questions
The typical fuse size for a TBI fuel pump is 15 amps, but always refer to your vehicle’s manual or wiring diagram for the correct specification.
No, using a higher amp fuse can be dangerous as it may not properly protect the circuit from overcurrent, potentially causing damage or fire.
A lower amp fuse may blow frequently, causing the fuel pump to shut off, leading to engine performance issues or stalling.
Check your vehicle’s manual or consult a wiring diagram. If the fuse blows frequently or the pump doesn’t work, verify the correct size and inspect the wiring for issues.
