The 1993 Ford F350's fuel pump operation is governed by a series of switches and sensors working in tandem to ensure proper fuel delivery. Key components include the fuel pump relay, which acts as the primary switch, activating the pump when the ignition is turned on. The inertia switch, often located in the cab, serves as a safety feature, cutting power to the pump in the event of a collision. Additionally, the oil pressure switch ensures the pump only runs when the engine is actively operating, preventing unnecessary fuel flow. These switches, along with the engine control module (ECM), work together to manage the fuel pump's activation, ensuring reliable performance in this classic Ford truck.
| Characteristics | Values |
|---|---|
| Fuel Pump Relay | Controls power to the fuel pump; activated by the ignition switch and oil pressure switch. |
| Ignition Switch | Provides initial power to the fuel pump relay when the key is turned to "ON" or "START." |
| Inertia Switch | Safety switch that cuts power to the fuel pump in the event of a collision; must be reset manually. |
| Oil Pressure Switch | Ensures the fuel pump only operates when there is sufficient oil pressure in the engine. |
| Fuel Pump Fuse | Protects the fuel pump circuit from electrical overload; typically located in the fuse box. |
| Engine Control Module (ECM) | Monitors and controls the fuel pump operation based on sensor inputs. |
| Fuel Pump Ground Circuit | Provides a return path for the electrical current to complete the circuit. |
| Fuel Tank Sending Unit | Contains a float and resistor that monitor fuel level and assist in pump operation. |
| Power Distribution Box | Houses the fuel pump relay and related fuses. |
| Wiring Harness | Connects all switches, relays, and the fuel pump to the vehicle's electrical system. |
Explore related products
What You'll Learn
Fuel Pump Relay Location
The fuel pump relay in a 1993 Ford F350 is a critical component that bridges the gap between the ignition system and the fuel pump, ensuring the pump activates only when necessary. Located under the hood, this relay is typically housed in the main fuse box or power distribution center, often near the battery or firewall. Identifying its exact position requires consulting the vehicle’s manual or a wiring diagram, as Ford’s placement can vary slightly between models and years. For the F350, it’s commonly found in the engine compartment’s fuse/relay box, labeled as “Fuel Pump Relay” or “FPR.”
Analyzing the relay’s function reveals its role as a safety and efficiency measure. By acting as a high-current switch, it prevents the fuel pump from drawing power directly from the ignition switch, which could overheat or fail under the load. When the ignition is turned on, the relay receives a signal from the oil pressure switch or the engine control unit (ECU), depending on the model. This signal energizes the relay, completing the circuit to the fuel pump. If the relay fails, the pump won’t activate, leading to a no-start condition—a common issue in older F350s.
To locate and test the fuel pump relay, start by opening the hood and identifying the fuse/relay box. Remove the lid to expose the relays and fuses, then consult the diagram on the lid or manual to pinpoint the fuel pump relay. Relays are often interchangeable, so swapping it with another of the same type (e.g., the horn relay) can quickly diagnose a faulty unit. If the fuel pump activates after the swap, the relay is likely defective. Replacement relays are inexpensive and widely available, but ensure the new unit matches the amperage and pin configuration of the original.
A comparative look at the 1993 F350’s fuel system highlights the relay’s importance relative to other components. While the inertia switch (a safety device that cuts power to the pump in a collision) and the fuel pump itself are critical, the relay acts as the gatekeeper. Without it, the system lacks the ability to control pump activation intelligently. Unlike newer vehicles with integrated ECU control, the F350 relies on mechanical and electrical switches, making the relay’s location and condition paramount for troubleshooting.
Instructively, if you’re experiencing fuel pump issues, start by verifying the relay’s condition. Use a multimeter to test for continuity across the relay’s terminals when activated, or listen for the pump’s hum by placing your ear near the fuel tank with the key in the “on” position. If the relay is inaccessible or difficult to locate, trace the wiring from the fuel pump to the fuse box. Practical tips include labeling relays before removal to avoid confusion and keeping a spare relay in your toolkit for roadside diagnostics. Understanding the fuel pump relay’s location and function empowers owners to address no-start issues efficiently, saving time and potential towing costs.
Diagnosing Fuel Pump Voltage Overdraw: A Step-by-Step Testing Guide
You may want to see also
Explore related products
Inertia Switch Functionality

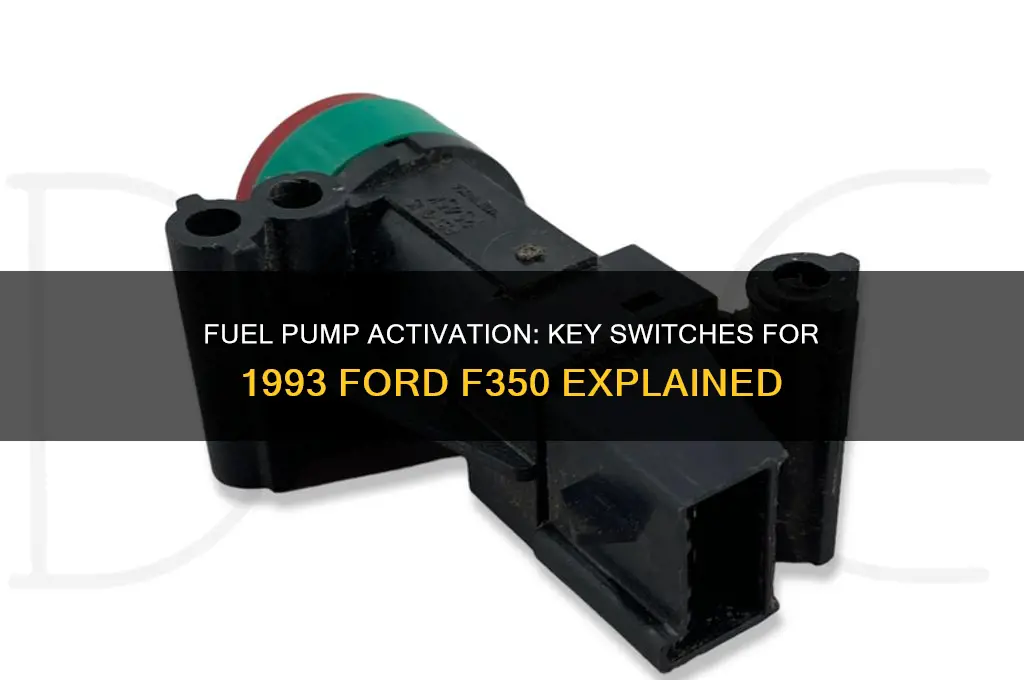

The inertia switch in a 1993 Ford F350 serves as a critical safety feature, designed to shut off the fuel pump in the event of a collision. This switch, also known as a fuel pump cutoff switch, operates based on the principle of inertia. When the vehicle experiences a sudden deceleration, such as during an accident, the inertia switch triggers, interrupting the electrical circuit to the fuel pump. This immediate cutoff prevents fuel from being pumped to the engine, reducing the risk of fire or explosion. Understanding its functionality is essential for both safety and troubleshooting purposes.
Analyzing the mechanics, the inertia switch contains a spring-loaded mechanism with a small weighted ball or pin. Under normal driving conditions, the ball remains in place, allowing the circuit to remain closed and the fuel pump to operate. However, during a collision or abrupt stop, the inertia forces the ball to move, breaking the circuit and cutting power to the fuel pump. This design is simple yet highly effective, ensuring rapid response in emergency situations. It’s important to note that the switch is typically located in the vehicle’s cabin, often near the driver’s area, to allow for manual reset if necessary.
For owners of a 1993 Ford F350, knowing how to reset the inertia switch is crucial. If the switch has been triggered, the fuel pump will not engage, causing the engine to stall or fail to start. To reset it, locate the switch (often marked with a label or symbol), and press the button firmly until it clicks into place. This action re-engages the circuit, allowing the fuel pump to function again. However, always inspect the vehicle for damage before resetting the switch, as it may have been triggered for a valid safety reason.
Comparatively, newer vehicles often integrate the inertia switch function into more advanced safety systems, such as the airbag control module. However, the standalone inertia switch in the 1993 Ford F350 remains a reliable and straightforward solution. Its simplicity ensures durability and ease of maintenance, making it a key component in the vehicle’s fuel system. While modern systems offer additional layers of protection, the inertia switch’s direct and immediate response remains unparalleled in its specific role.
In practice, regular inspection of the inertia switch is recommended to ensure it functions correctly. Check for loose connections, corrosion, or physical damage that could impair its operation. Additionally, familiarize yourself with its location and reset procedure, as this knowledge can save time and frustration if the switch is accidentally triggered. By understanding and maintaining the inertia switch, 1993 Ford F350 owners can enhance both the safety and reliability of their vehicle’s fuel system.
Step-by-Step Guide: Testing Your Vacuum Fuel Pump Effectively
You may want to see also
Explore related products
Oil Pressure Switch Role
The oil pressure switch in a 1993 Ford F350 is a critical component that ensures the fuel pump operates only when the engine has sufficient oil pressure. This switch is typically located near the oil filter or on the engine block, where it can accurately monitor oil pressure levels. When the engine starts, the oil pump begins circulating oil, and once the pressure reaches a specific threshold (usually around 5 to 10 PSI), the oil pressure switch closes, completing the circuit to the fuel pump relay. This action allows the fuel pump to activate, delivering fuel to the engine for combustion. Without this switch, the fuel pump could run dry, causing unnecessary wear or failure.
Analyzing its function, the oil pressure switch acts as a safeguard, preventing the fuel pump from operating if the engine lacks adequate lubrication. This is particularly important during cold starts or when the oil level is low. For instance, if the oil pressure switch fails to close due to low oil pressure, the fuel pump remains inactive, protecting the engine from damage. However, a faulty switch can also prevent the fuel pump from starting even when oil pressure is normal, leading to a no-start condition. Diagnosing such issues often involves testing the switch with a multimeter to check for continuity at the specified pressure threshold.
To troubleshoot a suspected oil pressure switch issue, start by verifying the oil level and condition. Low or degraded oil can cause insufficient pressure, mimicking a switch failure. Next, locate the switch and inspect it for physical damage or loose connections. If the switch appears intact, use a pressure gauge to confirm the oil pressure is within the operational range. If pressure is adequate but the fuel pump still doesn’t activate, test the switch’s electrical circuit. With the engine off, check for continuity across the switch terminals; it should be open at low pressure and closed when pressure is applied. If the switch fails this test, replacement is necessary.
Comparatively, the oil pressure switch differs from other switches in the fuel pump circuit, such as the inertia switch or the fuel pump relay. While the inertia switch cuts power to the pump in the event of a collision, and the relay controls power distribution, the oil pressure switch specifically ensures the engine is lubricated before fueling begins. This layered approach to safety highlights the importance of each component in maintaining engine integrity. For the 1993 Ford F350, understanding the unique role of the oil pressure switch is key to diagnosing and resolving fuel pump-related issues effectively.
In practice, replacing an oil pressure switch is a straightforward task that requires basic tools and precautions. First, ensure the engine is cool and the ignition is off. Locate the switch, typically near the oil filter, and disconnect the wiring harness. Use a wrench to remove the switch, taking care not to strip the threads. Install the new switch, reattach the wiring, and start the engine to verify proper operation. Always refer to the vehicle’s service manual for specific torque values and additional instructions. By addressing the oil pressure switch role with precision, you can maintain the reliability and longevity of your 1993 Ford F350’s fuel system.
Testing Your Dodge Caravan's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Engine Control Module (ECM) Activation
The 1993 Ford F-350's fuel pump activation relies heavily on the Engine Control Module (ECM), a critical component that orchestrates the vehicle's fuel delivery system. This module acts as the brain, receiving inputs from various sensors and switches to determine when the fuel pump should engage. Understanding the ECM's role is essential for diagnosing and resolving fuel pump-related issues in this model.
Diagnostic Approach: When troubleshooting a non-starting fuel pump, begin by verifying the ECM's activation signal. This can be done using a multimeter to check for voltage at the fuel pump relay, which is directly controlled by the ECM. If the relay receives power but the pump remains inactive, the issue may lie within the pump itself or its wiring harness. However, if the relay lacks power, the focus shifts to the ECM and its associated switches.
Key Switches and Sensors: The ECM relies on several switches and sensors to initiate fuel pump operation. The ignition switch is primary; when turned to the 'On' position, it sends a signal to the ECM, prompting it to energize the fuel pump relay. Another crucial component is the oil pressure switch, which ensures the pump operates only when sufficient oil pressure is present, preventing dry starts. Additionally, the automatic shutdown (ASD) relay plays a vital role by supplying power to the ECM and fuel pump circuit during engine startup.
ECM Activation Sequence: Upon receiving the ignition signal, the ECM performs a series of checks before activating the fuel pump. It verifies the presence of a valid crankshaft position sensor signal, ensuring the engine is in a start-ready state. Simultaneously, it monitors the oil pressure switch and other safety sensors. If all parameters are within range, the ECM grounds the fuel pump relay, completing the circuit and initiating pump operation. This sequence typically lasts for 2-3 seconds, priming the fuel system for combustion.
Practical Tips for Troubleshooting: To isolate ECM-related issues, start by checking the ignition and oil pressure switches for continuity. A faulty ignition switch can prevent the ECM from receiving the necessary activation signal. Similarly, a stuck-open oil pressure switch might inhibit pump operation. If these components test good, inspect the ASD relay for proper functioning. In some cases, the ECM itself may require replacement, but this should be considered after ruling out other potential causes. Always refer to a factory service manual for specific testing procedures and diagnostic codes related to the ECM and fuel pump system.
Understanding Mechanical Fuel Pump PSI: Optimal Pressure Explained
You may want to see also
Explore related products
Fuel Pump Fuse Verification
The fuel pump fuse is a critical component in the 1993 Ford F350's fuel delivery system, acting as a safeguard against electrical overloads that could damage the pump or wiring. Located in the fuse box, typically under the hood or near the driver's side dashboard, this fuse is the first line of defense in ensuring the fuel pump operates correctly. A blown fuse can prevent the pump from engaging, leading to a no-start condition. Therefore, verifying the integrity of this fuse is a fundamental step in diagnosing fuel pump issues.
To begin the verification process, consult the vehicle’s manual to identify the specific fuse number and its amperage rating, usually 15 or 20 amps for this model. Using a fuse puller or needle-nose pliers, carefully remove the fuse from its slot. Inspect it for visible signs of damage, such as a broken filament or discoloration. A blown fuse will often exhibit these characteristics, but subtle damage can be harder to detect. For a more accurate assessment, use a multimeter set to the continuity or resistance mode. Place the probes on the fuse terminals; a reading of zero or near zero indicates a good fuse, while infinite resistance suggests it’s blown.
If the fuse appears intact but the fuel pump still doesn’t activate, consider testing under load. Reinstall the fuse and use the multimeter to measure voltage across the fuse terminals with the ignition in the "on" position. A voltage drop close to the battery voltage (around 12 volts) confirms the circuit is energized. However, if voltage is absent or significantly lower, trace the wiring for faults or check the fuel pump relay, as the issue may lie beyond the fuse.
Replacing a blown fuse is straightforward but requires caution. Always use a fuse of the correct amperage to avoid electrical hazards. After replacement, test the fuel pump’s operation by turning the ignition to the "on" position and listening for the pump’s brief activation hum, typically lasting 2-3 seconds. If the pump fails to engage, further investigation into the relay, wiring, or pump itself is warranted.
In summary, fuel pump fuse verification is a quick yet essential diagnostic step for the 1993 Ford F350. By combining visual inspection, multimeter testing, and under-load checks, you can accurately determine the fuse’s condition and narrow down potential causes of fuel pump failure. This methodical approach ensures efficiency in troubleshooting and minimizes the risk of overlooking a simple yet critical issue.
Choosing the Right PSI Electric Fuel Pump for Your Vehicle
You may want to see also
Frequently asked questions
The fuel pump is triggered by the fuel pump relay, which is activated when the ignition is turned on and the Powertrain Control Module (PCM) detects the need for fuel delivery.
Yes, the inertia switch (also known as the fuel pump shut-off switch) can cut power to the fuel pump in the event of a collision or sudden impact. Resetting the switch is necessary to restore fuel pump operation.
Yes, a faulty fuel pump relay can prevent the fuel pump from starting, as it controls the power supply to the pump. Testing or replacing the relay is often necessary to resolve this issue.
