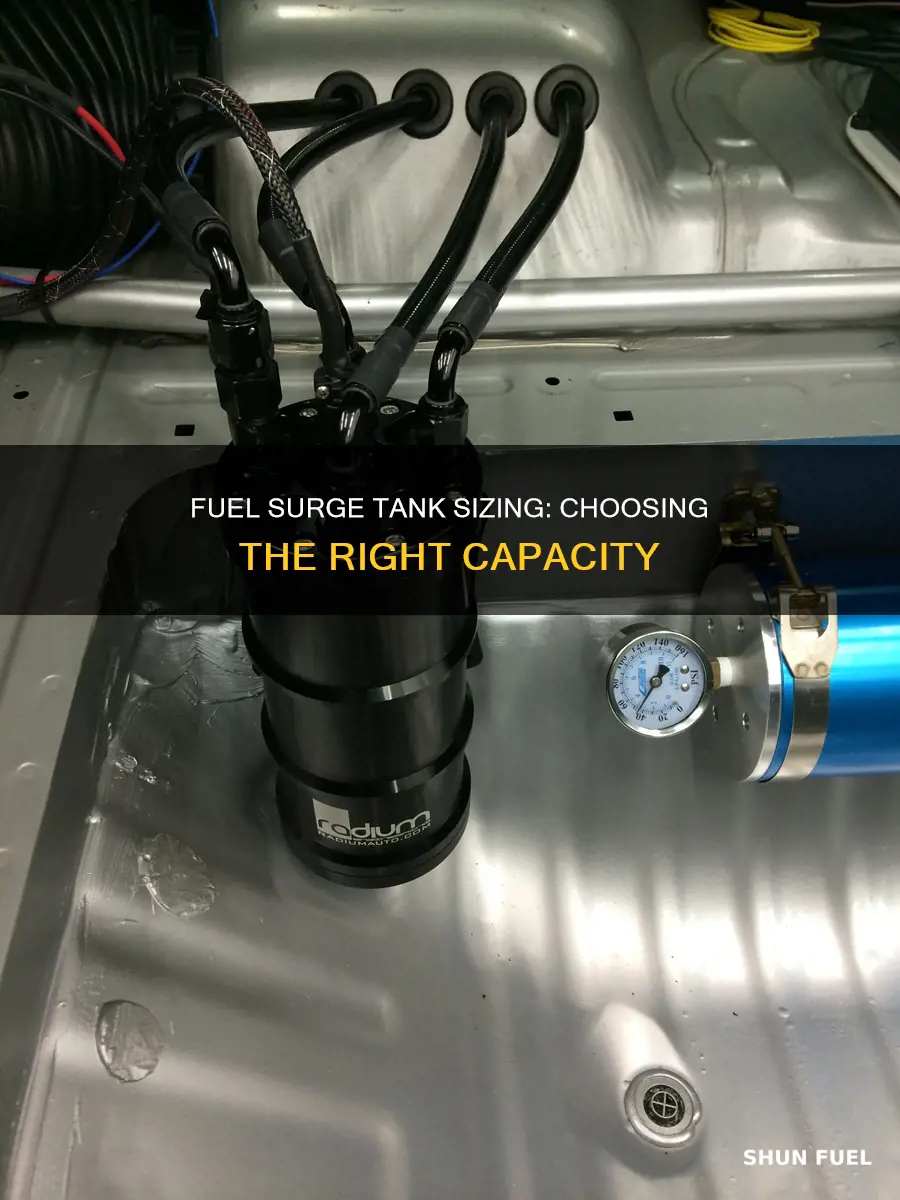

Fuel surge tanks are used to ensure a constant supply of fuel to the engine during high-performance driving conditions. They are particularly useful for race/drift cars, which can be prone to fuel starvation during high lateral Gs. The size of the fuel surge tank needed depends on the type of driving/racing and the fuel demands of the engine. For example, a tank that can hold about one liter is recommended for most applications, while a larger tank may be needed for high-horsepower vehicles. The amount of internal fuel pumps needed depends on current and future power goals.
Fuel Surge Tank Characteristics and Considerations
| Characteristics | Values |
|---|---|
| Purpose | Maintain a consistent supply of fuel to the engine during high-performance driving conditions |
| Benefits | Prevents fuel starvation, ensures a steady flow of fuel, and improves fuel delivery |
| Installation | Can be built into the main tank/fuel cell or installed externally |
| Size | Based on volume at no pressure to keep the surge tank full; typically recommended as one liter but depends on driving conditions and engine fuel demands |
| Flow Rate | Should be slightly higher than the engine's peak load to allow for future modifications without upgrading the fuel system |
| Number of Fuel Pumps | Dependent on current and future power goals; the SPR1200V2 Surge Tank, for example, uses 1-3 internal fuel pumps |
| Sound | External fuel pumps can be loud, so an internal pump may be preferred to reduce noise |
| Line Size | Line size does not impact the size of the surge tank but may affect pressure loss and pump sizing |
Explore related products
What You'll Learn
- The size of the fuel surge tank depends on your engine's fuel demands
- The number of internal fuel pumps depends on your power goals
- A fuel surge tank ensures a constant supply of fuel to the engine
- Fuel surge tanks prevent fuel starvation during high-performance driving
- The size of the surge tank fill pump is based on volume at no pressure
The size of the fuel surge tank depends on your engine's fuel demands
The size of the fuel surge tank you need is dependent on the type of driving or racing you engage in and the specific fuel demands of your engine. For example, if you are using a race car that runs at full throttle constantly, or if you have a high-horsepower engine that requires large amounts of fuel, you will need a larger fuel surge tank to meet those demands.
On the other hand, if you are using a naturally-aspirated street cruiser or a mild street application, you may not need as large of a fuel surge tank. In these cases, upgrading your in-tank pump or using an external fuel pump may be sufficient to meet your engine's fuel demands.
It is recommended to overspecify your injectors' flow rate by 20% and to get a slightly higher flowing pump than your engine will use at peak load. This will provide some overhead and allow you to increase power with other modifications without having to redo your fuel system upgrades.
Additionally, the design of the fuel surge tank and the number of internal fuel pumps can also impact the size and capacity of the tank. Some popular options on the market offer a 1-gallon fuel capacity supplied by the lift pump, ensuring extra protection from fuel starvation. Ultimately, the size of the fuel surge tank you need will depend on your engine's specific fuel demands and the type of driving you engage in.
Repairing Diesel Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
The number of internal fuel pumps depends on your power goals
For example, if your horsepower goal is 400hp, the equation is as follows: .45 x 400 (BSFC x horsepower) = 180 pounds of fuel per hour. You can then convert this to litres or gallons per hour to understand your fuel requirement.
Most pumps are rated at their "free flow" state, which means they are flowing at 0 psi. Since pump flow reduces as pressure requirements rise, this means that free flow is the pump's highest flowing state. Fuel pump manufacturers will often include charts that show flow rate vs. pressure. You need to determine the pressure in your fuel system and then consult these charts to get an accurate assessment of the pump flow.
Inline fuel pumps must be mounted as close to the fuel tank or cell as possible as they are pushing pumps and cannot efficiently draw fuel from long distances away. In-tank fuel pumps are the most common in the OEM market, and their size is limited to the opening of the fuel tank, so their horsepower capabilities are limited. However, modern brushless motors and turbine technology have produced some impressive in-tank pumps that can support high power.
Fuel surge tanks can be built into the main tank/fuel cell and can be done with one pump using venturi pumps to fill the surge tank. The size of the surge tank fill pump is based on volume at no pressure to keep the surge full.
Draining the Bandit Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
A fuel surge tank ensures a constant supply of fuel to the engine
A fuel surge tank is an additional fuel storage device that ensures a constant supply of fuel to the engine. It does so by acting as a buffer or reservoir between the fuel tank and the engine. This helps to prevent fuel starvation during high-performance driving conditions, heavy load applications, or cornering with low fuel in the tank.
The fuel surge tank maintains a steady flow of fuel to the engine by utilizing a supply fuel pump located in the main fuel tank. This pump continually fills the surge tank, keeping it overfilled. The fuel starts at the factory tank and is drawn into the low-pressure pump. The pressurized fuel then flows into the surge tank and out toward the engine. From there, the fuel goes into an inline high-pressure EFI pump and out to the injectors. The pressure of the fuel is controlled by the fuel pressure regulator, which ensures the right amount of fuel is delivered to the injectors. Any remaining fuel then returns to help refill the surge tank. As the surge tank reaches its maximum capacity, the excess fuel returns to the main fuel tank.
The size of the surge tank fill pump is based on volume at no pressure to keep the surge tank full. It is recommended to get a slightly higher-flowing pump than your engine will use at peak load. This allows for some overhead and the ability to increase power with other modifications without having to redo the fuel system upgrades.
An engine's fuel requirements will vary depending on how far the accelerator is depressed. The fuel system may need to flow more than the capacity of the lines when the engine is at or near full throttle. In such cases, the reserve fuel in the surge tank can maintain a constant supply of fuel to the engine during periods of hard acceleration and then refill during periods of lower throttle. This makes it especially useful for race cars or high-horsepower engines that require large amounts of fuel.
Escort Fuel Tank Replacement: A Step-by-Step Guide for 2001 Models
You may want to see also
Explore related products
Fuel surge tanks prevent fuel starvation during high-performance driving
Fuel surge tanks are an effective way to prevent fuel starvation during high-performance driving. They maintain a consistent supply of fuel to the engine, ensuring it always has a steady flow, even in demanding conditions. This is particularly useful during cornering, heavy load applications, or racing, where fuel starvation can cause engine failure.
A fuel surge tank is an additional fuel storage device that works in conjunction with the main fuel tank. It receives excess fuel from the main tank during periods of high demand and then sends this fuel back to the engine during periods of low demand, preventing starvation. This process also helps to regulate fuel pressure, ensuring the right amount of fuel is delivered to the injectors.
The size of the fuel surge tank is an important consideration. It should be sized to maintain a constant supply of fuel to the engine, even when the main tank is low. The general rule is that the lift pump should flow at least half the rate of the pump in the surge tank. For higher horsepower applications, calculations are needed to determine the correct size.
The benefits of a fuel surge tank are clear. They provide an inexpensive way to protect your engine and minimize the risk of fuel loss. By ensuring a constant level of fuel, they also increase the chance of utilizing the full power of the engine. Additionally, they can extend the life of fuel pumps by keeping them cooler and less stressed.
When considering the size and specifications of a fuel surge tank, it is important to consult a qualified mechanic and adhere to regional laws regarding vehicle modifications.
Equalizing Semi Fuel Tanks: The Essential Guide
You may want to see also
Explore related products
The size of the surge tank fill pump is based on volume at no pressure
The size of a surge tank fill pump is dependent on several factors, and it is important to understand the role of a surge tank and the factors that affect its performance.
Surge tanks, also known as hydropneumatic tanks, are used to mitigate issues with pressure changes when pumps start up, change speed, or trip. They are particularly important in water systems and automotive applications to prevent pressure-related problems. The primary function of a surge tank is to address pressure changes and ensure a consistent flow.
When considering the size of the surge tank fill pump, it is indeed correct that it is based on volume at no pressure. This is because the surge tank fill pump does not need to create pressure; instead, its purpose is to maintain a sufficient volume of liquid in the surge tank to prevent issues associated with pressure fluctuations.
The sizing of the surge tank fill pump is influenced by the rate at which the vessel fills or empties during normal and transient conditions. A faster filling or emptying process can introduce air into the system, impacting the gas-to-liquid volume ratio and affecting the performance of the surge tank. Therefore, the fill pump must be sized appropriately to ensure the surge tank can be filled quickly enough to avoid these issues.
Additionally, the design of the surge tank system also plays a role in determining the size of the fill pump. The fill pump should be compatible with the surge tank and any associated components, such as the engine feed pump. It is often recommended to use a fill pump of the same model as the engine feed pump to ensure compatibility and provide survivability options in the event of pump failure.
In summary, the size of the surge tank fill pump is indeed based on volume at no pressure, as its primary function is to maintain the liquid volume in the surge tank rather than generate pressure. However, this sizing is influenced by various factors, including filling and emptying rates, system design, and compatibility with other components, all of which contribute to the overall performance and effectiveness of the surge tank system.
How to Remove Fuel from Your Tank in Crossout
You may want to see also
Frequently asked questions
The size of your fuel surge tank depends on the volume at no pressure required to keep the tank full. The volume of your tank will depend on the type of driving/racing you do and the fuel demands of your engine. For example, a tank that can hold about one liter is recommended for most people, but you may need a larger tank if you engage in racing that requires large amounts of fuel.
A fuel surge tank is a crucial component for high-performance race cars as it maintains a consistent supply of fuel to the engine during high-performance driving conditions.
A fuel surge tank works by redirecting excess fuel from the main fuel tank to the surge tank during periods of high demand and then drawing from the surge tank back into the engine during periods of low demand.
The benefit of a fuel surge tank is that it helps to prevent fuel starvation and ensures that the engine always has a steady flow of fuel, even during high-performance driving scenarios that can cause the main fuel tank to slosh.
A standard fuel system can struggle to supply enough fuel during high lateral acceleration, which can cause the engine to fuel starve and lead to catastrophic failure. A fuel surge tank ensures that the engine always has the necessary amount of fuel to run properly during these high-performance moments.
