Regan Brown

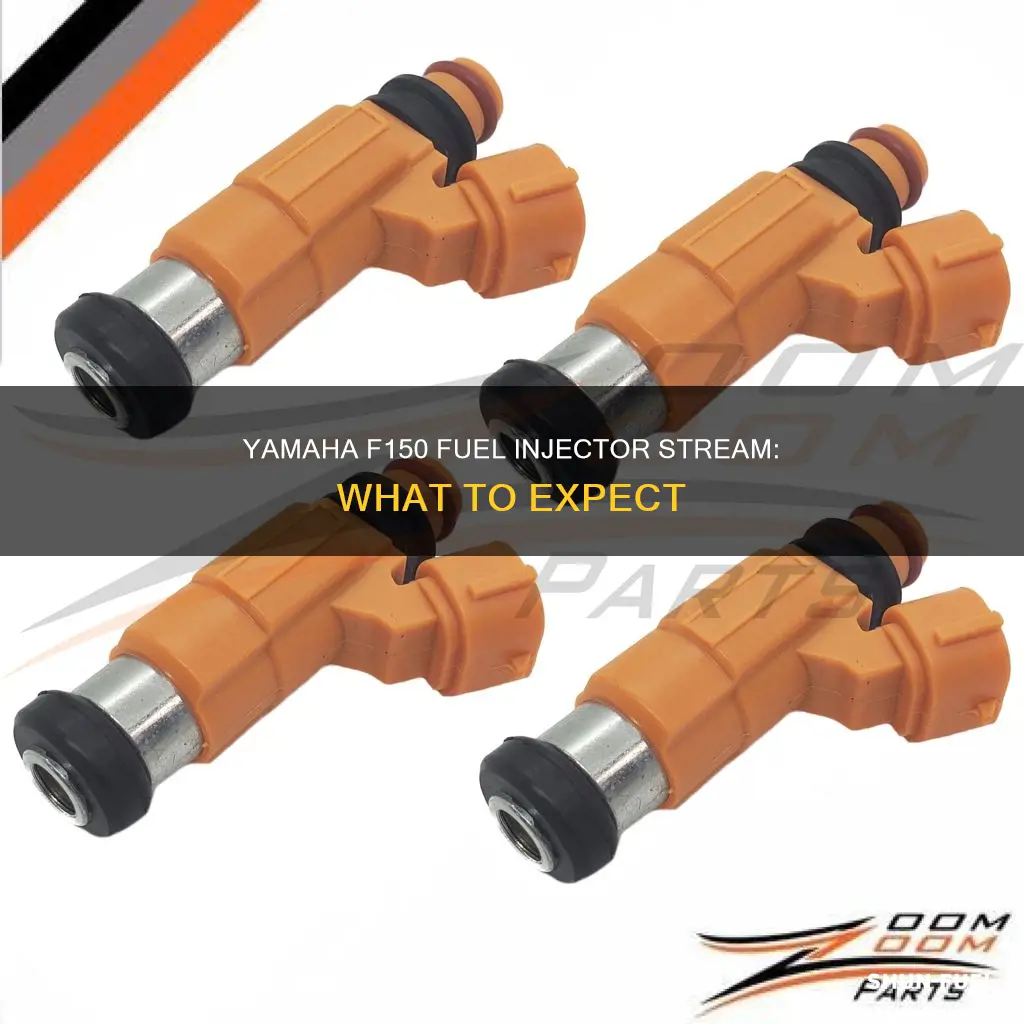

Yamaha F150 fuel injectors are known to have some issues, with some users reporting problems such as clogging, leaking, and faltering at low speed. To ensure optimal performance, it is important to understand the correct fuel injector stream and spray pattern. This involves checking the fuel injector stream, which can be done by testing the fuel injector and observing the spray pattern. A proper understanding of the fuel injector stream and potential issues can help Yamaha F150 owners maintain and troubleshoot their engines effectively.
Yamaha F150 Fuel Injector Characteristics and Values
| Characteristics | Values |
|---|---|
| Fuel Injector Number | CDH275 |
| Manufacturer Part Number | 63P1376100 CDH275 150HP AW347305, MD319792 |
| Interchange Part Number | 842-12295 732002 2004 2005 2006 2007 2008 2009 2010 |
| Compatible Vehicles | 2004 F150TLRC, F150TXRC, LF150TXRC |
| 2005 F150TLRD, F150TXRD, LF150TXRD | |
| 2006+ 4-stroke F150TJR, F150TLR, F150TXR, LF150TXR | |
| 2000+ Marine Yamaha 115HP Outboard applications | |
| 2001 to 2010 Suzuki OB motors (DF90, DF100, DF115 and DF140) | |
| Fuel Injector Spray Pattern | Single stream linear |
| Fuel Injector Maintenance | Cleaning with carb cleaner and compressed air |
| Fuel Injector Cleaning Cost | $20-25 per injector |
| Fuel Injector Set Cost | $50 for a set of 4 |
Explore related products
What You'll Learn
- The spray pattern of a Yamaha F150 fuel injector is single stream linear
- The fuel injectors can be cleaned using carb cleaner and compressed air
- The fuel injectors can be tested using a fuel rail pressure gauge
- The fuel injectors have an OEM of 63P-13761-00-00 and a manufacturer part number of 63P1376100 CDH275 150HP AW347305, MD319792
- The fuel injectors can be replaced with cheaper, non-Yamaha alternatives, but there may be differences in size and performance
The spray pattern of a Yamaha F150 fuel injector is single stream linear
The spray pattern of a Yamaha F150 fuel injector is single-stream linear. This is in contrast to the V-shaped spray pattern of OEM fuel injectors. The fuel injectors for the Yamaha F150 have four holes and are compatible with a range of Yamaha outboard motors, including the F150TLRC, F150TXRC, and LF150TXRC.
It is important to ensure that the fuel injectors are functioning properly, as clogged injectors can cause the engine to run lean and result in black sooty coating on the spark plugs. To test the fuel injectors, an inexpensive tester can be purchased, and the fuel rail pressure should be checked. If the injectors are clogged, they can be cleaned using carb cleaner and compressed air.
There are also options to replace the fuel injectors, with both OEM and cheaper alternatives available. It is important to note that the colour of the injectors may indicate the injector size, and using an incorrect size can affect performance and engine life. Therefore, it is recommended to have the injectors cleaned and flow tested to ensure optimal performance.
Some users have reported issues with their Yamaha F150 motors, including faltering or stuttering at low speeds and high RPMs. These issues may be related to the fuel injectors, fuel pump, or fuel filter and should be properly diagnosed to identify the root cause.
Best Cleaner Options for Canister Fuel Injectors
You may want to see also
Explore related products
The fuel injectors can be cleaned using carb cleaner and compressed air
Yamaha F150 fuel injectors can be cleaned using carb cleaner and compressed air. This process can be done at home, but it is important to exercise caution and follow the correct steps to ensure safety and effectiveness.
Firstly, it is necessary to remove the fuel injectors from the engine. This involves disconnecting the fuel pump fuse, relay, or connector, and letting the engine run until the fuel pressure drops. Once the engine has sputtered out, the fuel rail and fuel injectors can be removed. It is important to note that the process of removing fuel injectors may vary depending on the year, make, and model of the vehicle.
With the fuel injectors removed, the cleaning process can begin. Using a soft-bristle brush, apply carb cleaner to the outside of the fuel injectors, being careful not to soak them. Alternatively, a mixture of fuel injector cleaner and gas can be used to soak the ends of the injectors, which can then be scrubbed with a soft-bristle toothbrush. It is important to avoid soaking the injectors in carb cleaner as it can damage the o-rings and brittle the plastic.
After cleaning, the fuel injectors should be dried with a clean, lint-free rag. New injector-to-manifold grommets and fuel rail hoses should also be installed to ensure a tight seal and prevent fuel leakage.
Finally, the fuel injectors can be reinstalled, and the fuel line can be reconnected. The engine can then be restarted and taken for a test drive. It is normal for the engine to start roughly at first, but it should smooth out as proper fuel pressure and flow are restored.
While this process can be completed at home, it may not be as thorough as bench cleaning, which can address external fuel injector deposits more effectively. Additionally, it is important to consider the specific make and model of the vehicle when cleaning fuel injectors, as well as the potential risks associated with working on a fuel system.
The Evolution of Fuel Injection: Understanding VDO Technology
You may want to see also
Explore related products
The fuel injectors can be tested using a fuel rail pressure gauge
The fuel injectors on a Yamaha F150 can be tested using a fuel rail pressure gauge. This can help diagnose any starting or running issues with the engine. A basic fuel pressure test kit consists of a gauge designed to read fuel pressure and the fuel hose it is attached to. The fuel hose is connected to the fuel pump test point, usually located beside the fuel injectors. Before testing, ensure that the vehicle has at least two gallons of fuel and that the fuel pump is working. Once the fuel hose is connected and the fuel system is pressurized, the tester will display the pressure in psi. A reading of zero may indicate a faulty pump.
After connecting the fuel hose, the ignition should be turned to "on", not start. A drop in psi over 5-10 minutes indicates a leak in the fuel system. If the pressure remains steady, start the engine and let it idle. The fuel pressure should be within a few psi of the recommended pressure, which can be found in the vehicle owner's manual.
If the fuel pressure is low, there could be a problem with the fuel filter or the pump. If the fuel pressure is high, potential causes include a faulty fuel pressure regulator, clogged or kinked fuel return lines, or a malfunctioning fuel rail pressure sensor.
It is worth noting that the appearance of the fuel injector stream was not explicitly mentioned in the sources. However, one source stated that the spray pattern of a functioning injector is a single stream linear shape, compared to the V-shaped pattern of OEM injectors.
Testing Fuel Injectors: A Step-by-Step Guide for Miatas
You may want to see also
Explore related products
The fuel injectors have an OEM of 63P-13761-00-00 and a manufacturer part number of 63P1376100 CDH275 150HP AW347305, MD319792
The fuel injectors with the OEM number 63P-13761-00-00 and the manufacturer part number 63P1376100 CDH275 150HP AW347305, MD319792 are compatible with the Yamaha F150 engine. They are also compatible with the 3.5 Mitsubishi Diamante (1997-2004) and the 1999 Mazda Miata MX5. These injectors are available in sets of four and are made of metal and composite plastic. They are designed to replace your vehicle's original factory component and offer improved performance.
It is important to note that fuel injectors can become clogged, which can cause the engine to run lean. This can be identified by a black sooty coating on the spark plugs. To clean the injectors, you can use carb cleaner and compressed air, blowing the air across the hole to lift out any debris. Additionally, old fuel can cause the injectors to stick and not open completely, in which case they may need to be sent out for professional cleaning and flow testing.
When replacing fuel injectors, it is recommended to check the correct replacement parts before purchase. In some cases, the rubber fittings or seals from the older injectors may need to be reused as the provided ones might not be the correct size. It is also important to ensure that all seals and gaskets are included with the new injectors to avoid compatibility issues.
The Yamaha F150 fuel injectors are available from various sellers, including Amazon and eBay. The price can vary, with some opting for cheaper alternatives or choosing to have their existing injectors cleaned instead. It is worth noting that colours typically indicate injector size in the automotive world, so it is important to consider not just the price but also the potential impact on performance and engine life.
Rebuilding LB7 Diesel Fuel Injectors: Step-by-Step Guide
You may want to see also
Explore related products
The fuel injectors can be replaced with cheaper, non-Yamaha alternatives, but there may be differences in size and performance
The fuel injectors on a Yamaha F150 can be replaced with cheaper, non-Yamaha alternatives. However, it is important to note that there may be differences in size and performance when opting for non-Yamaha fuel injectors. While cheaper alternatives are available on Amazon and eBay, some users have reported issues with quality, missing parts, and poor performance.
When replacing fuel injectors on a Yamaha F150, it is important to consider the size and compatibility of the injectors. Some non-Yamaha injectors may have a different rubber seal size, requiring the reuse of old seals or the purchase of additional parts. It is also important to ensure that all necessary seals and gaskets are included with the purchase to avoid compatibility issues.
In terms of performance, non-Yamaha fuel injectors may have different injector spray hole quantities and angles, which can affect the performance and longevity of the engine. Colors of injectors typically indicate their size in the automotive world, and opting for a different color or type of injector may result in variations in performance.
To ensure optimal performance and compatibility, it is recommended to opt for Yamaha factory injectors or to have the existing injectors cleaned and refurbished. Cleaning and flow testing can help improve the performance of injectors and may be a more cost-effective solution than purchasing new ones. Some users have reported successful results with rebuilt injectors purchased on eBay, but it is important to ensure that all necessary parts are included.
Overall, while cheaper, non-Yamaha fuel injectors can be used as a replacement for the Yamaha F150, there may be differences in size, performance, and quality. It is important to carefully consider these factors and opt for solutions that prioritize compatibility and performance to ensure the longevity of the engine.
Turbo and Fuel Injectors: Perfect Match or Not?
You may want to see also
Frequently asked questions
If your fuel injectors are clogged, use carb cleaner and compressed air to clean them. You can also buy a fuel injector tester on Amazon to check if your injectors need to be cleaned.
The spray pattern is single stream linear.
The injector number is CDH275 (Yamaha 63P-13761-00-00).
The price of a Yamaha F150 fuel injector ranges from $40 to $520.
A faulty fuel injector may cause the engine to falter or stutter at low speeds or high RPMs, and it may feel like the engine is starving for fuel.
