Fuel injectors are a crucial component of a vehicle's engine, responsible for delivering fuel to the combustion chamber. To function effectively, fuel injectors rely on various connectors or plugs that facilitate the precise injection of fuel. These connectors come in different types, such as female and male connectors, with the former attaching directly to the fuel injector and the latter used for creating custom adapters. Bosch, a prominent manufacturer, offers fuel injectors with diverse connector styles, including Jetronic/Minitimer, USCAR, and OEM-specific designs. When selecting fuel injector plugs, factors like compatibility, durability, and performance should be considered to ensure optimal engine performance and fuel delivery.
| Characteristics | Values |
|---|---|
| Role | Plays a vital role in an engine's fuel delivery system, ensuring precise fuel injection into the combustion chamber |
| Types | Female connectors, male connectors, Jetronic/Minitimer, USCAR, EV1, EV6, EV14 |
| Compatibility | Ensure compatibility with the vehicle's make, model, and year |
| Durability | Select plugs capable of withstanding heat, moisture, and vibrations for optimal performance |
| Performance | Choose plugs that support the vehicle's fuel delivery requirements without compromising corrosion resistance |
Explore related products
What You'll Learn
Female and male connectors

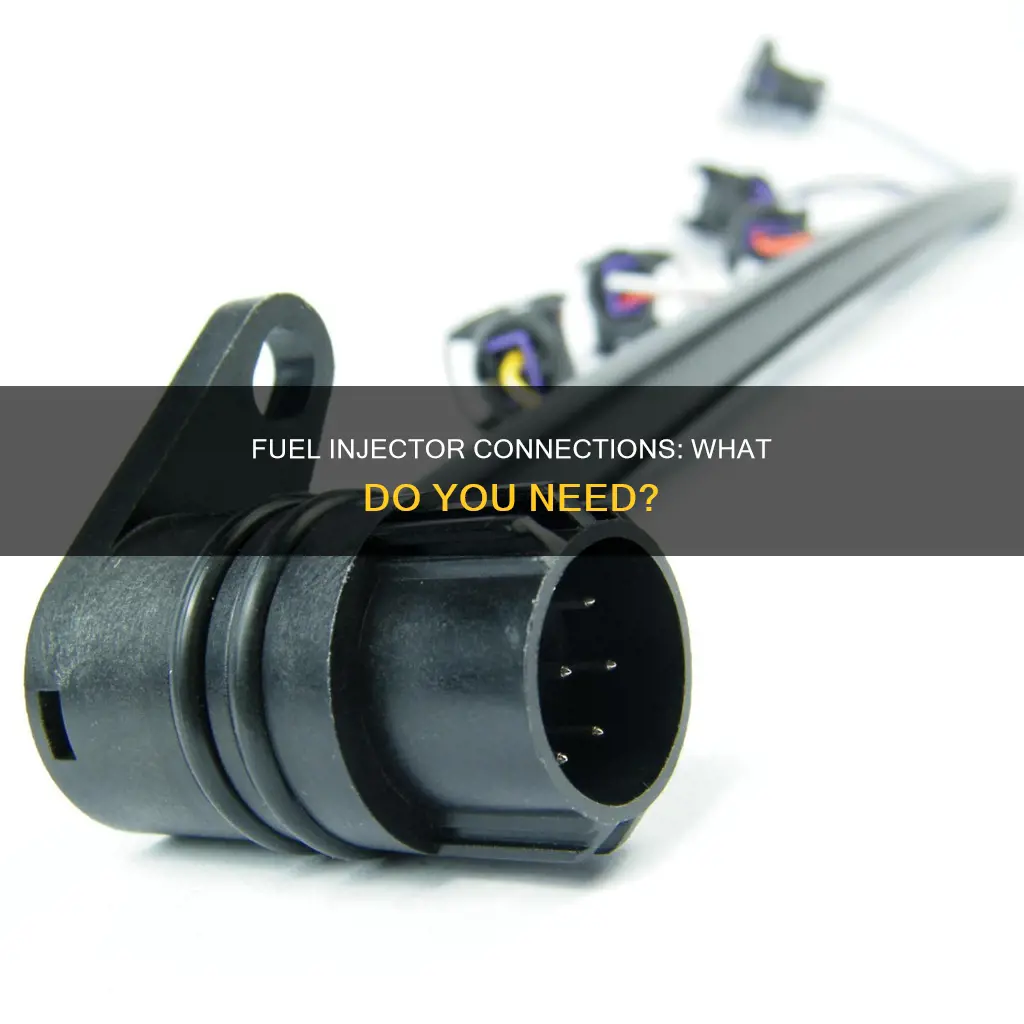

Fuel injector connectors, or plugs, play a vital role in an engine's fuel delivery system, ensuring precise fuel injection into the combustion chamber. There are two types of connectors: female and male.
Female Connectors
Female connectors attach directly to the fuel injector. They are the connectors that exist on your wiring harness and plug directly onto the fuel injector. If you have broken a connector, you will need to replace it with the correct female connector. Female connectors are available in different types, including:
- USCAR / EV6 Style Type C Yellow Fuel Injector Connector: This is a sealed connector/plug that comes preassembled and needs to be disassembled. It has a red sliding latch/lock to lock it in place on the fuel injector.
- GM “Mini“ Delphi / Multec 2 Style Female Fuel Injector Connector Kit: This GM-style connector was used on many (but not all) GM vehicles from around the year 2000.
Male Connectors
Male connectors attach to the existing female connectors on the wiring harness. They mimic a fuel injector. Male connectors are generally used to make custom fuel injector adapters to enable conversion to a different plug style injector using the existing wiring harness. Male connectors are also available in different types, including:
- Bosch EV6 Style Male Fuel Injector Connector / Plug: Also known as the USCAR Style, this connector kit includes metal terminals, sealing gaskets, and a blue latch lock.
- GM “Mini“ Delphi / Multec 2 Style Male Fuel Injector Connector Kit: This GM-style connector was used on many (but not all) GM vehicles from around the year 2000.
Testing a Fuel Injector Circuit: A Step-by-Step Guide
You may want to see also
Explore related products
Compatibility with vehicle make, model, and year
Fuel injector plugs are an essential component of a vehicle's fuel delivery system, ensuring accurate fuel injection into the combustion chamber. When selecting a fuel injector plug, it is crucial to consider compatibility with the specific vehicle's make, model, and year.
Various factors determine the compatibility of a fuel injector plug with a particular vehicle. Firstly, different vehicle manufacturers may utilise unique injector connector designs specific to their brand. For example, brands like GM Delphi, Honda, Nippon Denso, Sumitomo, Nissan, and Toyota are known to use distinct injector connector types. Therefore, when choosing a fuel injector plug, it is important to refer to the specific connector design compatible with the vehicle's manufacturer.
Additionally, the model and year of the vehicle play a significant role in determining compatibility. Older vehicles may have different injector connector types compared to modern ones. For instance, Bosch's older EV1 fuel injectors typically used Jetronic/Minitimer connectors, while their newer EV6 and EV14 injectors offer various connector options, including Jetronic/Minitimer, USCAR, and OEM manufacturer-specific designs. The age and model of the vehicle can help identify the appropriate injector connector type, ensuring compatibility with the fuel injector plug.
To ensure the correct choice of fuel injector plug, a visual identification of the existing fuel injector connector is necessary. By comparing the current connector with available options, either through online catalogues or physical inspection, one can determine the suitable fuel injector plug for their specific vehicle. This process ensures compatibility and helps avoid potential performance issues or compatibility problems.
In some cases, modifications or adapters may be required to achieve compatibility with specific fuel injector plugs. Certain plugs may offer enhanced performance or durability but might need adapters to work with older vehicle systems. Therefore, it is essential to consider the advantages and disadvantages of different fuel injector plugs to make an informed decision regarding compatibility with the vehicle's make, model, and year.
The Evolution of Auto Fuel Injectors: How They Work
You may want to see also
Explore related products
Durability and performance
Fuel injector plugs are a critical component of a vehicle's fuel delivery system, ensuring accurate fuel injection into the combustion chamber. The durability and performance of these plugs is a key consideration when selecting the right type for your vehicle.
The primary function of fuel injector plugs is to facilitate the precise delivery of fuel to the engine, and the durability of these plugs is essential for maintaining optimal engine performance over time. When selecting fuel injector plugs, it is crucial to choose those that can withstand heat, moisture, and vibrations. This ensures the long-term performance and reliability of the plugs, preventing issues such as corrosion and leakage.
There are different types of fuel injector plugs available, each with its own advantages and disadvantages. For example, some plugs offer enhanced sealing and durability, making them suitable for modern vehicles. However, these plugs may require adapters for compatibility with older vehicle models. On the other hand, plugs compatible with older vehicles may have limited sealing capabilities and lower performance in off-road conditions.
The compatibility of the fuel injector plugs with the vehicle's make, model, and year is of utmost importance. Selecting the correct plugs ensures they can withstand the specific conditions and requirements of the vehicle's engine. This includes factors such as the engine's fuel delivery needs, the operating environment, and the style of racing the vehicle is used for.
To achieve optimal performance and durability, it is essential to consider the specific requirements of your vehicle and select fuel injector plugs that meet those needs. By choosing plugs with enhanced durability and performance characteristics, you can ensure precise fuel injection, improve engine performance, and extend the lifespan of your vehicle's fuel delivery system.
Fuel Injector Repairs: Cost and Maintenance Guide
You may want to see also
Explore related products
Bosch injector connector types
Fuel injector connectors or plugs play a vital role in an engine's fuel delivery system. Bosch, a popular manufacturer of fuel injectors, offers a range of injector connector types. The specific connector type required depends on the vehicle's make, model, and year, and it is important to identify the correct connector to ensure compatibility and optimal performance.
- Female Connectors: These plugs attach directly to the fuel injector. They are typically found on the wiring harness and plug directly into the fuel injector. If a female connector is broken, it must be replaced with an identical female connector.
- Male Connectors: These connectors attach to the female connectors on the wiring harness. Male connectors are used to create custom fuel injector adapters, allowing users to convert to a different plug style injector while utilising the existing wiring harness.
- Jetronic/Minitimer (EV1): This connector type is typically found on older EV1 Bosch fuel injectors. It has a rectangular shape.
- USCAR (EV6): This connector type is commonly found on newer EV6 Bosch fuel injectors, especially in US-manufactured vehicles such as GM, Ford, and Chrysler since 2006. The USCAR connector has a rounded-edged square shape.
- EV14: This is another Bosch fuel injector body style, and the connector type may vary. Newer EV14 injectors typically use the USCAR connector type.
- OEM Manufacturer-Specific Connectors: Bosch also offers fuel injectors with OEM-specific connectors, including brands such as Denso, Sumitomo, Delphi, and Honda.
It is important to note that EV1, EV6, and EV14 are Bosch's designations for fuel injector body styles and are not directly related to the connector type. However, the connector type used with these injectors can vary, and it is crucial to visually identify the correct connector for your specific application.
Cleaning Fuel Injectors: Removing Carbon Buildup
You may want to see also
Explore related products
Fuel injector connector kits
There are different types of fuel injector connector kits available, depending on the vehicle's make, model, and year. For example, the GM "Mini" Delphi/Multec 2 Style Female Fuel Injector Connector Kit was used on many GM vehicles beginning around the year 2000. It includes metal terminals and sealing gaskets, with an available option of a 6" pigtail using 20-gauge heat/oil-resistant wire. Bosch also manufactures new EV6 and EV14 fuel injectors with various injector connector types, including Jetronic/Minitimer, USCAR, and OEM manufacturer-specific designs.
It is crucial to identify the correct type of fuel injector connector for your vehicle. Fuel injector connectors can be female or male, with female connectors plugging directly onto the fuel injector and male connectors attached to the existing female connectors on the wiring harness. Female connectors are typically found on the wiring harness, while male connectors are used to create custom fuel injector adapters, enabling the use of different plug styles.
Kia Warranty Coverage for Fuel Injectors: What's Included?
You may want to see also
Frequently asked questions
Fuel injectors are a part of a vehicle's fuel delivery system, ensuring precise fuel injection into the combustion chamber.
There are different types of plugs that can be used with fuel injectors, including:
- Female Fuel Injector Connectors / Plugs
- Male Fuel Injector Connectors / Plugs
- Jetronic / Minitimer (rectangle-shaped)
- USCAR (rounded-edge square-shaped)
- OEM manufacturer-specific (Denso, Sumitomo, Delphi, and Honda)
When choosing a fuel injector plug, it is important to consider the following factors:
- Compatibility: Ensure that the plug is compatible with the vehicle's make, model, and year. Modifications or adapters may be required for certain plugs.
- Durability: Select plugs that can withstand heat, moisture, and vibrations for optimal performance.
- Performance: Choose plugs that support the vehicle's fuel delivery requirements without compromising corrosion resistance.
