Fuel injectors are a critical component of modern automobiles, delivering the right fuel at the right time and ensuring the engine runs smoothly and efficiently. The injector is located in the combustion chamber, inlet manifold, or throttle body, and its precise control is managed by the engine control unit (ECU). This unit, the 'brain' of the engine, adjusts the air-fuel ratio in real-time, ensuring optimal combustion and reducing emissions. The ECU controls the opening and closing of the solenoid valve, allowing fuel to enter the combustion chamber. This process is known as fuel injection and provides maximum power while minimising fuel consumption and pollution.
| Characteristics | Values |
|---|---|
| Purpose | To regulate the injection of fuel into an engine's internal combustion chamber |
| Function | Atomize and inject fuel into the combustion chamber |
| Location | Combustion chamber, inlet manifold or throttle body |
| Control | Mechanical or electrical control unit |
| Type | Continuous injection, timed injection, multi-port injection, single-point injection, etc. |
| Fuel Type | Gasoline, diesel, natural gas, hydrogen |
| Performance | Optimal performance and fuel economy depend on properly maintained and functioning fuel injectors |
| Maintenance | Fuel injectors may need replacement if they are leaking or malfunctioning |
Explore related products
What You'll Learn
The role of the engine control unit (ECU)

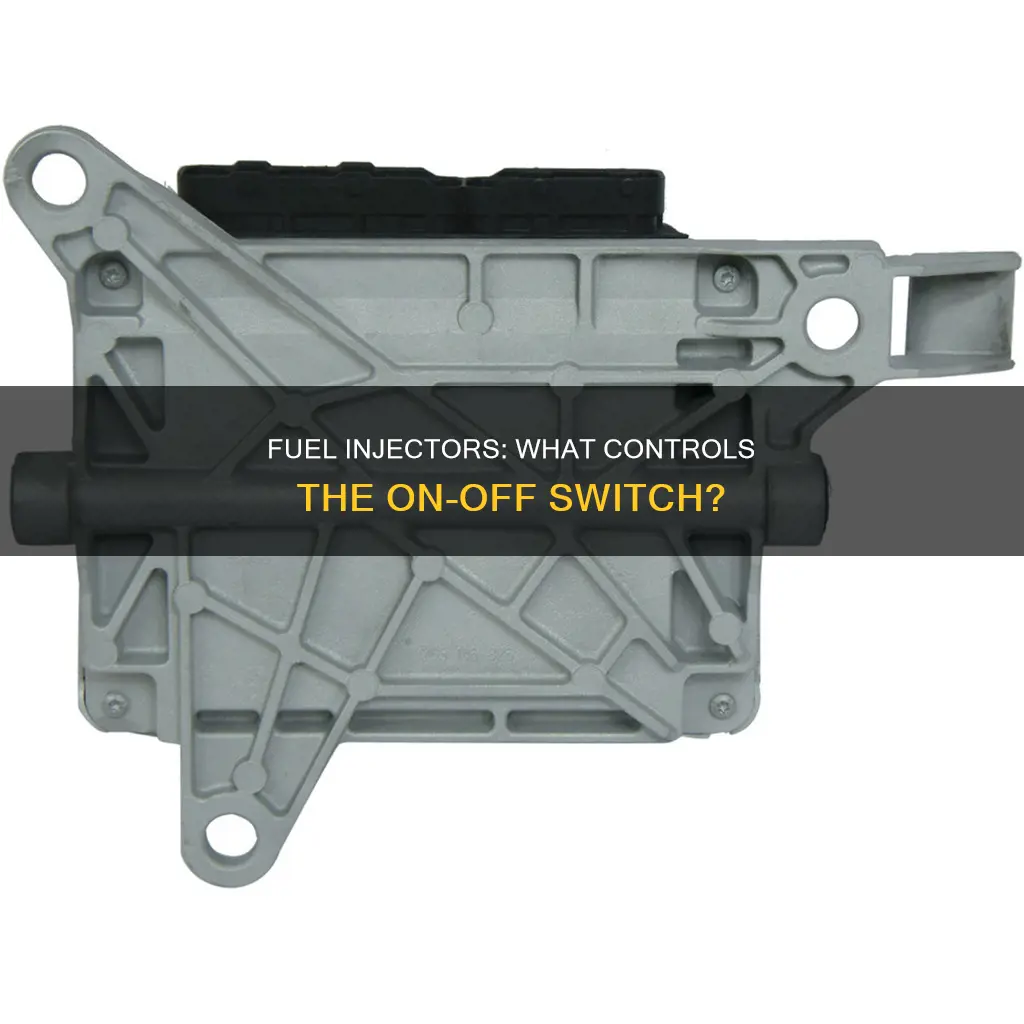

An Engine Control Unit (ECU) is a device that controls various subsystems of an internal combustion engine. It is often referred to as the 'brain' of the engine. The ECU controls the injection of fuel and, in petrol engines, the timing of the spark to ignite it. It determines the position of the engine's internals using a Crankshaft Position Sensor so that the injectors and ignition system are activated at the correct time.
The ECU uses digitally stored equations and numeric tables, rather than analogue means, to control the engine. It deals with many variables when deciding the correct mixture ratio. These variables are measured using sensors, which are then applied to the logic in the ECU's programming to determine how to correctly compensate for them. For example, an increase in engine demand (such as accelerating) will require an increase in the overall quantity of the mixture.
The ECU collects data from various sources, including temperature and pressure sensors, on/off signals, and data from other modules within the vehicle. This data is then used to determine output specifications, such as fuel injector pulse width, as directed by the software stored within the unit. The ECU sees the throttle valve open and increases the fuel rate in anticipation of more air entering the engine.
The first ECUs were mechanical-hydraulic units used by aircraft engines in the late 1930s. However, most 21st-century ECUs operate using digital electronics. The development of ECUs involves both hardware and software, and they are being continuously improved to meet stricter emissions requirements and enhance engine performance.
Fuel Injector Cleaner: Friend or Foe?
You may want to see also
Explore related products
Continuous vs timed injection
Fuel injection systems use either a continuous injection or an intermittent injection design. In a continuous injection system, fuel flows at all times from the fuel injectors but at a variable flow rate. An example of a continuous injection system is the Bosch K-Jetronic system, introduced in 1974 and used until the mid-1990s. Intermittent injection systems, on the other hand, can be sequential, batched, simultaneous, or cylinder-individual. In a sequential intermittent injection system, injection is timed to coincide with each cylinder's intake stroke. Batched injection involves injecting fuel to the cylinders in groups, without precise synchronization to any particular cylinder's intake stroke. Simultaneous injection involves injecting fuel at the same time to all the cylinders, while cylinder-individual injection allows the engine control unit (ECU) to adjust the injection for each cylinder individually.
The ECU is the part that turns the fuel injectors on and off. It is the computer that controls all the electronic components of the engine. The ECU uses information from oxygen sensors that monitor the amount of oxygen in the exhaust to adjust the air-to-fuel ratio in real-time. This is called closed-loop control and helps meet stricter emissions requirements.
Direct injection is a type of fuel injection where the fuel is injected directly into the main combustion chamber of each cylinder. The air and fuel are mixed only inside the combustion chamber, and only air is sucked into the engine during the intake stroke. The injection scheme in direct injection is always intermittent, either sequential or cylinder-individual. This can be done either with a blast of air or hydraulically, with the latter being more common in automotive engines.
Throttle body fuel injection systems, also known as single-point or central fuel injection systems, were introduced as a replacement for carburetors. These systems incorporate electrically controlled fuel injector valves into the throttle body. Over time, throttle body fuel injection was replaced by multi-port fuel injection (also known as port, multi-point, or sequential fuel injection). Multi-port fuel injection provides more accurate fuel metering and quicker response as each cylinder has its own fuel injector, usually located to spray directly at the intake valve.
Best Fuel Injector Cleaners: Top Picks for Your Car
You may want to see also
Explore related products
Multi-port fuel injection
In a multi-port fuel injection system, there is a separate fuel injector for each cylinder, usually located near the intake valve, so they spray directly at it. The fuel injectors can be set up to open in two ways. Firstly, they can all open simultaneously. Alternatively, in sequential multi-port fuel injection, each injector opens just before its cylinder's intake valve opens. This allows for a quicker response to driver input.
The amount of fuel injected and the timing of the injection are controlled by the engine control unit (ECU), which meters the fuel and controls the ignition timing and other engine functions. The ECU is tuned for a specific fuel pressure and can compensate for small changes in pressure. The fuel injector itself is a spray nozzle that performs the final stage of delivering fuel into the engine.
Disconnecting LS1 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Direct injection
A fuel injector regulates the injection of fuel into an engine's internal combustion chamber, where it is mixed with air and ignited. The combustion chamber is where the chemical energy in diesel, hydrogen, and natural gas is converted into power for the vehicle. When actuated by the electronic control unit (ECU), the injector delivers a precise amount of fuel to ensure efficient combustion. The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, which is called the pulse width.
A fuel injector in a diesel engine consists of a solenoid (a type of electromagnet), a nozzle, and a needle within the injector body. When the injector is energised, an electromagnet moves a plunger that opens the valve, allowing the pressurised fuel to squirt out through a tiny nozzle. The nozzle is designed to atomise the fuel—to make it as fine a mist as possible so that it can burn easily.
Fuel Injector Issues: Flooding the Throttle Body?
You may want to see also
Explore related products
Fuel injector composition
Fuel injectors are a critical component of the fuel injection system in internal combustion engines, which are predominantly found in automotive engines. The primary function of a fuel injector is to spray fuel under high pressure into the combustion chamber, where it mixes with air to form a combustible mixture. This process, known as atomization, is a significant improvement over carburetion, which relies on suction rather than high-pressure injection.
The composition of a fuel injector can be categorised into two main types: closed injectors and direct injectors. Closed injectors can be further divided into hole-type and pin-type injectors, with the hole-type being commonly used in diesel engines with direct injection combustion chambers. The number of injection holes in a hole-type injector typically ranges from 1 to 8, and the diameter of these holes is generally between 0.2 to 0.8 mm. The injector's composition includes a needle valve, needle valve body, ejector rod, pressure regulating spring, pressure regulating screw, and injector body. The needle valve coupler, consisting of the needle valve and needle valve body, is the most precise component within the injector.
Direct injectors, on the other hand, can utilise a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system. The common-rail injection system is the most prevalent in modern automotive engines. This system involves supplying fuel from the tank to a common header or accumulator, which then directs the fuel through tubing to the injectors for injection into the combustion chambers. The accumulator plays a crucial role in maintaining pressure and returning excess fuel to the tank.
The fuel injector's composition and design are tailored to meet the requirements of mixture formation and combustion. The injector should have the appropriate injection pressure, range, and spray cone angle to ensure optimal combustion. Additionally, the injector pump provides the necessary pressure, and the injection process should be capable of rapid cessation to prevent fuel leakage and maintain the integrity of the combustion process.
The fuel injection system as a whole can be classified into low-pressure and high-pressure sides. The low-pressure components include the fuel tank, fuel supply pump, and fuel filter, while the high-pressure side comprises the high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. The fuel tank, an essential component of the system, serves as a reservoir for the fuel supply and helps maintain its temperature below the flash point. It also dissipates heat from the fuel returned from the engine and is designed to be corrosion-resistant and leakproof.
Effective BMW Fuel Injector Cleaning: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel injectors are turned on and off by the Electronic Control Unit (ECU). The ECU controls the opening and closing of the solenoid valve to inject the fuel into the combustion chamber.
A fuel injector is responsible for injecting fuel into the engine's combustion chamber. It is considered the "heart" of the engine as it delivers the right fuel at the right time.
A fuel injector comprises a solenoid, a nozzle, and an injector body. The injector nozzle is a precision-machined device with an inlet and an outlet. The inlet draws fuel from the fuel tank, while the outlet sprays fuel into the combustion chamber.
There are two main types of fuel injection systems: continuous injection and timed injection. In a continuous injection system, fuel flows at all times from the fuel injectors, but at a variable flow rate. In a timed injection system, fuel is delivered in bursts to coincide with the induction stroke of the cylinder.
