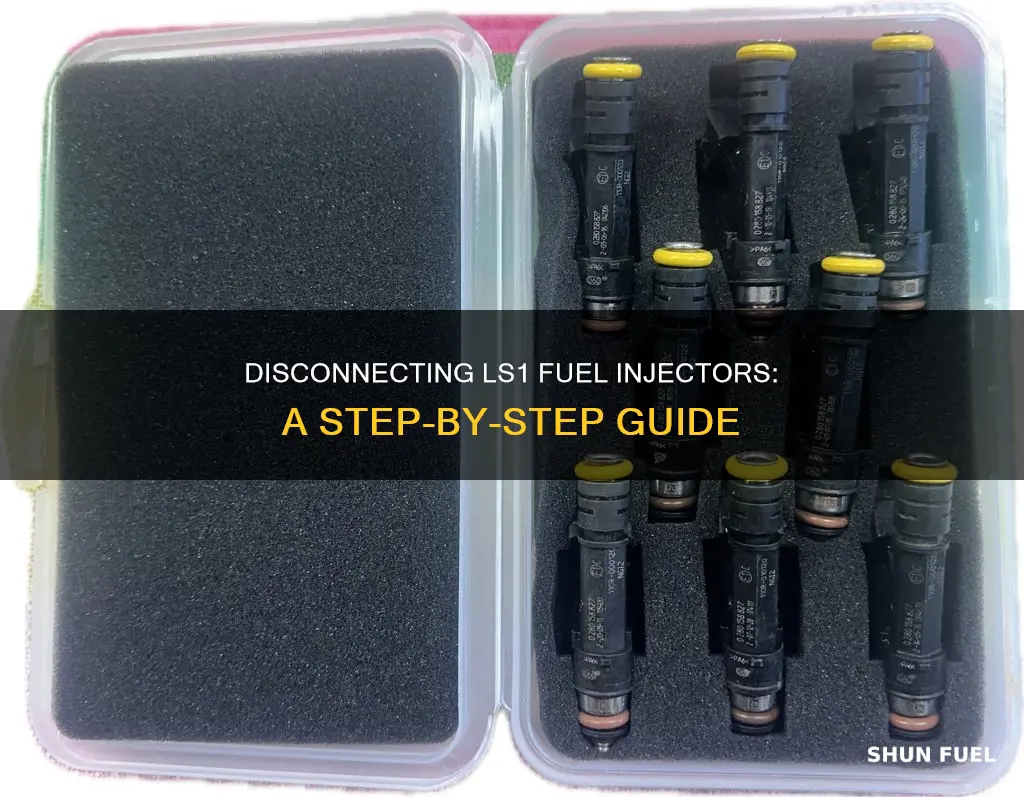

Disconnecting fuel injectors from an LS1 engine is a relatively simple process, but it requires careful attention to safety precautions. Before beginning, it is important to disconnect the battery and ensure the car is in a safe area to work on. The LS1 fuel system consists of eight injectors, a stainless steel fuel rail, and an in-tank fuel pump. To remove the injectors, one must first disconnect the fuel lines and injector pigtails, then unbolt and lift the fuel rails. It is important to be cautious when handling the fuel rails as they contain fuel. The injectors are held to the rails by clips, which need to be removed before gently but firmly tugging the injectors out. Reinstallation is essentially the reverse of this process.
Table: Characteristics and Values
| Characteristics | Values |
|---|---|
| Number of Injectors | 8 |
| Fuel Rail Material | Stainless Steel |
| Fuel Pump Type | In-tank |
| Fuel Pressure | 58.02 psi |
| Injector Sizing | 26.4 lbs (264cc) to 29.1 lbs (291cc) |
| Disconnecting Fuel Injectors | Disconnect fuel lines, injector pigtails, unbolt fuel rails, remove clips |
| Tools Required | Fuel disconnect, 3/8" disconnect or 3/8" fuel line removal tool |
| Precautions | Disconnect battery, work in a well-ventilated area, avoid smoking, prevent fire and personal injury |
| Sensor Disconnects | TPS, AIT, MAP, throttle cables, brake booster vacuum hose |
| Bolt Size | 12mm |
| Reinstallation | Reverse of removal process |
Explore related products
What You'll Learn
Disconnect the fuel lines
Disconnecting the fuel lines is the first step in removing LS1 fuel injectors. It is important to note that the process may vary slightly depending on the year and model of your vehicle.
To begin, make sure your battery is disconnected and that you are working in a safe area. The next steps involve removing the sensors and unplugging the throttle cables or drive-by-wire. Specifically, unplug the TPS (throttle position sensor), AIT (air intake temperature) and MAP (manifold absolute pressure) sensor, and disconnect the throttle cables or drive-by-wire.
Next, you will need to undo the EGR tube that goes into the front of your intake manifold and push it out of the way. Disconnect your brake booster vacuum hose and also push that out of the way. Now, you will need to access the fuel injectors themselves. Undo the bolts holding the fuel rail to the intake manifold—there should be four 12mm bolts. Be cautious, as there will be fuel in the rails.
Now, you can remove the fuel feed and fuel return pipes from the fuel rail tubes. You may need to refer to a Metal Collar Quick Connect Fitting Service guide for this step.
Diagnosing Faulty Fuel Injectors in a '99 Saturn
You may want to see also
Explore related products
Disconnect the injector pigtails
Disconnecting the injector pigtails is a crucial step in removing LS1 fuel injectors. It is important to note that the process may vary slightly depending on the specific make and model of your vehicle, but the general steps remain consistent.
Firstly, ensure your vehicle is in a safe area to work on, and disconnect your battery to prevent any electrical issues or sparks. Next, locate the injector pigtails, which are the electrical connectors that supply power to the fuel injectors. They are usually situated near the fuel injectors and fuel rails. Before disconnecting the pigtails, it is recommended to unplug the sensors, throttle cables, and vacuum lines, as well as undoing the fuel connector and removing the fuel feed and return pipes. This will ensure a safer and more efficient process.
Once you have located the injector pigtails, carefully disconnect them. They are typically held in place with clips or fasteners, which you can gently remove or unclip. Be cautious when handling the pigtails as they may contain residual fuel or pressure. It is advised to wear protective gear, such as gloves and eye protection, to safeguard against any potential fuel leaks or spray. After disconnecting the pigtails, set them aside, ensuring they are not damaged or contaminated.
At this point, you may also need to remove the fuel injector retaining clips and the fuel rail itself. The fuel rail is held in place with bolts, which you can carefully unbolt and lift straight up. Be cautious, as there may be fuel in the rail. Additionally, ensure you do not lose the O-rings if you plan on reusing them. By following these steps, you will have successfully disconnected the injector pigtails, allowing you to access and remove the fuel injectors for maintenance or replacement.
Fuel Injector Cleaner Kits: Are They Worth the Cost?
You may want to see also
Explore related products
Unbolt the fuel rails
To disconnect the fuel injectors of an LS1, you might need to unmount and disconnect the fuel rails. This is not a difficult task, but it is important to note that it is probably impossible to do this with the engine in the car.
Firstly, you should relieve any fuel pressure before making any disconnects. You can do this by bleeding off the fuel pressure at the Schrader valve located by the FPR. It is also recommended to do this after the engine has cooled.
The fuel rails are held in place with bolts. There should be four bolts on top of the intake. Loosen these bolts with a screwdriver, and you will then be able to pop the fuel rail off.
If you've left your fuel lines connected, the rail will lift up and twist towards the driver's side of the car, and you can lay it back. If you have a fuel clip disconnect tool, you can pull the rail completely off the car.
Fuel Injector Cleaners: Can They Boost Mileage?
You may want to see also
Explore related products
Disconnect the fuel injector electrical connectors
Disconnecting the fuel injector electrical connectors is a crucial step when removing LS1 fuel injectors. It is important to follow safety precautions and work in a suitable environment to avoid injury and damage to the vehicle.
Firstly, ensure your battery is disconnected to prevent any electrical sparks during the process. Next, locate the fuel injector electrical connectors, which will be plugged into the fuel injectors. These connectors supply power and signals to the injectors, and they need to be carefully disconnected. Before disconnecting the connectors, it is advisable to unplug the sensors, including the TPS (throttle position sensor), AIT (air intake temperature sensor), and MAP (manifold absolute pressure) sensor. This will ensure that the electrical system is inactive, and it is safe to work on.
Now, you can proceed to disconnect the fuel injector electrical connectors. Gently pull on the connectors to detach them from the fuel injectors. Be cautious, as there may be residual fuel or pressure in the lines. Once disconnected, set the connectors aside, ensuring they are not damaged or contaminated.
At this point, the fuel injectors are electrically disconnected, but they are still physically held in place by the fuel rails. To completely remove the fuel injectors, you will need to unbolt the fuel rails and lift them straight up, being careful not to lose any O-rings or clips that may be reused.
Fuel Injector Cleaner: Mazda's Maintenance Must-Have?
You may want to see also
Explore related products
Remove the fuel injector harness fasteners
Disconnecting the fuel injectors on an LS1 engine can be a simple process, but caution must be taken to ensure safety. Before beginning, it is crucial to disconnect the battery and ensure the car is in a safe area to work on.
The LS1 fuel system consists of eight injectors, a stainless steel fuel rail, and an in-tank fuel pump. To disconnect the fuel injector harness fasteners, follow these steps:
- Relieve fuel pressure and clean around the injectors.
- Remove the fuel pump relay.
- Run the engine until all the fuel is used in the system.
- Disconnect the negative terminal from the battery.
- Remove the engine cover.
- Disconnect all electrical connectors from the injectors.
- Unplug the sensors: TPS (throttle position sensor), AIT (air intake temperature), and MAP (manifold absolute pressure) sensor. Disconnect the throttle cables or drive by wire.
- Undo the EGR tube at the front of the intake manifold and set it aside.
- Disconnect the brake booster vacuum hose.
- Now, focus on the fuel injector harness. Undo the bolts holding the fuel rail to the intake manifold. There are typically four bolts.
- Pull and slide the grey tab slider, then press the tab on the injector connector inward. It should come off easily. A small flat-blade screwdriver can be useful for this step.
It is important to note that you should have an adapter to read fuel pressure based on the fuel in your LS1 rail before proceeding. Additionally, consider using a fuel disconnect tool to make the process easier.
Clearing Fuel Injectors: DIY Guide to Clean and Maintain
You may want to see also
Frequently asked questions
Disconnecting fuel injectors from an LS1 engine involves the following steps:
- Disconnect the fuel lines.
- Disconnect the injector pigtails.
- Unbolt the fuel rails and lift them straight up.
- Remove the clips that hold the injectors to the rails.
- Gently but firmly tug on the injectors to remove them from the rails.
Yes, the fuel rails hold the injectors in place, so you will need to remove them first.
You will need a fuel disconnect tool and a 3/8" disconnect.
Before beginning, make sure that your battery is disconnected and that the car is in a safe area to work on. It is also important to disconnect the negative battery cable to prevent an electrical spark during the procedure.
The injectors are held in the fuel rails with small clips. Pop off these clips, and the injectors will only be held in place by o-rings. Gently but firmly tug on the injectors to remove them from the rails.
