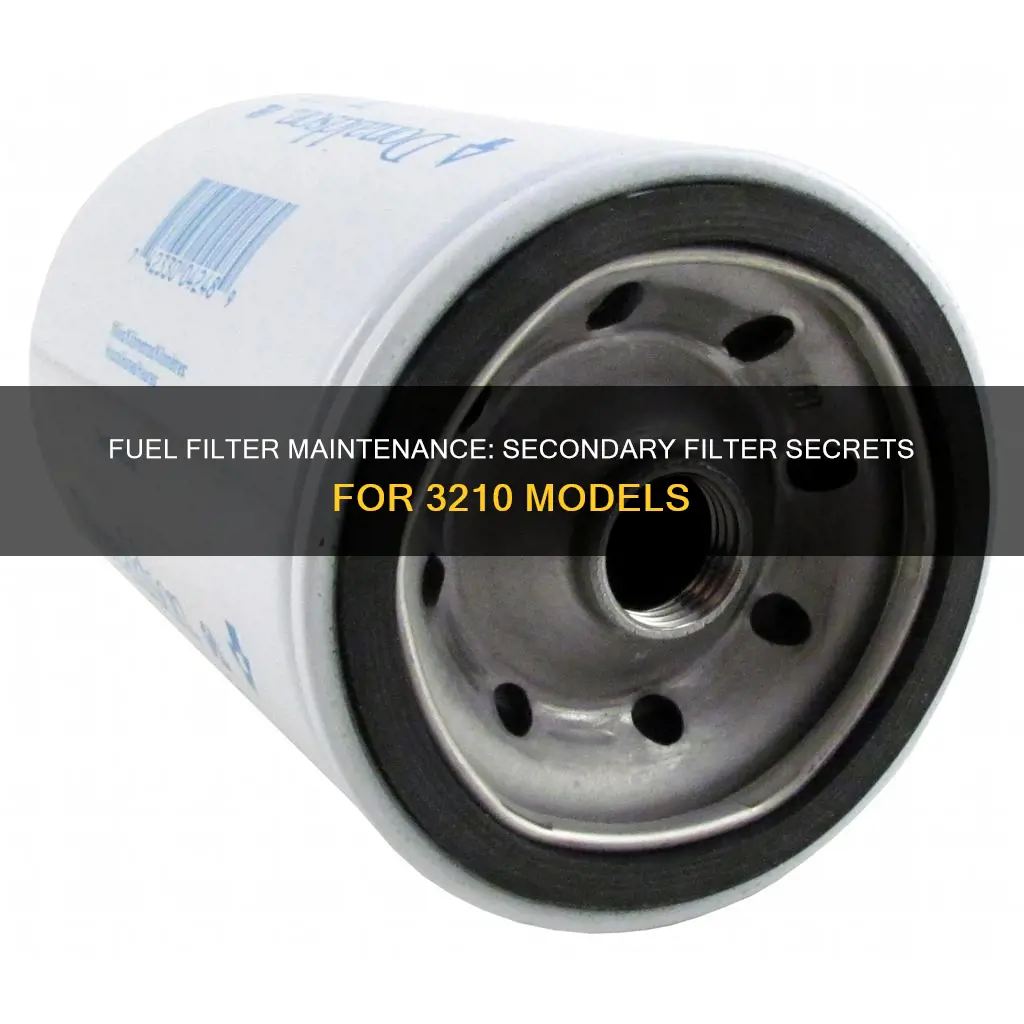

Most diesel engines have a primary and a secondary fuel filter to ensure the fuel is clean before it enters the engine. The primary filter is responsible for removing larger particles and water from the fuel and is usually located on the truck frame. The secondary filter, on the other hand, is mounted directly onto the engine and takes care of the smaller particles. This filter uses mediums with tighter micron ratings, typically filtering particles from 5 microns down to 2 microns in size. The NapaGold 3210 Fuel Filter is an example of a secondary fuel filter. Changing the secondary fuel filter requires careful handling due to the potential for diesel fuel spillage and skin irritation.
| Characteristics | Values |
|---|---|
| Purpose | To ensure that the fuel is clean before it enters the engine |
| Particle size | Designed to filter out particles from 50 microns down to 2 microns |
| Location | Mounted directly onto the engine |
| Operation | Operates at a higher pressure than the primary filter |
| Maintenance | Should be changed every 3 years |
Explore related products
What You'll Learn
The secondary fuel filter is mounted directly onto the engine
The secondary fuel filter is a crucial component of diesel engines, ensuring that the fuel entering the engine is clean and free of contaminants. Its location, mounted directly onto the engine, is specifically designed to achieve this critical function.
The primary fuel filter, typically located on the truck frame, is responsible for the initial filtration process, removing larger particles and water from the fuel. However, the secondary fuel filter, being engine-mounted, performs the finer filtration. This filter receives the fuel after it has passed through the engine's gear pump, and its role is to capture smaller particles that the primary filter might miss.
Mounting the secondary fuel filter directly onto the engine is a deliberate design choice. This placement ensures that the fuel undergoes a second, more refined filtration process immediately before entering the engine's precision components, such as the fuel injectors. By positioning the secondary filter in close proximity to the engine, engineers guarantee that the fuel is as clean as possible at the point of injection, enhancing the engine's performance and longevity.
The secondary fuel filter operates at a higher pressure than its primary counterpart, employing filter mediums with tighter micron ratings. Typically, these filters are designed to capture particles ranging from 5 microns down to an impressive 2 microns in size. This micron rating is significantly finer than the primary filter, underscoring the importance of the secondary filter's role in protecting the engine.
Changing the secondary fuel filter is a meticulous task. It requires careful attention to safety precautions, such as wearing protective gloves to avoid skin irritation from diesel fuel. The process involves unscrewing the retaining ring, removing the filter element, inspecting and replacing it if necessary, and then reassembling the components. It is a precise procedure that demands a thorough understanding of engine mechanics.
Priming Kubota Fuel Filters: Step-by-Step Guide
You may want to see also
Explore related products
It filters out smaller particles
The primary and secondary fuel filters in diesel engines serve different purposes. The primary filter is responsible for removing larger particles and water from the fuel. It operates at a lower pressure than the secondary filter. If it also had to remove small particles, it would not be as effective at removing water and larger particles.
The secondary filter, on the other hand, is designed for finer filtration. It filters out smaller particles, typically in the range of 5 to 2 microns. That's a particle of 2 millionths of a meter in diameter. To put that into context, a grain of salt is around 100 microns in size.
The secondary filter is mounted directly onto the engine, receiving fuel after it has passed through the engine's gear pump. It is located just before the fuel injectors because it is crucial that the fuel entering the injectors is as clean as possible. The secondary filter operates at a much higher pressure than the primary filter.
The two-filter system in diesel engines is an innovation that has allowed engines to operate at the highest levels, meeting modern standards for fuel efficiency and emissions. With this system, the filters are located at different stages of the fuel system and are designed to accomplish specific tasks at those stages.
Changing the Paccar Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
It operates at a higher pressure than the primary filter
The primary and secondary fuel filters in diesel engines have different roles. The primary filter is responsible for removing larger particles and water from the fuel. The secondary filter, on the other hand, takes care of smaller particles. The secondary filter is mounted directly onto the engine and operates at a higher pressure than the primary filter. This is because it uses filter mediums with tighter micron ratings, typically ranging from 5 microns to 2 microns.
The primary filter is typically located on the truck frame, plumbed between the fuel tank and the engine's gear pump. It is designed to be effective at lower pressures, allowing it to efficiently remove water and large particulates from the fuel. The secondary filter, located after the engine's gear pump, has a different role. It needs to get the fuel as clean as possible before it reaches precision components like the fuel injectors.
The secondary filter's fine-tuning and precision require it to operate at higher pressures. This higher pressure ensures that the fuel is thoroughly filtered before reaching critical engine components. The two-filter approach offers multiple benefits, which is why it is commonly used in most diesel engines.
The primary and secondary filters are strategically placed at different stages of the fuel system, each serving a specific purpose. The primary filter acts as the first line of defence, filtering out larger contaminants. The secondary filter then refines the fuel further, ensuring that even the smallest particles are removed before the fuel reaches the engine.
The higher pressure at which the secondary filter operates is a crucial aspect of its functionality. This pressure enables the filter to effectively capture and remove fine particles, ensuring that the fuel is clean and free of contaminants that could potentially damage the engine.
Fuel Filter Failure: Sounds and Symptoms
You may want to see also
Explore related products
It needs to be changed less often than the primary filter
The primary and secondary fuel filters in a diesel engine serve different purposes. The primary filter, located on the truck frame, is responsible for removing larger particles and water from the fuel. It operates at a lower pressure than the secondary filter and needs to be designed for effectiveness at this pressure. As a result, the primary filter cannot be designed to remove all particulates and requires the support of the secondary filter.
The secondary filter, on the other hand, is mounted directly onto the engine and receives fuel after it has passed through the engine's gear pump. This filter is designed for finer filtration, targeting smaller particles ranging from 2 microns to 5 microns in size. It operates at a higher pressure than the primary filter. The secondary filter ensures that the fuel is as clean as possible before it reaches sensitive components like the fuel injectors.
The two-filter system in diesel engines provides multiple benefits. Firstly, it enhances fuel efficiency and engine performance. Secondly, it reduces the frequency of filter changes. The primary filter, which typically has a lower filtration capacity, can focus on removing larger particles and water. This means it will not get clogged as quickly and will require replacement less often. The secondary filter, with its higher filtration capacity, can then address the smaller particles. This division of labour between the filters ensures that the primary filter does not get clogged as frequently, resulting in less frequent changes compared to a single-filter system.
The secondary filter's ability to handle smaller particles and its location closer to the engine ensure that the fuel entering the injectors is clean. This is crucial for the proper functioning of the injectors and the overall performance of the engine. The two-filter system, therefore, optimises filtration, engine performance, and maintenance requirements, making it a superior design choice over a single-filter system.
Changing Fuel Filter: 2005 Chevy Colorado Guide
You may want to see also
Explore related products
It is important that the fuel entering the injectors is as clean as possible
The NAPA 3210 is a fuel filter that provides excellent engine protection for normal and severe driving conditions. Fuel filters are an essential component of a vehicle's fuel system, ensuring that the fuel entering the engine is free of contaminants.
Over time, fuel injectors can accumulate varnish, carbon deposits, and other types of residues, especially when lower-quality gasoline is used. This buildup can lead to reduced efficiency, power, and overall engine performance. A clogged or failing fuel injector may exhibit symptoms such as rough idling, stalling, engine misfires, reduced fuel economy, and poor acceleration.
To maintain clean fuel injectors, it is recommended to use high-quality gasoline and, occasionally, add a bottle of fuel injector cleaner to the tank. These cleaners help dissolve and remove any accumulated deposits, ensuring the injectors remain unobstructed. Additionally, some manufacturers suggest using fuel injector cleaning additives, especially if Top Tier gas is not always used. These additives should be mixed with gasoline by pouring them into the tank before filling it up.
In cases of severe clogging or when injectors are old and worn out, a more intensive cleaning approach may be necessary. This could involve removing the injectors for a manual clean or, in some instances, replacing them entirely. It is important to consult a trained mechanic for proper inspection, cleaning, and maintenance of fuel injectors to avoid any potential damage caused by improper cleaning techniques.
