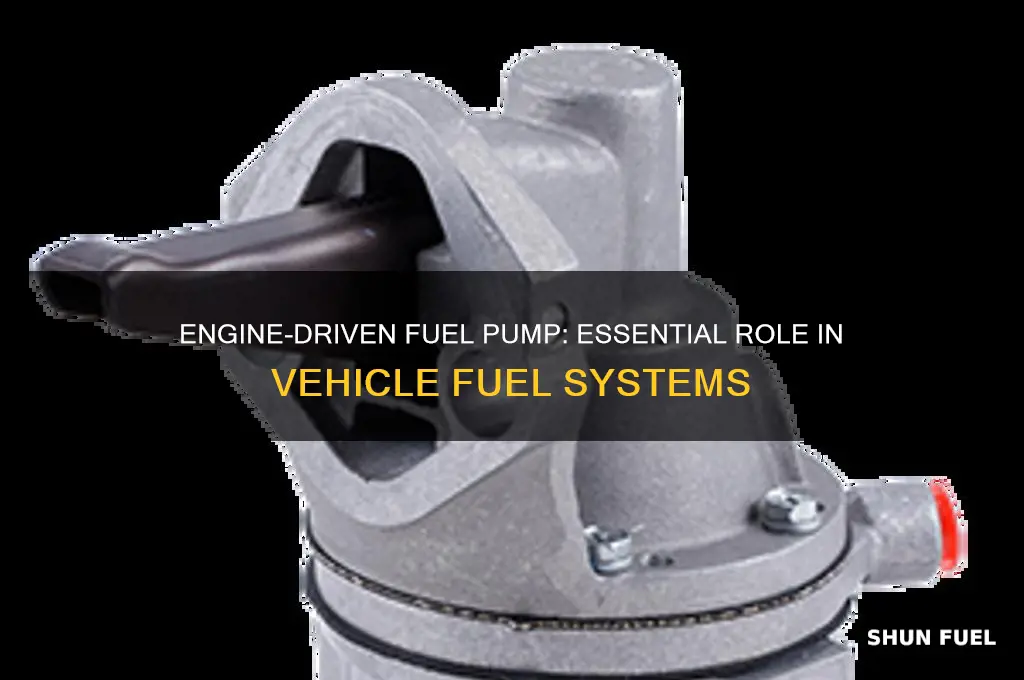

An engine-driven fuel pump is a critical component in many internal combustion engines, particularly in diesel systems, where it serves the essential purpose of delivering fuel from the tank to the engine at the required pressure and flow rate. Unlike electric fuel pumps, which are powered by the vehicle’s electrical system, engine-driven fuel pumps are mechanically connected to the engine and operate in sync with its rotation, ensuring a consistent and reliable fuel supply even under demanding conditions. This design is especially advantageous in high-performance or heavy-duty applications, as it eliminates reliance on electrical power and provides robust performance, making it a key element in maintaining efficient combustion and engine operation.
| Characteristics | Values |
|---|---|
| Primary Purpose | To supply fuel from the tank to the engine at the required pressure and flow rate. |
| Power Source | Driven by the engine (e.g., via a mechanical connection like a camshaft or gearbox). |
| Fuel Pressure Regulation | Maintains consistent fuel pressure regardless of engine speed or load. |
| Reliability | Highly reliable due to its mechanical operation, less prone to electrical failures. |
| Efficiency | Efficient as it directly uses engine power, reducing the need for additional electrical systems. |
| Compatibility | Commonly used in diesel engines and older carbureted gasoline engines. |
| Maintenance | Requires periodic inspection and replacement of mechanical components (e.g., diaphragms, seals). |
| Cost | Generally lower cost compared to electric fuel pumps due to simpler design. |
| Location | Typically mounted on or near the engine for direct mechanical linkage. |
| Failure Impact | Engine may stall or fail to start if the pump malfunctions. |
| Modern Usage | Less common in modern fuel-injected gasoline engines, which often use electric fuel pumps. |
Explore related products
What You'll Learn
- Fuel Delivery Mechanism: How the pump ensures consistent fuel flow from tank to engine under pressure
- Pressure Regulation: Maintaining optimal fuel pressure for efficient combustion and engine performance
- Engine Compatibility: Matching pump design to engine requirements for seamless operation and reliability
- Fuel Atomization: Enhancing fuel-air mixture quality for better combustion and power output
- Reliability and Durability: Ensuring long-term functionality under varying operating conditions and loads
Fuel Delivery Mechanism: How the pump ensures consistent fuel flow from tank to engine under pressure
The engine-driven fuel pump is a critical component in ensuring that fuel is delivered from the tank to the engine with precision and consistency. Unlike electric fuel pumps, which are common in modern vehicles, engine-driven pumps derive their power directly from the engine’s rotation, typically via a mechanical connection like a camshaft or gearbox. This design ensures that fuel flow is directly proportional to engine speed, maintaining optimal pressure and volume as demand increases during acceleration or high-load conditions. For example, in carbureted engines, the pump must deliver fuel at 3-5 psi to ensure proper atomization and combustion, a task it accomplishes by synchronizing its output with the engine’s RPM.
Consider the fuel delivery mechanism as a finely tuned system where the pump acts as the heart, pushing fuel through lines under controlled pressure. The process begins in the fuel tank, where the pump draws liquid fuel, often aided by a suction mechanism or gravity. As the engine runs, the pump’s diaphragm or rotor (depending on the design) compresses the fuel, forcing it through the lines toward the carburetor or fuel injection system. This pressurized flow is essential because it overcomes resistance from filters, hoses, and the engine’s fuel rails, ensuring a steady supply regardless of vehicle orientation or fuel level. For instance, in aircraft engines, engine-driven pumps are critical for maintaining fuel flow during high-G maneuvers, where electric pumps might falter due to power interruptions.
One of the pump’s key advantages is its ability to self-regulate based on engine demand. During idle, the pump operates at a lower speed, delivering just enough fuel to sustain combustion. As the throttle opens and engine RPM increases, the pump accelerates proportionally, boosting fuel pressure and volume to meet the heightened demand. This dynamic response is particularly vital in high-performance applications, such as racing engines, where fuel requirements can double or triple under full throttle. For optimal performance, mechanics often recommend checking the pump’s output pressure using a gauge; a deviation of more than 10% from the manufacturer’s specification can indicate wear or misalignment, requiring immediate attention.
However, the engine-driven design is not without challenges. Its reliance on mechanical power means the pump is susceptible to wear from constant operation, particularly in high-mileage vehicles. Regular maintenance, including inspection of the pump’s diaphragm, valves, and mounting hardware, is essential to prevent leaks or failures. Additionally, the pump’s output must be matched to the engine’s fuel system; an oversized pump can lead to excessive pressure, causing fuel vaporization or system damage, while an undersized one results in starvation and poor performance. Practical tip: When replacing an engine-driven fuel pump, always verify compatibility with the engine’s displacement and fuel injection type to ensure seamless integration.
In conclusion, the engine-driven fuel pump’s role in maintaining consistent fuel flow under pressure is a testament to its mechanical ingenuity. By directly linking fuel delivery to engine speed, it ensures reliability and efficiency in a wide range of applications, from classic cars to aviation. While its design demands careful maintenance and proper sizing, the pump remains a cornerstone of fuel delivery systems, particularly in environments where electric alternatives may fall short. Understanding its operation and limitations empowers enthusiasts and professionals alike to optimize performance and longevity.
Locating the Fuel Pump in a 2007 Vehicle: A Quick Guide
You may want to see also
Explore related products
Pressure Regulation: Maintaining optimal fuel pressure for efficient combustion and engine performance
Optimal fuel pressure is critical for efficient combustion and engine performance, and the engine-driven fuel pump plays a pivotal role in achieving this balance. Unlike electric fuel pumps, which rely on external power sources, engine-driven pumps derive their energy directly from the engine’s rotation, ensuring a consistent and proportional fuel supply as engine speed and load fluctuate. This mechanical linkage allows for precise pressure regulation, which is essential for delivering the correct fuel volume to the carburetor or fuel injection system under varying operating conditions. Without this regulation, engines risk running too rich or too lean, leading to inefficiency, power loss, or even damage.
Consider the combustion process: for every gram of gasoline, approximately 14.7 grams of air is required for a stoichiometric mixture—the ideal air-fuel ratio for complete combustion. The engine-driven fuel pump ensures that fuel pressure matches the engine’s demands, maintaining this ratio across idle, cruising, and high-load conditions. For instance, at idle, the pump reduces pressure to minimize fuel flow, while under acceleration, it increases pressure to meet the heightened fuel demand. This dynamic adjustment is achieved through a combination of mechanical design, such as diaphragm or plunger mechanisms, and pressure regulators that bypass excess fuel back to the tank when pressure exceeds optimal levels, typically between 3 to 7 psi for carbureted engines and 30 to 60 psi for fuel-injected systems.
A comparative analysis highlights the advantages of engine-driven pumps in pressure regulation. Electric pumps, while common in modern vehicles, can struggle to maintain consistent pressure under varying electrical loads or battery conditions. Engine-driven pumps, however, are inherently self-regulating due to their direct mechanical connection to the engine. This reliability is particularly valuable in aviation and marine applications, where consistent fuel delivery is non-negotiable. For example, in aircraft engines, engine-driven pumps ensure fuel pressure remains stable during maneuvers that subject the aircraft to extreme G-forces, preventing fuel starvation or vapor lock.
Practical maintenance tips underscore the importance of pressure regulation. Regularly inspect the pump’s diaphragm, valves, and lines for wear or leaks, as even minor defects can disrupt pressure control. For carbureted engines, verify the pressure regulator’s functionality by testing fuel pressure at idle and full throttle; deviations from specifications (e.g., 4.5 psi at idle for a Holley carburetor) indicate a need for adjustment or replacement. In fuel-injected systems, use a fuel pressure gauge to ensure the pump delivers the manufacturer’s specified pressure, typically found in the vehicle’s service manual. Ignoring these checks can lead to poor fuel economy, rough idling, or even engine failure.
In conclusion, pressure regulation is not just a feature of engine-driven fuel pumps—it’s their defining purpose. By maintaining optimal fuel pressure, these pumps ensure engines operate at peak efficiency, delivering power reliably and cleanly. Whether in a classic carbureted engine or a high-performance fuel-injected system, understanding and maintaining this regulation is key to preserving engine health and performance.
Finding the Fuel Pump Fuse in Your RV: A Quick Guide
You may want to see also
Explore related products
Engine Compatibility: Matching pump design to engine requirements for seamless operation and reliability
The engine-driven fuel pump is a critical component in many internal combustion engines, particularly in aviation, marine, and high-performance automotive applications. Its primary purpose is to deliver fuel from the tank to the engine at the required pressure and flow rate, ensuring optimal combustion. However, not all fuel pumps are created equal, and their design must align precisely with the engine’s demands to avoid inefficiencies, failures, or safety risks. Engine compatibility is the linchpin of this relationship, demanding a meticulous match between pump design and engine requirements for seamless operation and reliability.
Consider the flow rate, a key parameter in pump selection. A high-performance V8 engine, for instance, may require a fuel pump capable of delivering 250 liters per hour (LPH) at operating pressure, while a smaller four-cylinder engine might only need 130 LPH. Mismatching these values—installing a low-capacity pump in a high-demand engine—results in fuel starvation, leading to lean mixtures, misfires, and potential engine damage. Conversely, an oversized pump wastes energy and increases wear on the pump itself. Manufacturers often specify the required flow rate in their engine manuals, but custom applications demand calculations based on horsepower, fuel type, and operating conditions.
Pressure compatibility is equally critical. Engines with high-pressure fuel injection systems, such as those in modern diesel or direct-injection gasoline engines, require pumps capable of maintaining pressures up to 200 bar (2,900 psi). A pump designed for a carbureted engine, which operates at 3–7 psi, would fail catastrophically under such demands. Material selection also plays a role: pumps for high-pressure systems often use hardened steel or ceramic components to withstand stress, while lower-pressure pumps may rely on aluminum or plastic. Ignoring these specifications risks system failure or unsafe fuel leaks.
Another factor is the pump’s mechanical drive mechanism, which must synchronize with the engine’s rotational speed. In aircraft engines, for example, fuel pumps are often driven by a gearbox or camshaft, requiring precise gear ratios to maintain consistent fuel delivery across varying RPMs. In marine engines, pumps may need to account for prolonged operation at steady throttle settings, demanding robust bearings and cooling mechanisms to prevent overheating. Failure to match the pump’s drive system to the engine’s rotational characteristics results in erratic fuel delivery, especially during acceleration or load changes.
Finally, fuel type compatibility cannot be overlooked. Gasoline, diesel, ethanol blends, and aviation fuels (like avgas) have different viscosities, volatilities, and chemical properties, necessitating specific pump materials and seals. For instance, pumps handling ethanol-blended fuels require ethanol-resistant materials like Viton seals to prevent swelling and leaks. Similarly, diesel fuel pumps must handle higher pressures and thicker fuel, often featuring larger passages and stronger diaphragms. Using a pump designed for one fuel type with another can lead to rapid wear, contamination, or system failure.
In summary, engine compatibility is not a one-size-fits-all consideration but a nuanced process requiring careful analysis of flow rate, pressure, drive mechanism, and fuel type. By matching these parameters precisely, operators ensure not only seamless operation but also long-term reliability, safety, and efficiency. Whether upgrading an existing system or designing a new one, consulting manufacturer specifications, and performing compatibility checks are indispensable steps in achieving optimal performance.
Where Are GM Performance Fuel Pumps Manufactured? A Detailed Look
You may want to see also
Explore related products
Fuel Atomization: Enhancing fuel-air mixture quality for better combustion and power output
Fuel atomization is the process of breaking fuel into fine droplets, ensuring it mixes thoroughly with air for optimal combustion. In internal combustion engines, this process is critical because the finer the fuel particles, the larger the surface area exposed to oxygen, enabling more complete and efficient burning. Without effective atomization, fuel can remain in larger droplets, leading to incomplete combustion, reduced power output, and increased emissions. For instance, in diesel engines, high-pressure fuel injection systems achieve atomization by forcing fuel through tiny nozzles at pressures exceeding 1,500 bar, creating droplets as small as 10 micrometers in diameter.
Achieving proper fuel atomization requires precise control over fuel pressure and delivery. This is where an engine-driven fuel pump plays a pivotal role. Unlike electric fuel pumps, engine-driven pumps are mechanically linked to the engine’s operation, ensuring fuel delivery scales directly with engine speed and load. For example, in carbureted engines, the pump maintains a consistent fuel pressure of 3–6 psi, allowing the carburetor to mix fuel and air effectively. In fuel-injected systems, the pump delivers fuel at pressures up to 60 psi, enabling high-pressure injectors to atomize fuel for direct injection into the combustion chamber.
The quality of the fuel-air mixture directly impacts engine performance and efficiency. A well-atomized mixture burns faster and more uniformly, maximizing the energy extracted from each fuel molecule. This results in higher power output, improved throttle response, and reduced fuel consumption. For instance, in racing applications, teams often fine-tune fuel pressure and injector spray patterns to achieve droplet sizes optimized for specific RPM ranges. Even a 5% improvement in atomization efficiency can translate to a noticeable gain in horsepower and torque.
However, achieving optimal atomization isn’t without challenges. Factors like fuel temperature, viscosity, and injector wear can degrade atomization quality. For example, cold fuel is denser and harder to atomize, while worn injectors may produce uneven spray patterns. To mitigate these issues, regular maintenance is essential. Inspect injectors annually and replace them if flow rates deviate by more than 5%. Additionally, using fuel additives that reduce viscosity can improve atomization in colder climates. For high-performance engines, consider upgrading to multi-hole injectors, which produce finer droplets and more consistent spray cones.
In conclusion, fuel atomization is a cornerstone of efficient combustion, and the engine-driven fuel pump is instrumental in achieving it. By maintaining precise fuel pressure and delivery, the pump ensures injectors can atomize fuel effectively, regardless of engine conditions. Whether for daily driving or high-performance applications, optimizing atomization through proper pump operation and maintenance yields tangible benefits: cleaner emissions, greater power, and improved fuel economy. For enthusiasts and mechanics alike, understanding this relationship is key to unlocking an engine’s full potential.
Removing a Rusted Fuel Pump Lock Ring: Tips and Tricks
You may want to see also
Explore related products
Reliability and Durability: Ensuring long-term functionality under varying operating conditions and loads
Engine-driven fuel pumps are critical for maintaining consistent fuel delivery, especially in high-performance or heavy-duty applications where electric pumps fall short. Their reliability and durability are paramount, as they must operate flawlessly under extreme conditions—from subzero temperatures to high-altitude operations, and from idle to full throttle. A single failure can lead to engine stalling, reduced efficiency, or even catastrophic damage, making their long-term functionality a non-negotiable requirement.
Consider the operating environment of a diesel truck traversing mountainous terrain. At high altitudes, air density decreases, requiring the fuel pump to work harder to maintain pressure. Simultaneously, temperature fluctuations can cause fuel viscosity to vary, affecting flow rates. A reliable pump must compensate for these changes without faltering, ensuring the engine receives the precise amount of fuel needed. For instance, pumps with hardened steel components and precision-engineered bearings can withstand such stresses, while those with inferior materials may fail prematurely.
To ensure durability, manufacturers often subject fuel pumps to rigorous testing, simulating millions of cycles under varying loads. For example, a pump designed for aviation use might be tested at pressures up to 10,000 PSI and temperatures ranging from -40°C to 150°C. Such testing identifies weak points, allowing for design improvements like reinforced diaphragms or corrosion-resistant coatings. Operators can further enhance longevity by adhering to maintenance schedules—replacing filters every 10,000 miles, for instance, prevents debris buildup that could damage internal components.
A comparative analysis highlights the importance of material selection. Aluminum pumps, while lightweight, may deform under prolonged high-temperature exposure, whereas stainless steel pumps offer superior heat resistance but add weight. The choice depends on the application: a racing car might prioritize weight savings, while a marine engine requires corrosion resistance. In both cases, the pump’s ability to perform consistently over years, not just months, is the ultimate measure of its value.
Finally, redundancy and fail-safe mechanisms are critical for mission-critical applications. In aviation, dual fuel pumps ensure that if one fails, the other maintains operation. Similarly, in industrial settings, pumps with integrated pressure regulators can automatically adjust flow rates to prevent overloading. These features, combined with robust construction and proactive maintenance, transform a simple component into a cornerstone of system reliability, ensuring it meets the demands of its environment without compromise.
Testing Your 2002 Ford F150 Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The purpose of an engine-driven fuel pump is to deliver fuel from the tank to the engine at the required pressure and flow rate, ensuring proper combustion and engine performance.
An engine-driven fuel pump is powered directly by the engine (often via a mechanical connection), while an electric fuel pump is powered by the vehicle's electrical system, offering more flexibility in placement and operation.
Engine-driven fuel pumps are commonly used in diesel engines because diesel fuel requires high pressure for injection, and the mechanical linkage ensures consistent and reliable fuel delivery under heavy loads.
Yes, an engine-driven fuel pump can fail due to wear, contamination, or mechanical damage. Symptoms include hard starting, engine stalling, reduced power, and unusual noises from the pump.
Engine-driven fuel pumps are less common in modern gasoline engines, as most use electric fuel pumps. However, they are still found in some high-performance or specialized applications where mechanical reliability is critical.
